High Mounted Stop Lamp Replacement (Impala)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

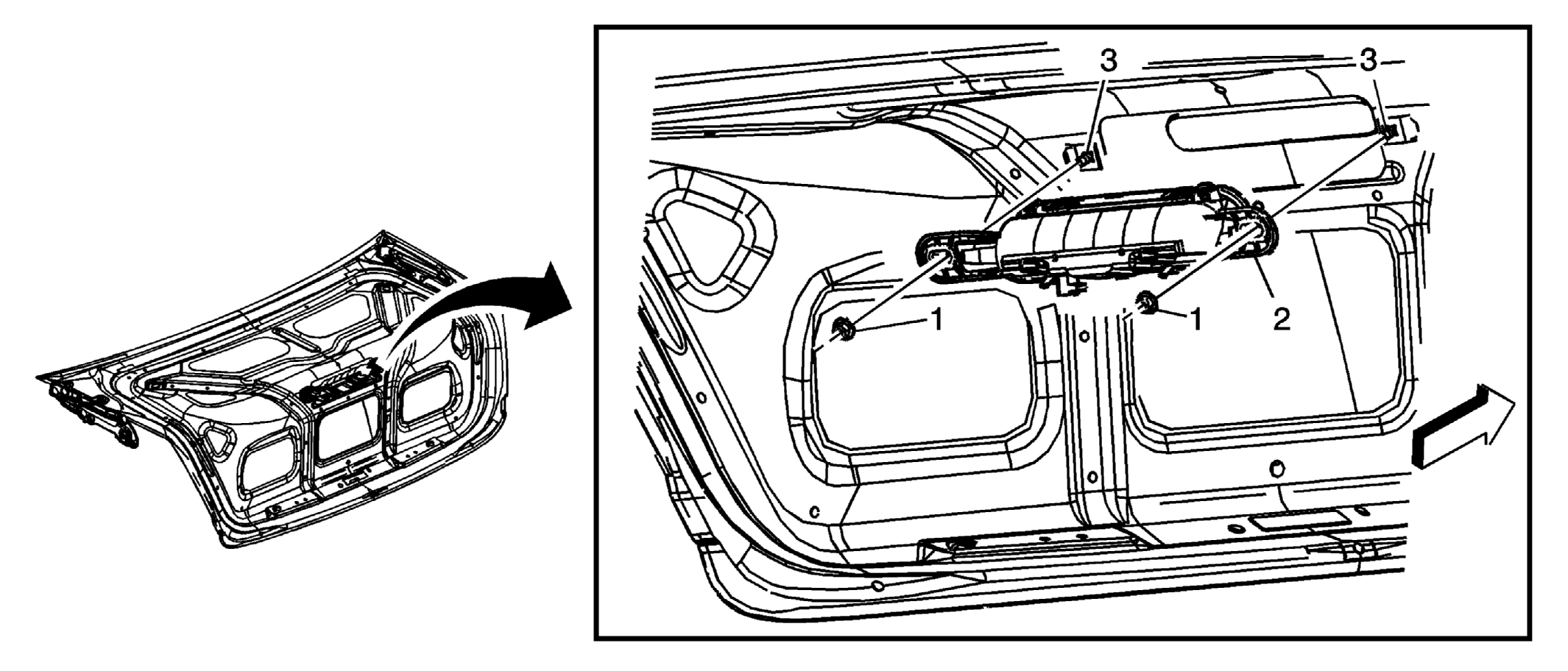

Fig 1: Replacing High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear interior compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear .
1	Nuts, High Mounted Stop Lamp Assembly (Qty: 2) Tighten: 4 N.m (35 lb in)
2	Lamp Assembly, High Mounted Stop Tip: Remove the high mounted stop lamp from the inside of the rear compartment lid mounting studs. Disconnect the electrical connector to the high mounted stop lamp.
3	Studs, Rear Compartment Inner Panel Tip: Ensure the studs are secure to the inner compartment panel upon reassemble.
