Inflatable Restraint Seat Position Sensor Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

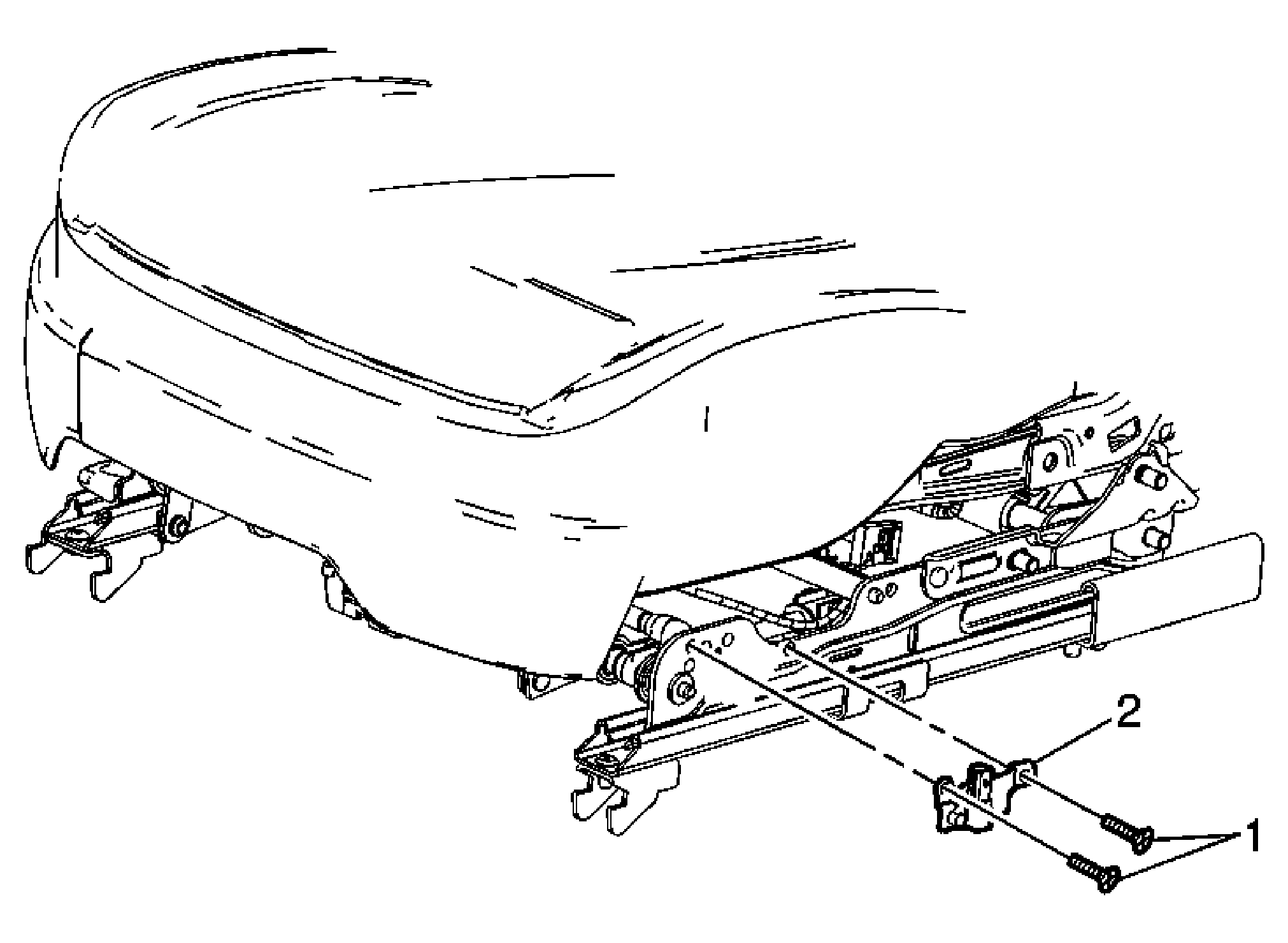

Fig 1: Removing/Installing Inflatable Restraint Seat Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front passenger seat. Refer to Seat Replacement . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .
1	Screw, Inflatable Restraint Front Passenger Position Sensor (Qty: 2) Tighten: 3 N.m (25 lb in)
2	Sensor Assembly, Inflatable Restraint Front Passenger Position Tip: Disconnect the electrical connector.

Callout

Component Name

CAUTION: Refer to SIR Caution .

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front passenger seat. Refer to Seat Replacement .
Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .

Screw, Inflatable Restraint Front Passenger Position Sensor (Qty: 2)

Tighten: 3 N.m (25 lb in)

Sensor Assembly, Inflatable Restraint Front Passenger Position
Tip: Disconnect the electrical connector.
