Child Restraint Tether Anchor Replacement (Monte Carlo)

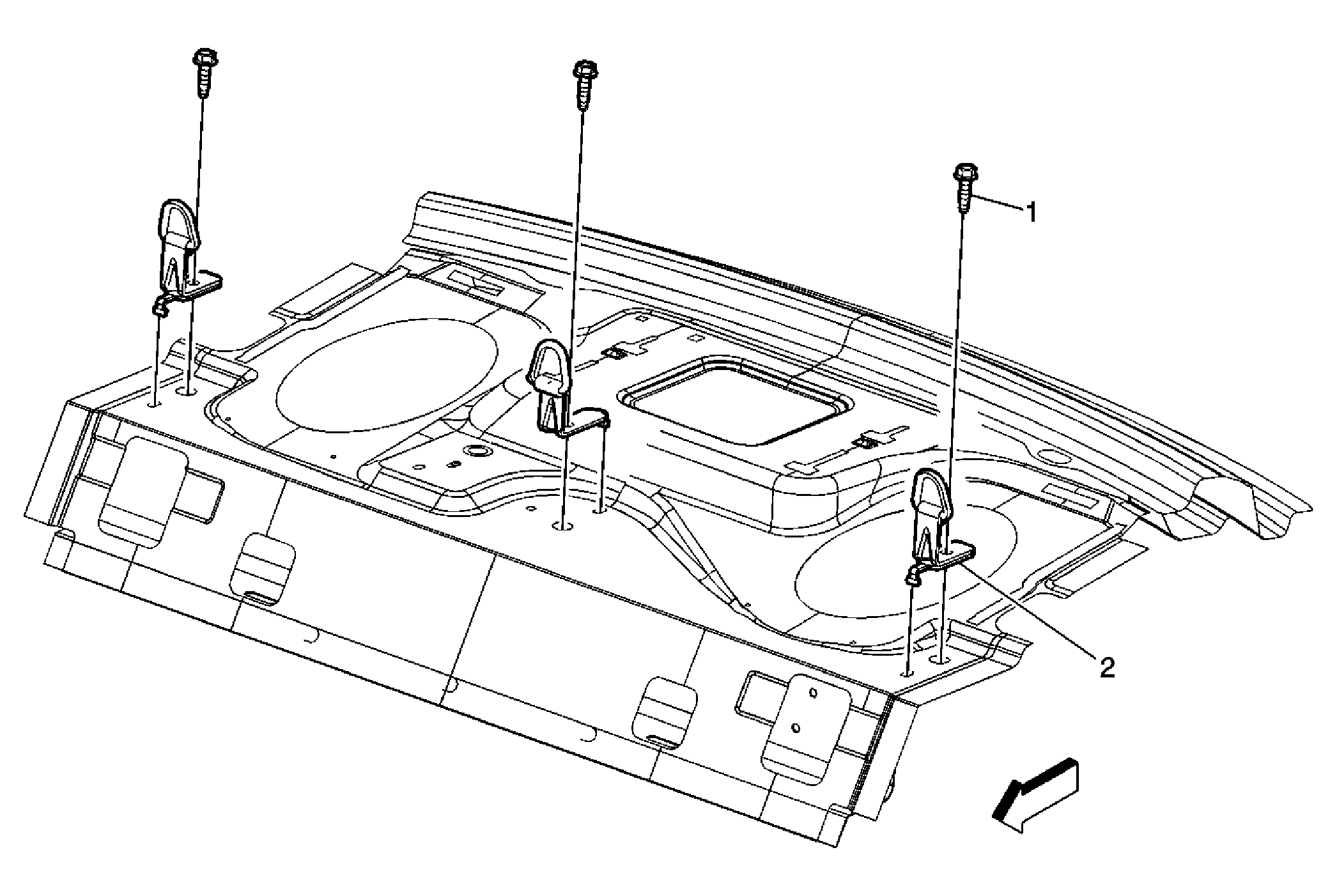

Fig 1: Identifying Child Restraint Tether Anchor (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
1	Child Restraint Tether Anchor Bolt (Qty: 3) Tighten: 24 N.m (18 lb ft)
2	Child Restraint Tether Anchor (Qty: 3)
