I/P Harness - Engine Compartment

Power and Grounding Component Views

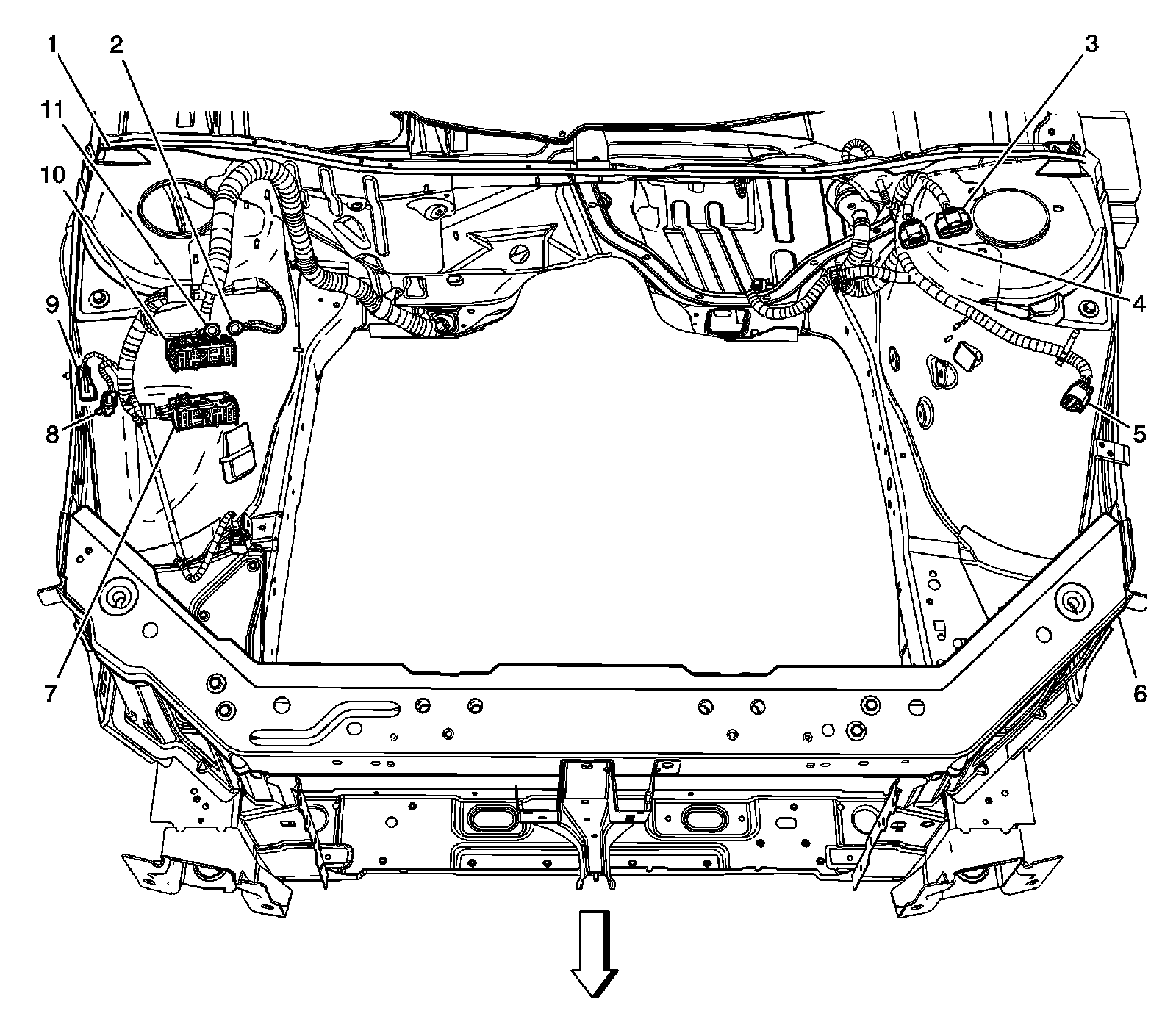

I/P Harness - Engine Compartment




1 - RF Strut Tower
2 - Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
3 - Fusible Links (9C1, 9C3)
4 - C111
5 - C101
6 - Radiator Core Support
7 - Fuse Block - Underhood C2
8 - C123 (9C1, 9C3)
9 - C105
10 - Fuse Block - Underhood C1
11 - Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
