Headlamp Control Module: Locations



Lighting Systems Component Views

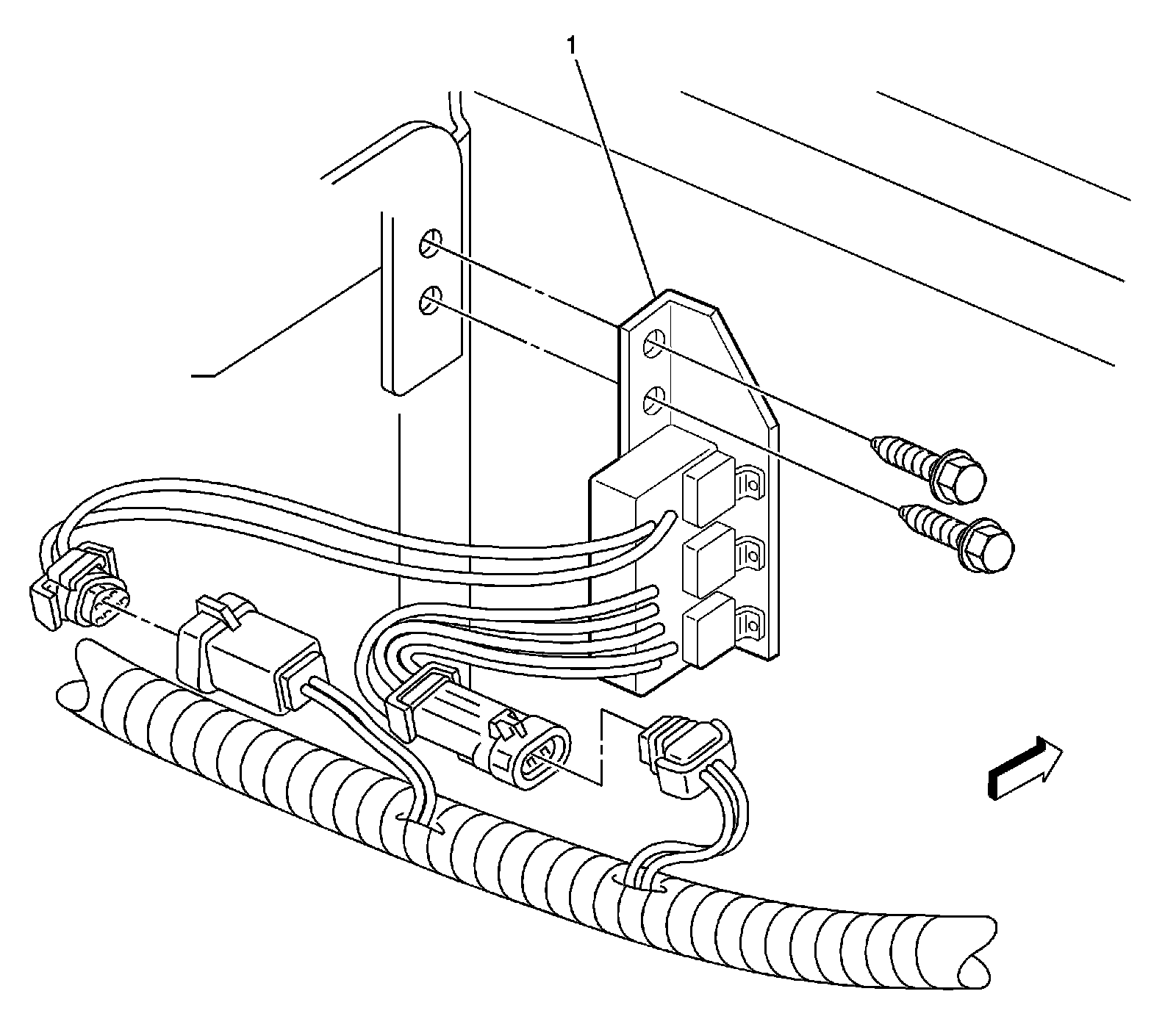

Left Side of the Right Headlamp Assembly (9C1, 9C3)




1 - Headlamp Flasher Module (6J7)
