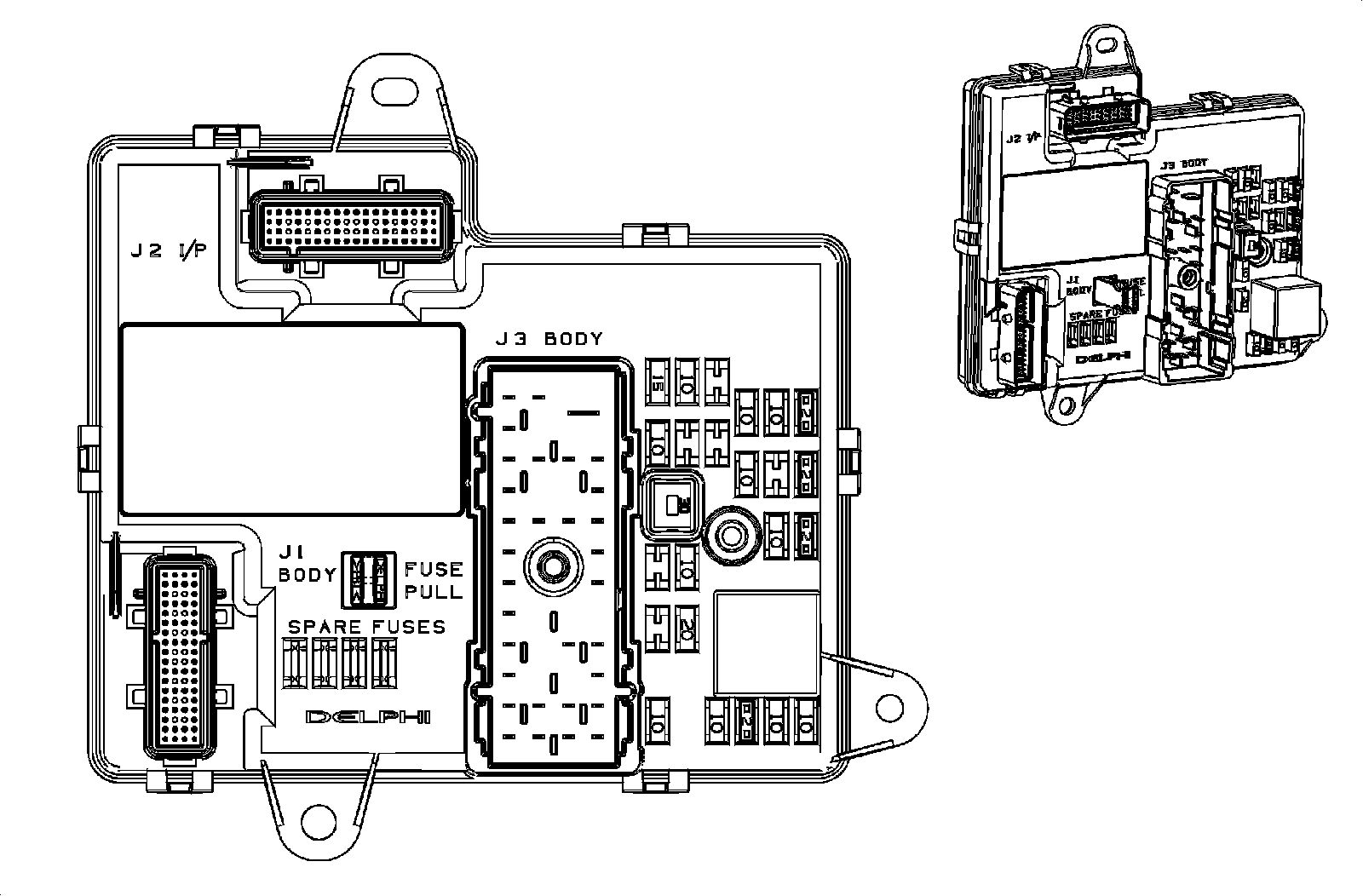

Body Control Module (BCM) - Cover
Electrical Center Identification Views
Body Control Module (BCM) - Top View
Body Control Module (BCM) - Bottom View
Body Control Module (BCM) C1

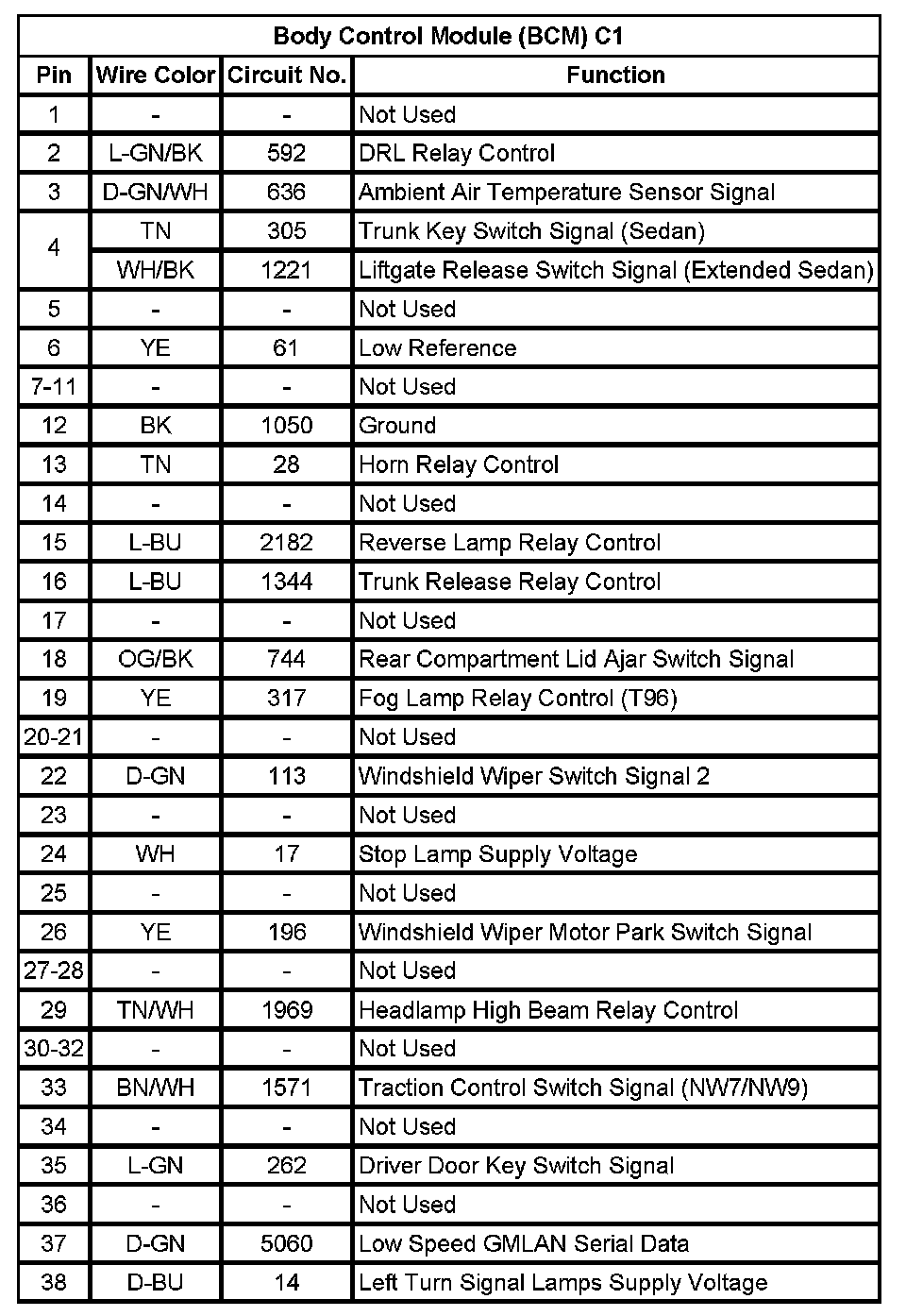

Body Control Module (BCM) C1 (Pin 1 To 38):

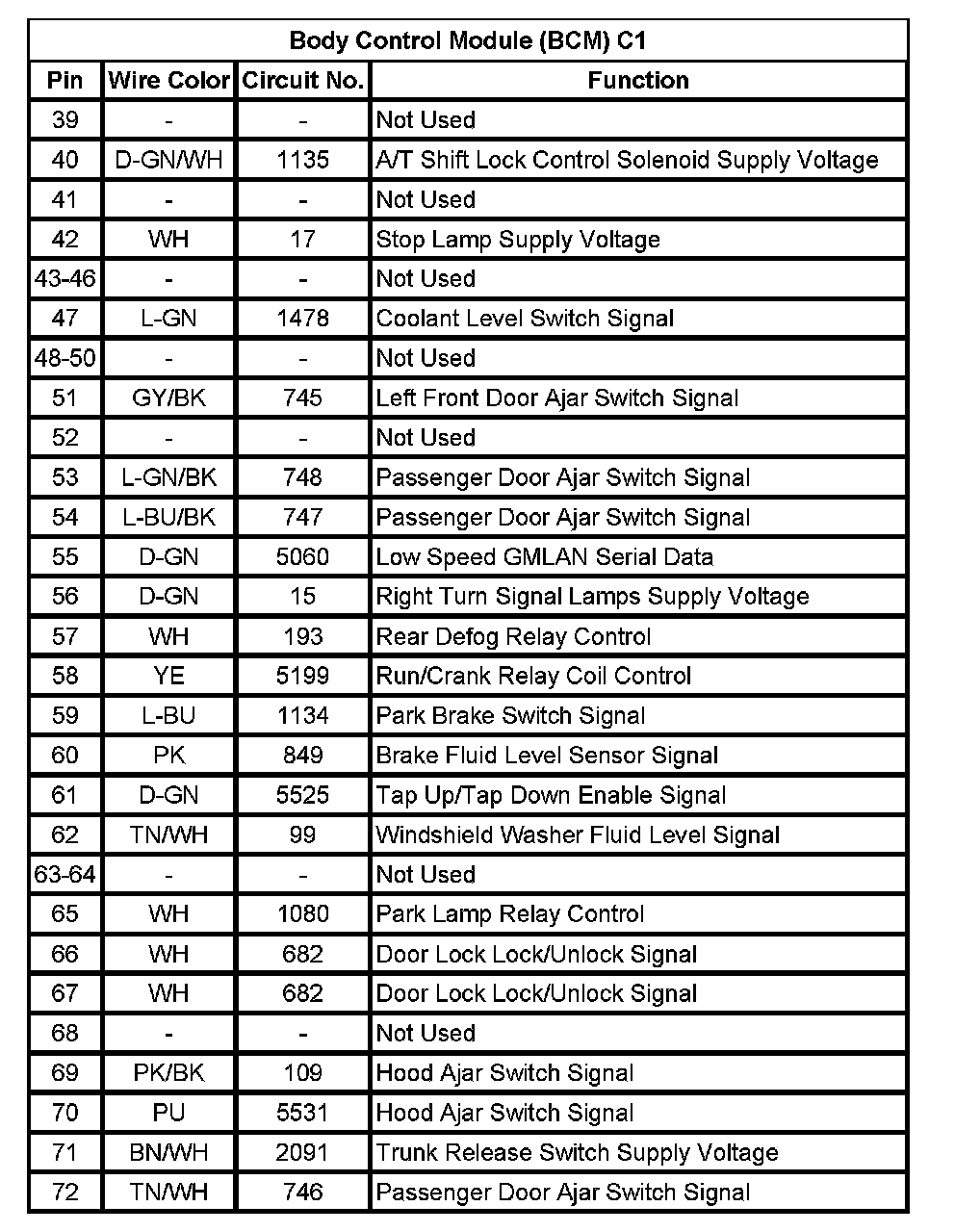

Body Control Module (BCM) C1 (Pin 39 To 72):
Body Control Module (BCM) C2

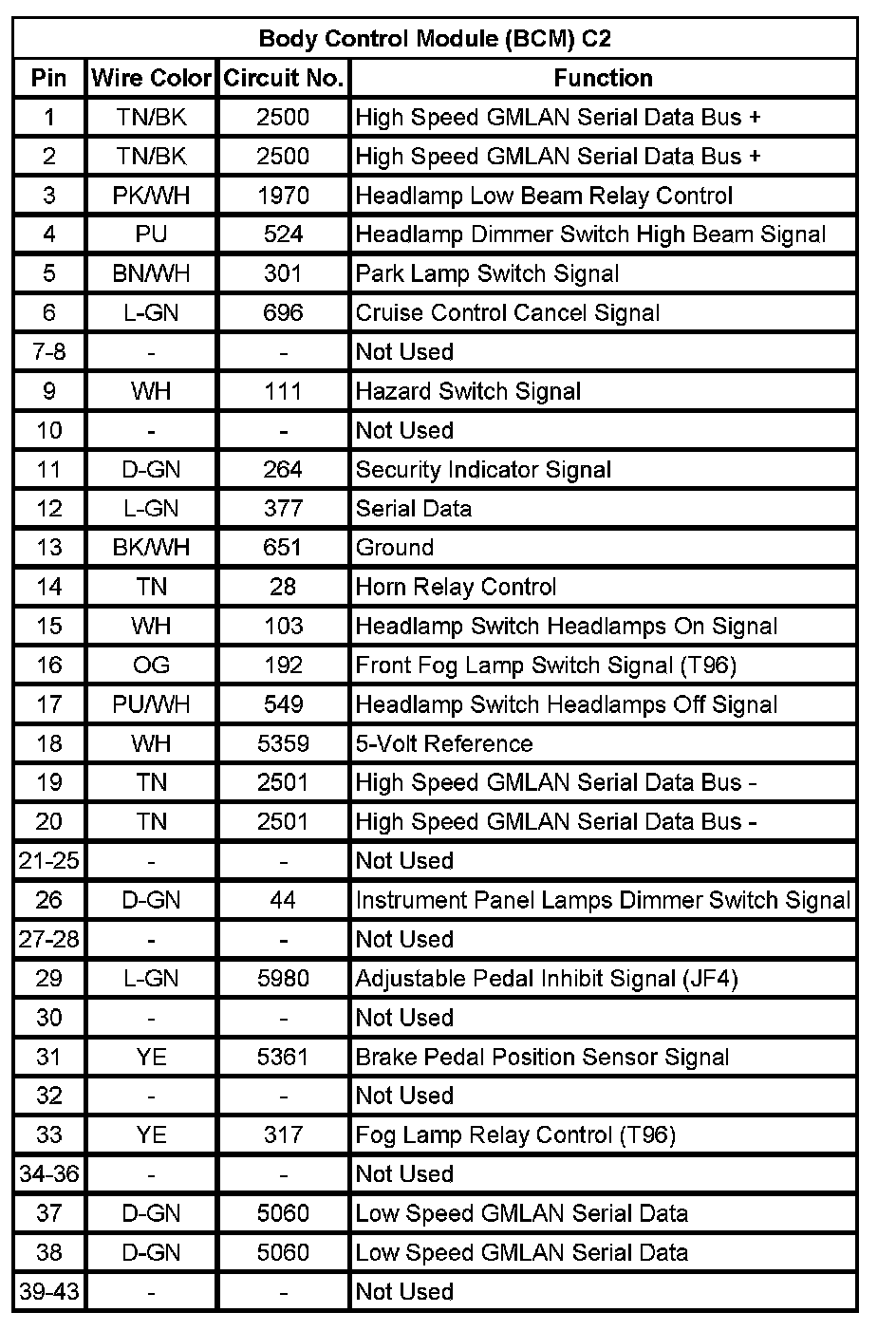

Body Control Module (BCM) C2 (Pin 1 To 43):

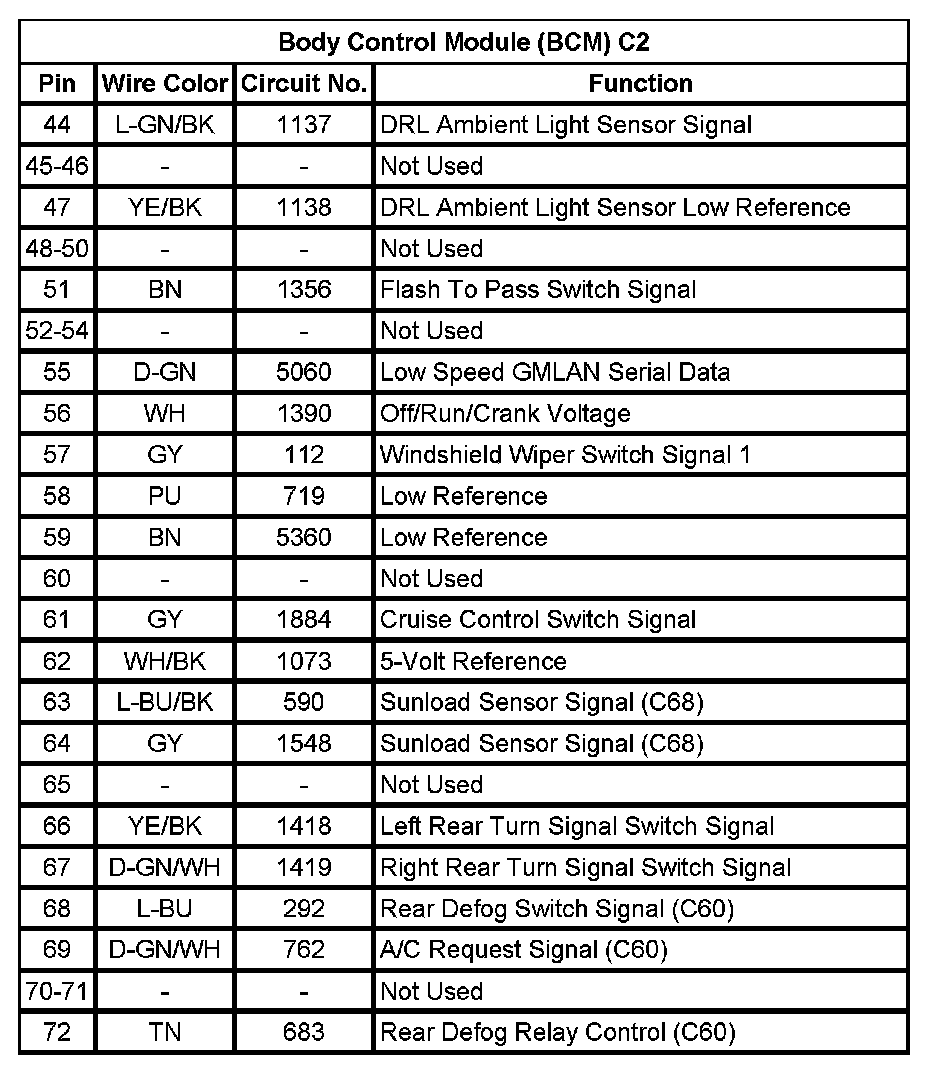

Body Control Module (BCM) C2 (Pin 44 To 72):
Body Control Module (BCM) C3

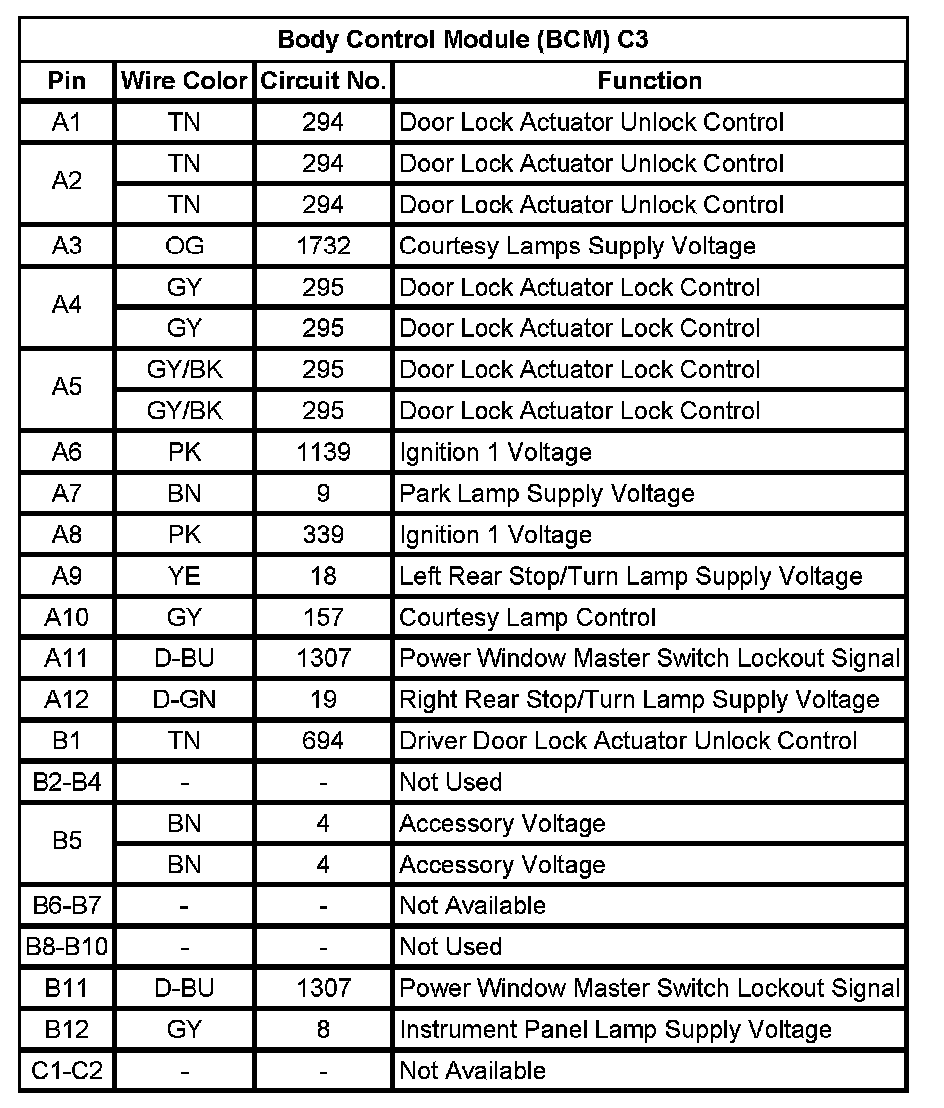

Body Control Module (BCM) C3 (Pin A1 To C2):

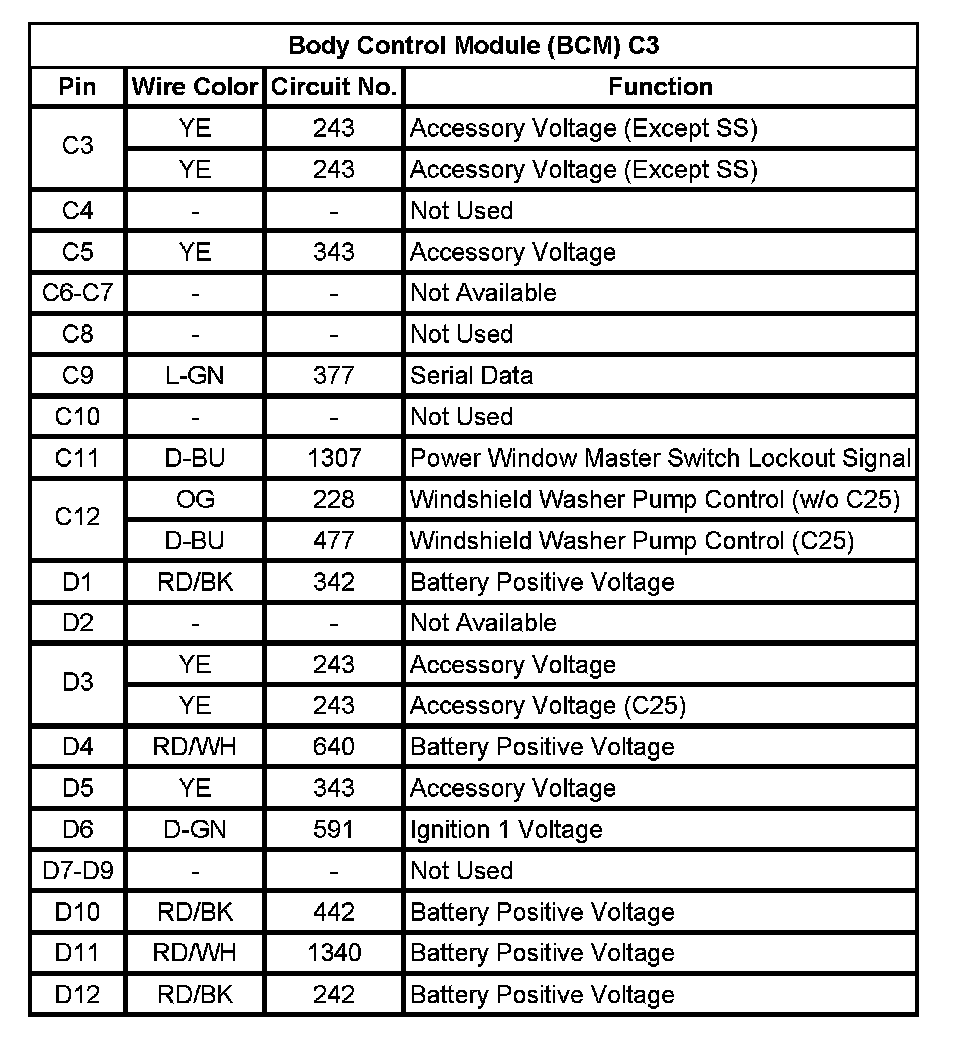

Body Control Module (BCM) C3 (Pin C3 To D12):
Body Control Module (BCM) C4

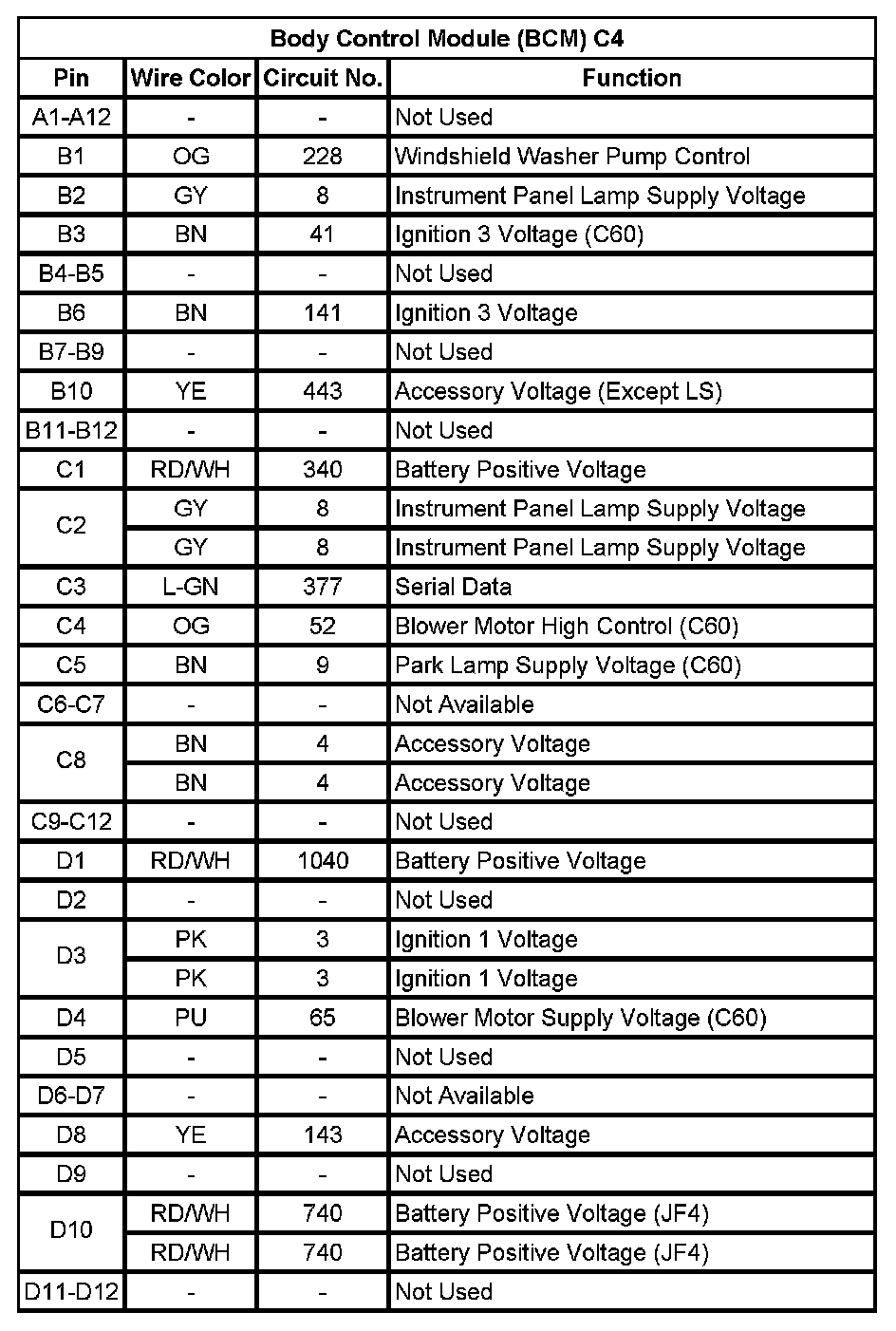

Body Control Module (BCM) C4 (Pin A1 To D12):

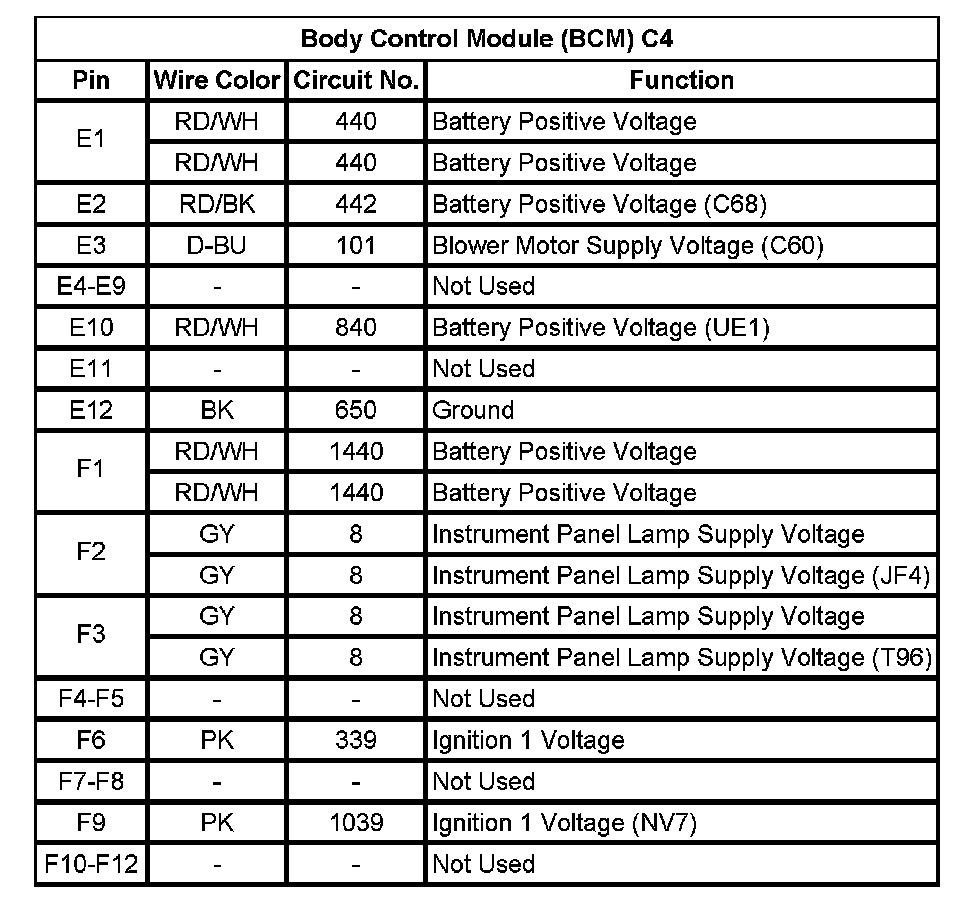

Body Control Module (BCM) C4 (Pin E1 To F12):
