Sunroof / Moonroof

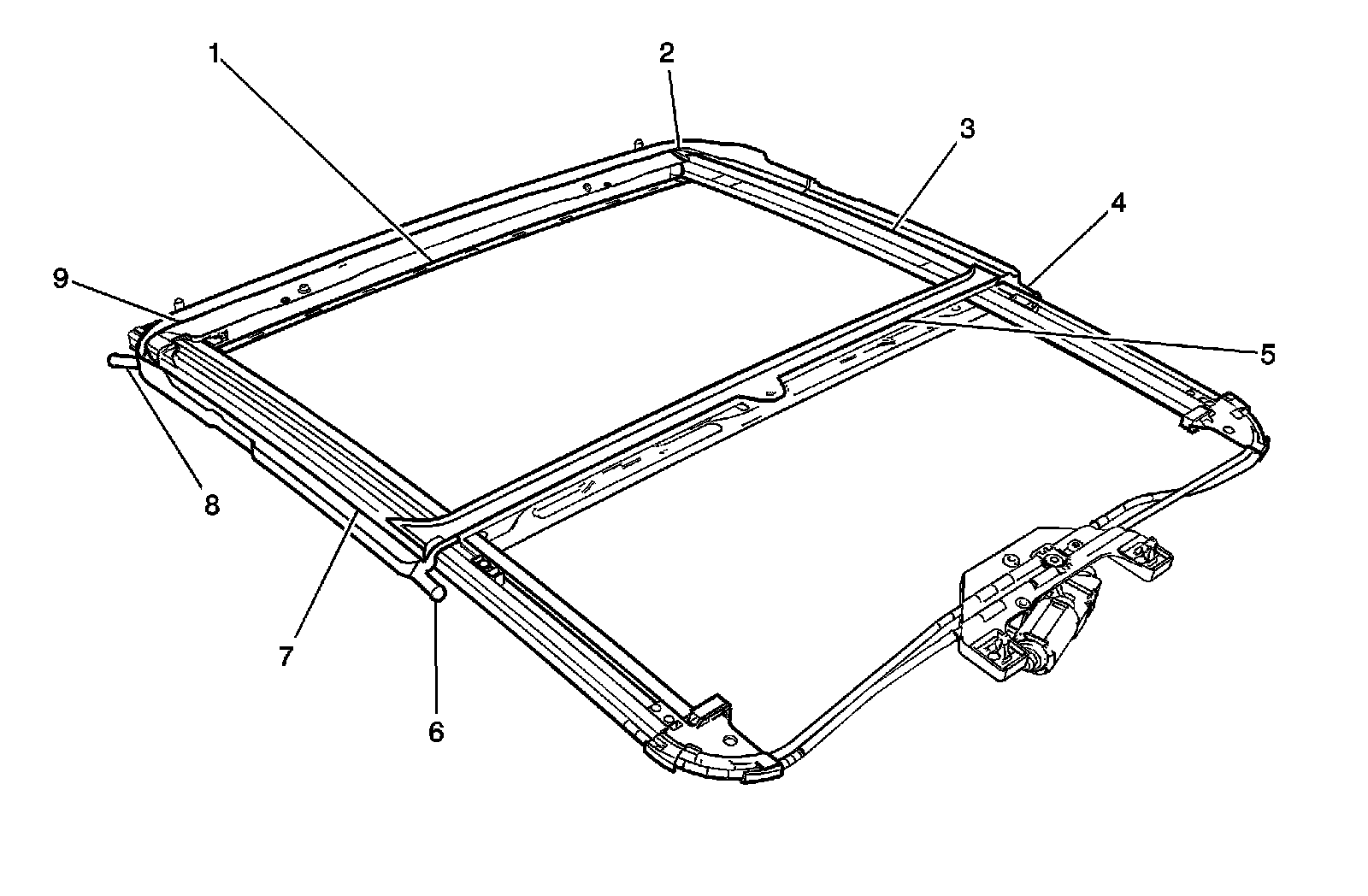

Sunroof Water Management System Identification




1 - Sunroof Module
2 - Front Drain, Right
3 - Water Channel, Right
4 - Rear Drain, Right
5 - Water Channel, Rear
6 - Rear Drain, Left
7 - Water Channel, Left
8 - Front Drain, Left
9 - Water Channel, Front
