Remote Function Component Views

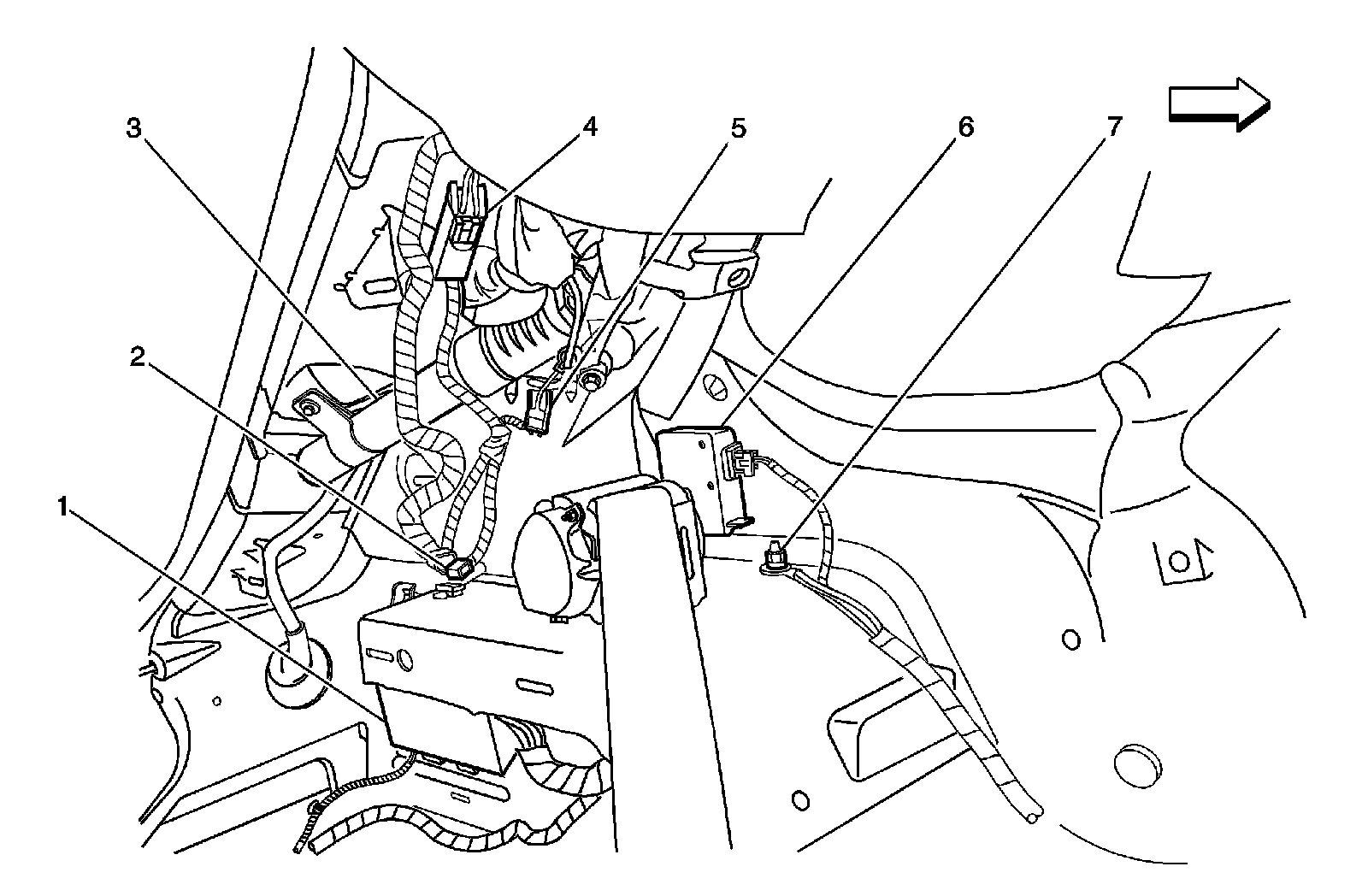

Remote Function Component Views




1 - Fuse Block - Rear
2 - C651
3 - Inflatable Restraint Side Impact Module - Left (AY1)
4 - C404
5 - C801
6 - Remote Control Door Lock Receiver (RCDLR)
7 - G302
