Left Side of Core Support



Power and Grounding Component Views

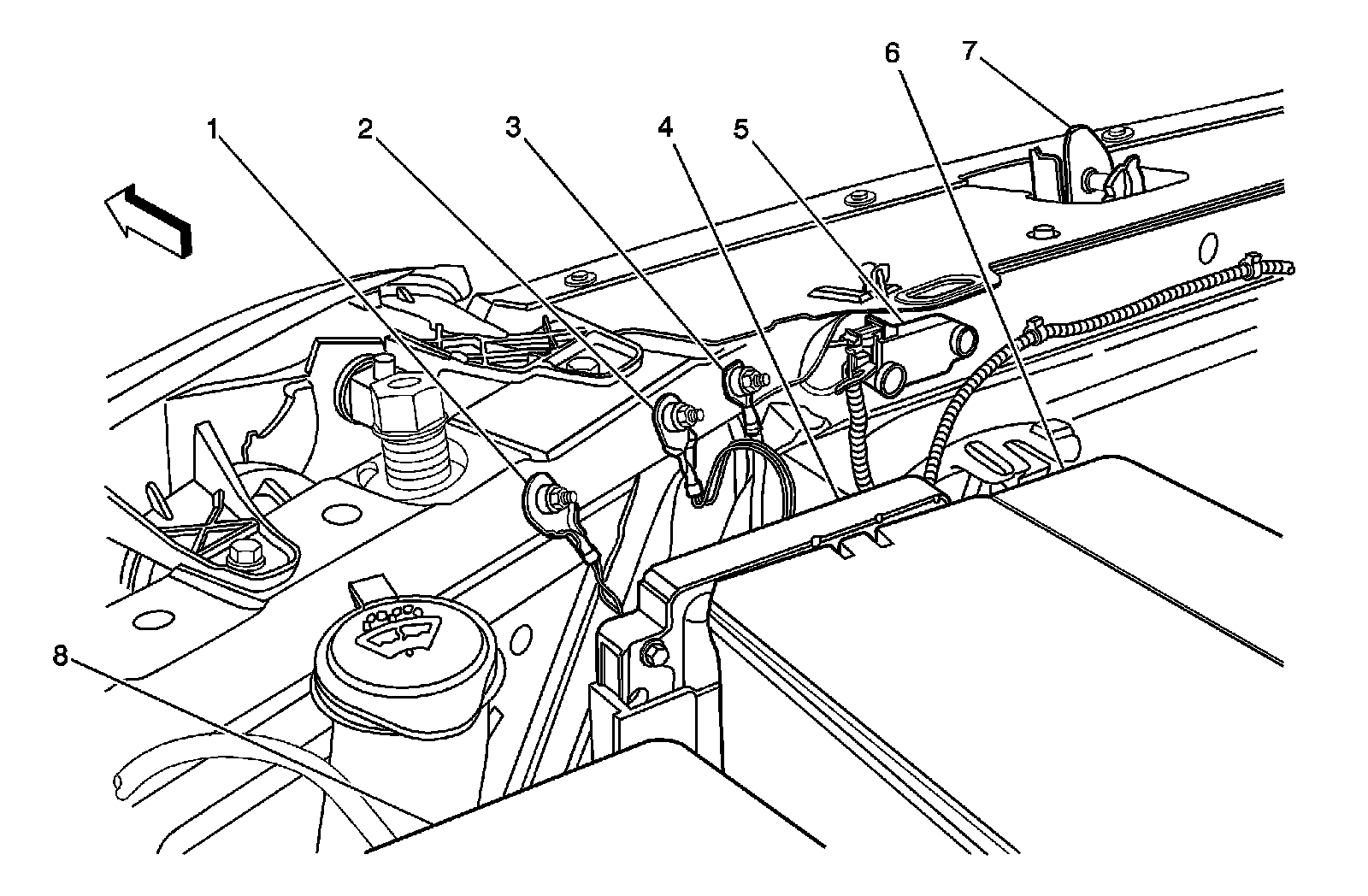

Left Side of Core Support




1 - G101
2 - G104
3 - G109
4 - Powertrain Control Module (PCM)
5 - Inflatable Restraint Front End Sensor - Left
6 - Battery
7 - Hood Latch
8 - Fuse Block - Underhood
