Ignition Control Module: Locations

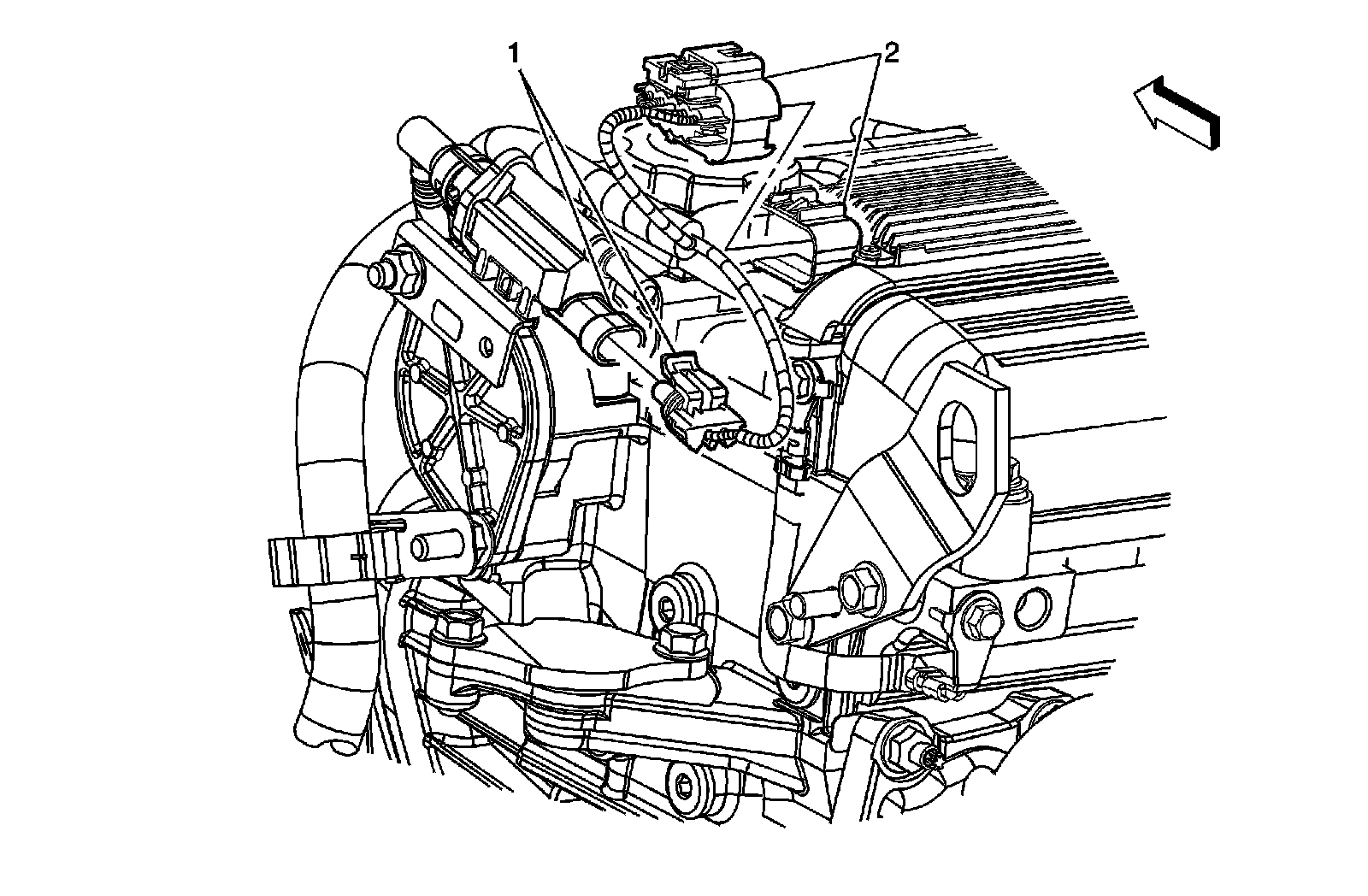

Engine Controls Component Views

Top of Engine - L61




1 - Evaporative Emission (EVAP) Canister Purge Solenoid
2 - Ignition Control Module (ICM)
