Oil Pan, Engine

Oil Pan Bolts





Install the oil pan bolts.

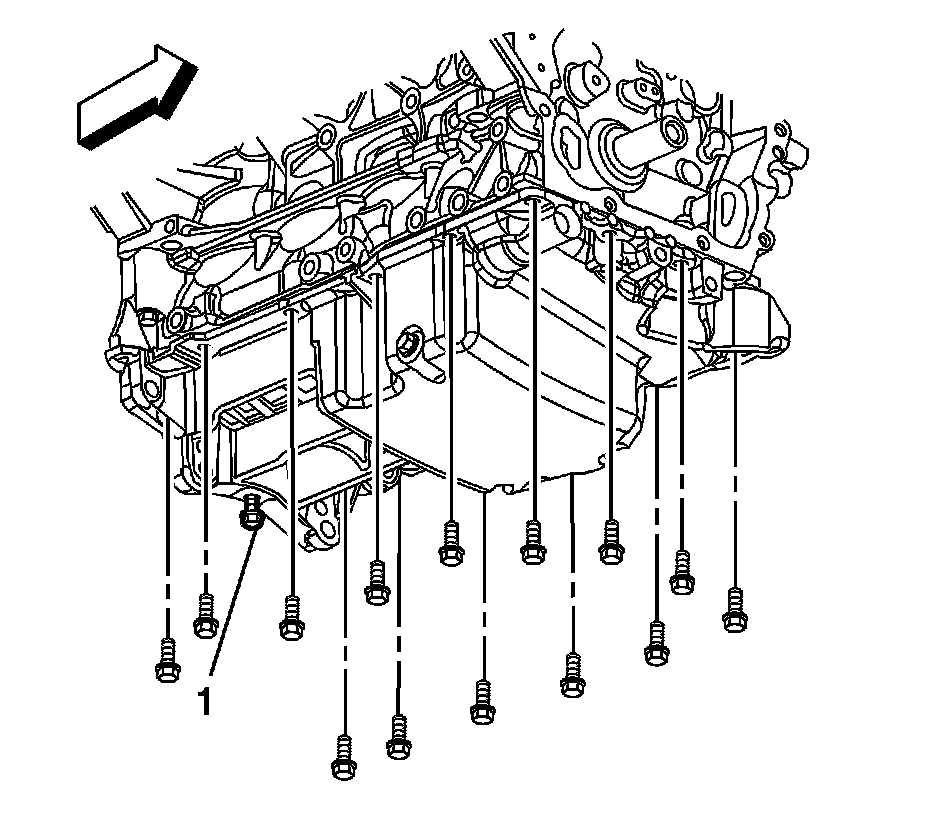

Tighten the oil pan bolts in the sequence shown.
Tighten the bolts to 25 N.m (18 lb ft).
