Oil Pan, Engine

Oil Pan Bolt





Install a NEW oil pan gasket.

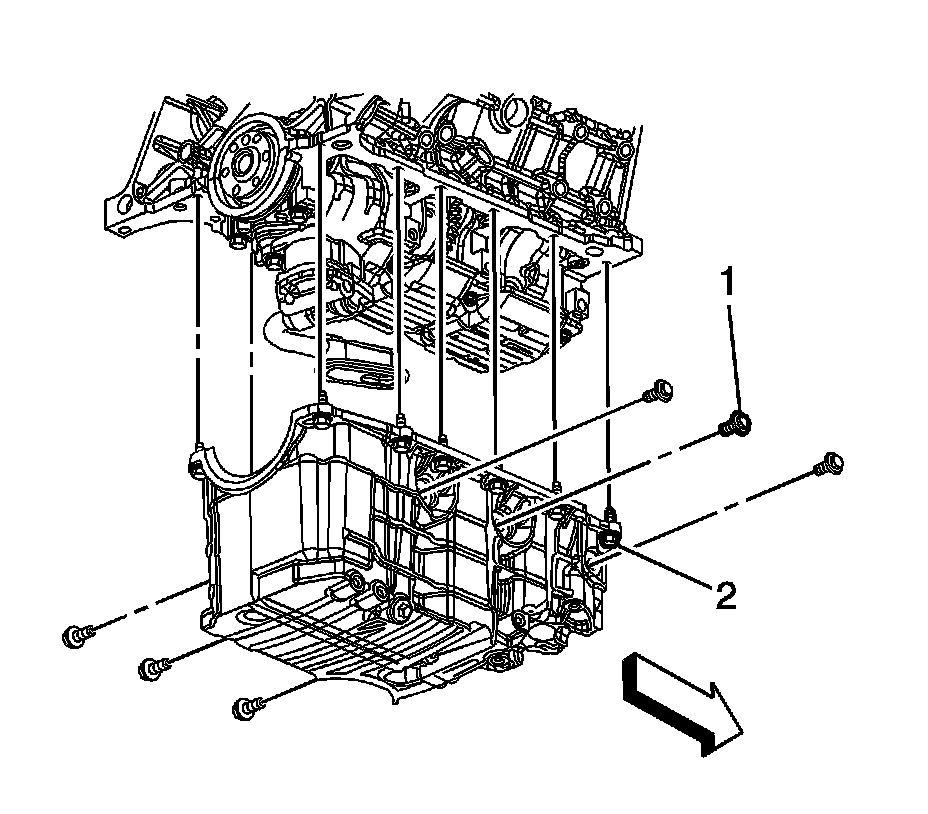

Position the oil pan to the engine.

Install the oil pan bolts (1, 2).
Tighten the bolts (1) to 50 N.m (37 lb ft).
Tighten the bolts (2) to 25 N.m (18 lb ft).

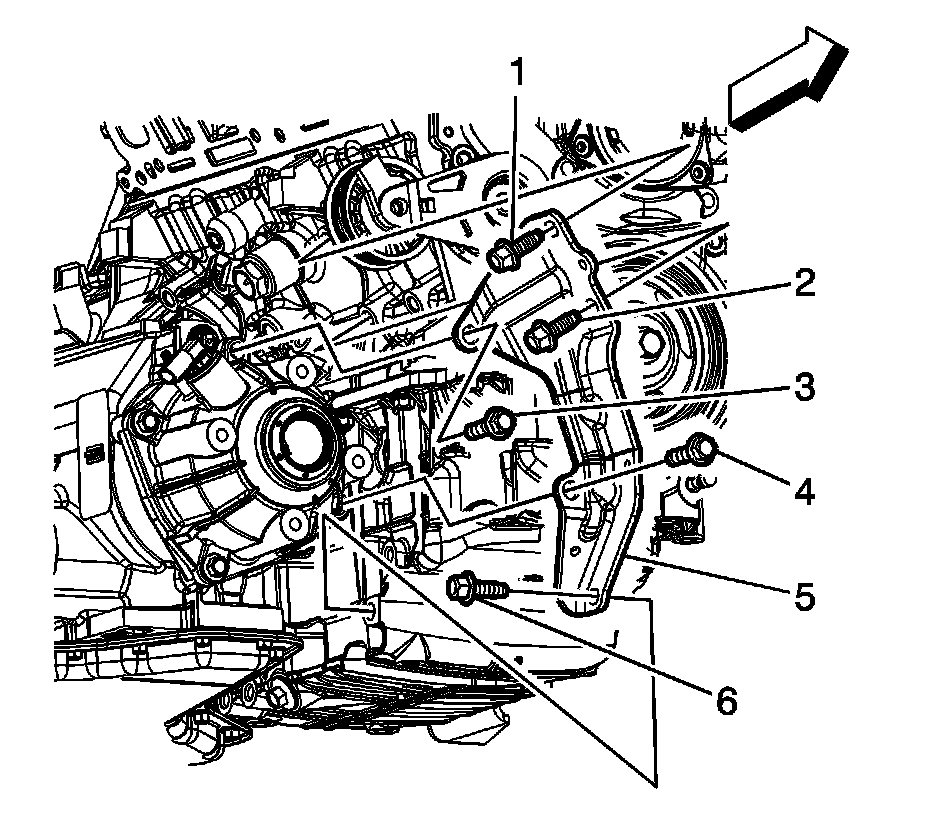

Install the transaxle brace to oil pan lower bolt (6), if equipped with RPO M15.

Tighten the bolts to 50 N.m (37 lb ft).
