Keyless Entry Transmitter

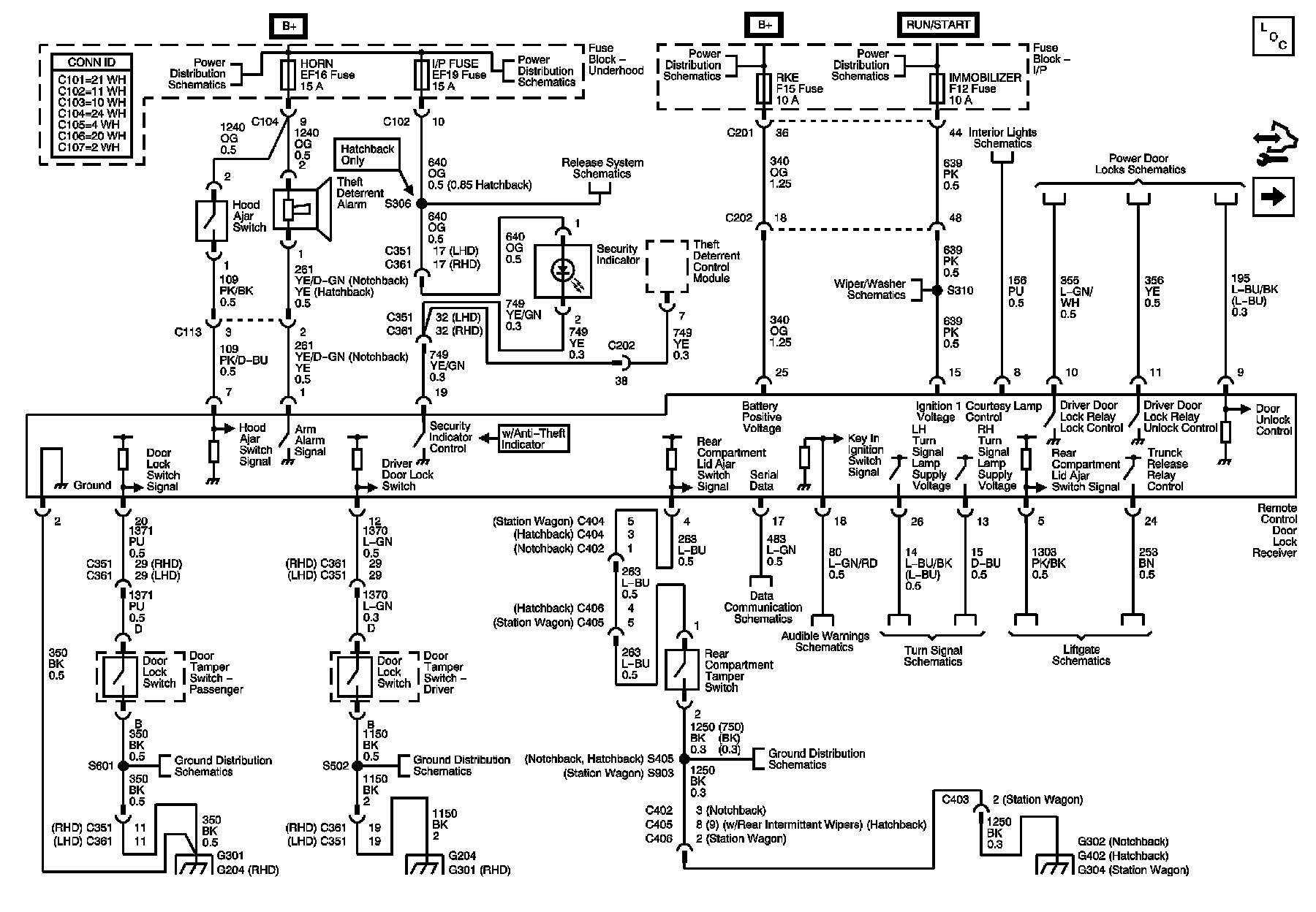

Remote Function Schematics
Remote Control
Door LK Receiver

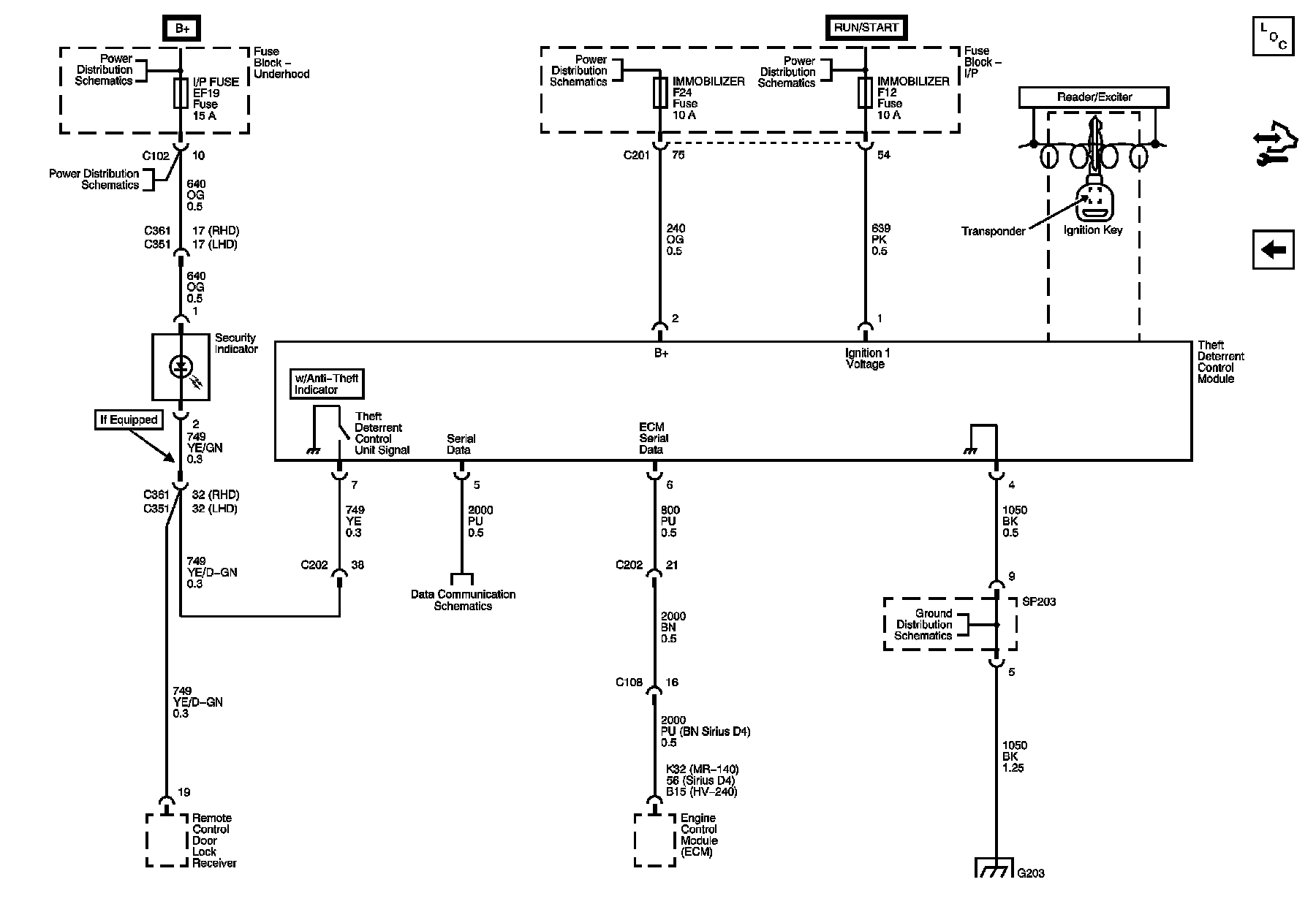

Theft Deterrent Control Module
