Moveable Window Schematics

Fig 1: Front/Rear Power Windows Schematic
GM1650864Courtesy of GENERAL MOTORS CORP.

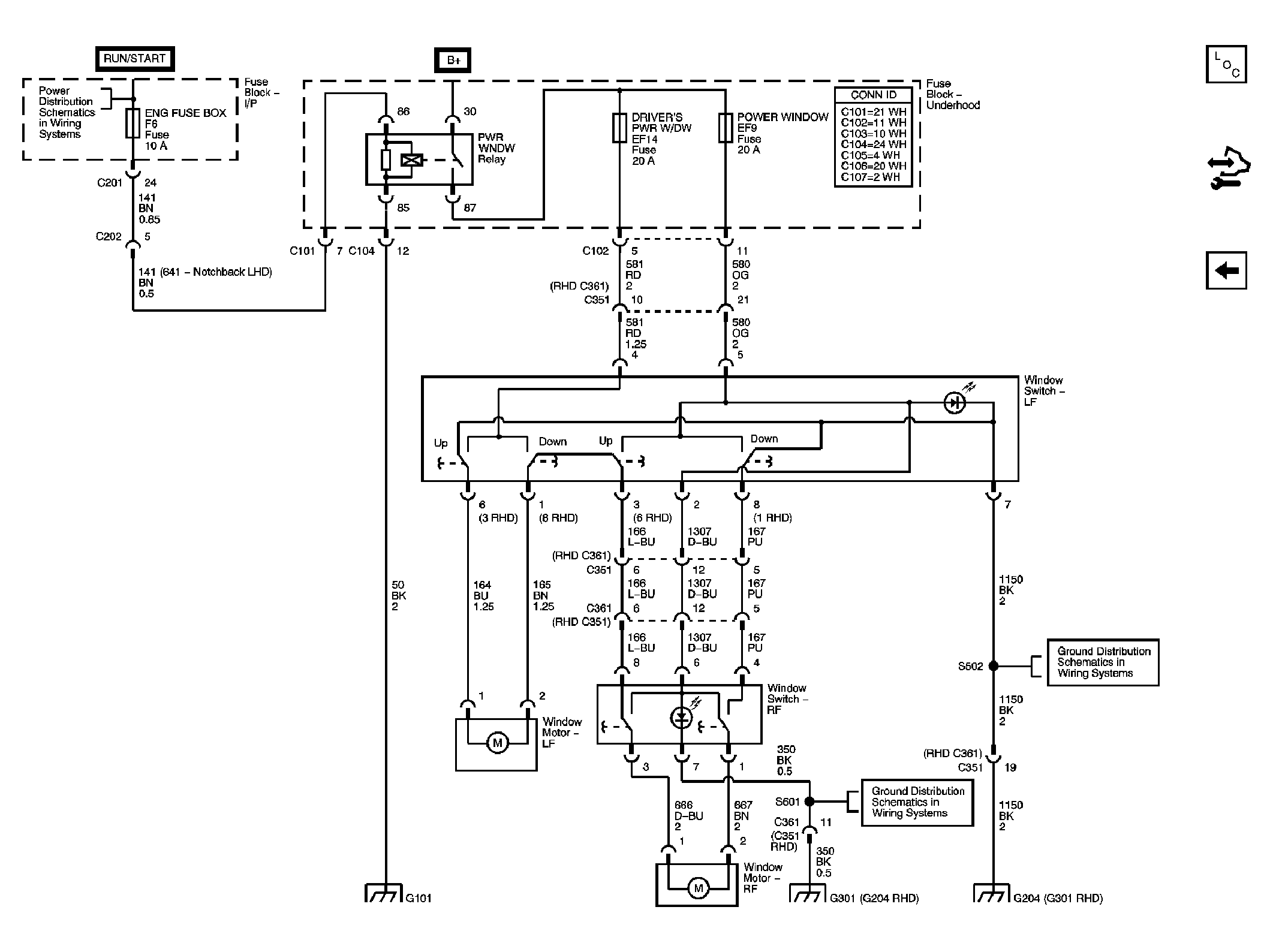

Fig 2: Front Power Windows Schematic
GM1709025Courtesy of GENERAL MOTORS CORP.
