Combination Switch

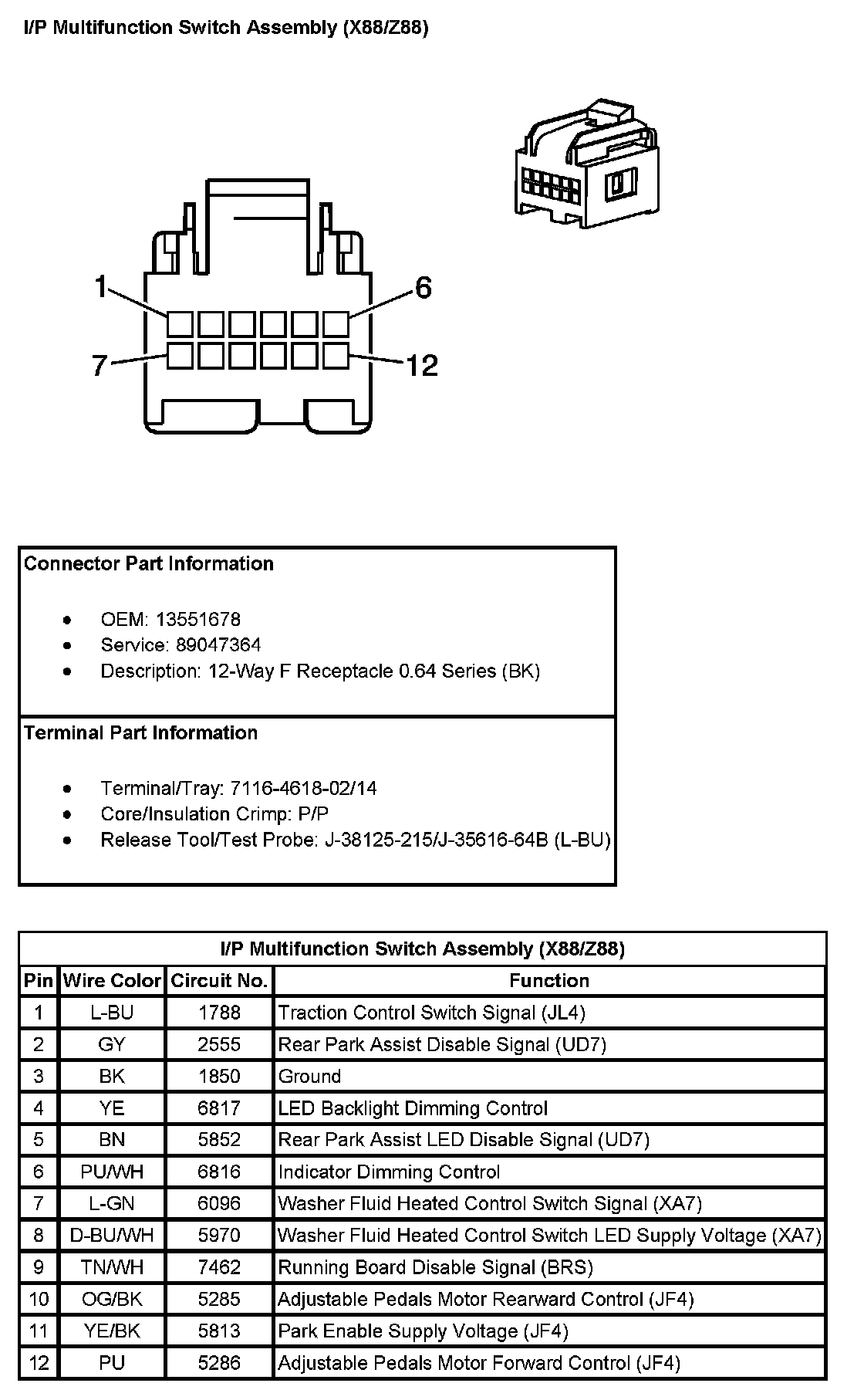

I/P Multifunction Switch Assembly (With RPO Code X88/Z88):

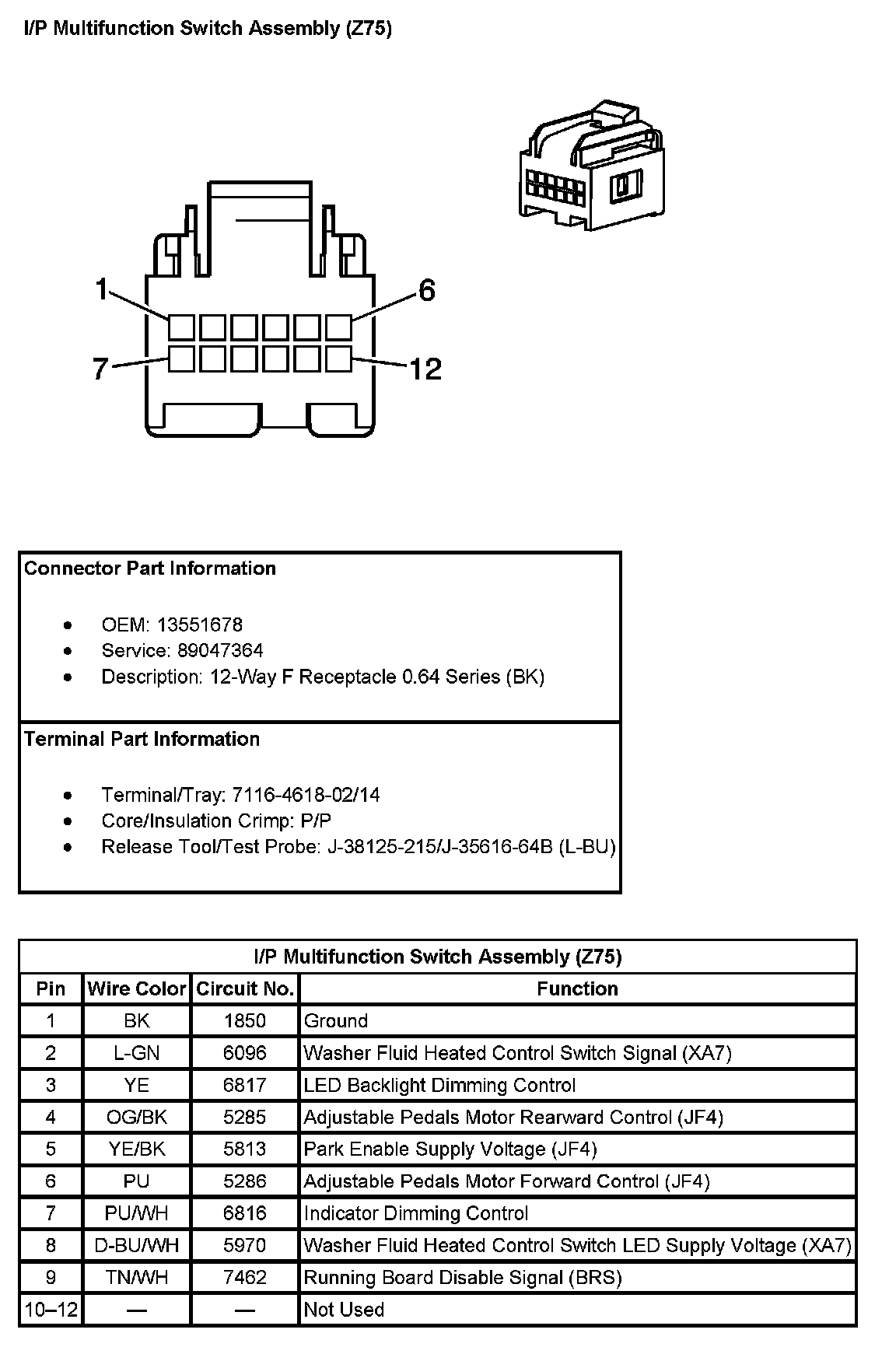

I/P Multifunction Switch Assembly (With RPO Code Z75):

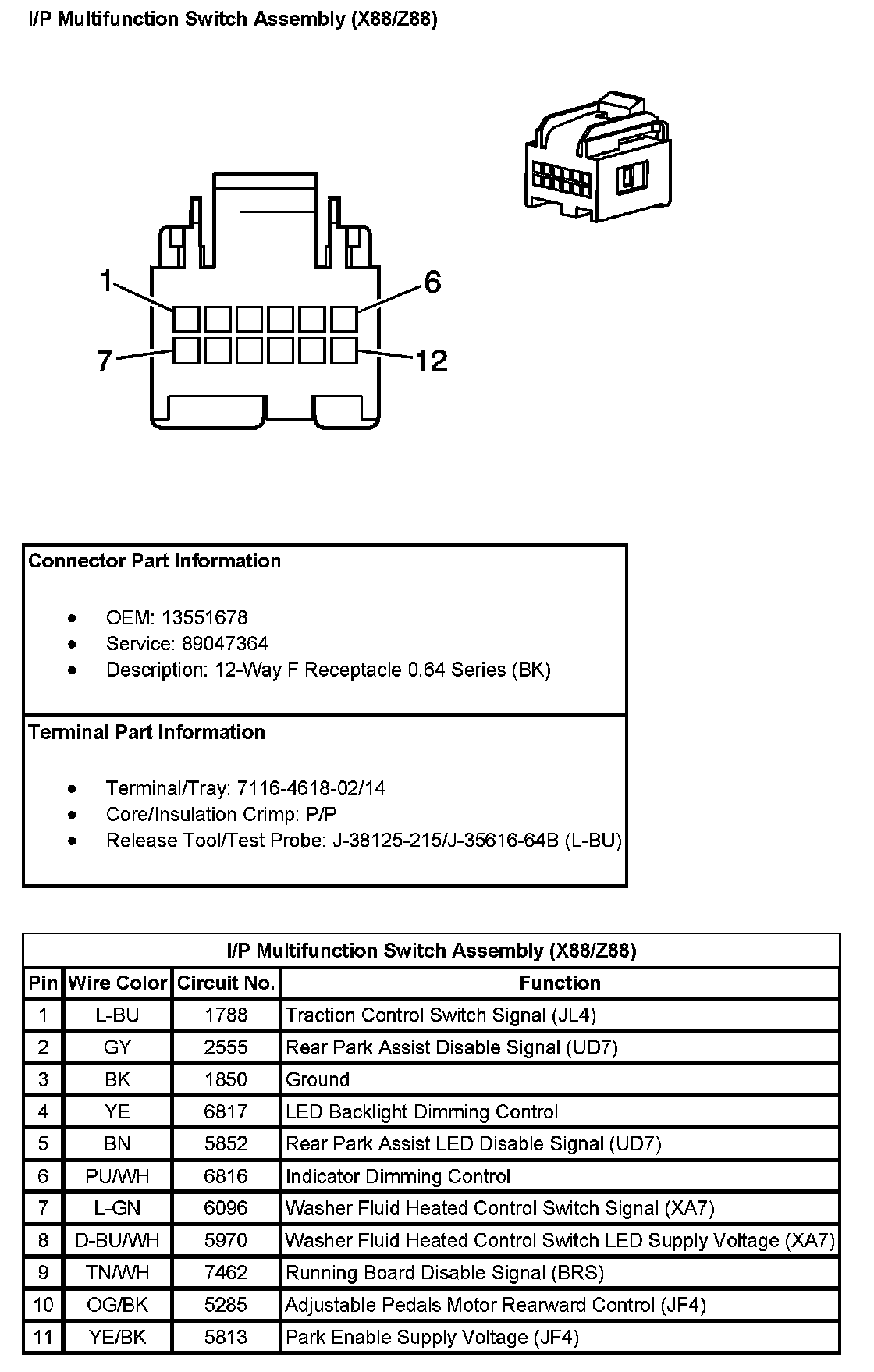

I/P Multifunction Switch Assembly (With RPO Codes X88/Z88) (Pin 1 And 11):



I/P Multifunction Switch Assembly (With RPO Codes X88/Z88) (Pin 12):
