Driver/Vehicle Information Display

Information Center Telltale Assembly (With RPO Code UD7):

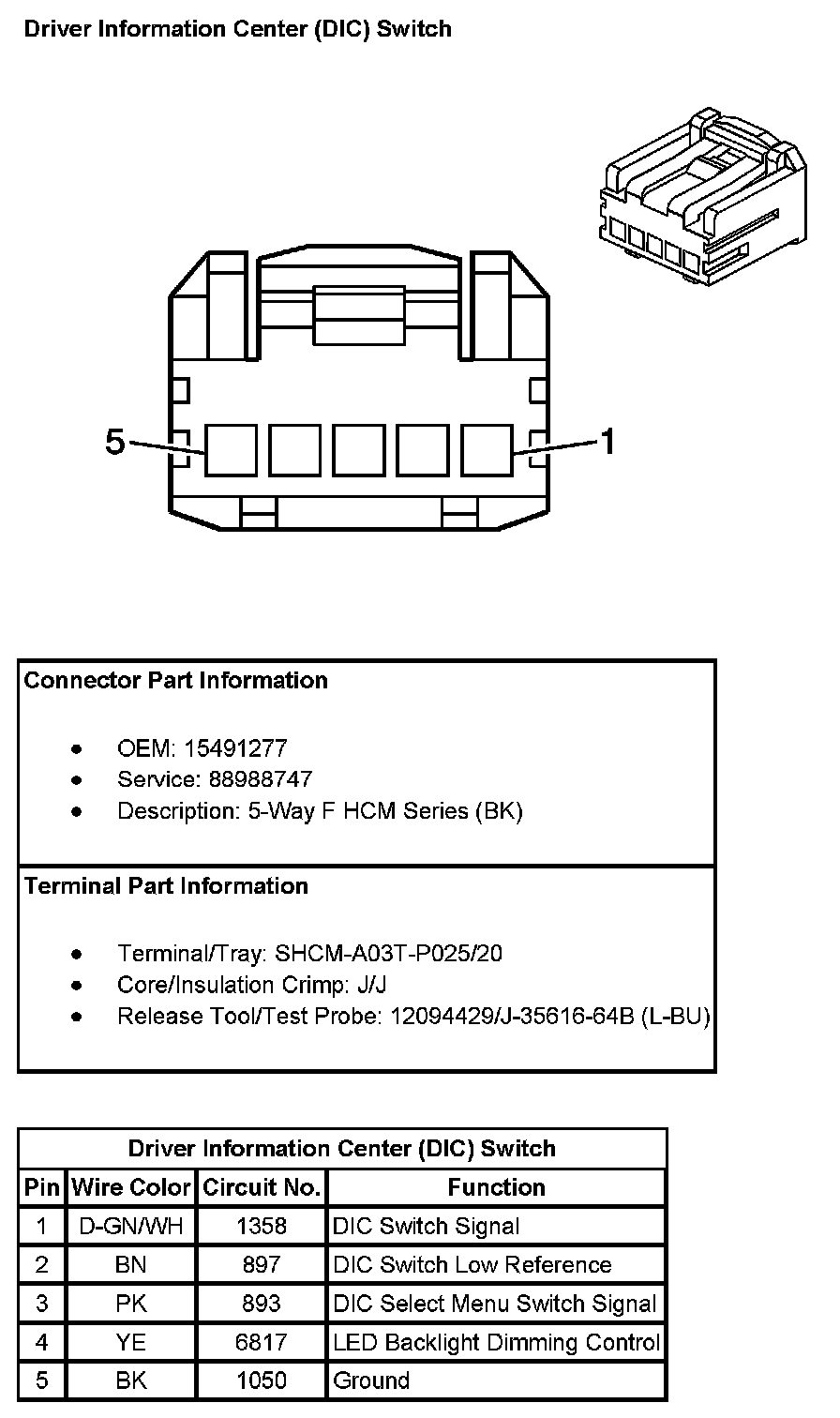

Driver Information Center (DIC) Switch:
