Underhood Fuse Block

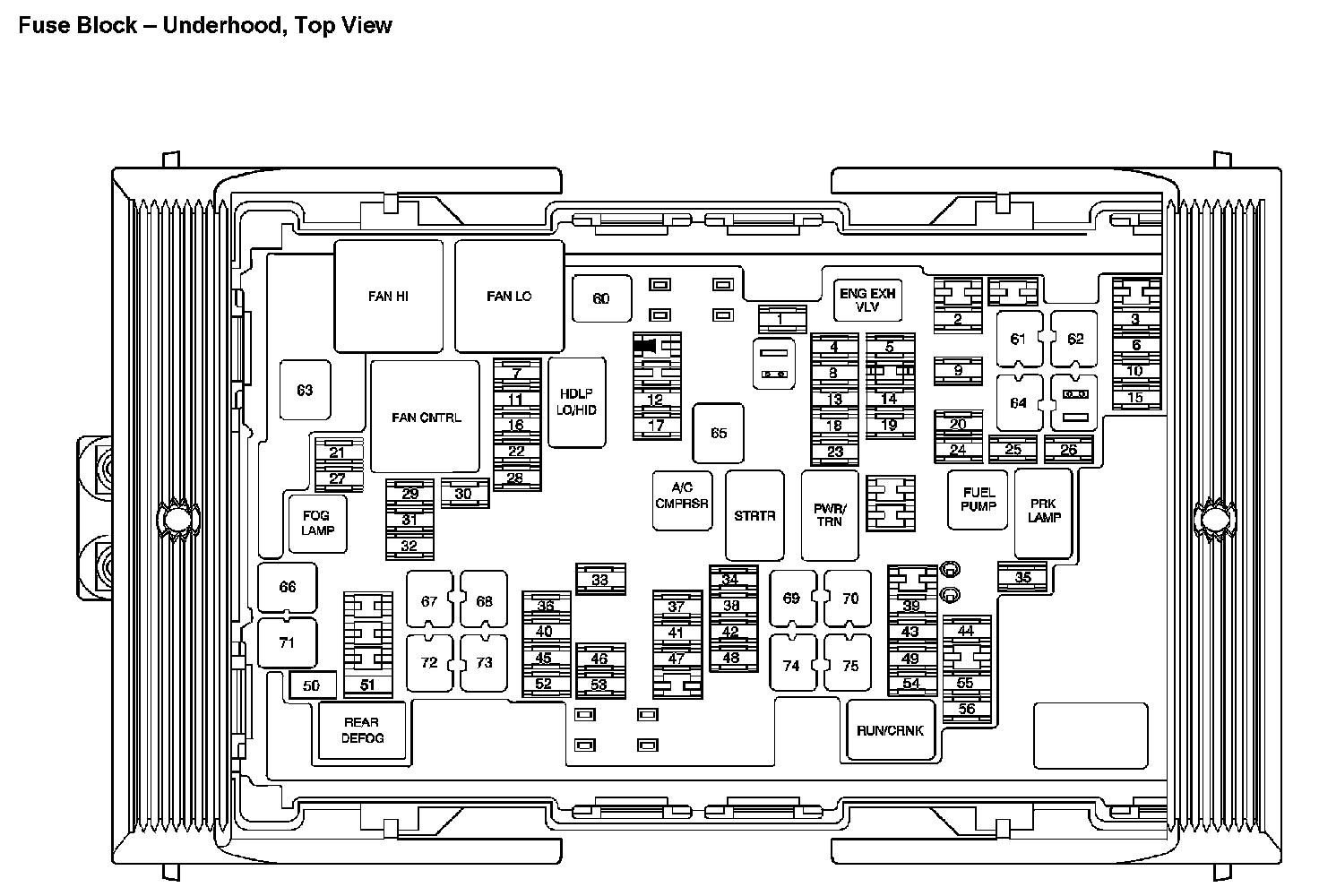

Fuse Block - Underhood, Top View:

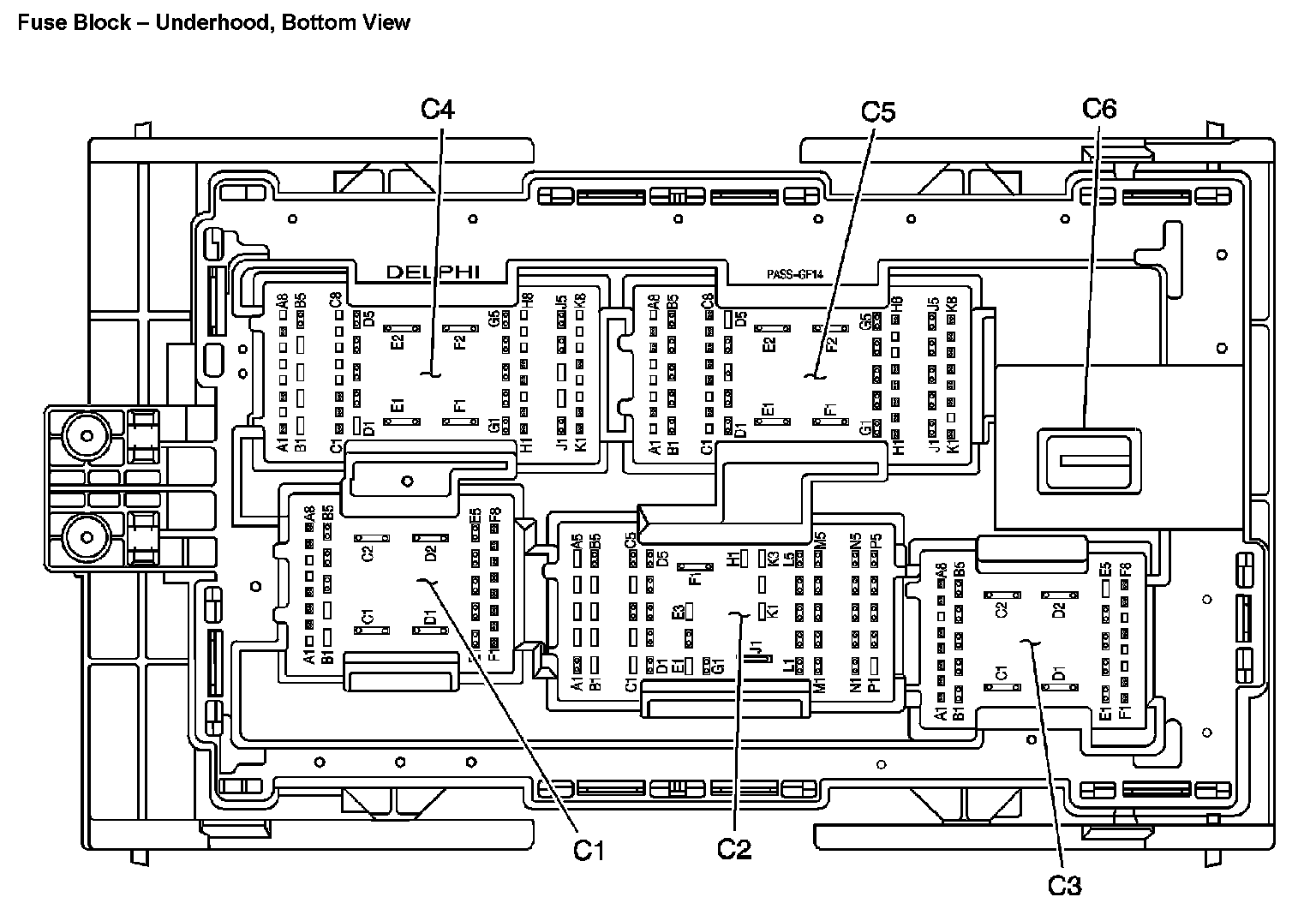

Fuse Block - Underhood, Bottom View:

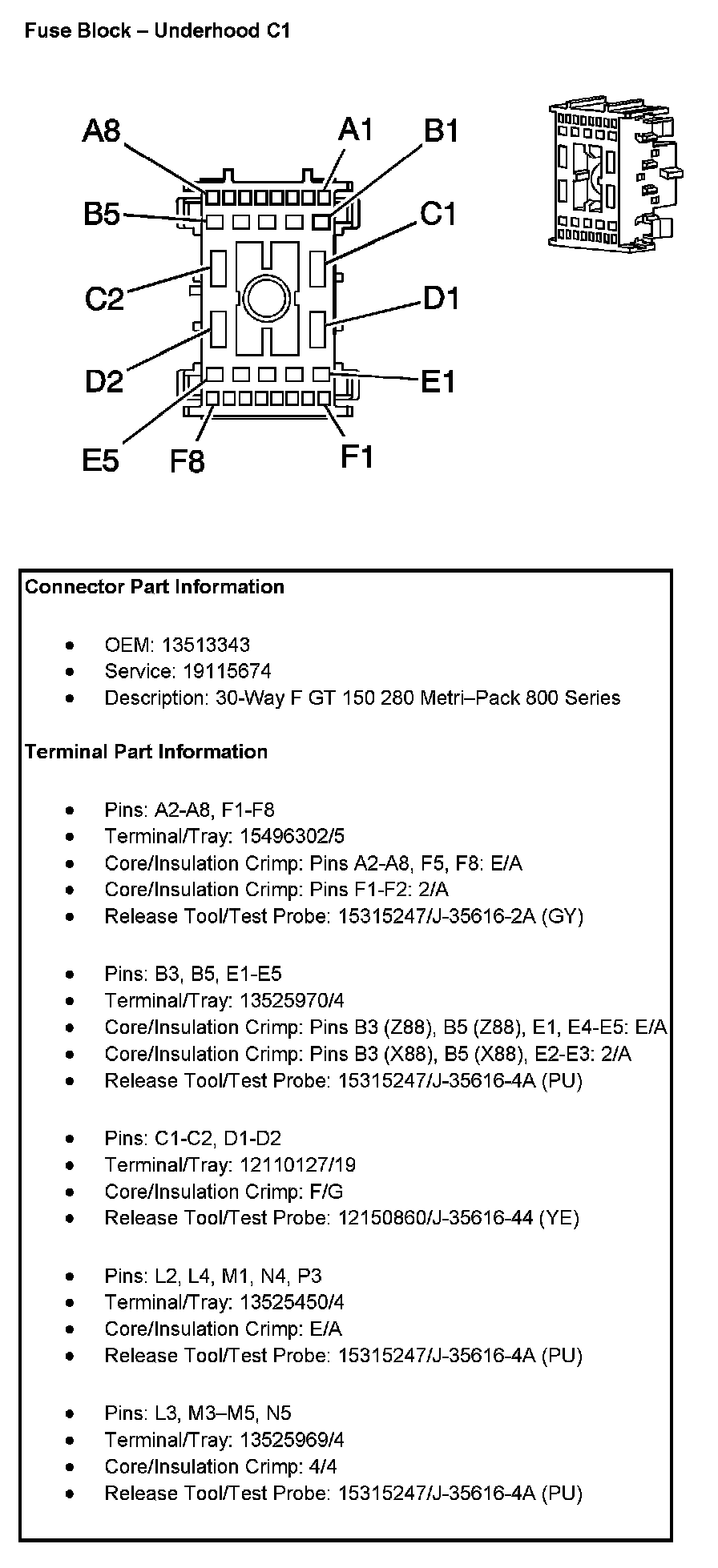

Fuse Block - Underhood C1:

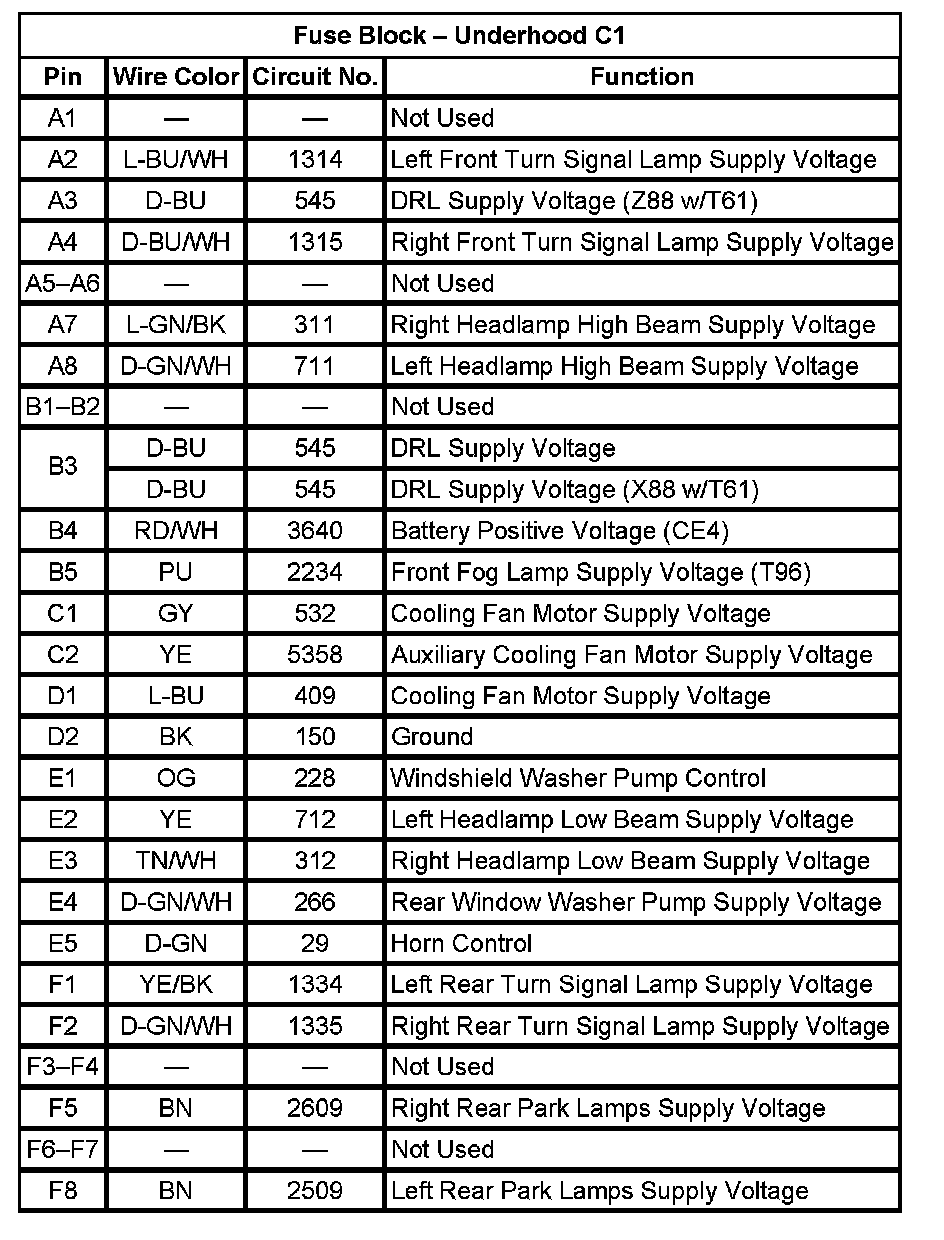

Fuse Block - Underhood C1 (Pin A1 To F8):

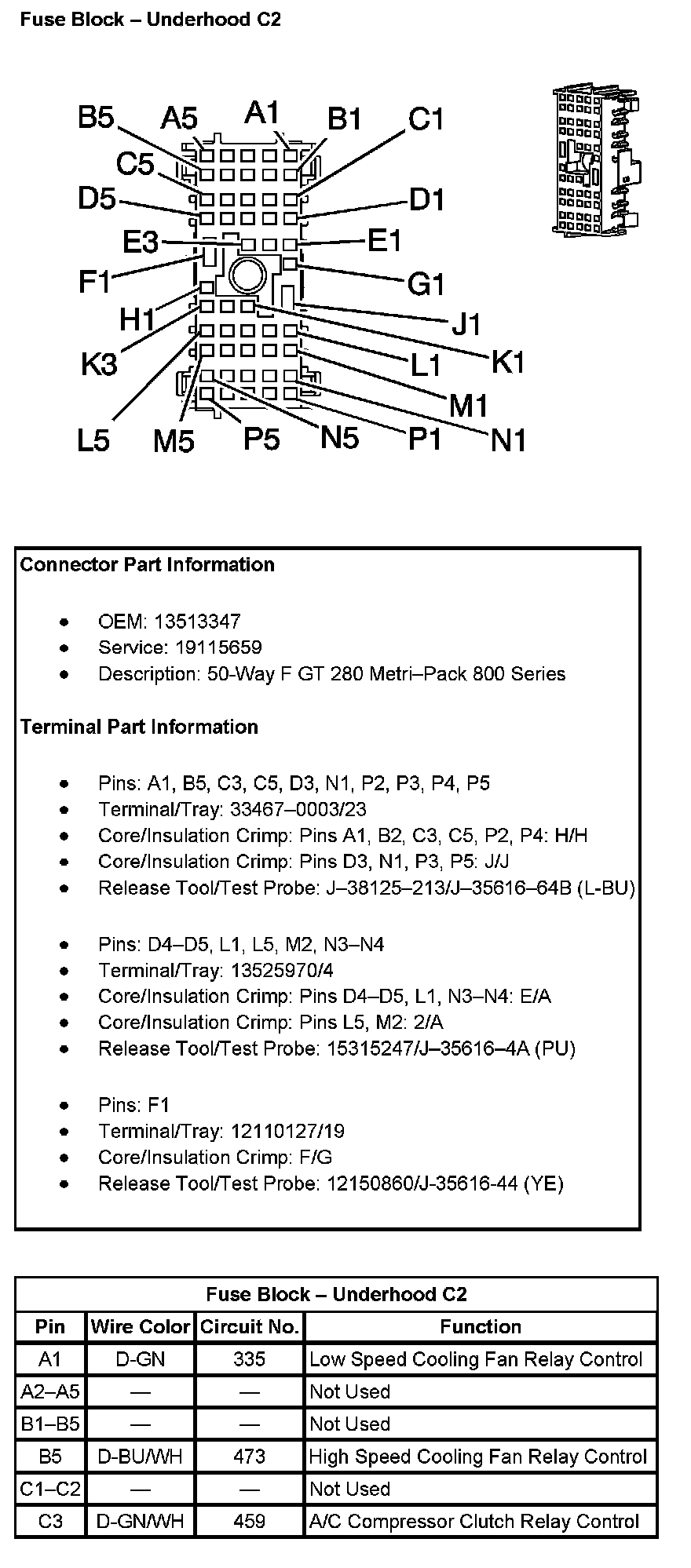

Fuse Block - Underhood C2 (Pin A1 To C3):

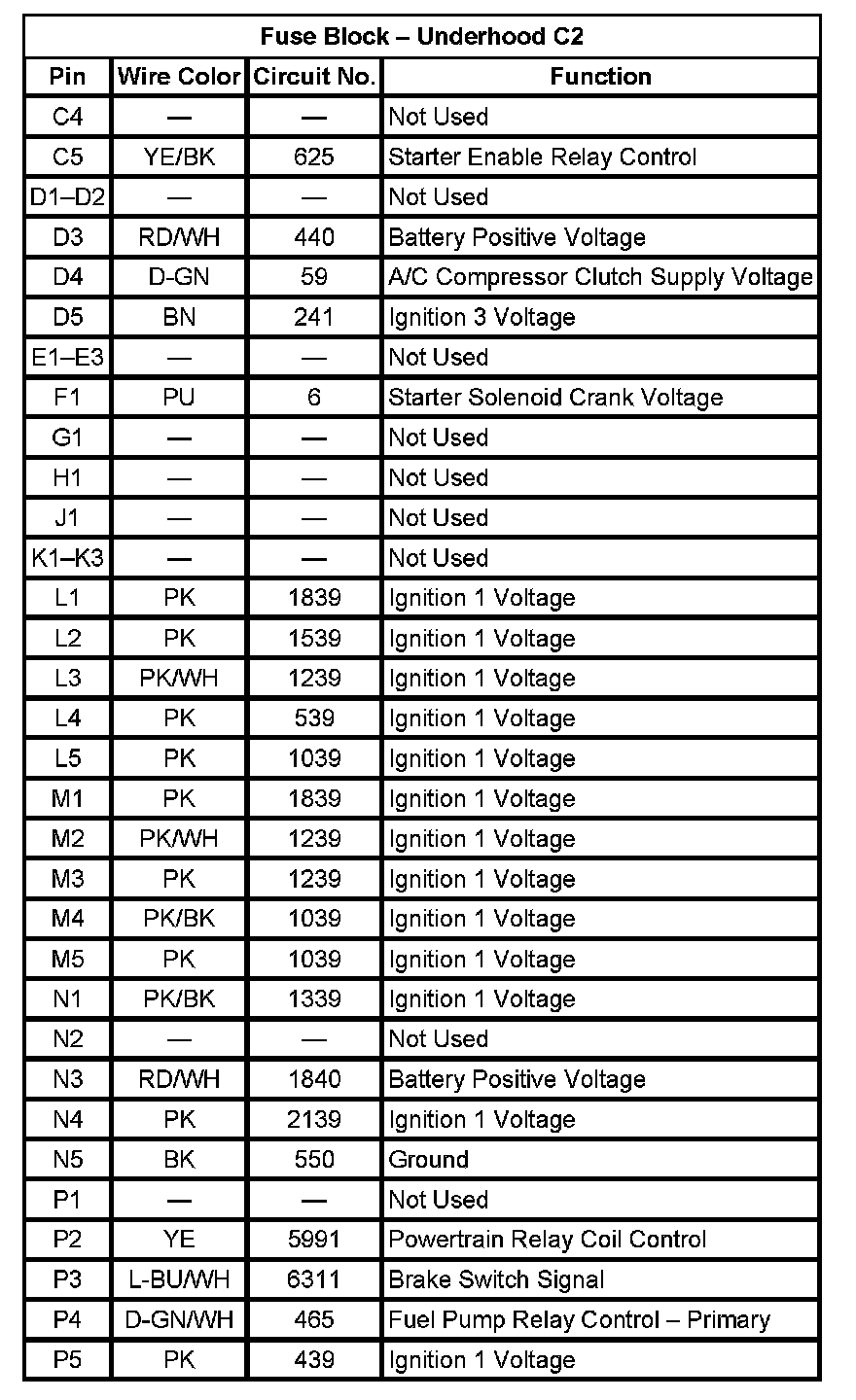

Fuse Block - Underhood C2 (Pin C4 To P5):

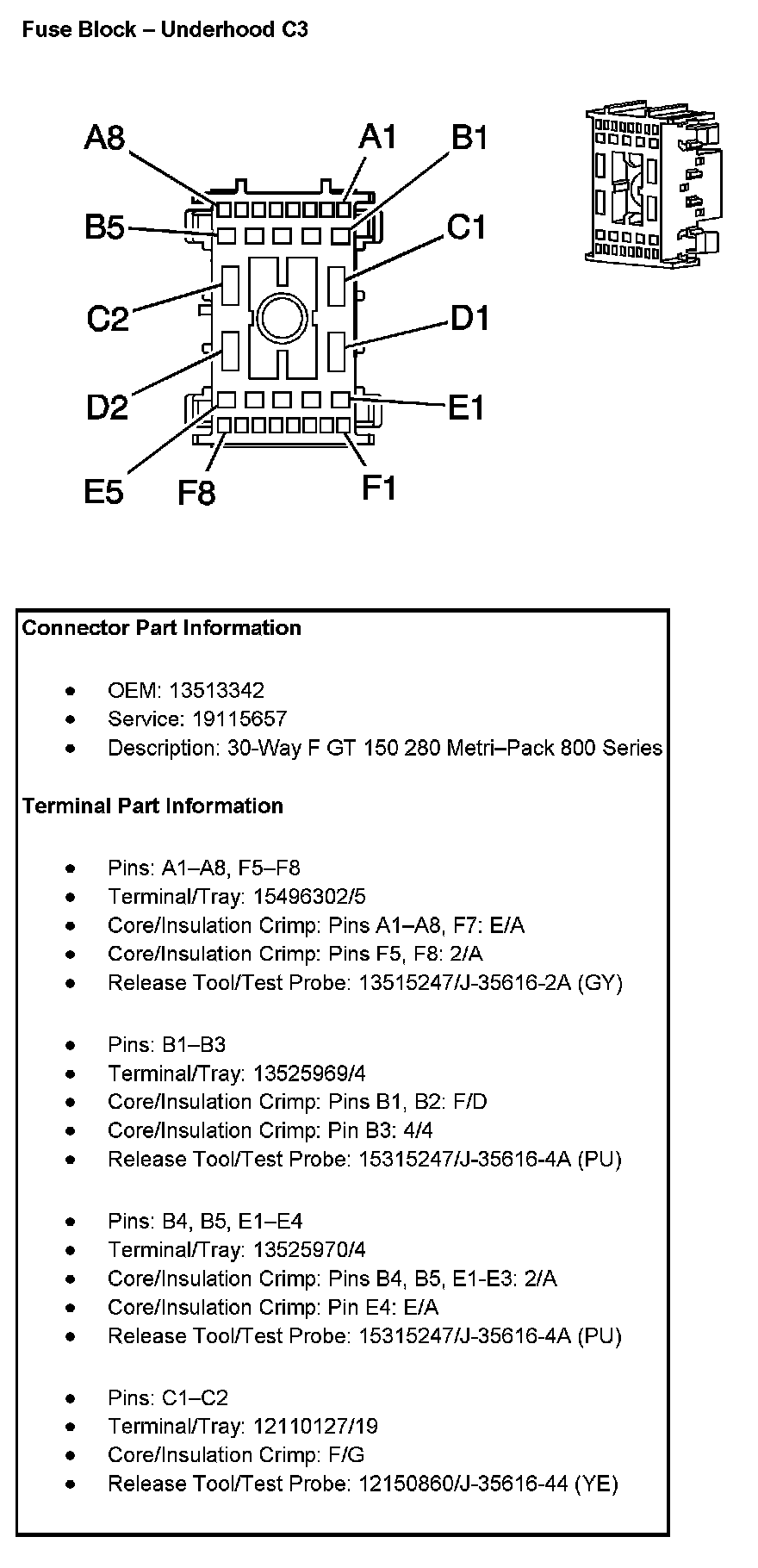

Fuse Block - Underhood C3:

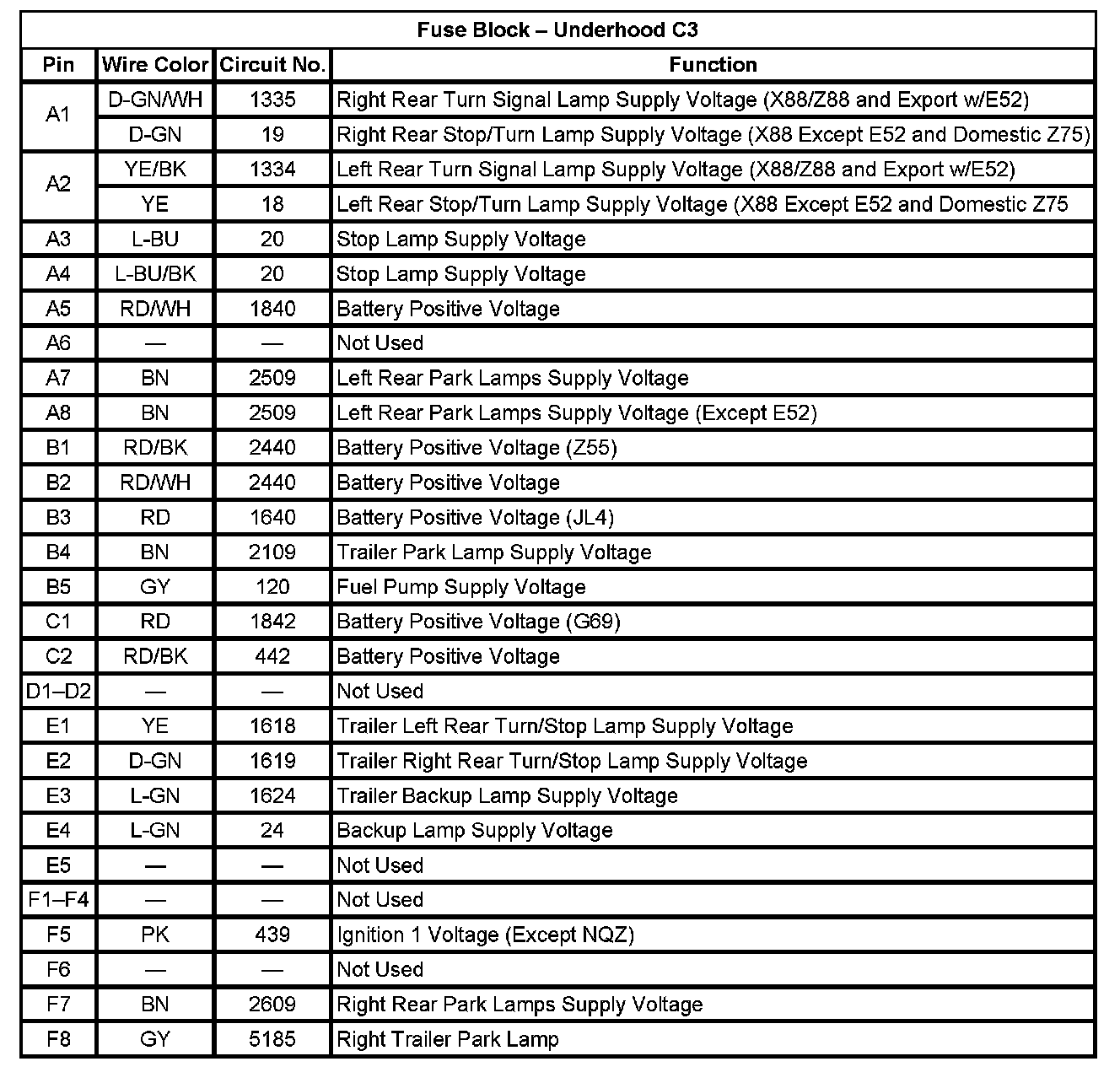

Fuse Block - Underhood C3 (Pin A1 To F8):

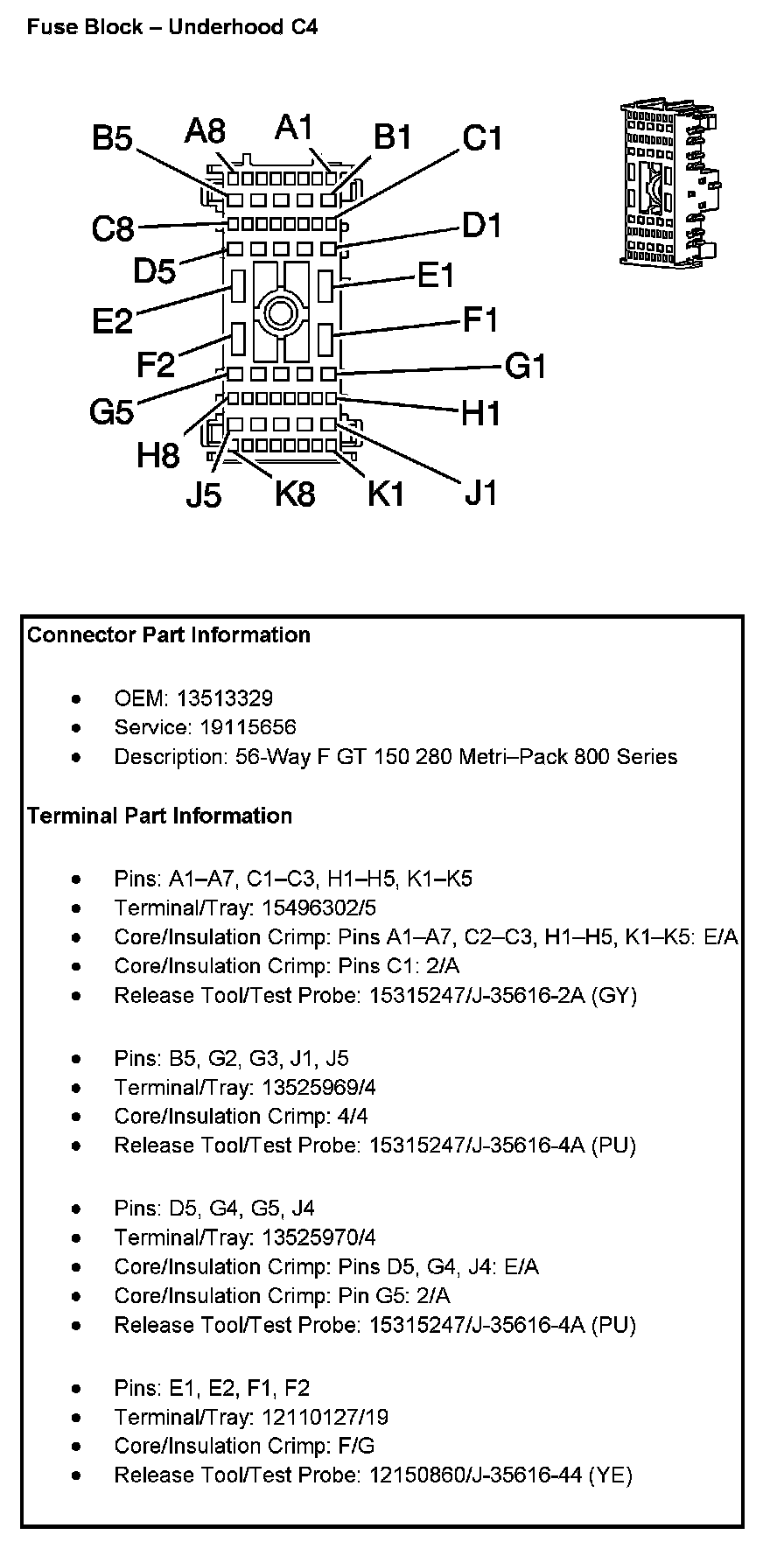

Fuse Block - Underhood C4:

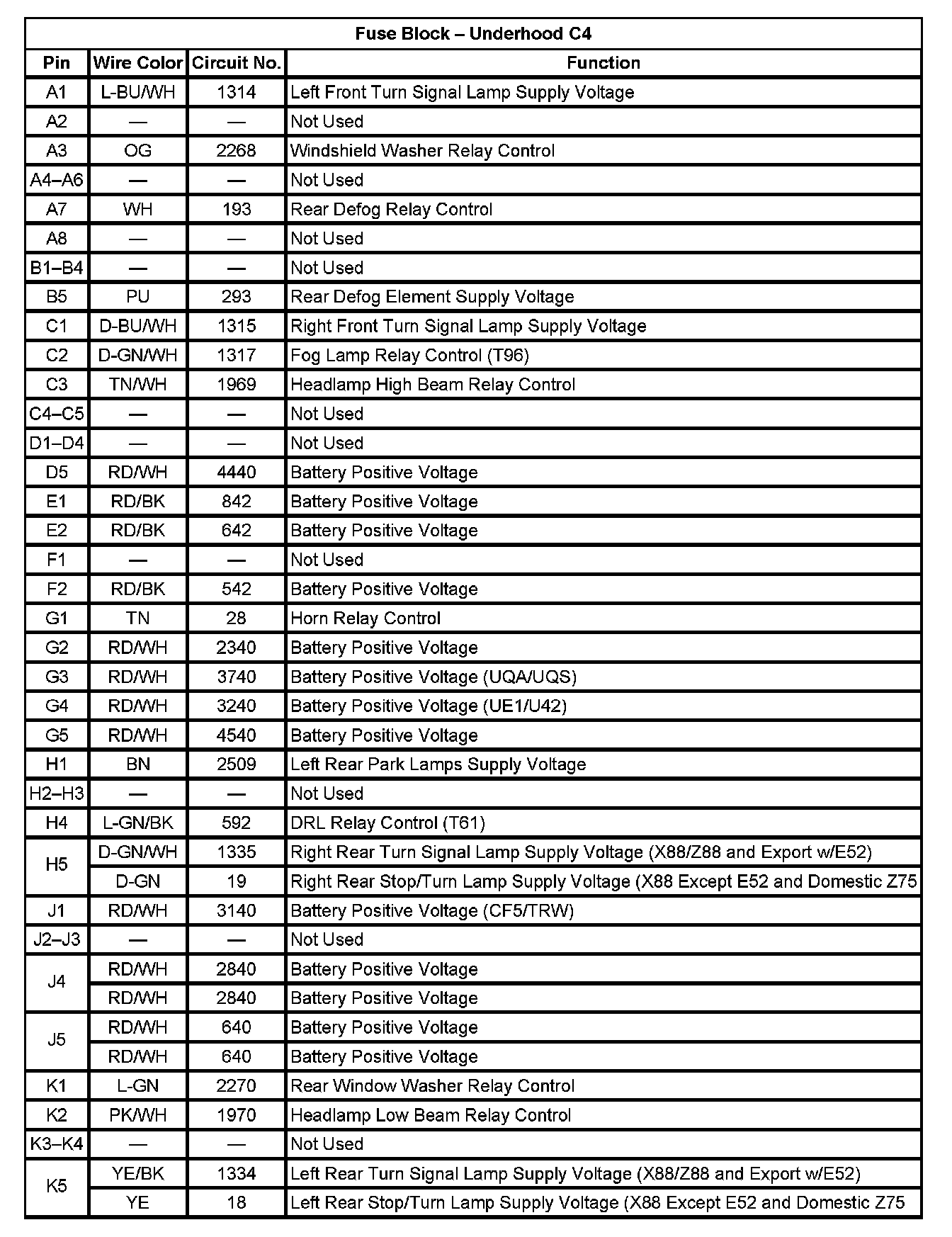

Fuse Block - Underhood C4 (Pin A1 To K5):

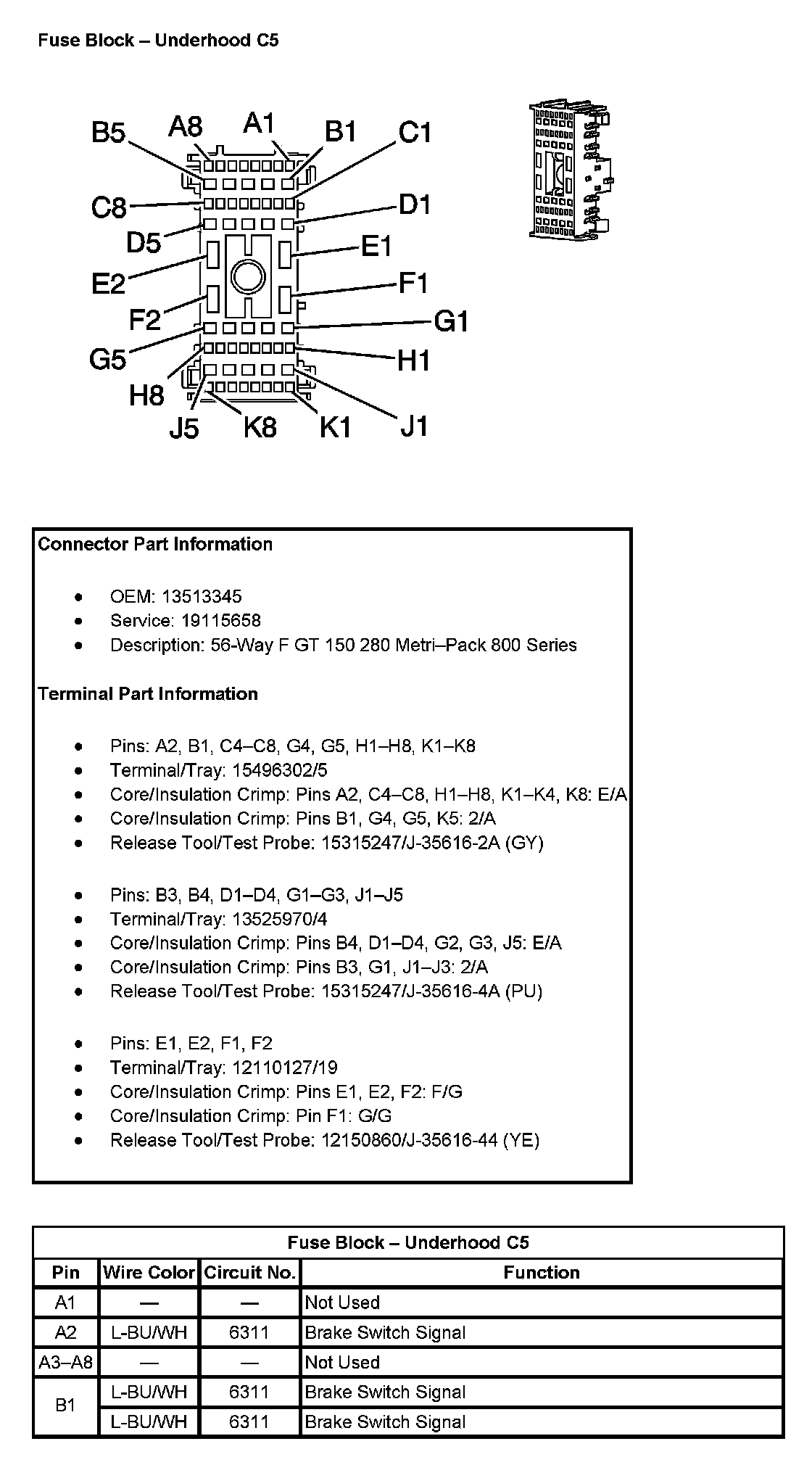

Fuse Block - Underhood C5 (Pin A1 To B1):

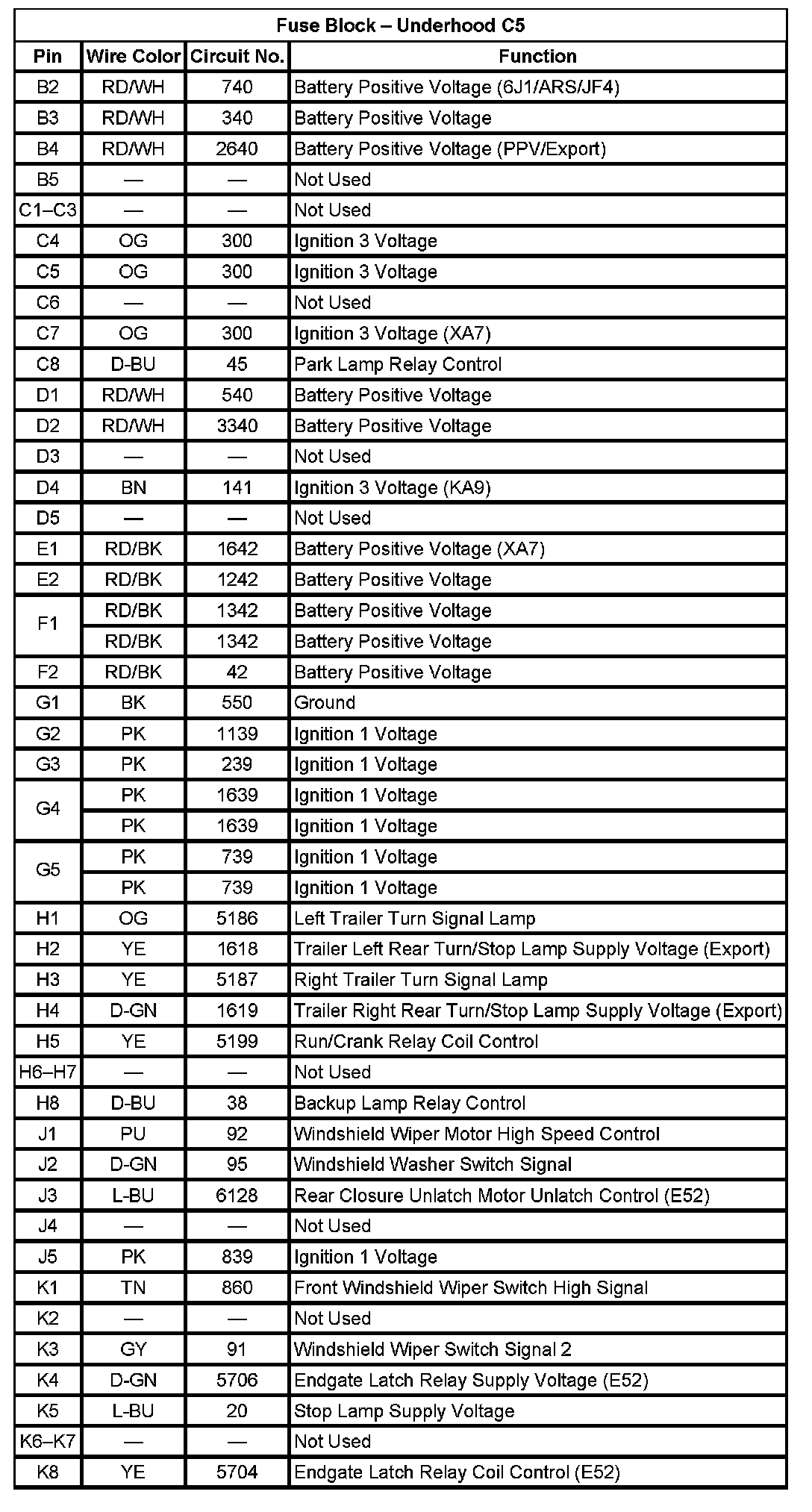

Fuse Block - Underhood C5 (Pin B2 To K8):
