Trunk / Liftgate Latch

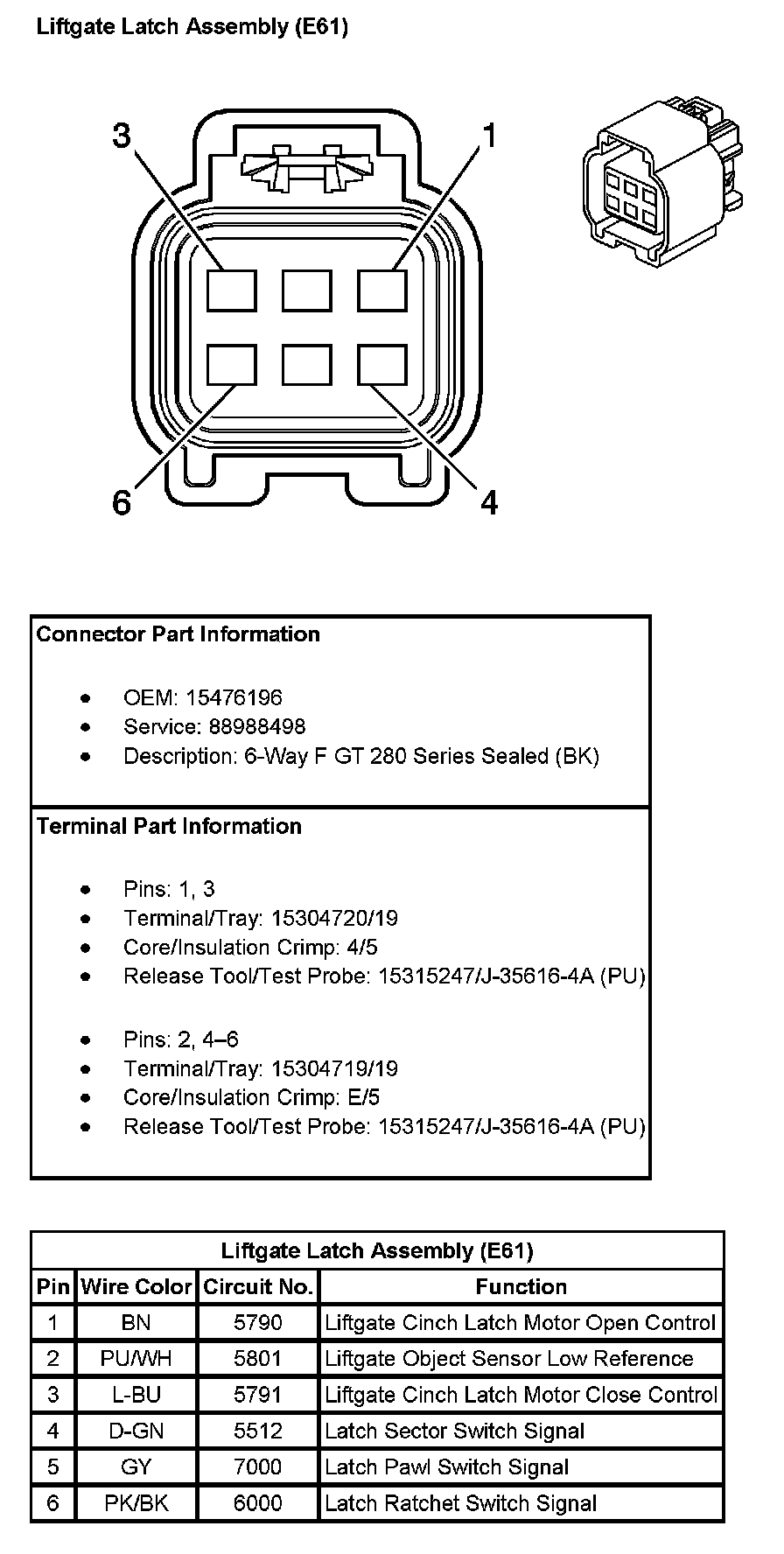

Liftgate Latch Assembly (With RPO Code E61):

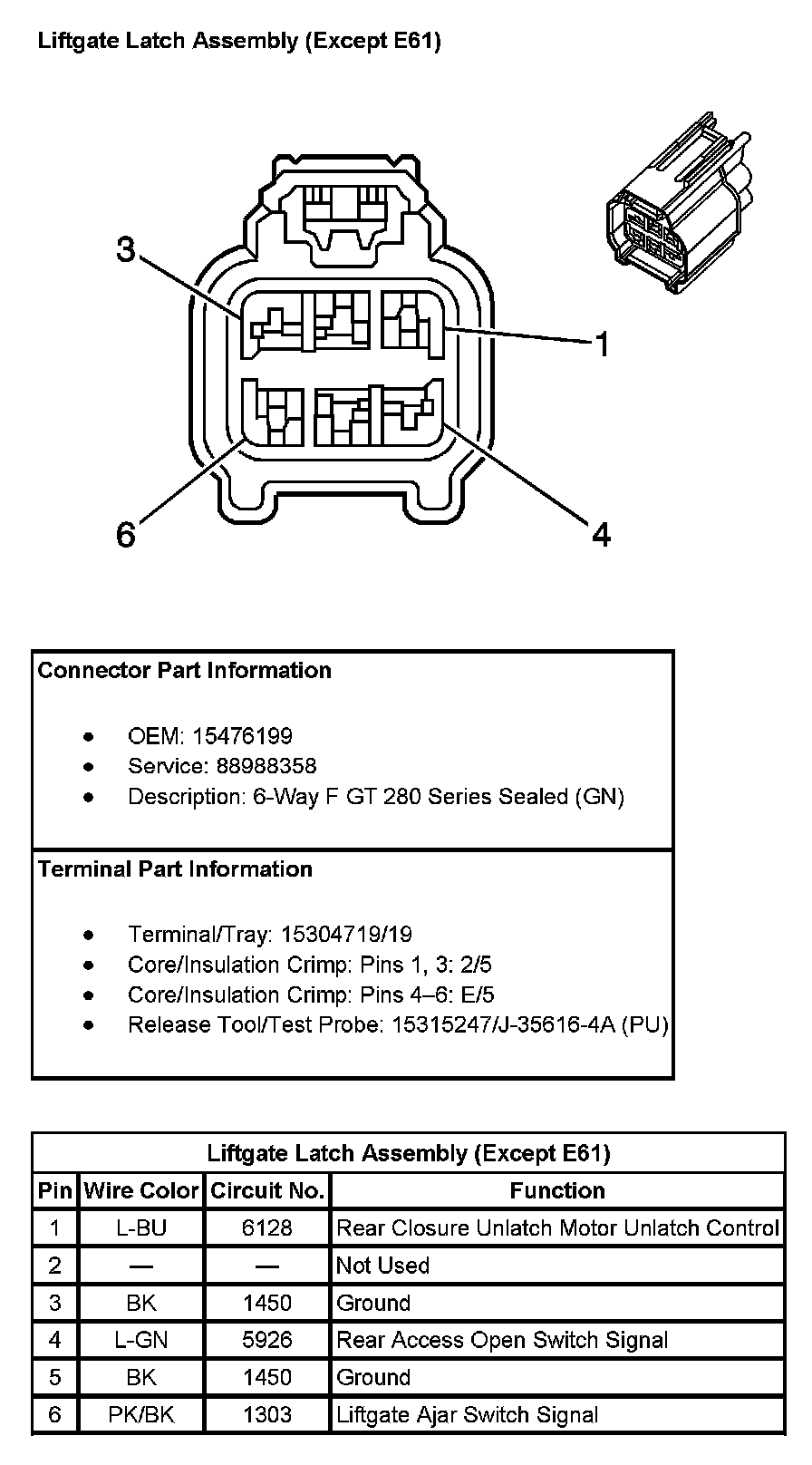

Liftgate Latch Assembly (Except RPO Code E61):

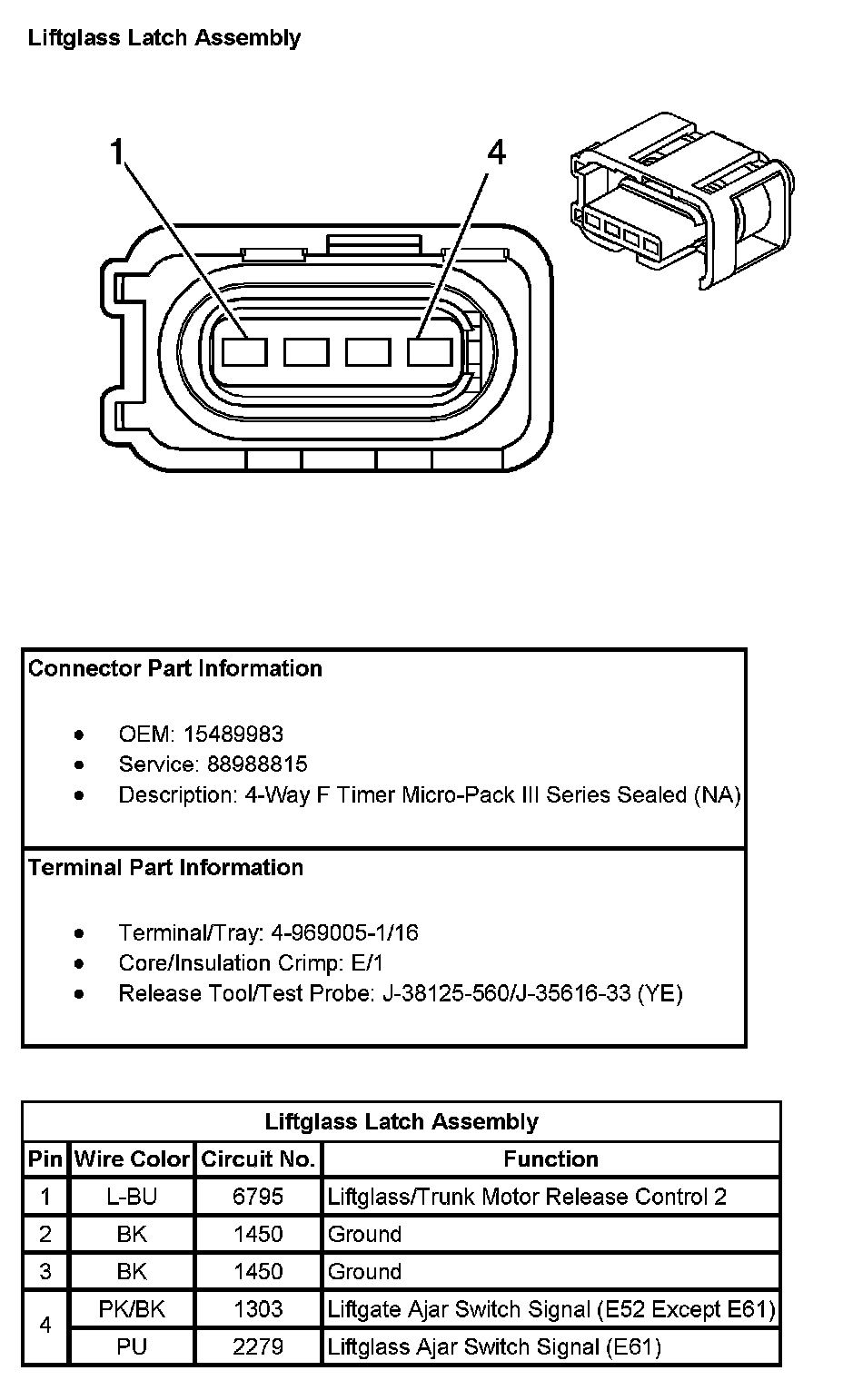

Liftglass Latch Assembly:
