Refrigerant Pressure Sensor / Switch: Locations



HVAC Component Views

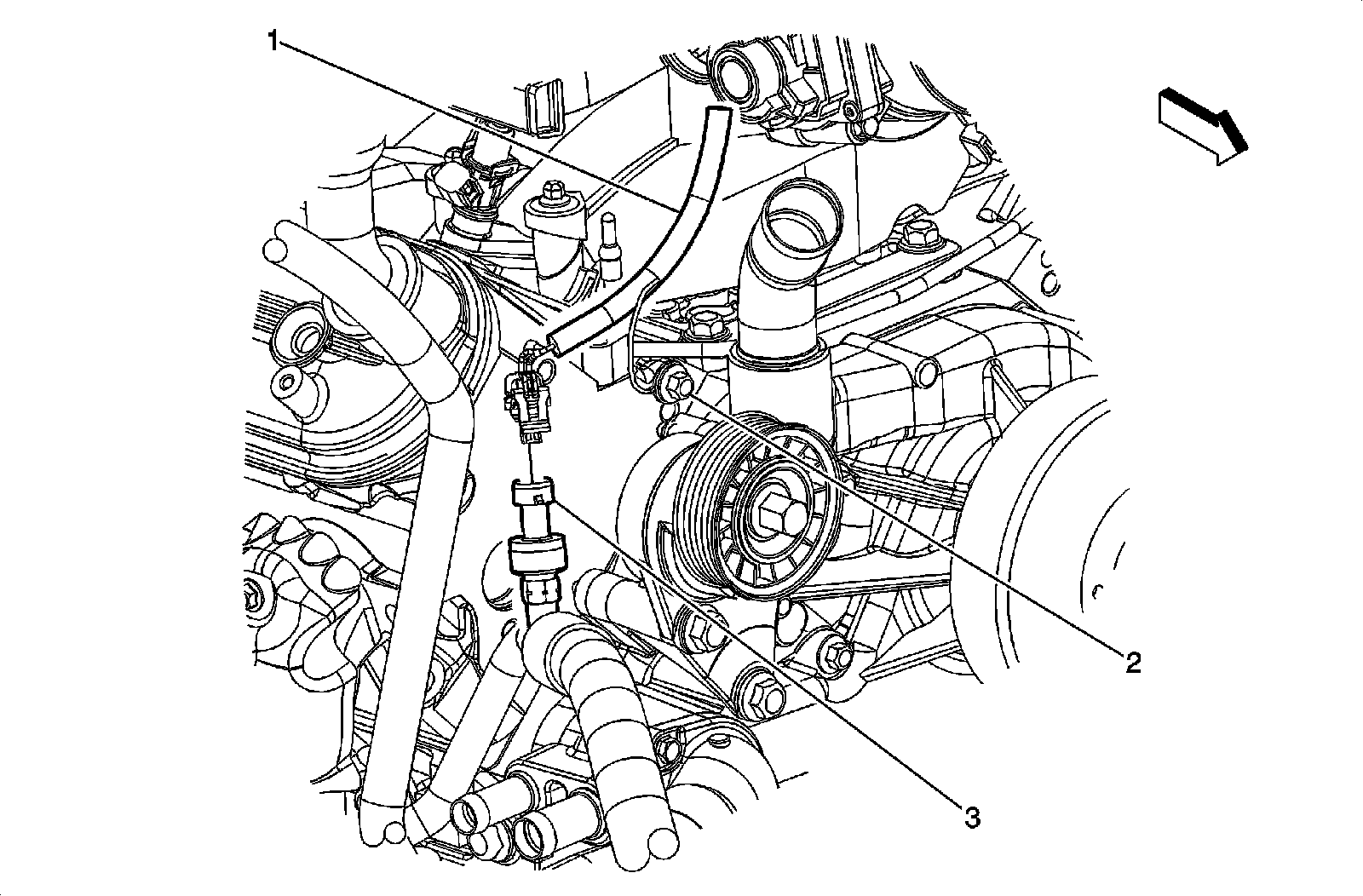

Upper Right Side of the Engine - Front (5.3L/6.0L)




1 - Engine Harness
2 - G109
3 - A/C Refrigerant Pressure Sensor
