Power Steering Pulley Replacement

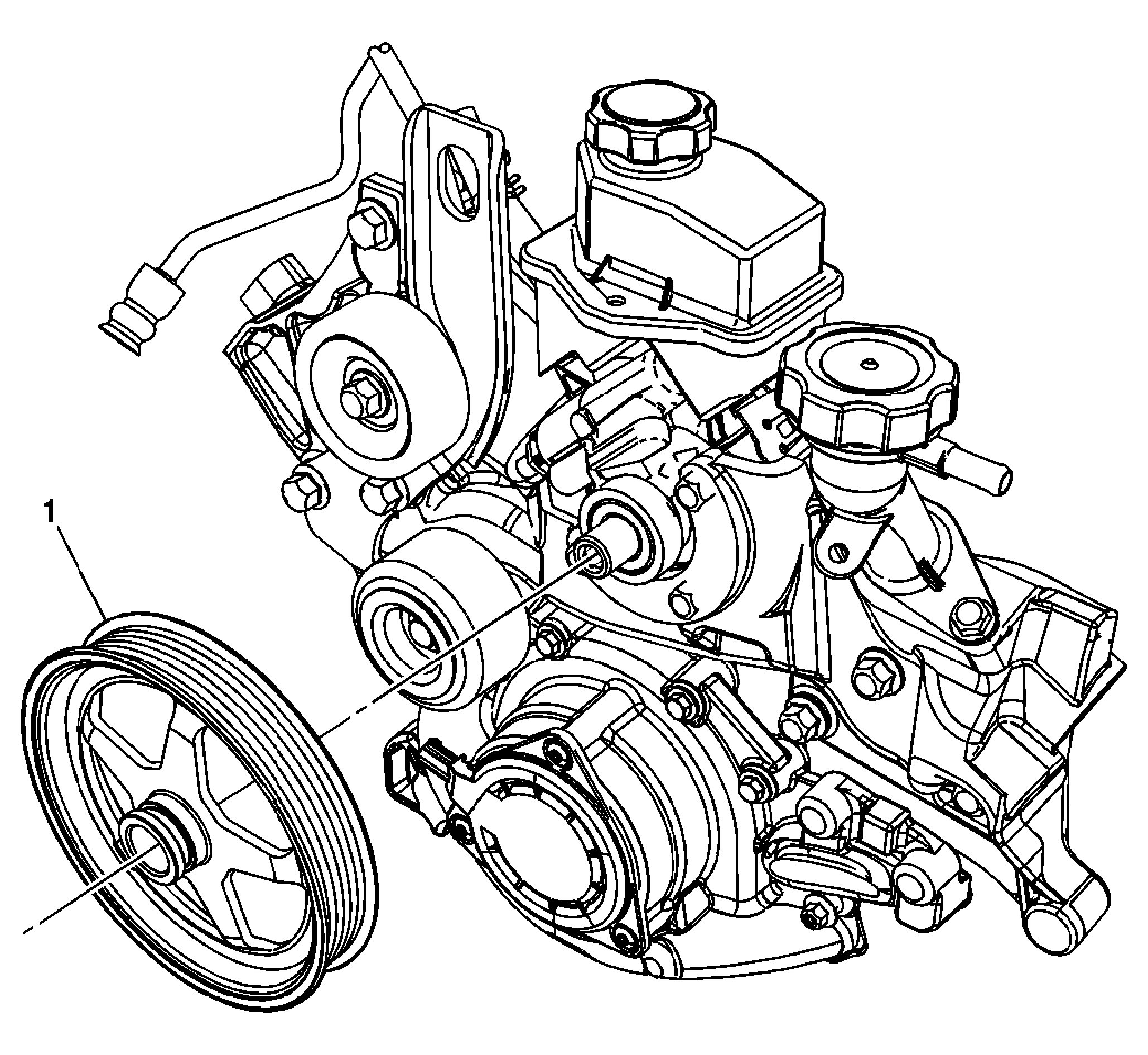

Fig 1: Power Steering Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the washer solvent container. Refer to Washer Solvent Container Replacement . Remove the drive belt. Refer to Drive Belt Replacement .
1	Power Steering Pump Pulley Tip: Using the J 37609-A , remove the power steering pump pulley. See Special Tools . Using the J 25033-C , install the power steering pump pulley. See Special Tools . Tip: During installation make sure the face of the pulley hub is flush with the end of the pump shaft. Special Tools J 37609-A Power Steering Pump Pulley Remover. See Special Tools . J 25033-C Pulley Installer. See Special Tools .

Callout

Component Name

Preliminary Procedures

Remove the washer solvent container. Refer to Washer Solvent Container Replacement .
Remove the drive belt. Refer to Drive Belt Replacement .

Power Steering Pump Pulley
Tip:

Using the J 37609-A , remove the power steering pump pulley. See Special Tools .
Using the J 25033-C , install the power steering pump pulley. See Special Tools .

Tip: During installation make sure the face of the pulley hub is flush with the end of the pump shaft.

Special Tools
