Instrument Panel/Center Console Component Views

Fig 1: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Alarm Module
2	Ignition Key Alarm Switch
3	Defogger Switch
4	Clock/Tele Tail
5	Cluster
6	Radio
7	Tweeter Right/Left Similar
8	Cigar Lighter
9	Wiper Switch
10	Blower Switch
11	Horn Switch
12	Headlamp Switch

Fig 2: Horn Relay

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Relay

Fig 3: Ashtray and Rear Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lamp
2	Ashtray Lamp (Optional)
3	Rear Compartment Lid Switch

Fig 4: Headlamp Switch, I/P Dimmer Switch, Dome Lamp, Daytime Running Lamps (DRL) Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch, Turn Signal Switch
2	Dome Lamp
3	I/P Dimmer Switch
4	Daytime Running Lamps (DRL) Control Module
5	Hazard Switch

Fig 5: Rear Fog Lamp and Headlamp Level Switches (Except North America)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Level Switch (Except North America)
2	Fog Lamp Switch - Rear (Except North America)
3	Hazard Lamp Switch
4	Shift Indicator Lamp
5	Stop Lamp Switch

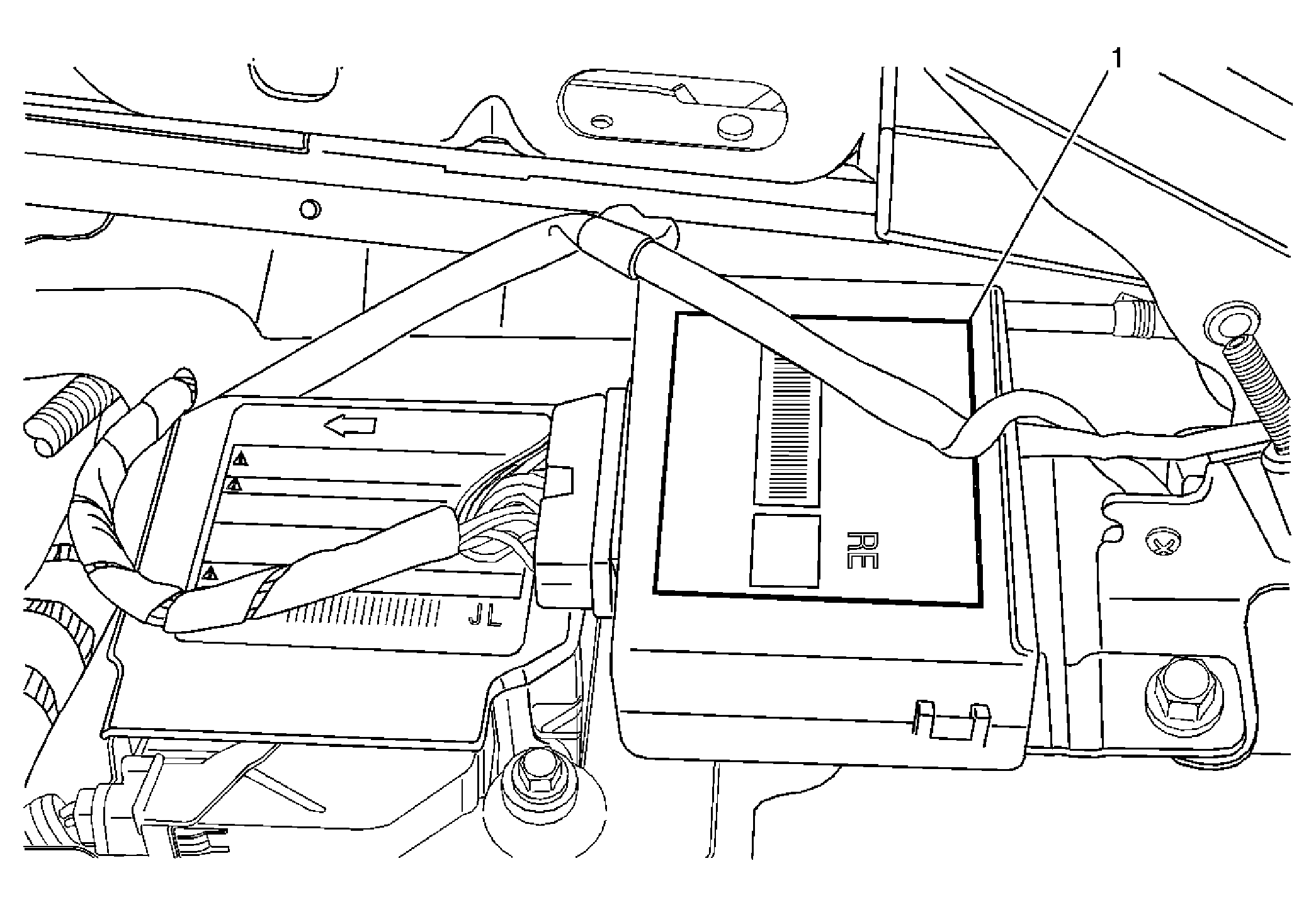

Fig 6: Remote Control Door Lock Receiver (RCDLR) (Hatchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)

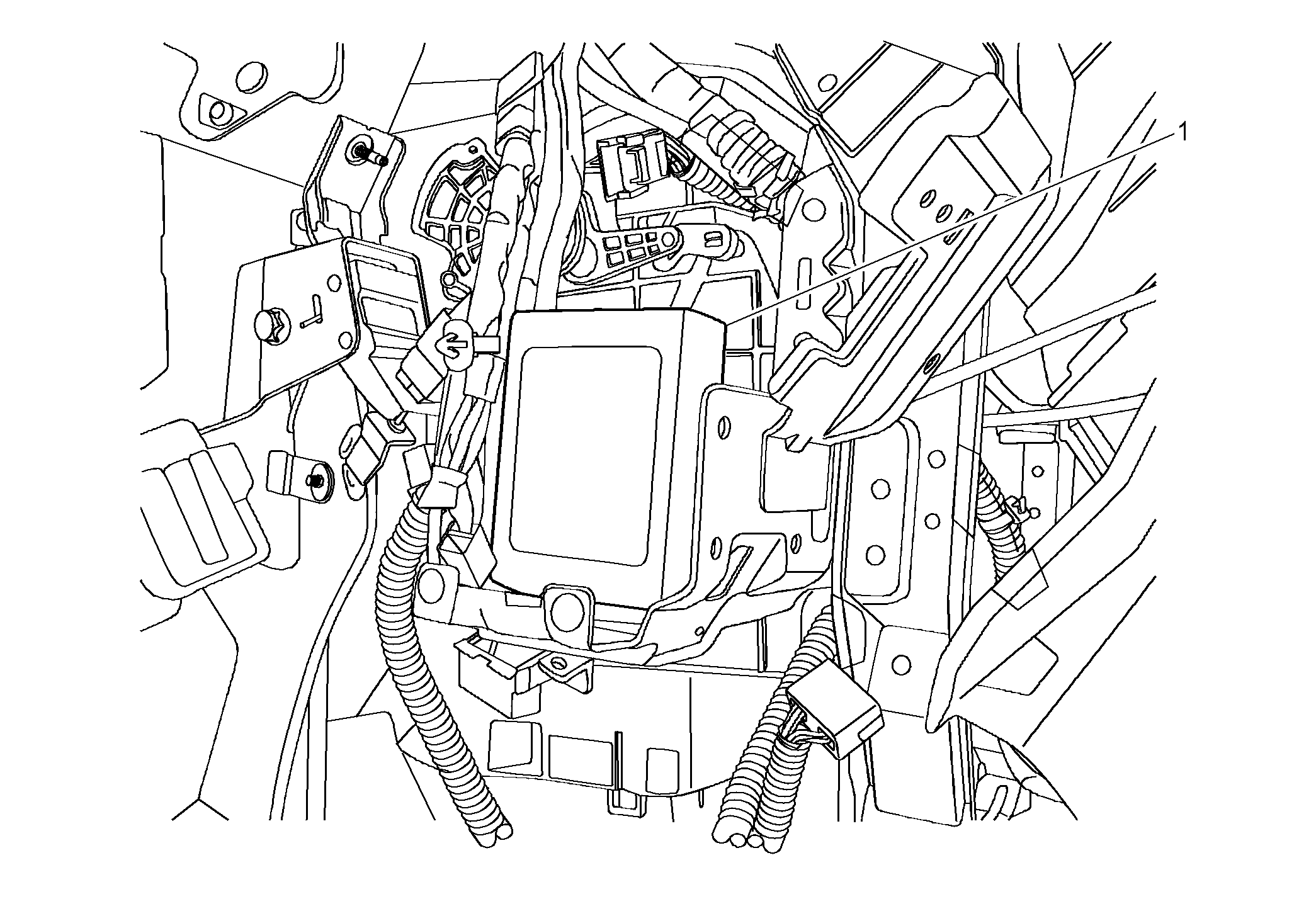

Fig 7: Remote Control Door Lock Receiver (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)/Theft Deterrent Control Module

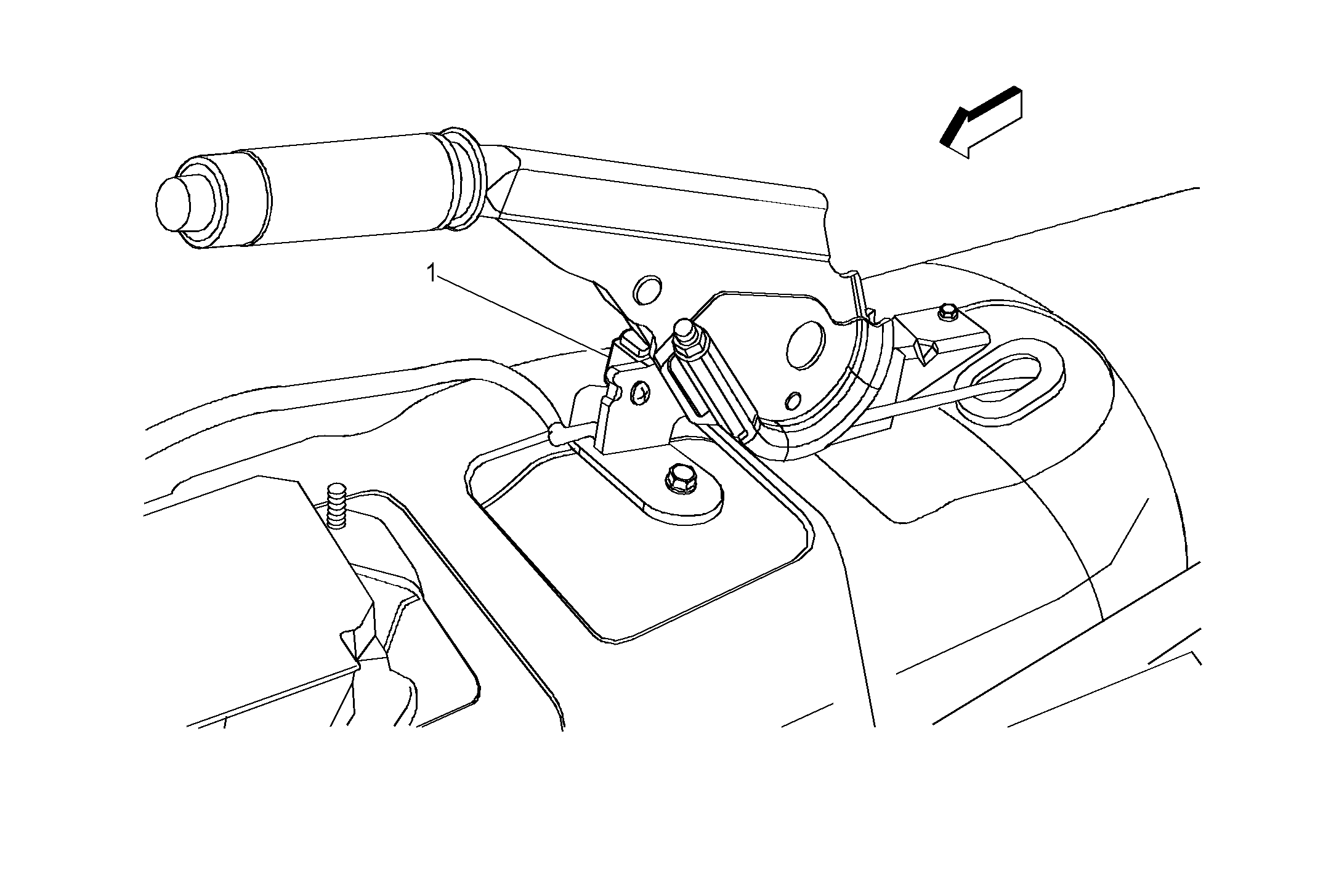

Fig 8: Parking Brake

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch

Fig 9: Radio and Front Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Tweeter (Left and Right) RDS
2	Radio

Fig 10: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch

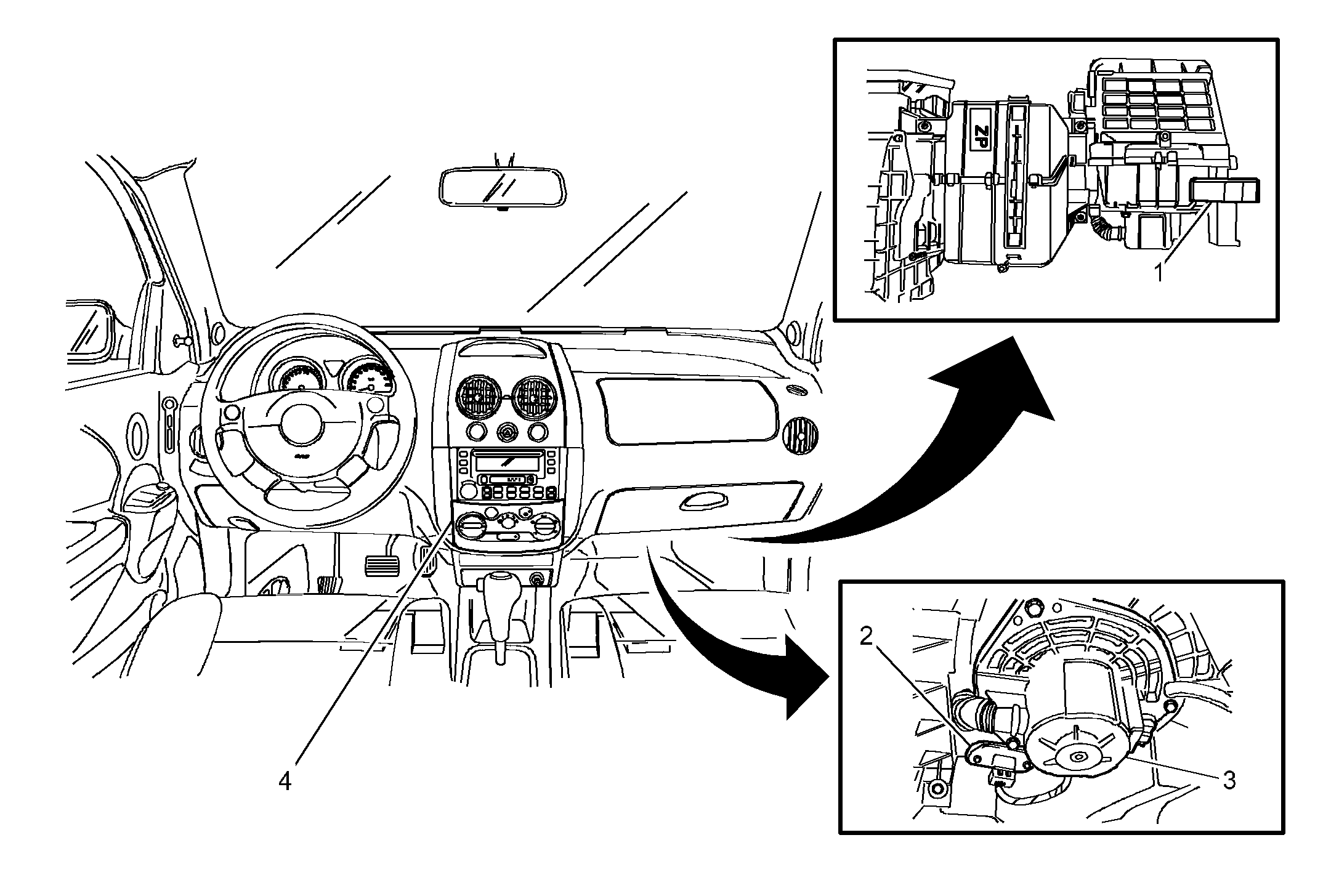

Fig 11: HVAC Blower Controls

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
2	Blower Motor Resistor
3	Blower Motor
4	HVAC Control and Blower Switch

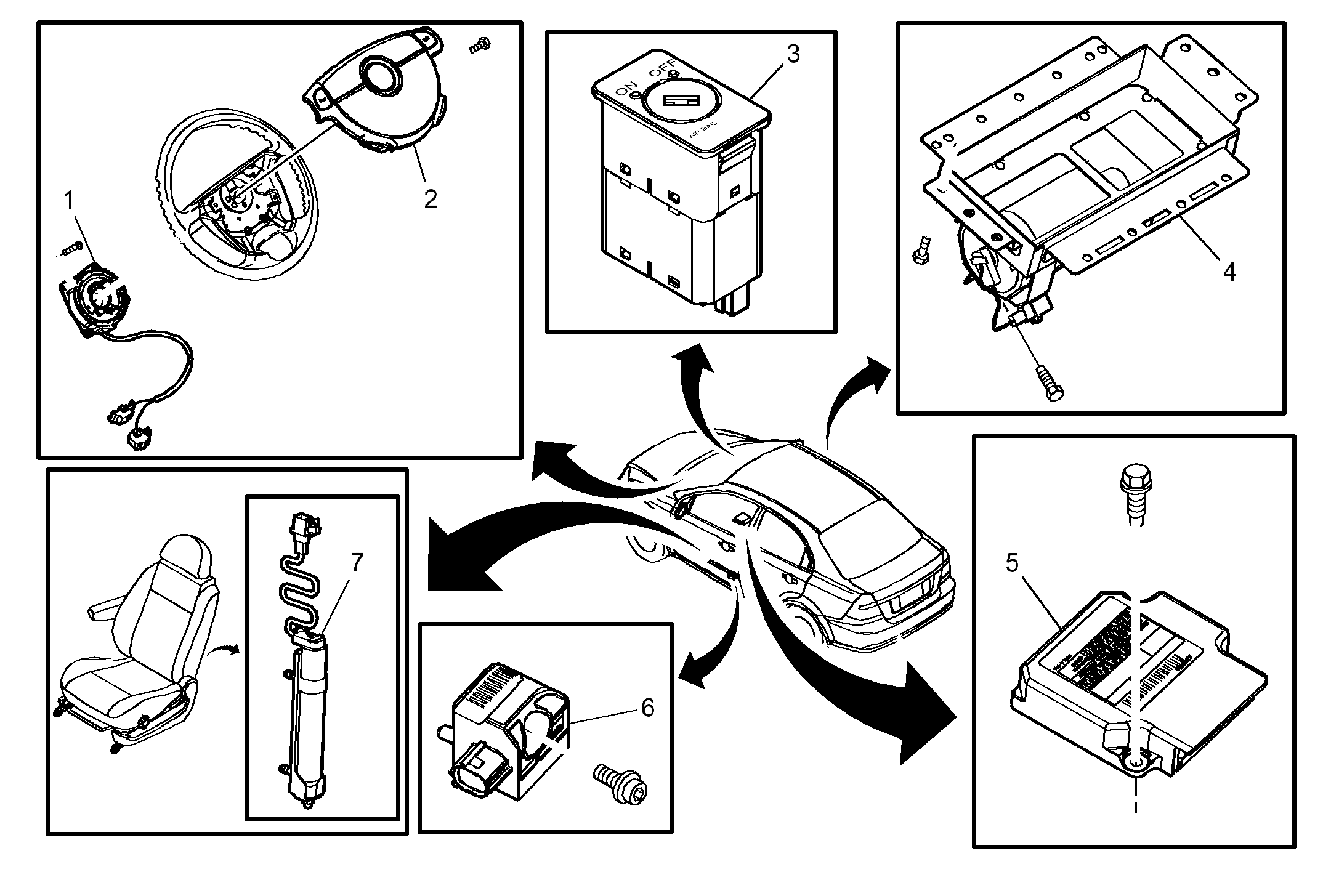

Fig 12: Inflatable Restraint Except North America Vehicles (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint I/P Module
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Passenger Air Bag Disable Switch
6	Inflatable Restraint Side Impact Sensor - Except North America Models (Left Hand Shown, Right Side Similar)
7	Inflatable Restraint Side Impact Module - Except North America Models (Left Side Shown, Right Side Similar)

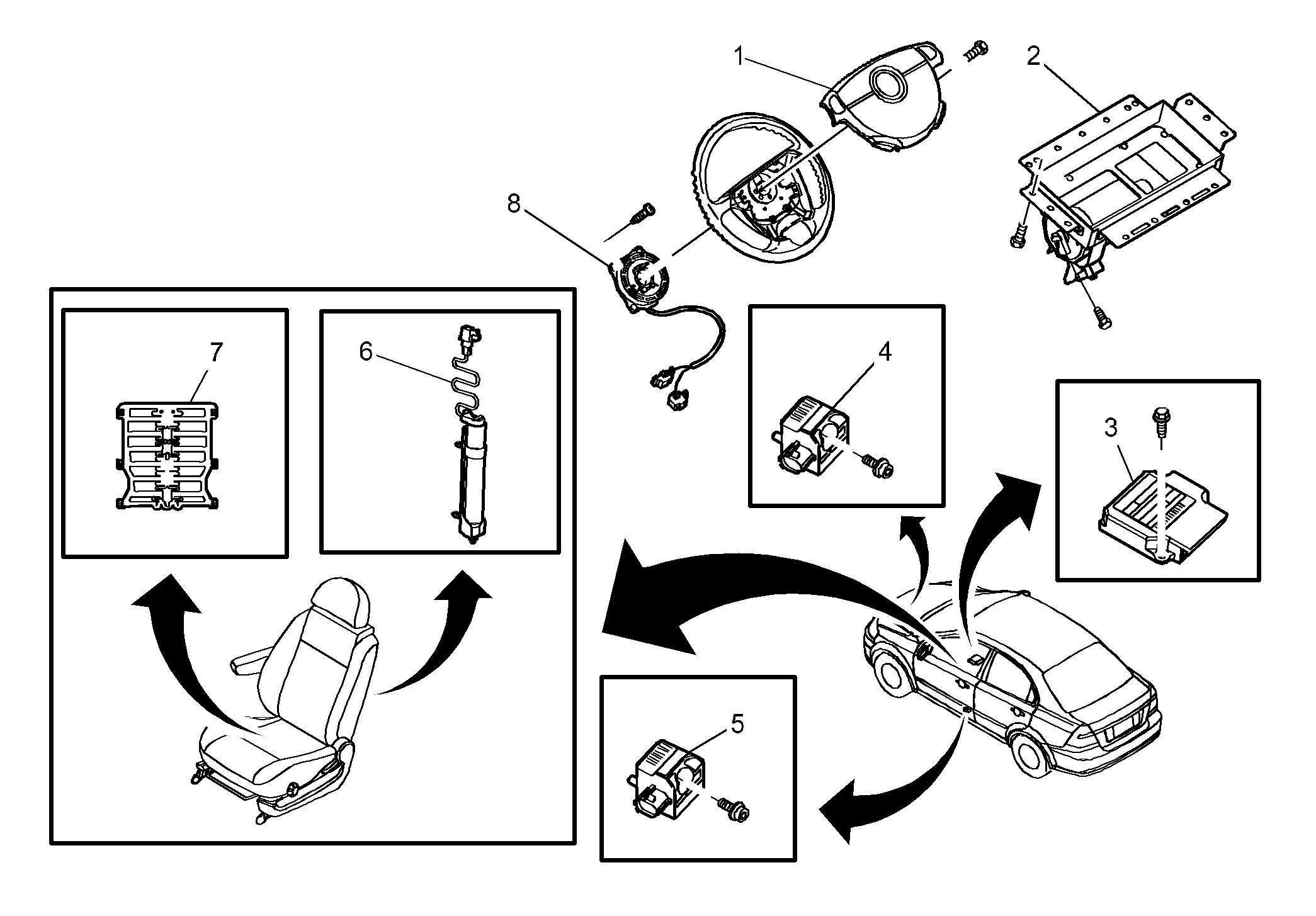

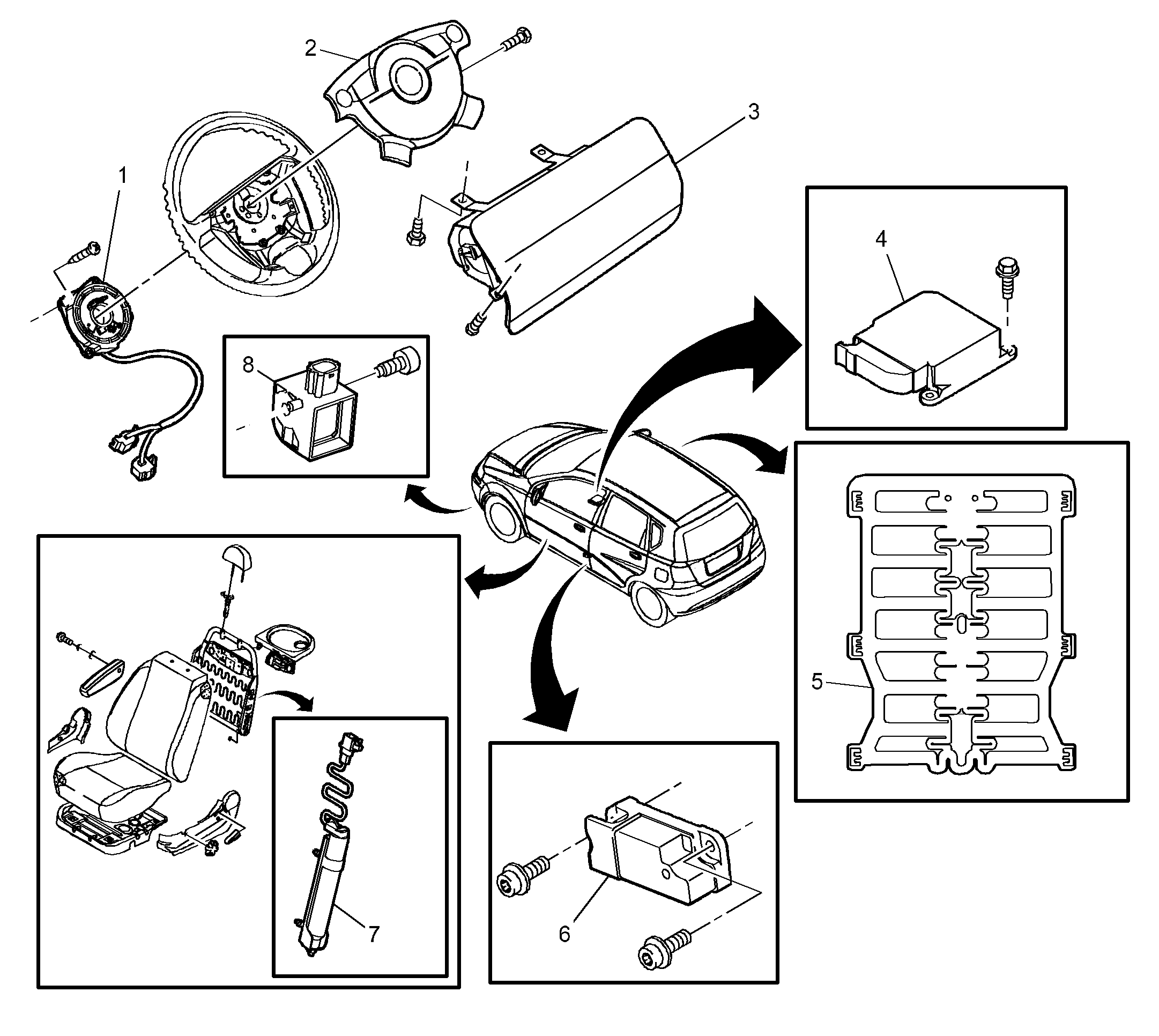

Fig 13: Inflatable Restraint North America Vehicles (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Inflatable Restraint Front End Sensor (Left Hand Shown, Right Side Similar)
5	Inflatable Restraint Side Impact Sensor (Left Hand Shown, Right Side Similar)
6	Inflatable Restraint Side Impact Module (Left Side Shown, Right Side Similar)
7	Occupant Classification (OC) Sensor
8	Inflatable Restraint Steering Wheel Module Coil

Fig 14: Inflatable Restraint (Hatchback) North America Vehicles

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint I/P Module
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Occupant Classification (OC) Sensor
6	Inflatable Restraint Side Impact Sensor (Left Hand Shown, Right Side Similar)
7	Inflatable Restraint Side Impact Module (Left Side Shown, Right Side Similar)
8	Inflatable Restraint Front End Sensor (Left Hand Shown, Right Side Similar)

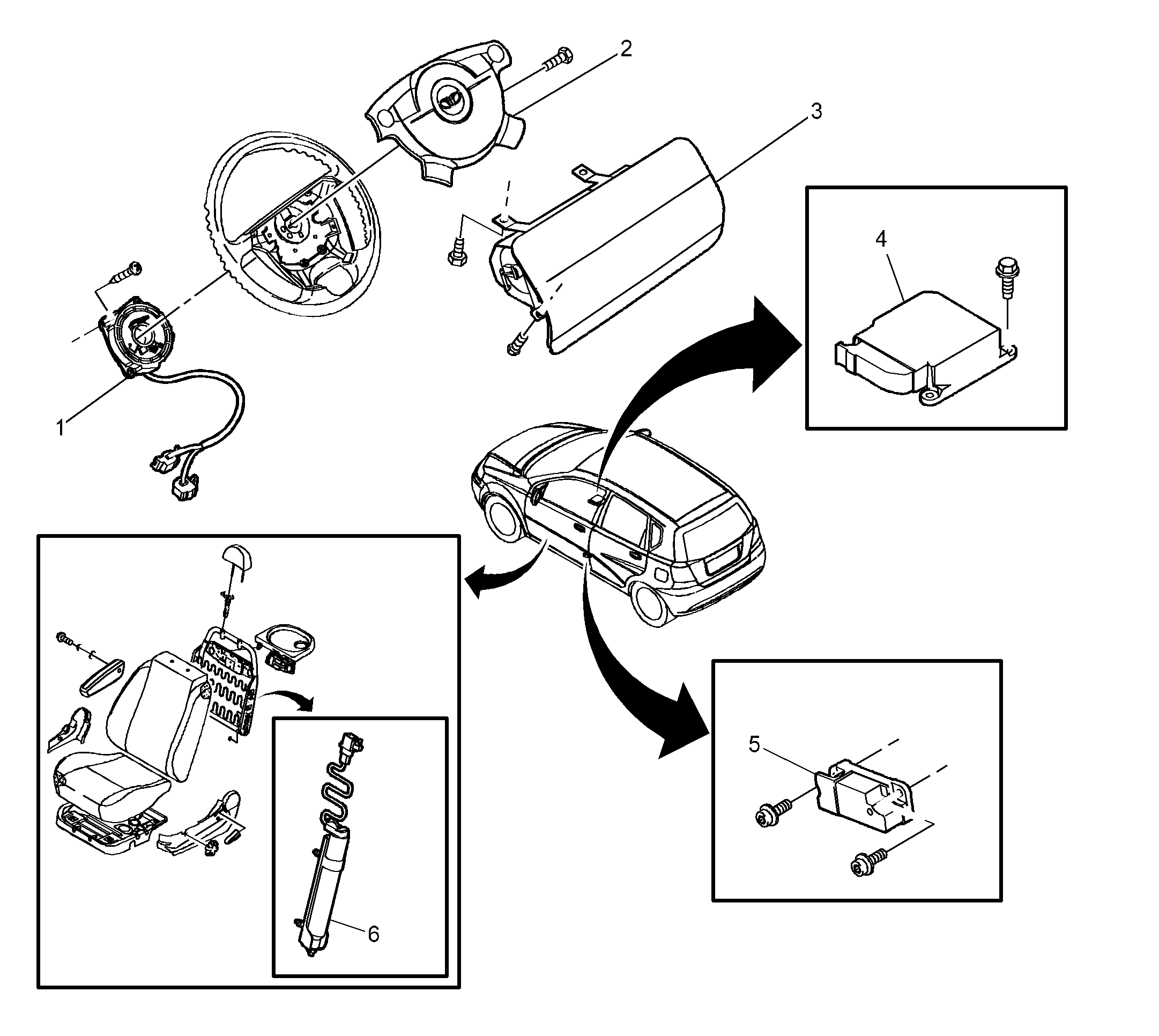

Fig 15: Inflatable Restraint (Hatchback) Except North America Vehicles

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint I/P Module
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Inflatable Restraint Side Impact Sensor - Except North America Models (Left Hand Shown, Right Side Similar)
6	Inflatable Restraint Side Impact Module - Except North America Models (Left Side Shown, Right Side Similar)

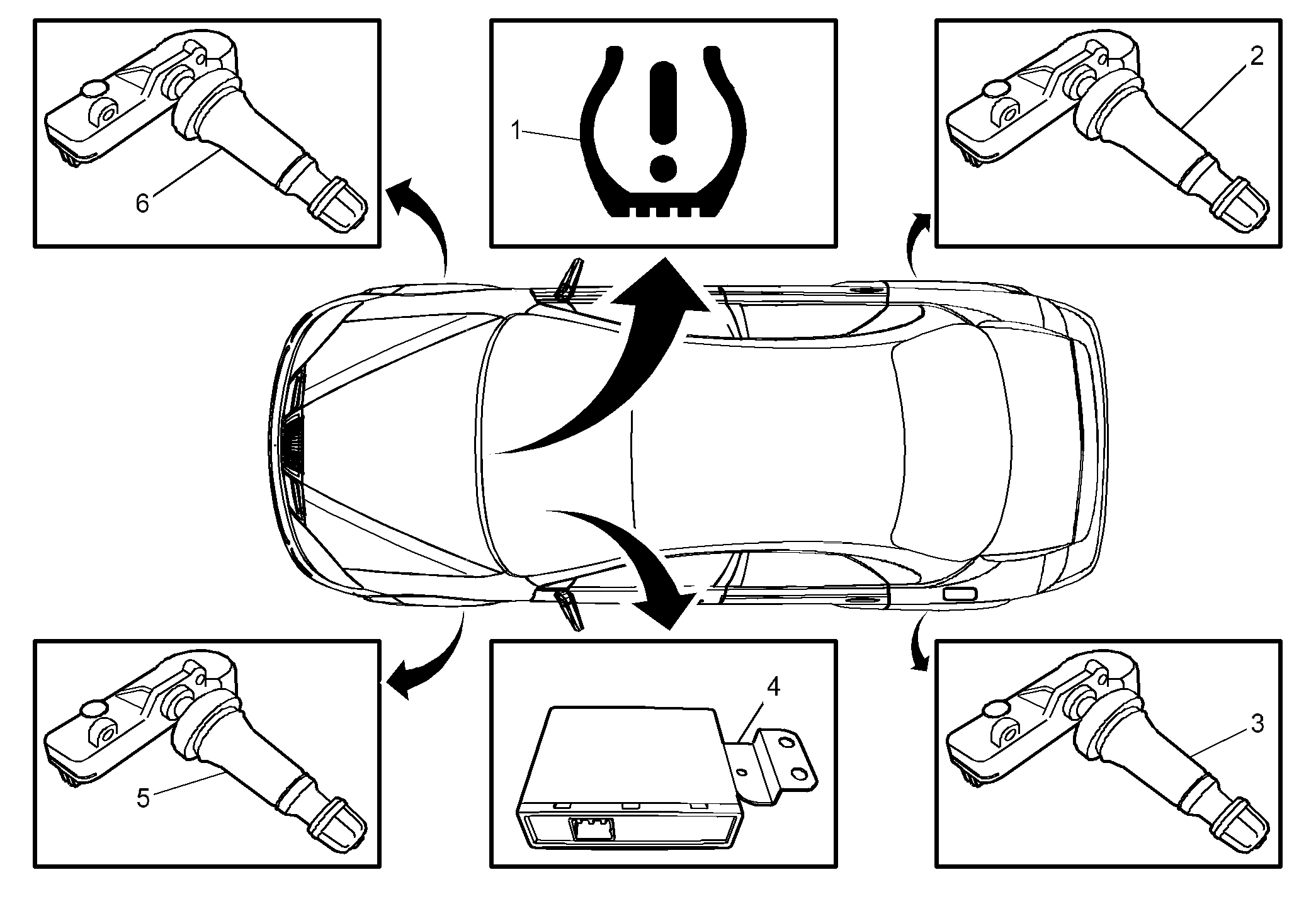

Fig 16: Tire Pressure Monitoring System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Warning Lamp
2	Right Rear Transmitter
3	Left Rear Transmitter
4	Tire Pressure Monitor System (TPMS) Receiver Module
5	Left Front Transmitter
6	Right Front Transmitter

Fig 17: Shift Lever Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid
2	Park Position Switch
