Instrument Panel/Center Console Component Views

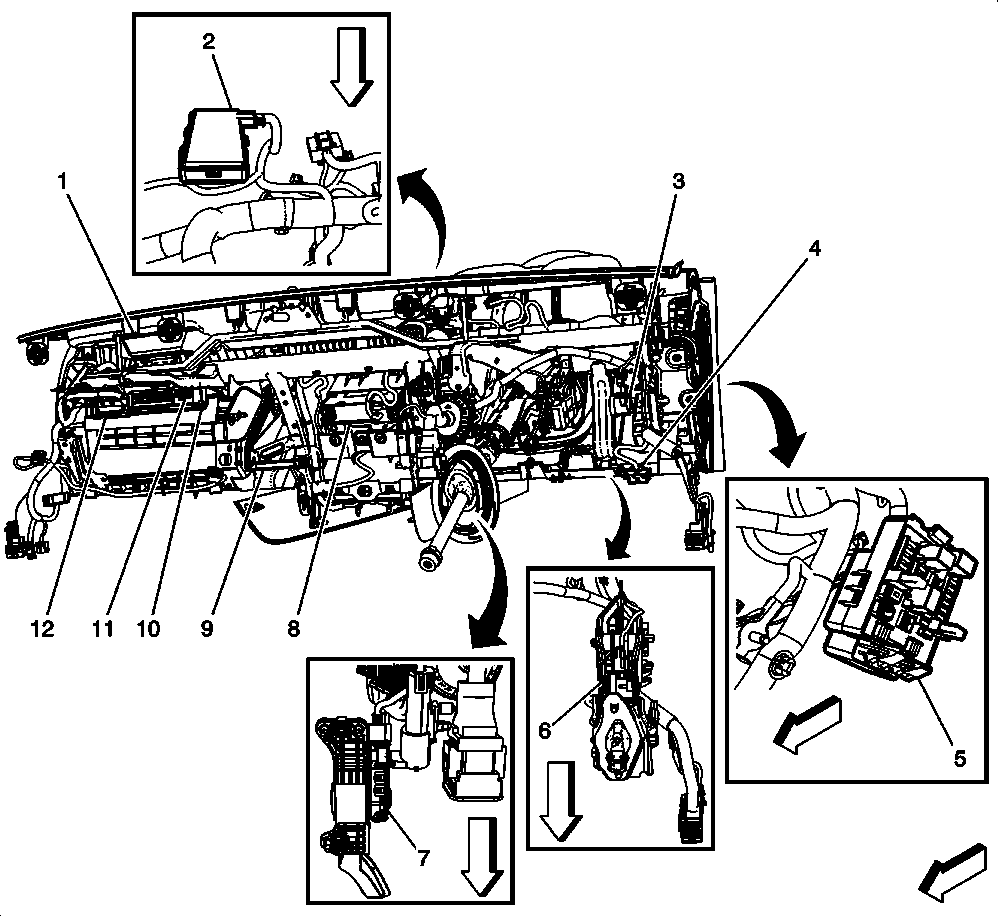

Fig 1: Instrument Panel Components
GM2269626Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 F105 Passenger Instrument Panel Air Bag
2 K77 Remote Control Door Lock Receiver (W/O BTV)
3 B22 Brake Pedal Position Sensor
4 X84 Data Link Connector
5 X51A Fuse Block - Instrument Panel
6 B25B Clutch Pedal Position Sensor (MV5/M10)
7 B107 Accelerator Pedal Position Sensor
8 A11 Radio
9 B39 A/C Evaporator Temperature Sensor
10 K73 Telematics Communication Interface Control Module (UE1)
11 T4S Wireless Communication Antenna - Bluetooth (UPF)
12 C3 Telematics Communication Interface Control Module Battery (UE1)

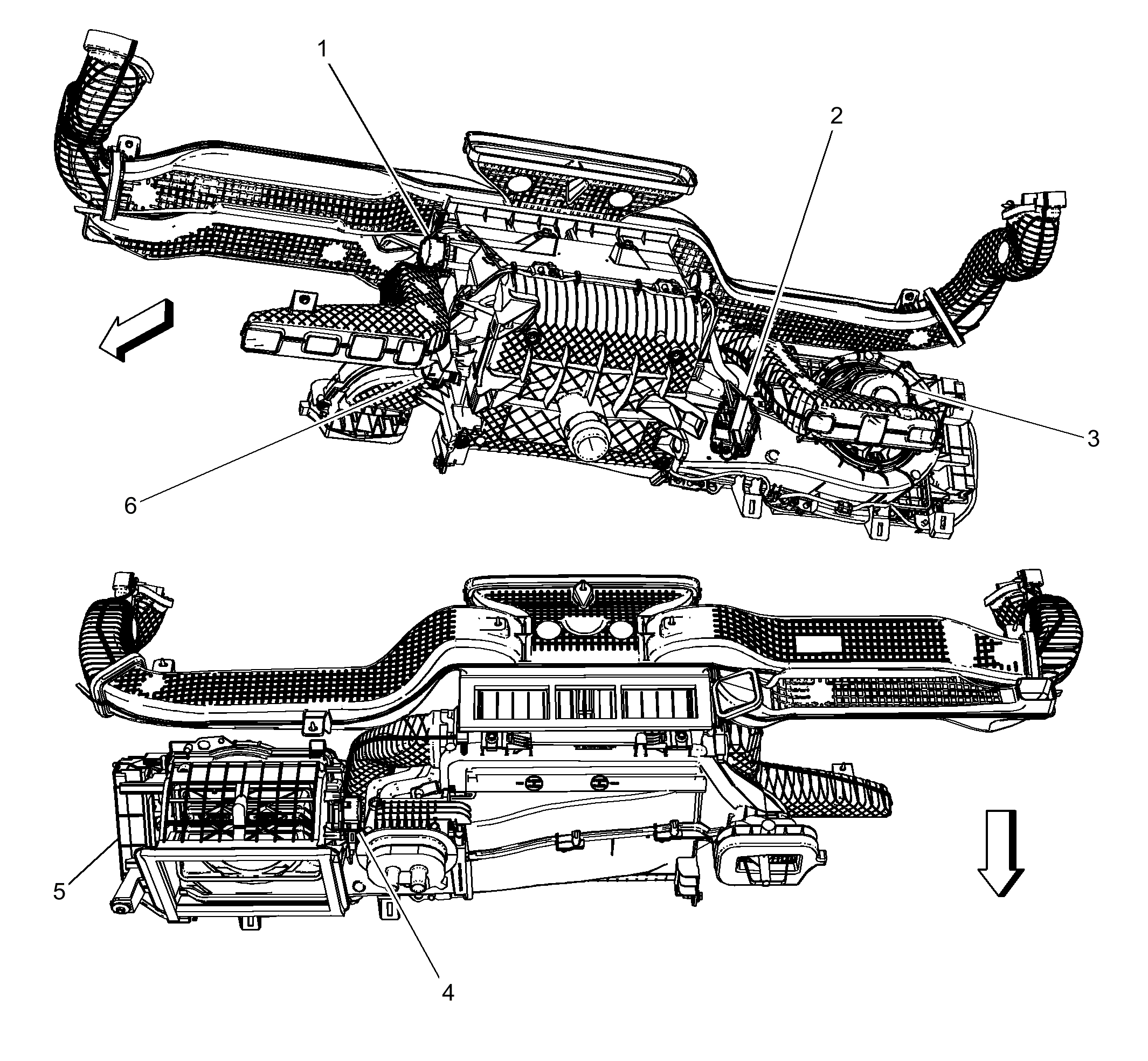

Fig 2: Front Of Passenger Compartment HVAC Module Components
GM2269644Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 M37 Mode Door Actuator
2 K8 Blower Motor Control Module
3 M8 Blower Motor
4 M46 Air Recirculation Door Motor
5 K33 HVAC Control Module
6 M6 Air Temperature Door Actuator

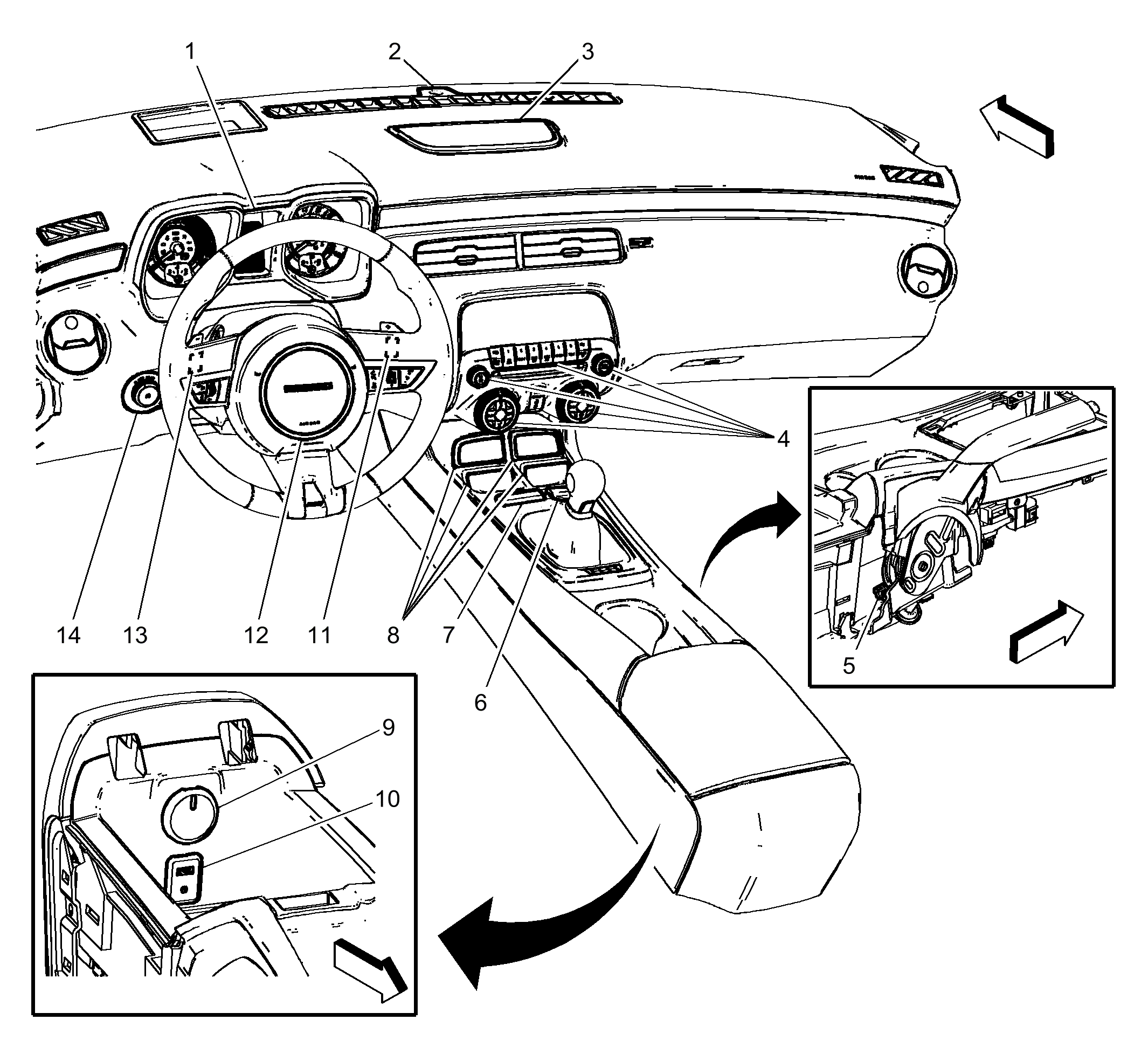

Fig 3: Instrument Panel & Center Console Components
GM2263476Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 E1G Accent Lamp - Left I/P (W1H)
2 P16 Instrument Cluster
3 E1H Accent Lamp - Right I/P (W1H)
4 B10 Ambient Light Sensor
5 P19A Speaker - Center Instrument Panel (UQA)
6 A20 Radio/HVAC Controls
7 B80 Park Brake Switch
8 X80D Accessory Power Receptacle - Center Console Compartment
9 X83 Auxiliary Audio Input (USR)
10 X80H Accessory Power Receptacle - Center Console
11 S75 Traction Control Switch
12 P26 Auxiliary Gauge Module (UMQ)
13 S2R Automatic Transmission Manual Shift Switch - Right (MYB/MYC)
14 F107 Steering Wheel Air Bag
15 S2L Automatic Transmission Manual Shift Switch - Left (MYB/MYC)
16 S30 Headlamp Switch

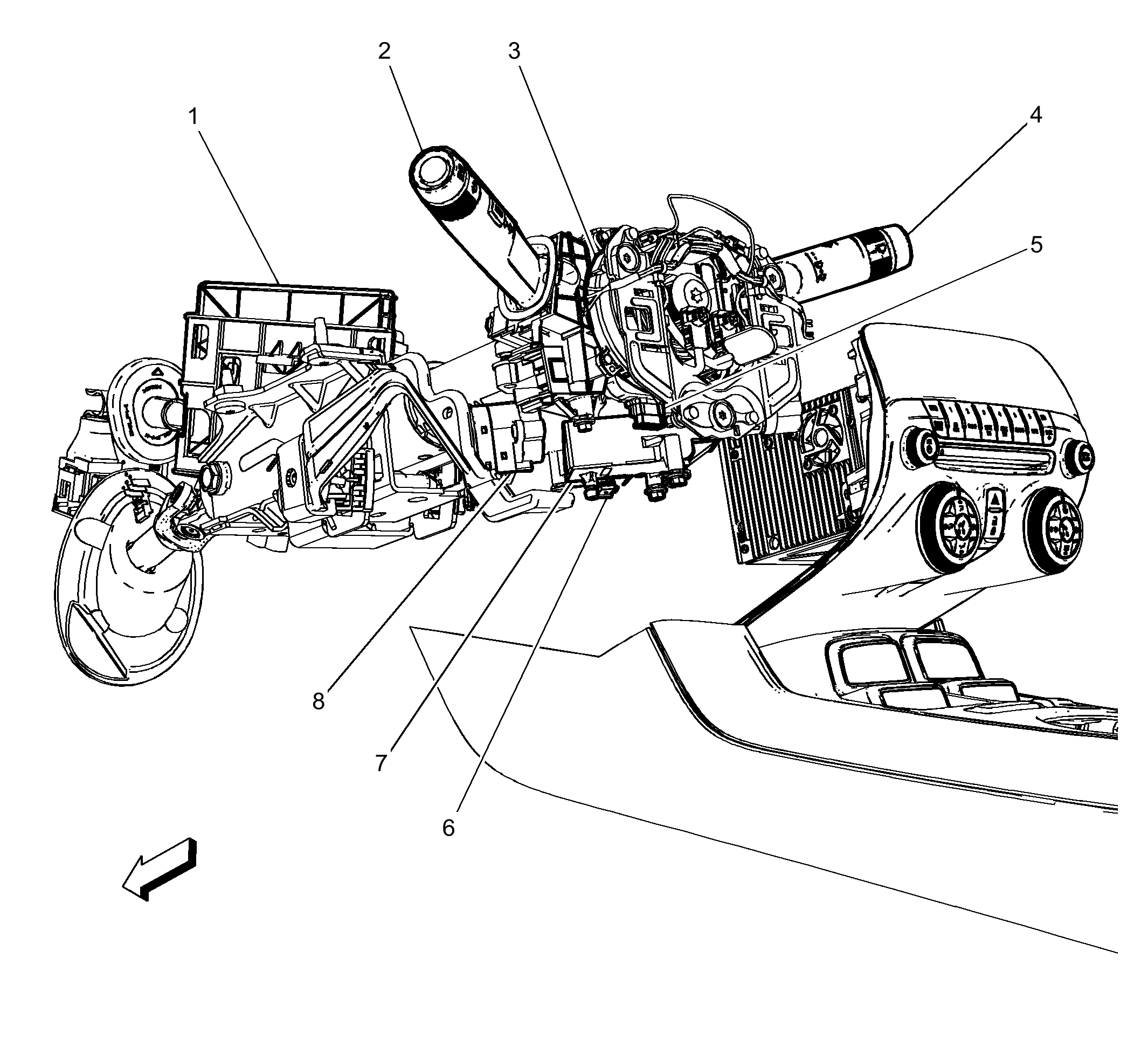

Fig 4: Left Center Of Instrument Panel & Steering Column Components
GM2269632Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 K9 Body Control Module
2 S78 Turn Signal/Multifunction Switch
3 X85 Steering Wheel Air Bag Coil
4 S82 Windshield Wiper/Washer Switch
5 B99 Steering Wheel Angle Sensor
6 M93 Ignition Cylinder Lock Control Solenoid Actuator (MYB/MYC)
7 B101 Immobilizer Antenna
8 S39 Ignition Switch

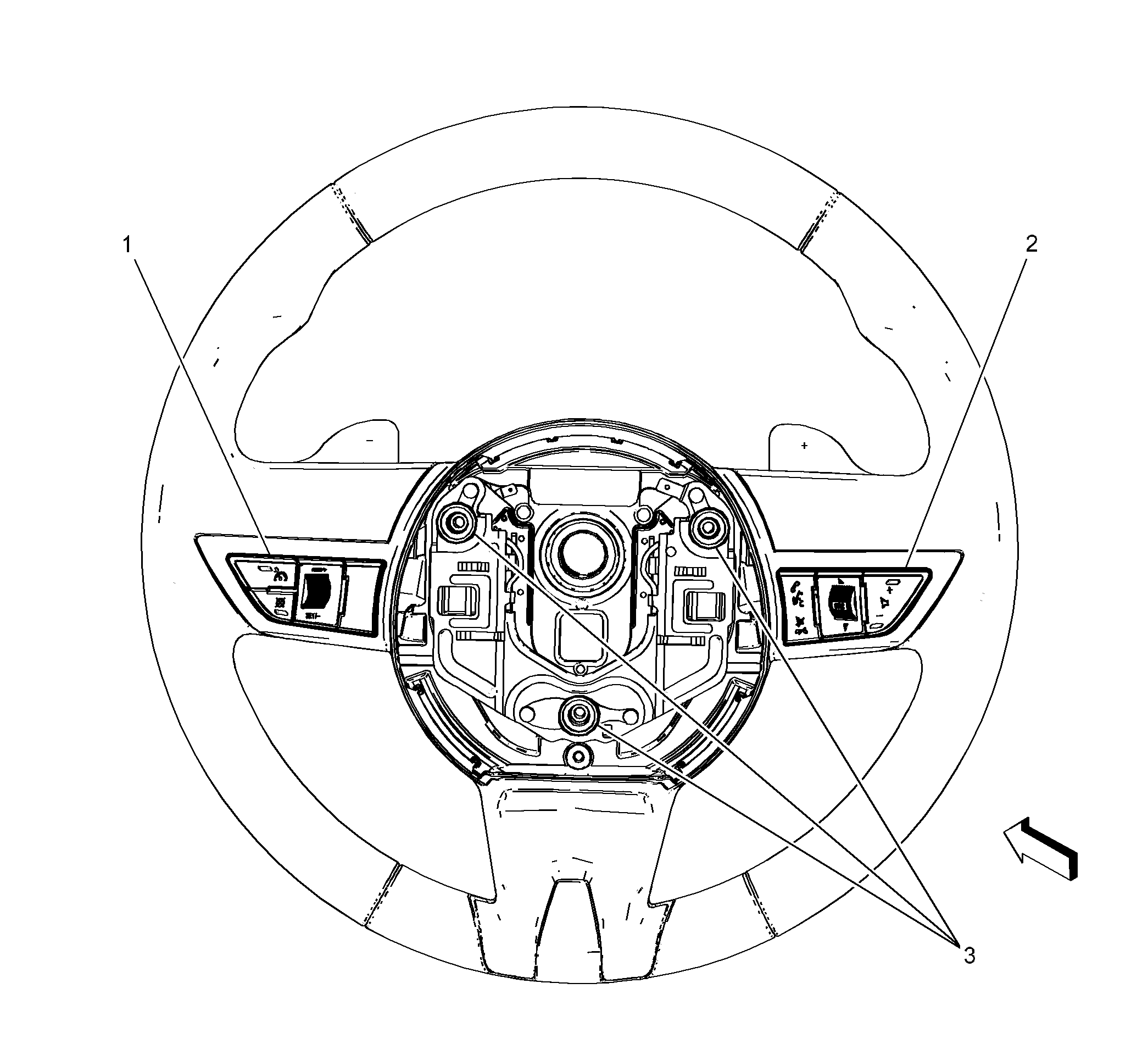

Fig 5: Steering Wheel Components
GM2263469Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S70L Steering Wheel Controls Switch - Left
2 S70R Steering Wheel Controls Switch - Right (NZL)
3 S33 Horn Switch

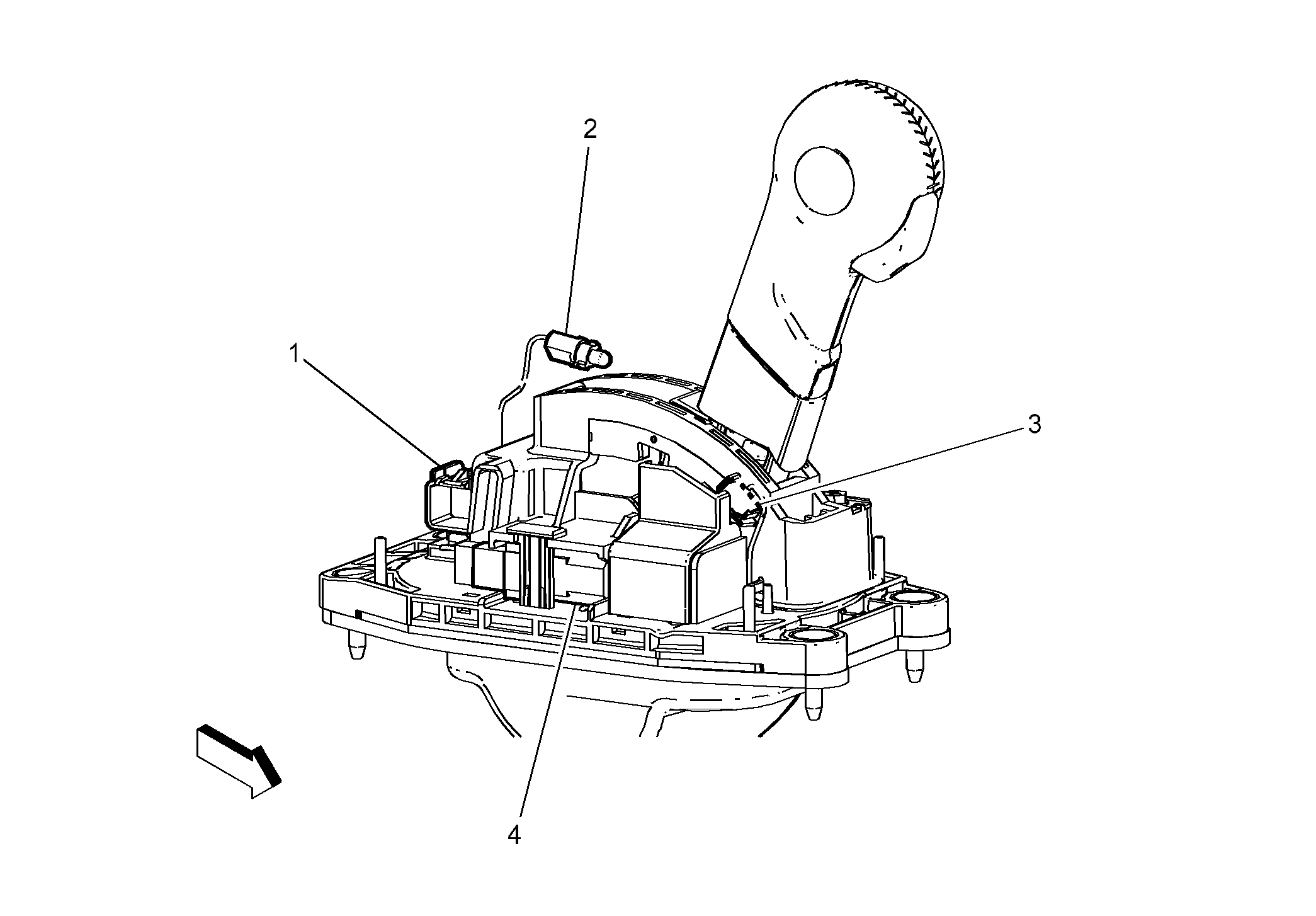

Fig 6: Automatic - Transmission Shift Lever Components (MYB or MYC)
GM2292674Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X301
2 P2 Transmission Shift Lever Position Indicator
3 B81B Park Position Switch
4 M7 Transmission Shift Lock Control Solenoid Actuator
