Air Cleaner Element Replacement

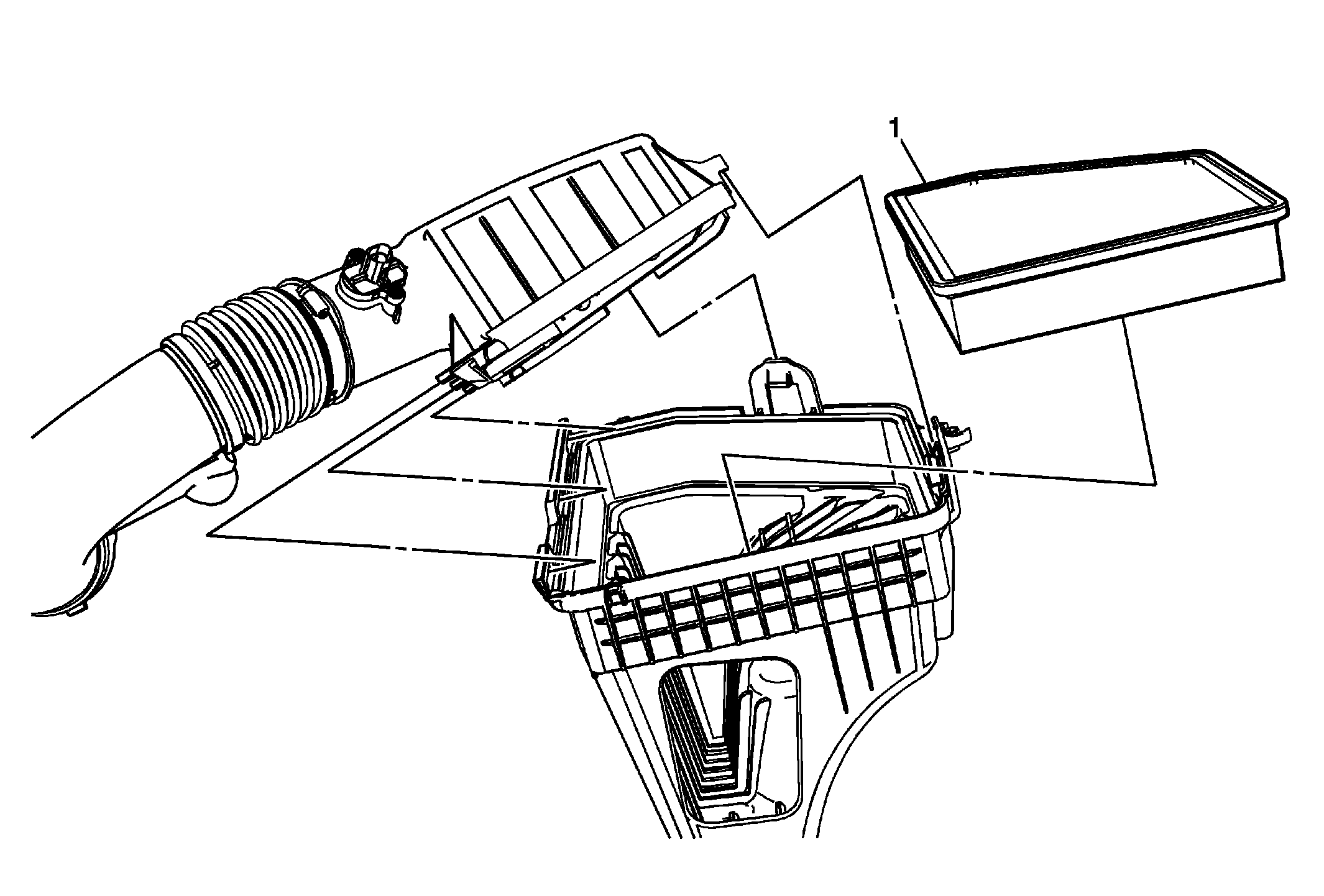

Fig 1: Air Cleaner Element
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Air Cleaner Element
Procedure
Disconnect the mass airflow electrical connector.
Push back the retaining tabs.
