Accelerator Pedal Position Sensor Replacement

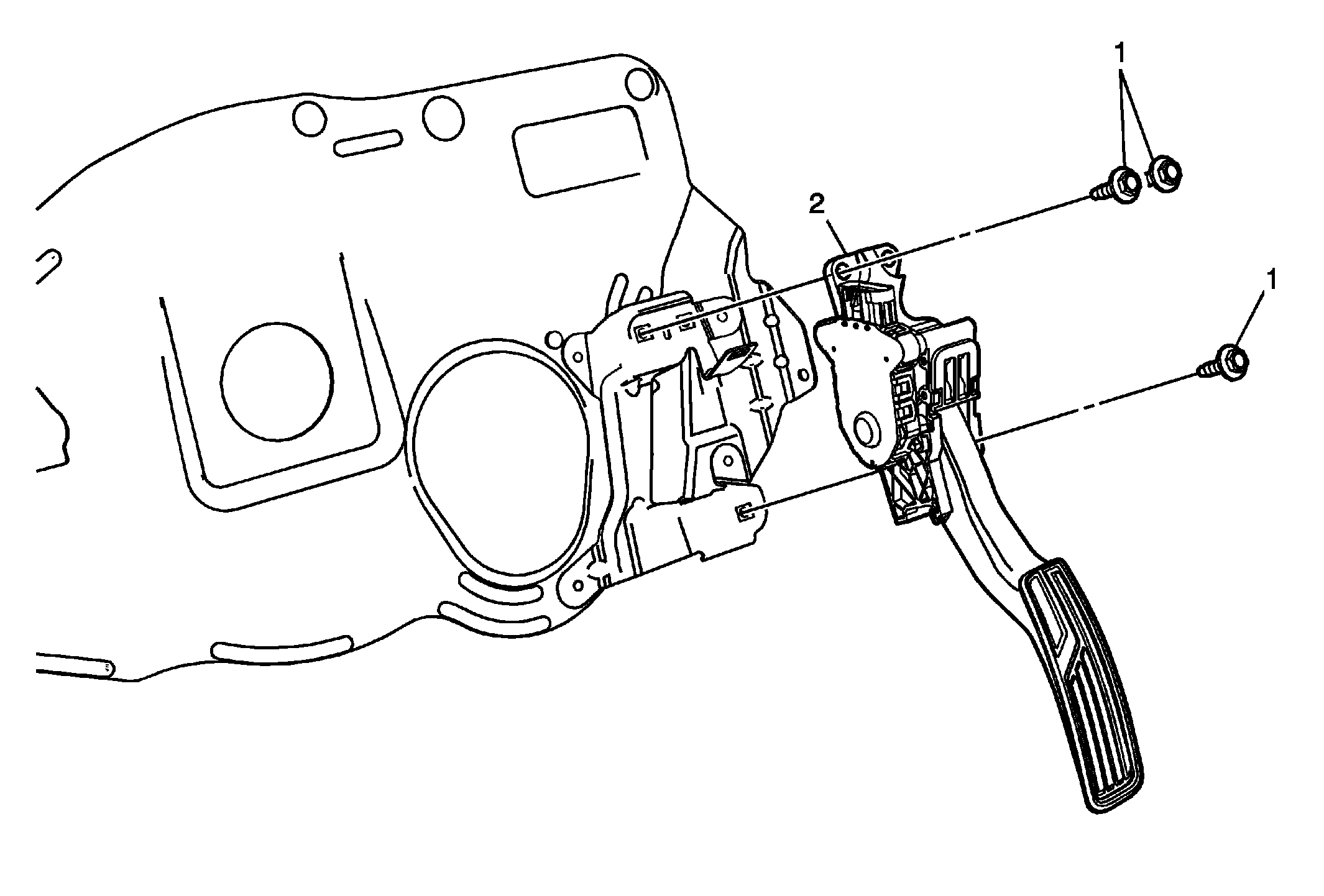

Fig 1: Accelerator Pedal Position Sensor
GM2197209Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position Sensor Fastener (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Accelerator Pedal Position Sensor
Procedure:
Disconnect the electrical connector.
