Fuel Line Replacement - Engine

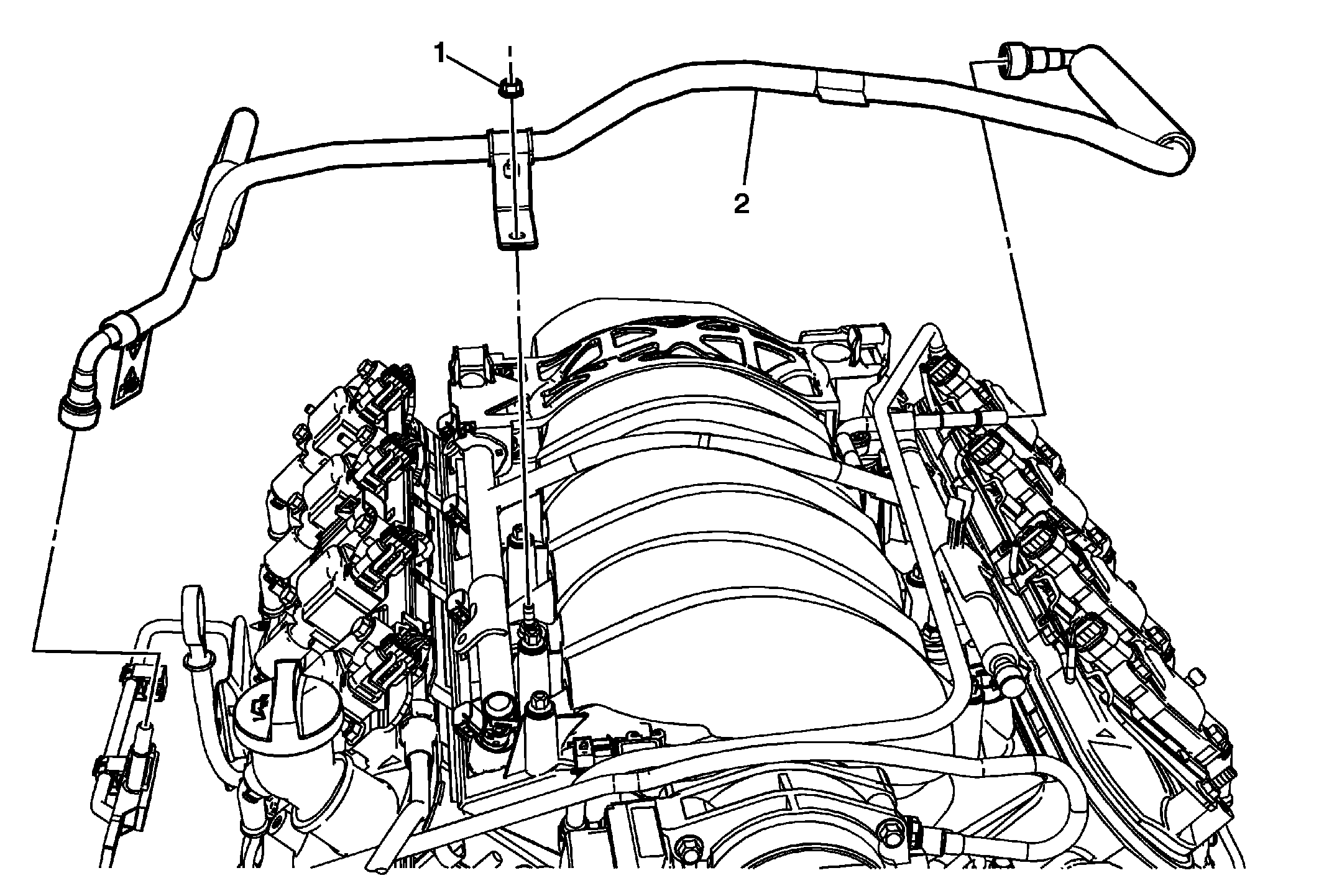

Fig 1: Fuel Line - Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Line Fastener CAUTION: Refer to Fastener Caution . Tighten: 10 N.m(89 lb in)
2	Fuel Line - Engine Compartment

Callout

Component Name

Preliminary Procedure

Remove the engine cover. Refer to Engine Cover Replacement .
Disconnect the quick connects. Refer to Metal Collar Quick Connect Fitting Service .

Fuel Line Fastener

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m(89 lb in)

Fuel Line - Engine Compartment
