Daytime Running Lamp




Component Connector End Views

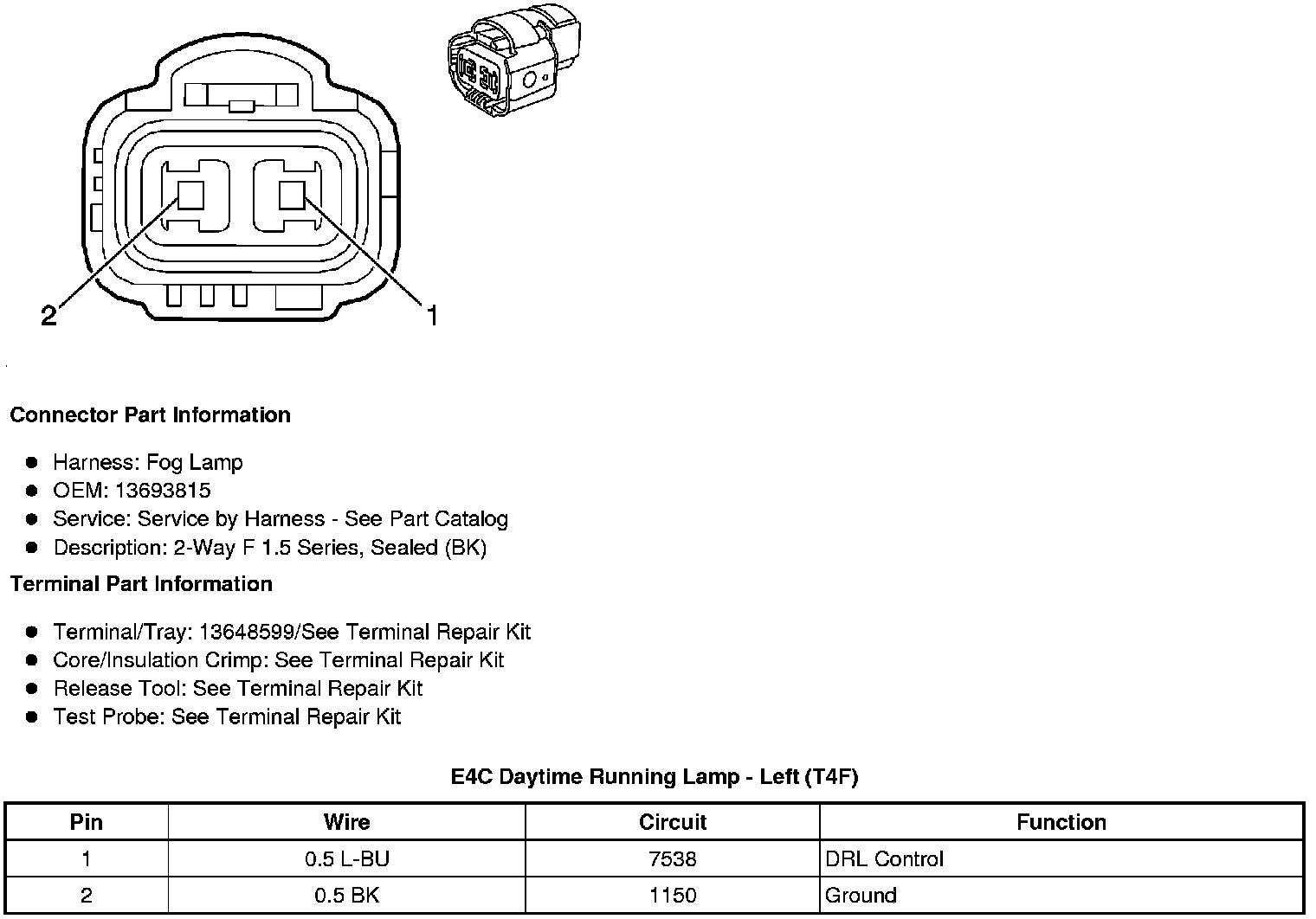

E4C Daytime Running Lamp - Left (T4F)





E4D Daytime Running Lamp - Right (T4F)
