Fuse
Electrical Center Identification Views
X50A Fuse Block - Underhood Label

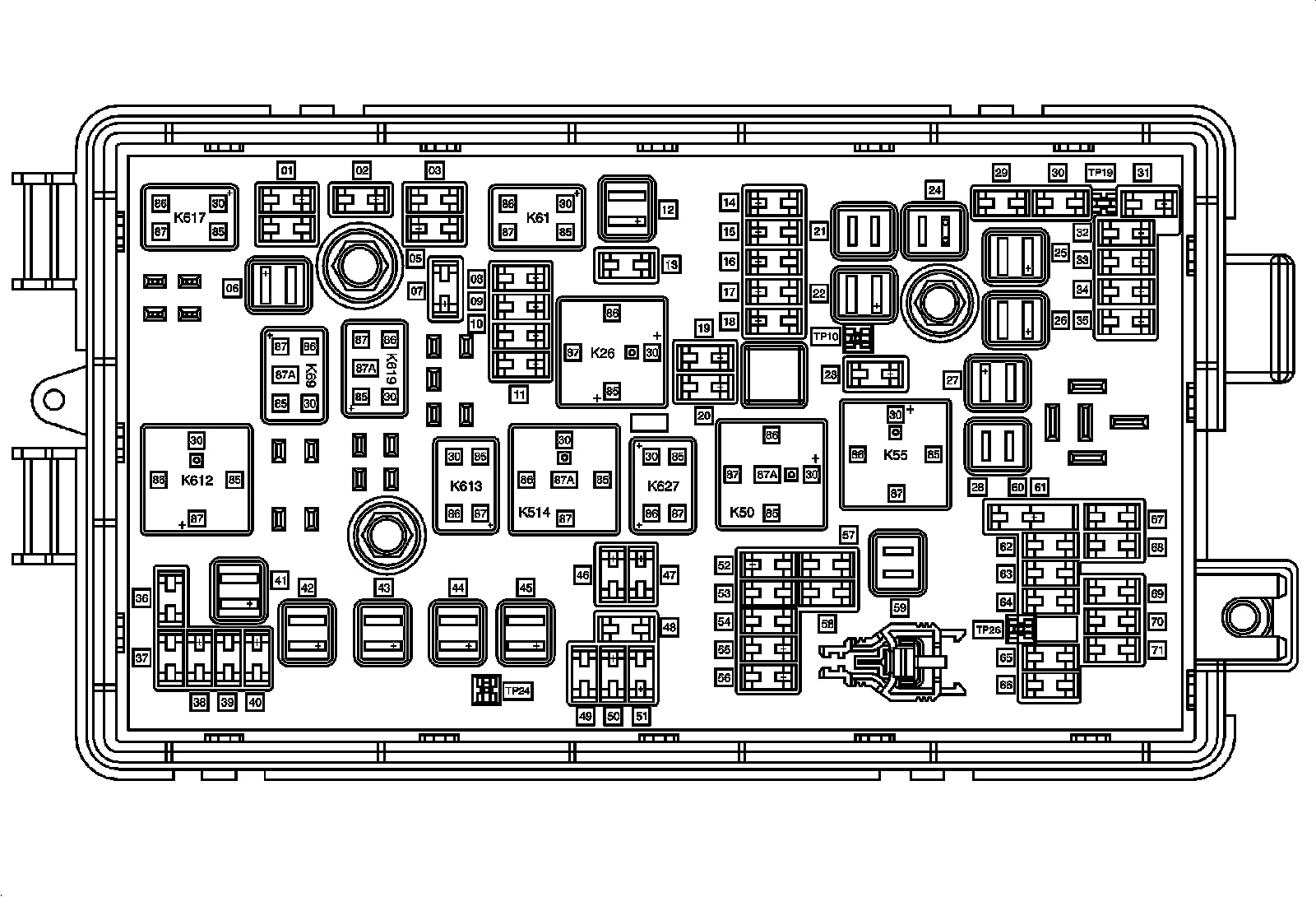

X50A Fuse Block - Underhood Top View

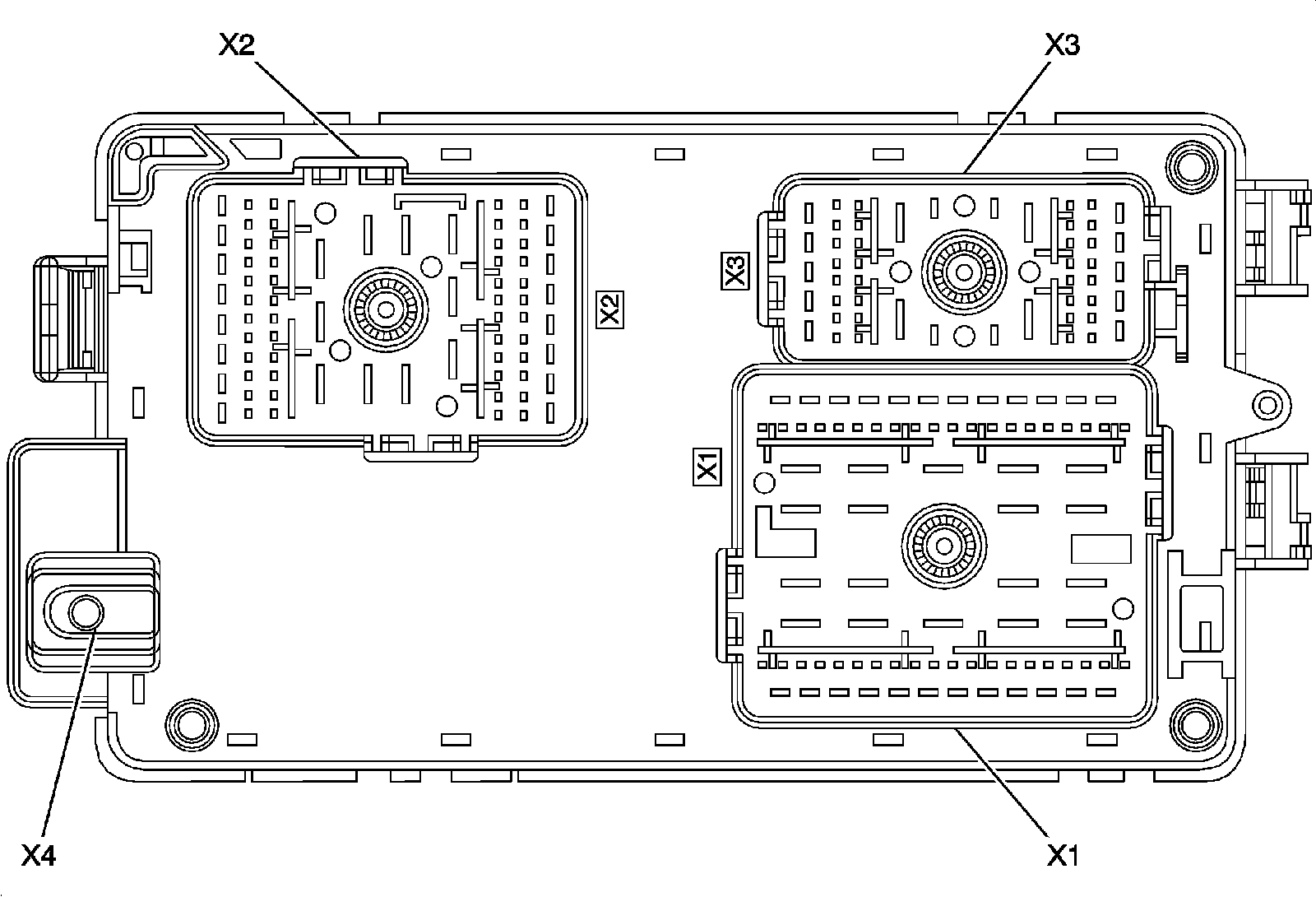

X50A Fuse Block - Underhood Bottom View

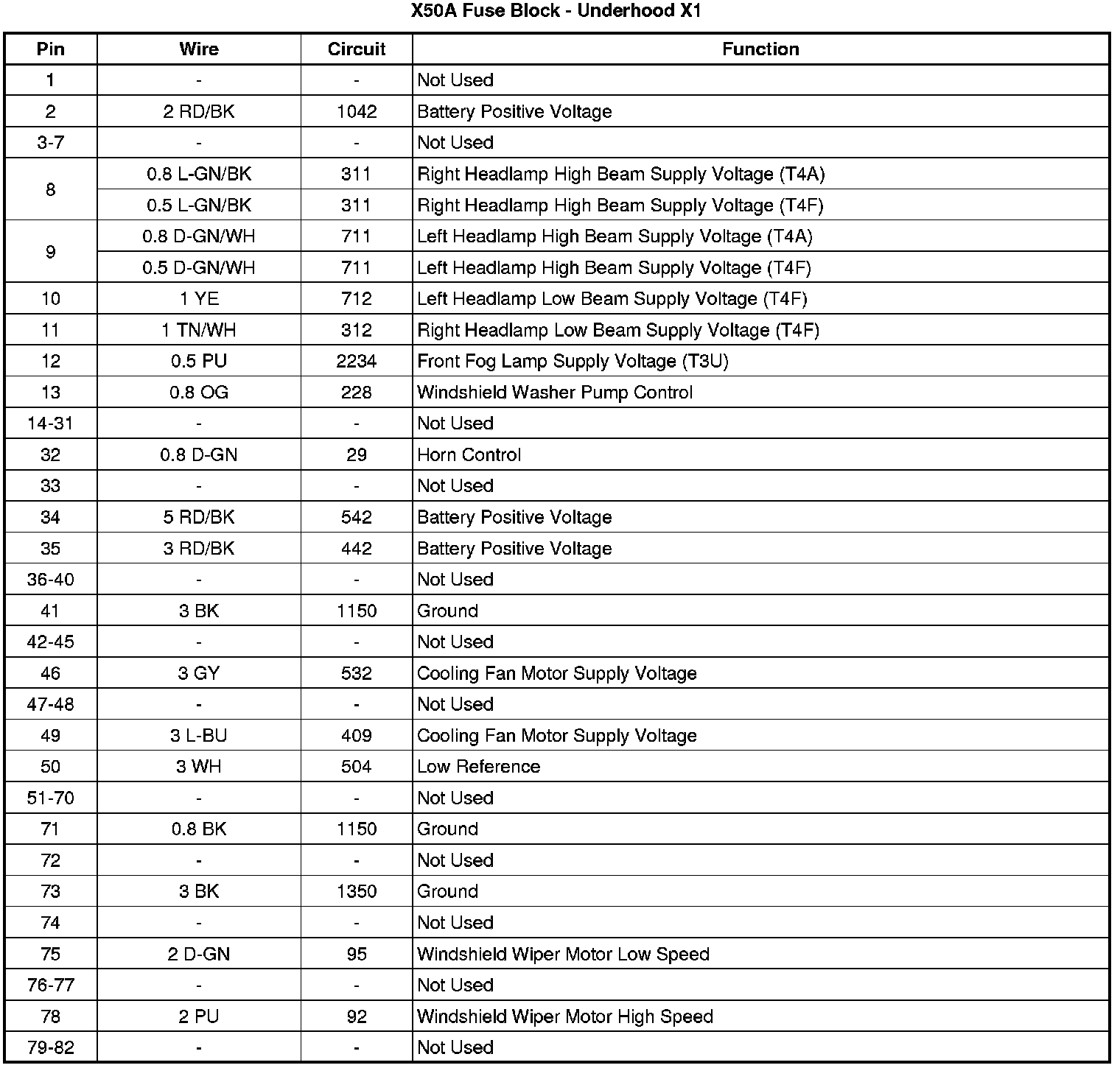

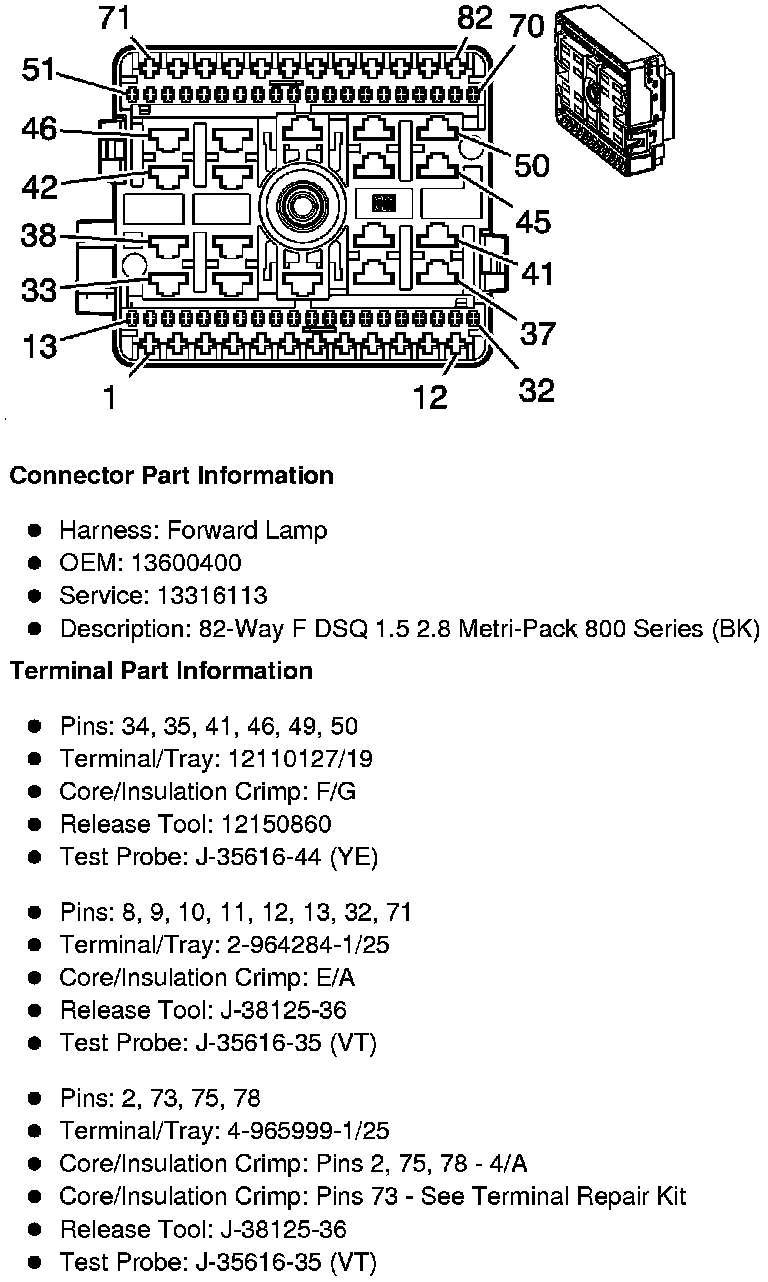

X50A Fuse Block - Underhood X1

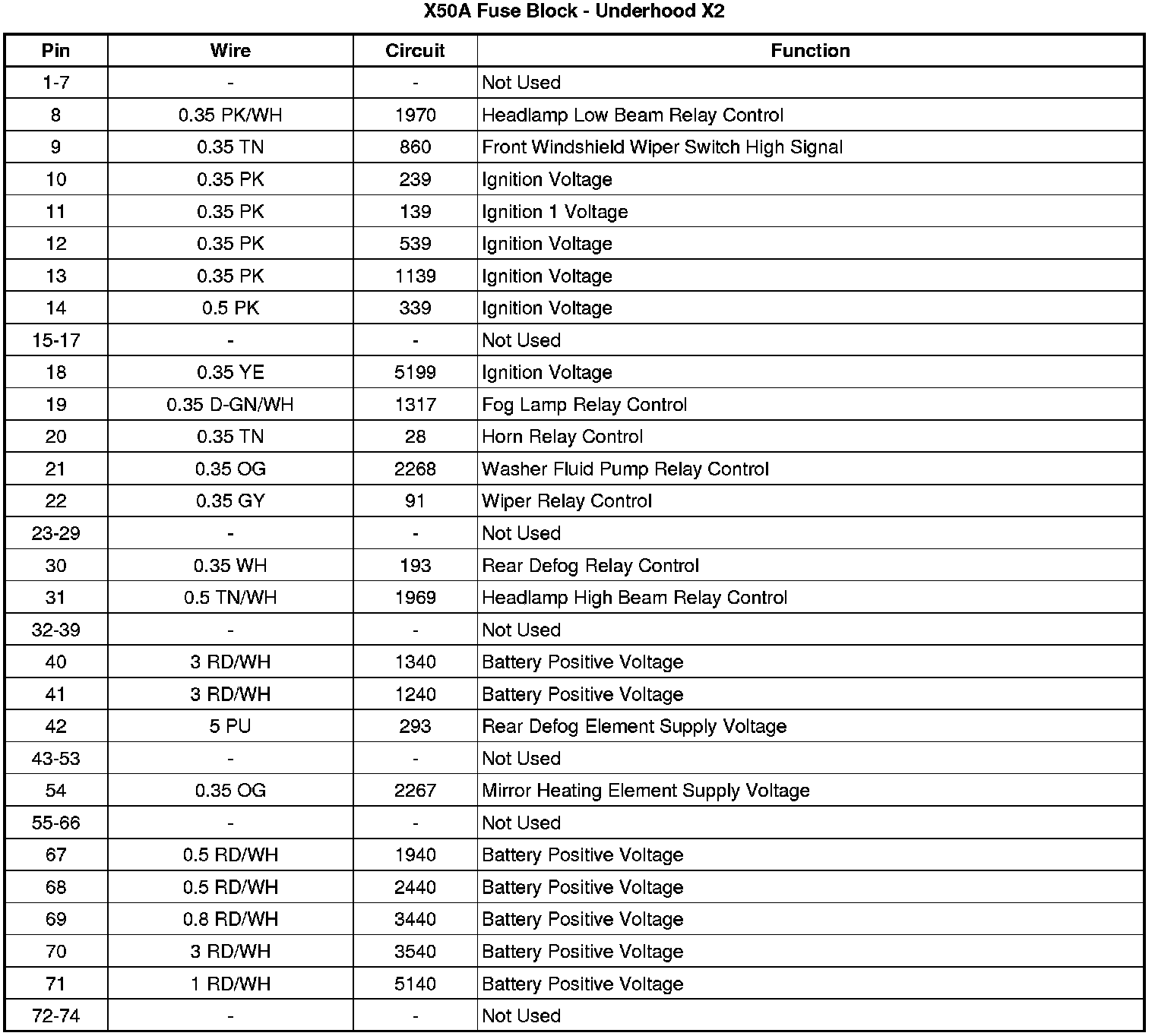

X50A Fuse Block - Underhood X2

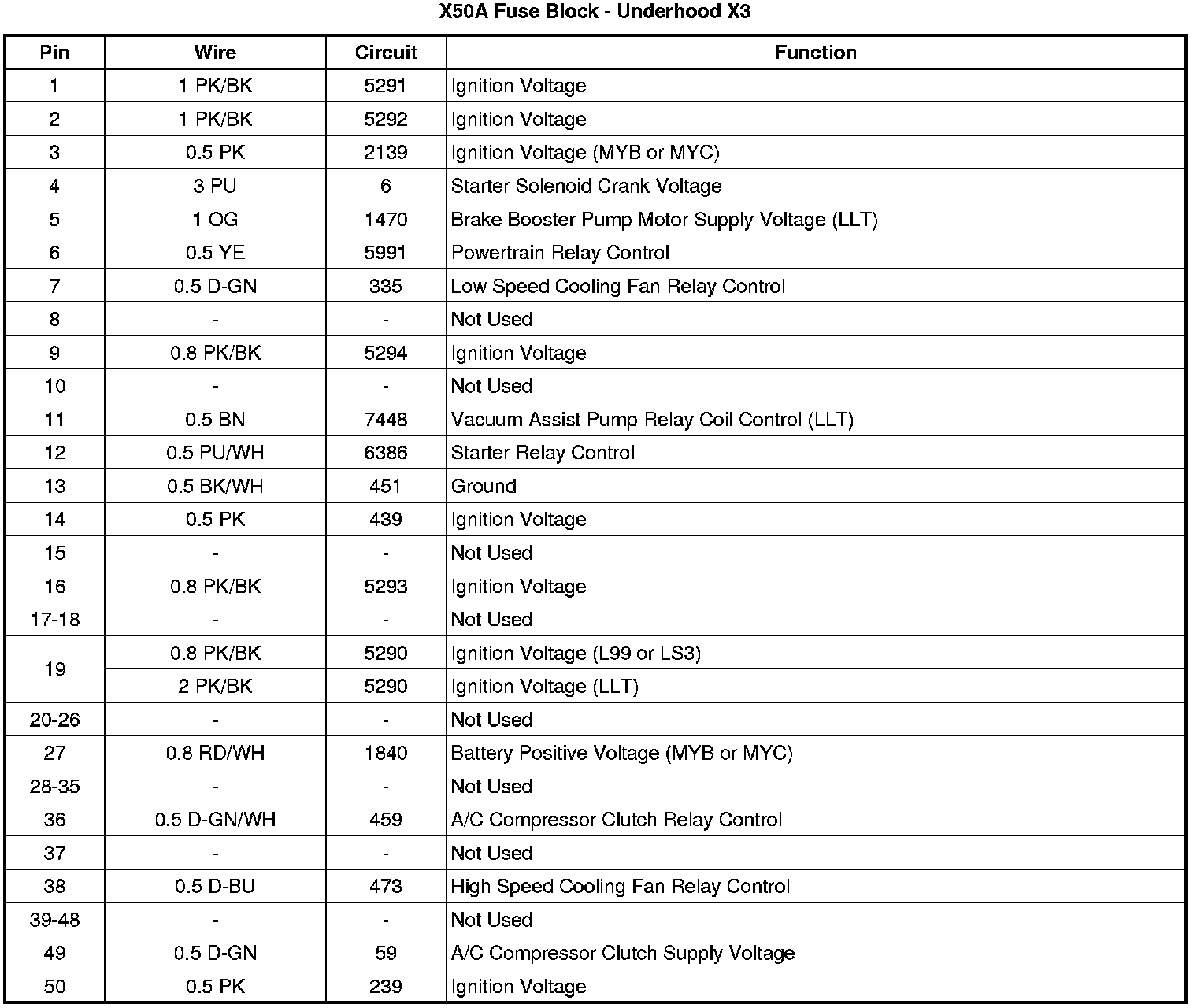

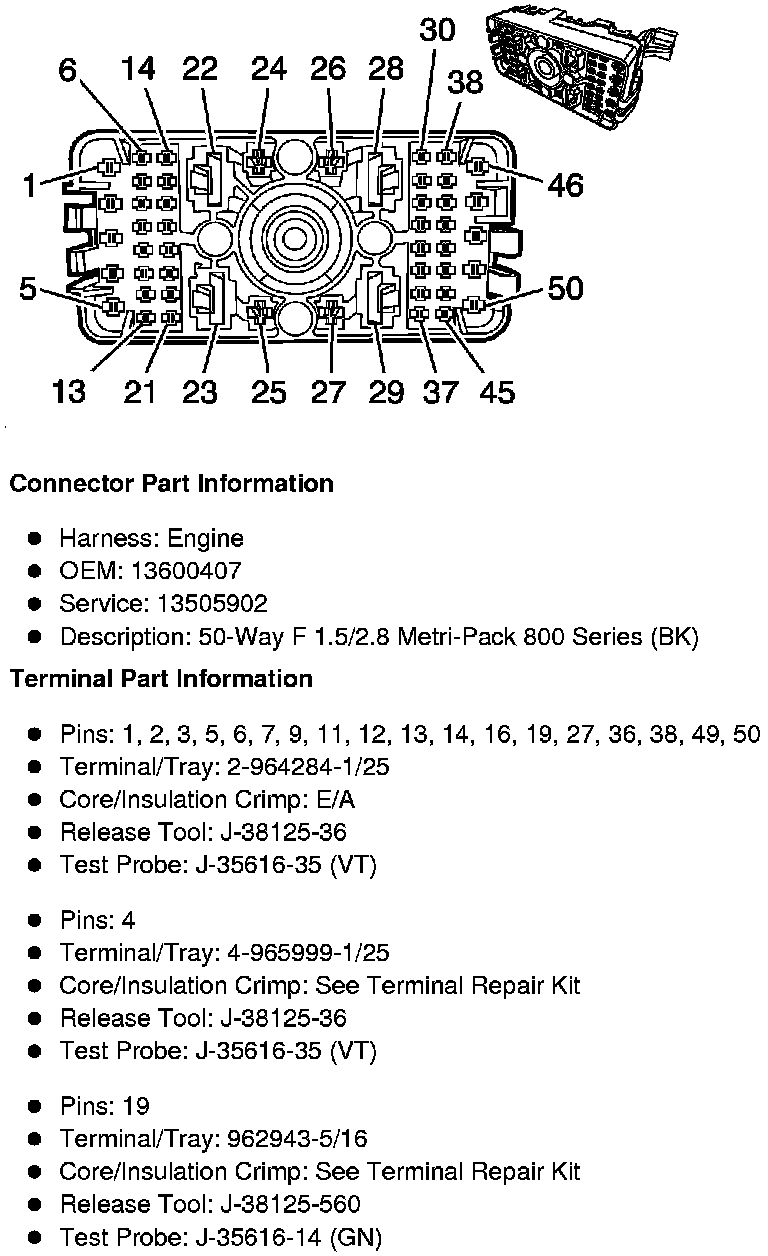

X50A Fuse Block - Underhood X3
X50A Fuse Block - Underhood X4

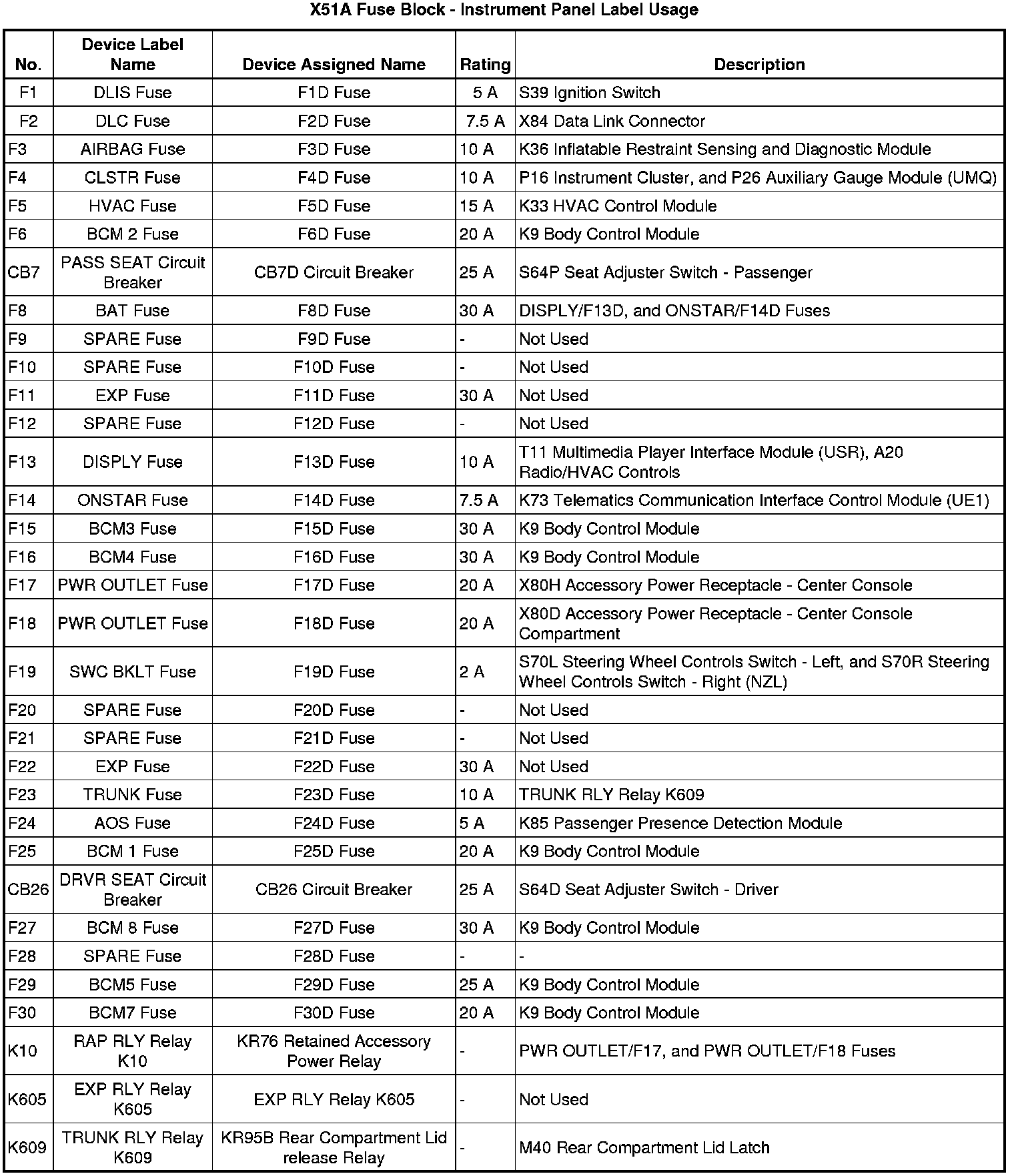

X51A Fuse Block - Instrument Panel Label

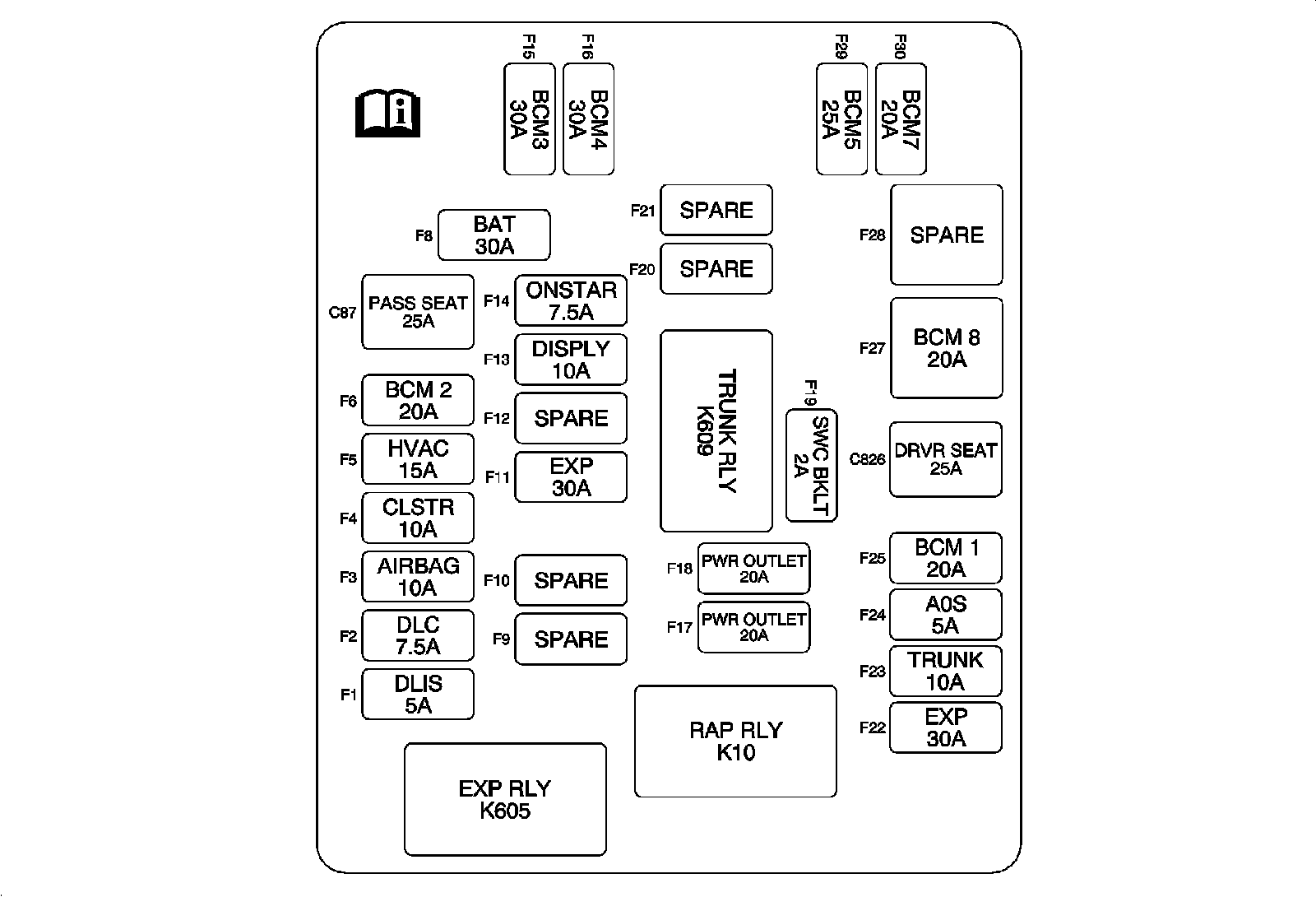

X51A Fuse Block - Instrument Panel Top View
X51A Fuse Block - Instrument Panel Bottom View

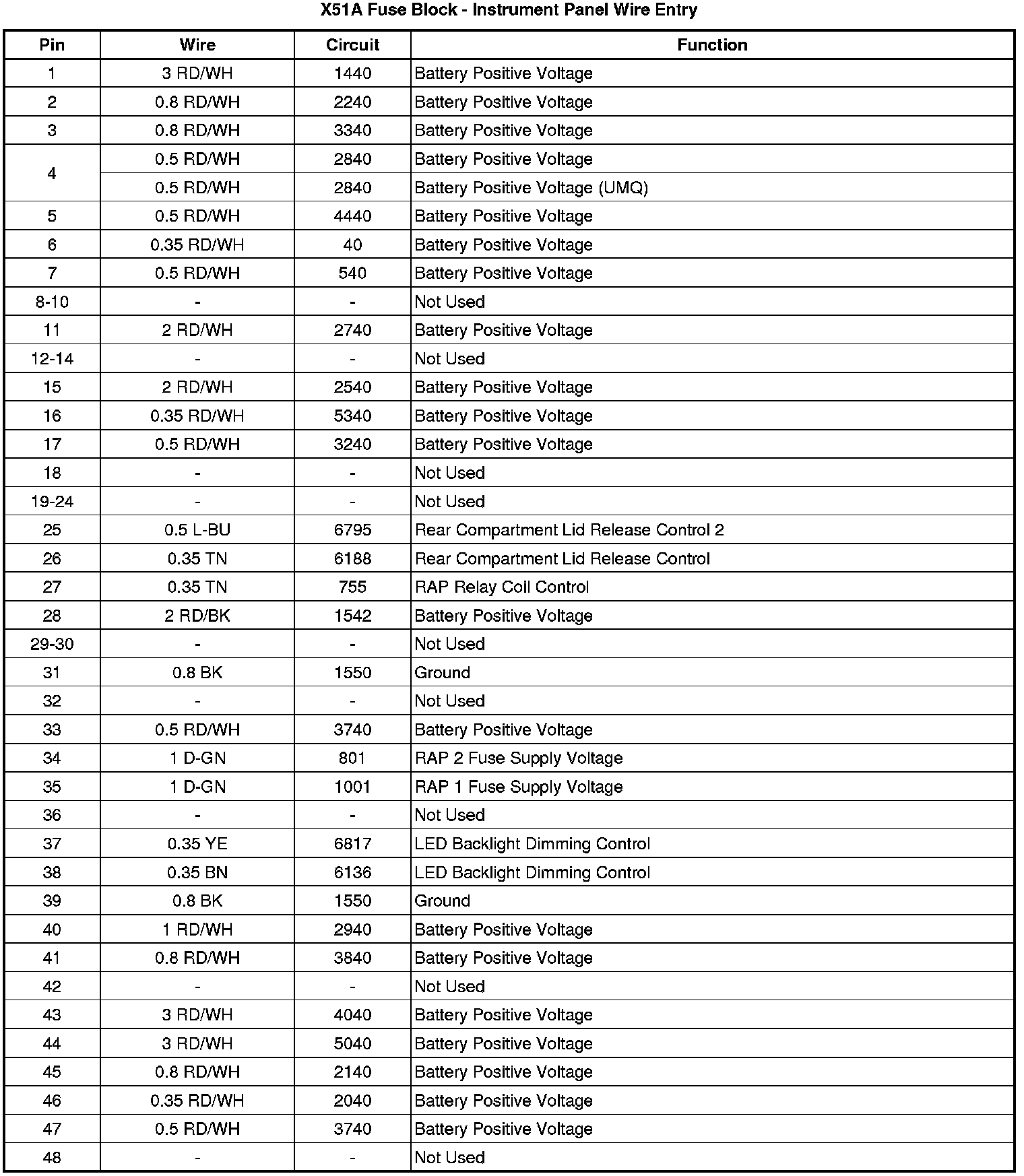

X51A Fuse Block - Instrument Panel Wire Entry

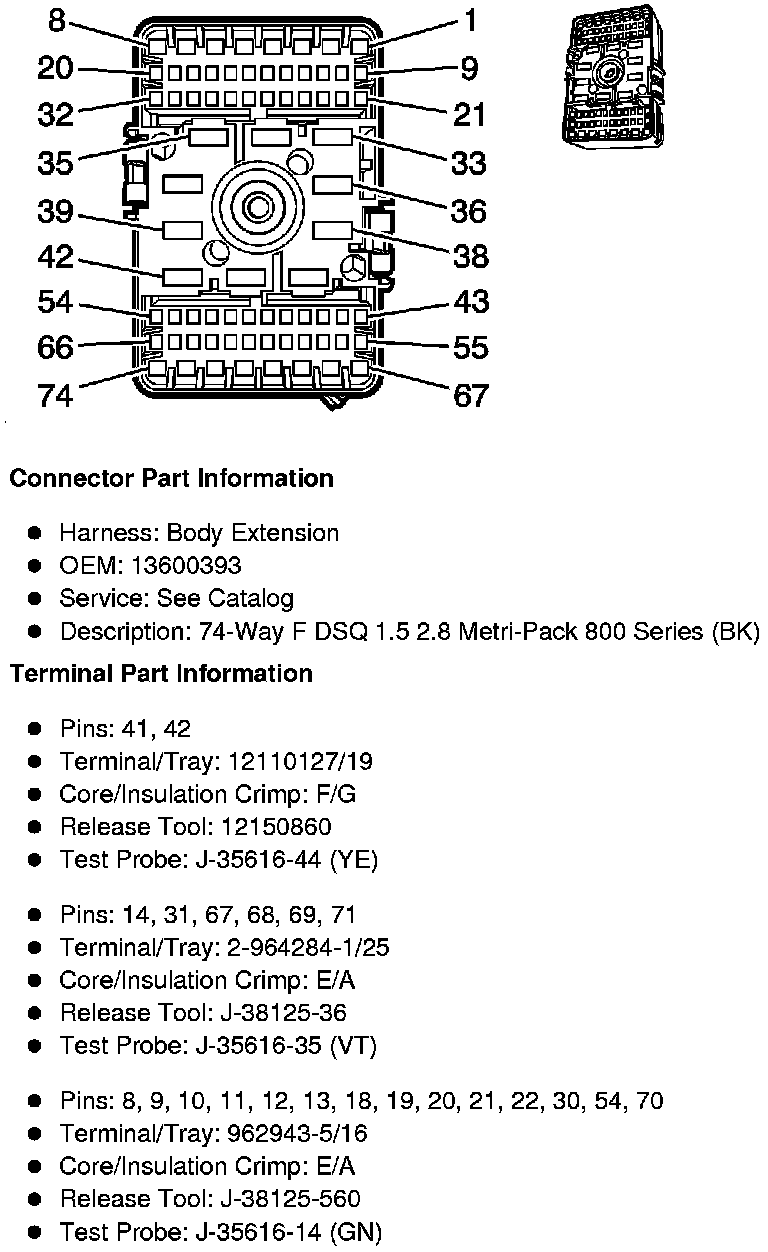

X51A Fuse Block - Instrument Panel X1

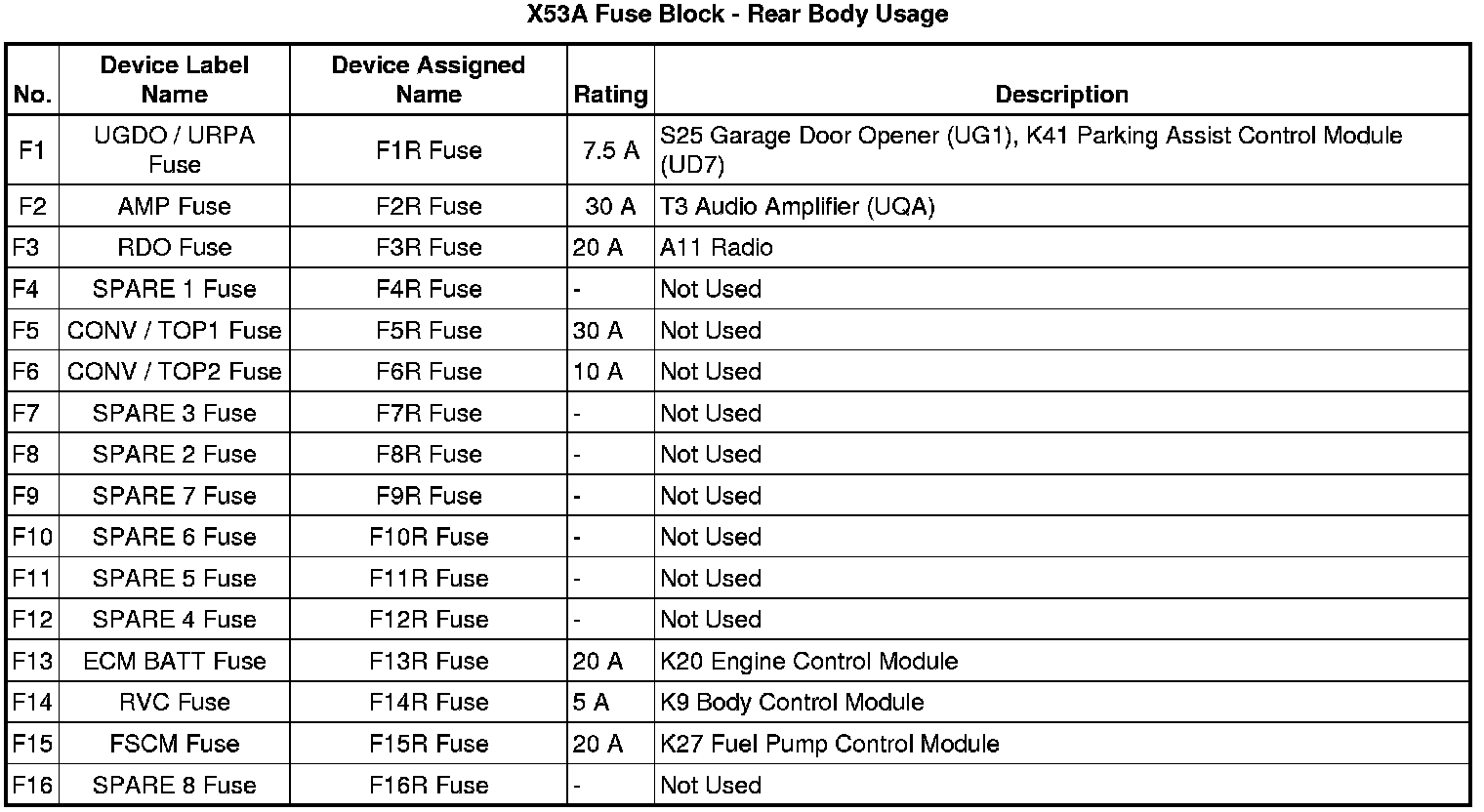

X53A Fuse Block - Rear Body Label

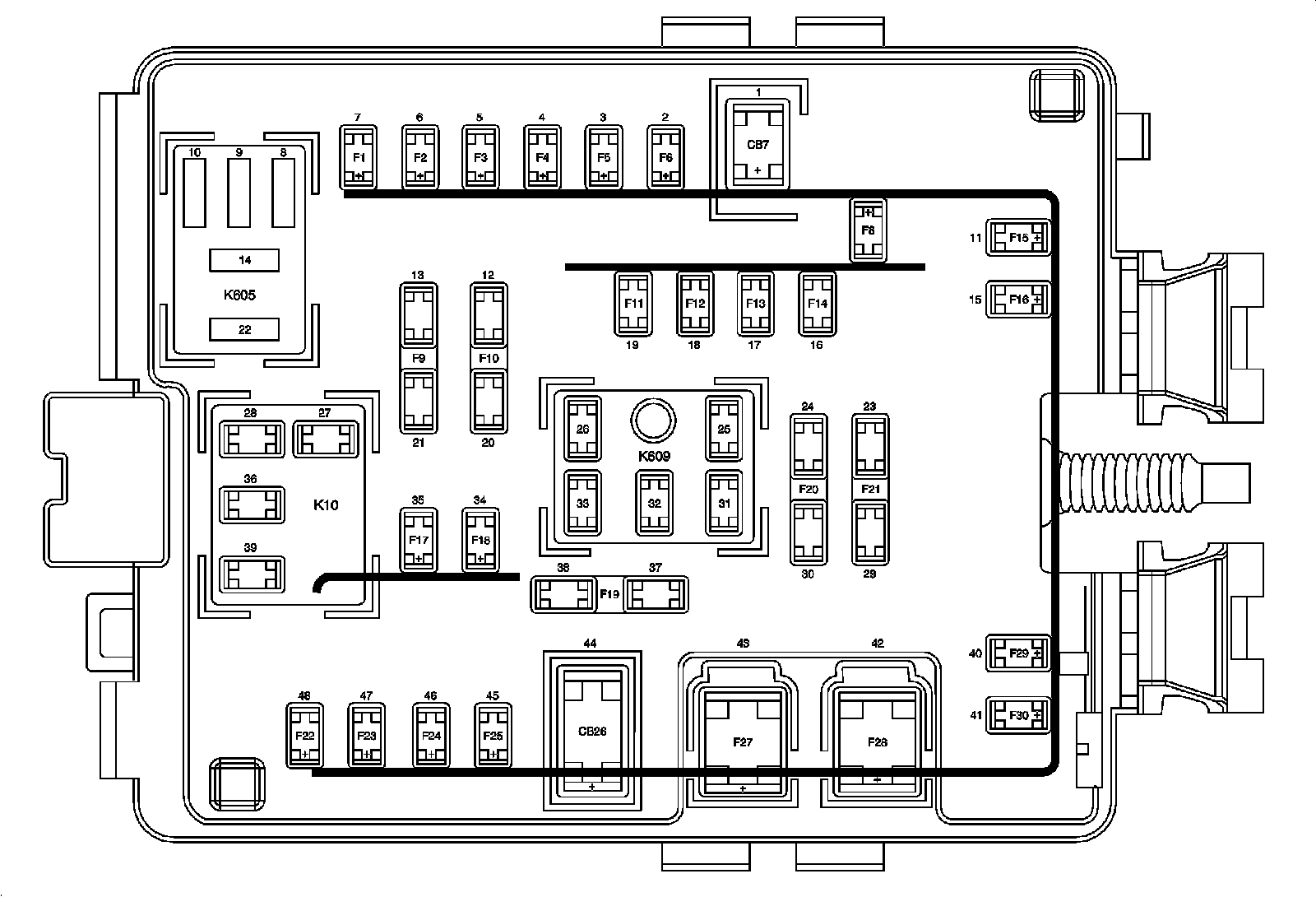

X53A Fuse Block - Rear Body Top View
X53A Fuse Block - Rear Body Bottom View

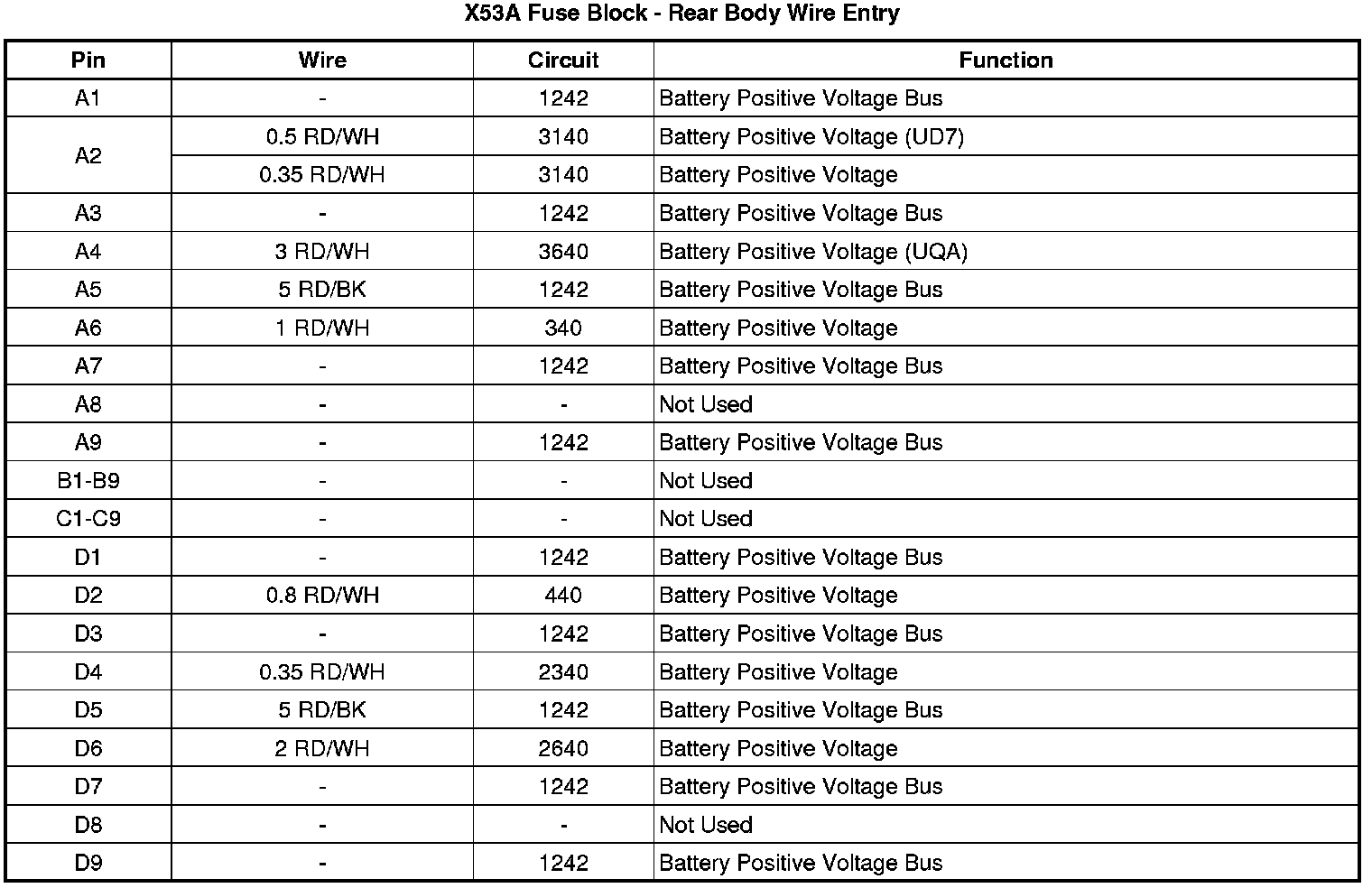

X53A Fuse Block - Rear Body Wire Entry

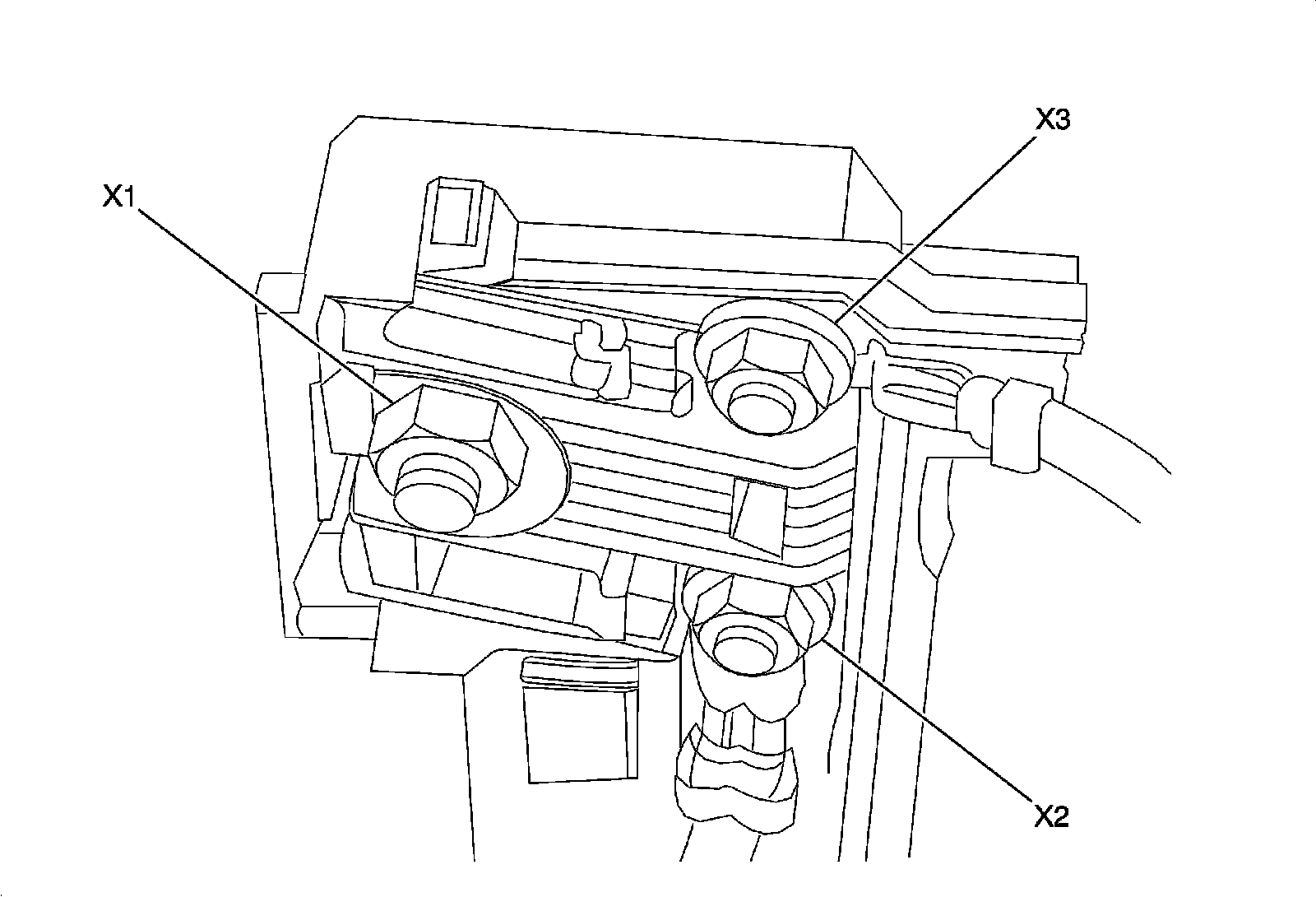

X50D Fuse Block - Battery Top View
X50D Fuse Block - Battery X1
X50D Fuse Block - Battery X2
X50D Fuse Block - Battery X3
