Seat Occupant Sensor




Component Connector End Views

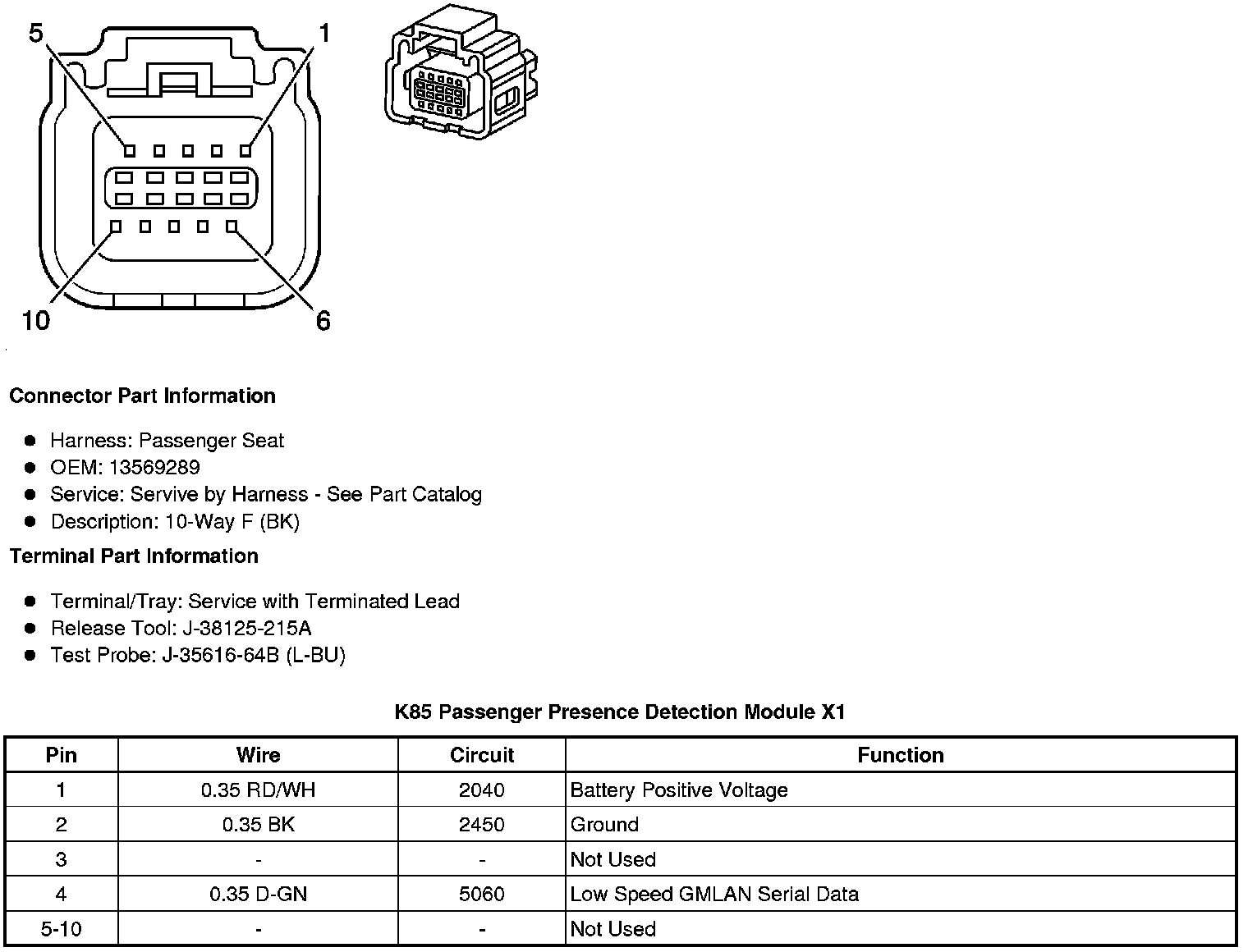

K85 Passenger Presence Detection Module X1

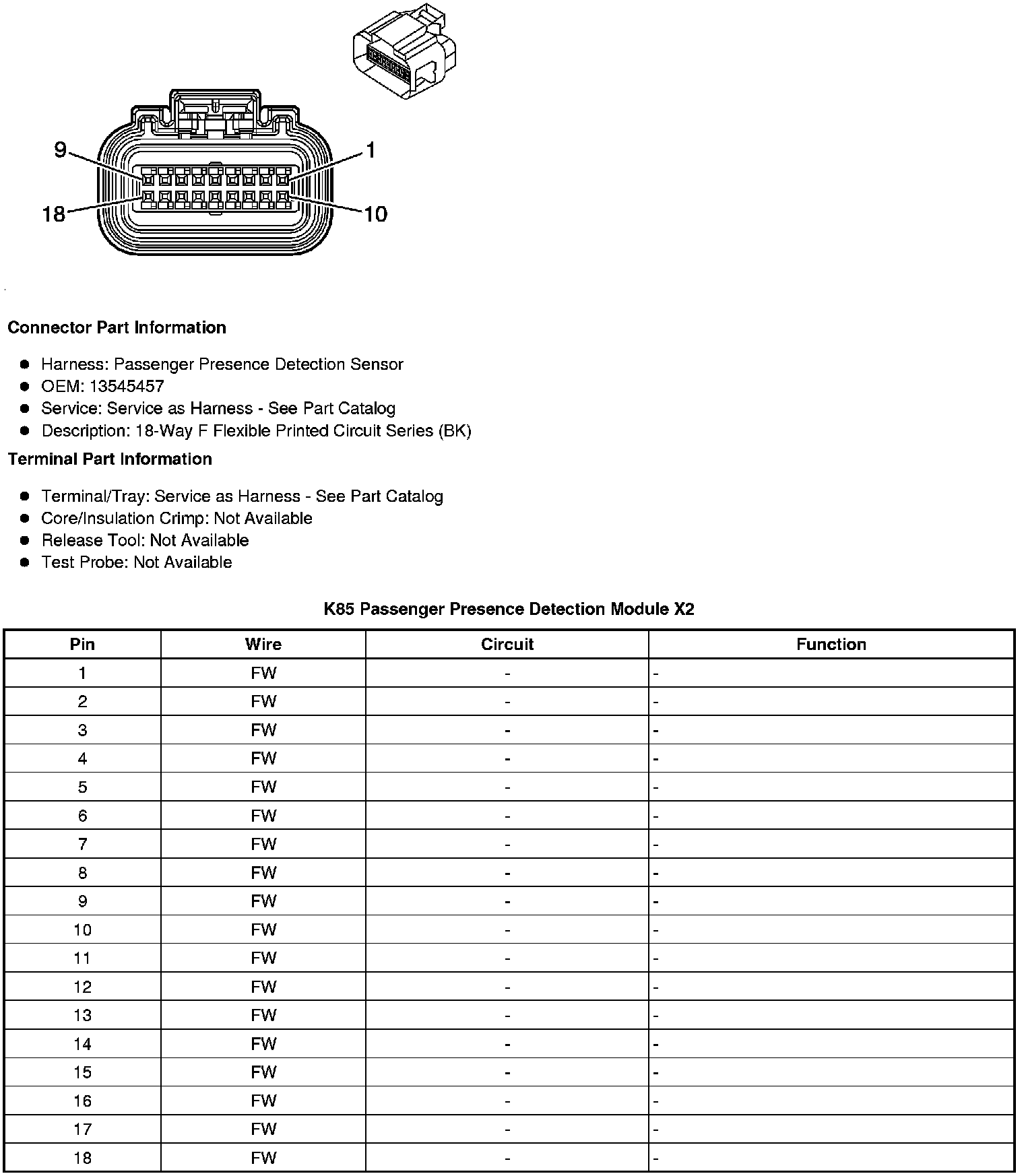

K85 Passenger Presence Detection Module X2
