Body Control Systems




Body Control System Schematics

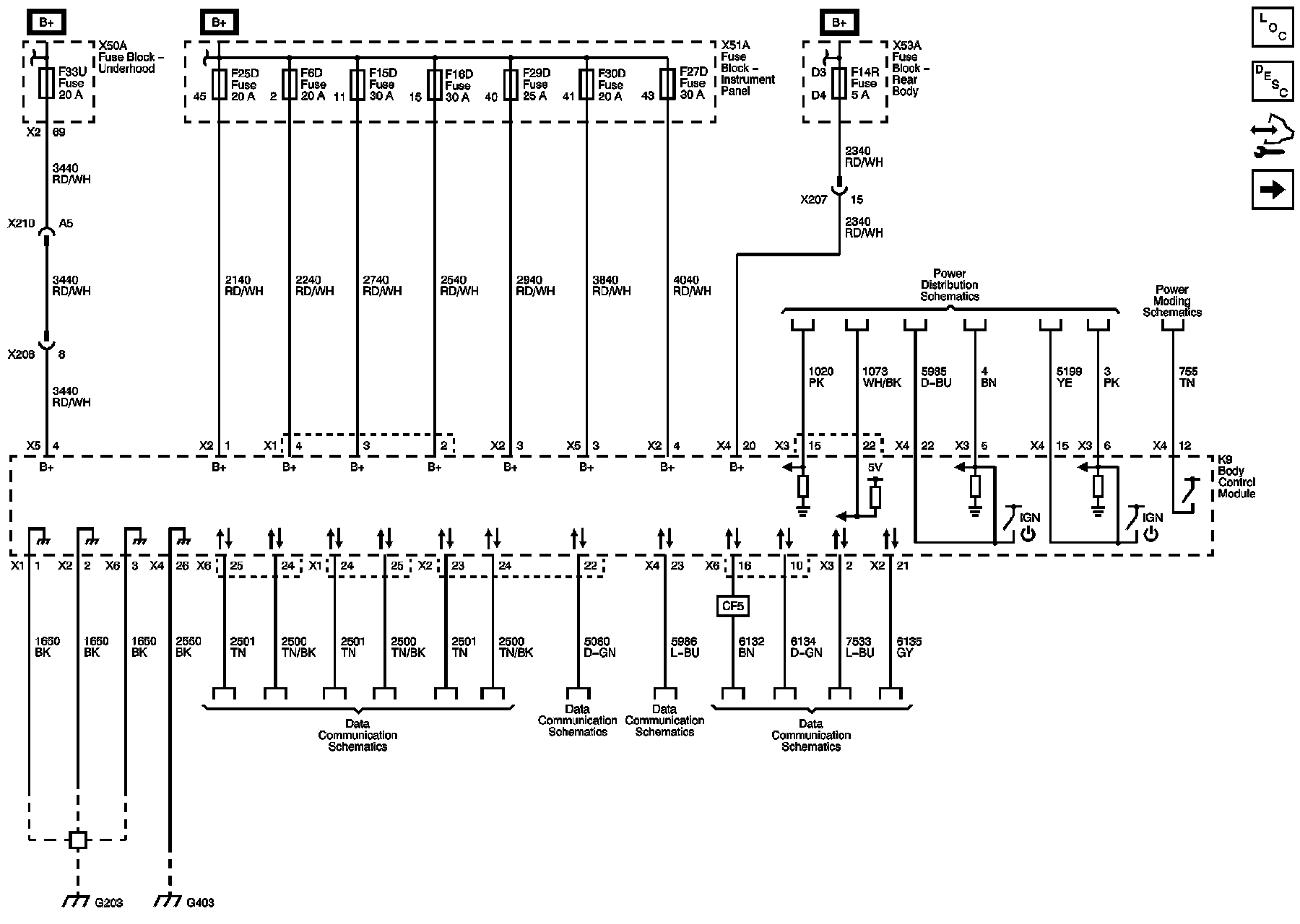

Module Power, Ground, Data Communications

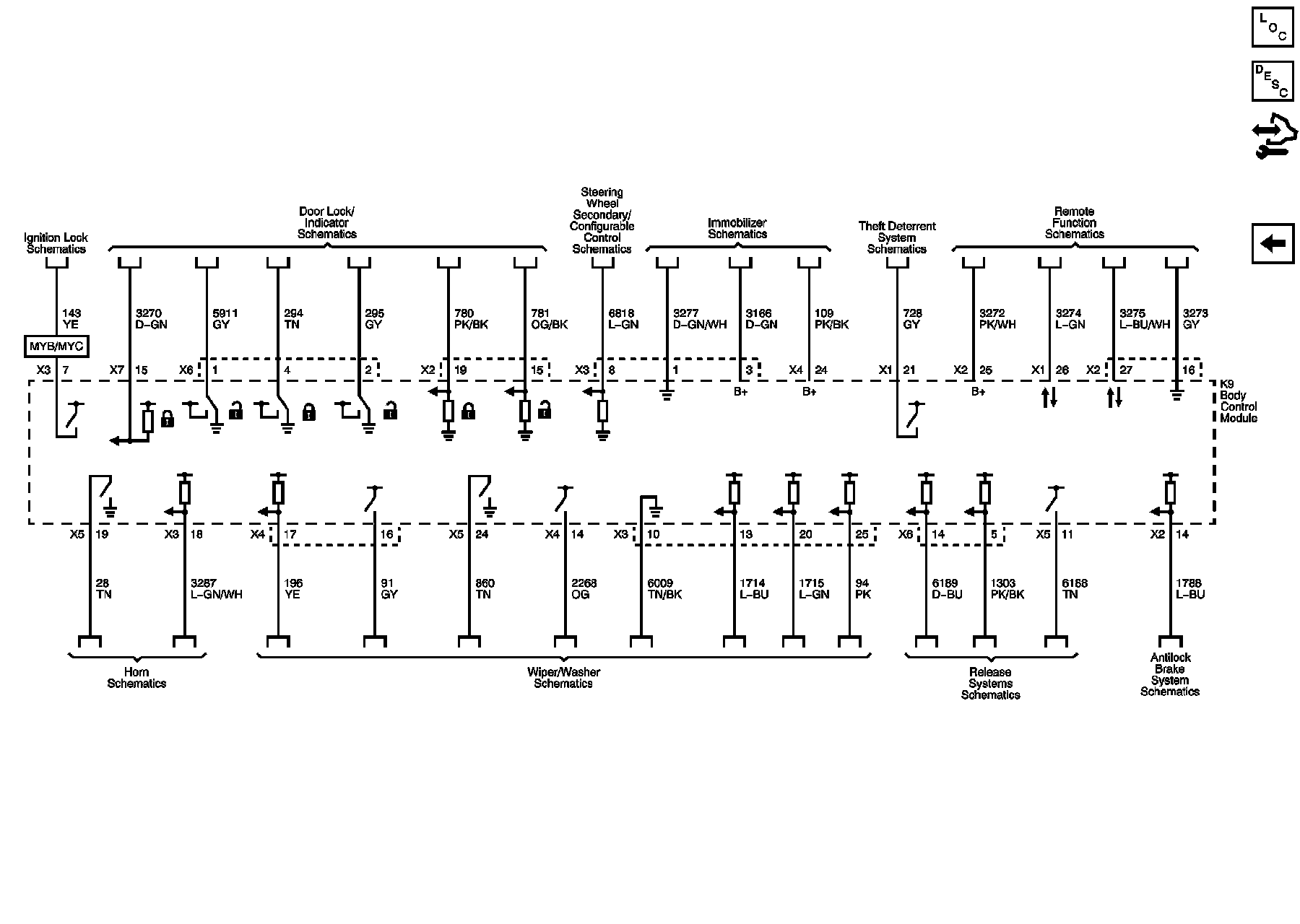

References 1 of 2

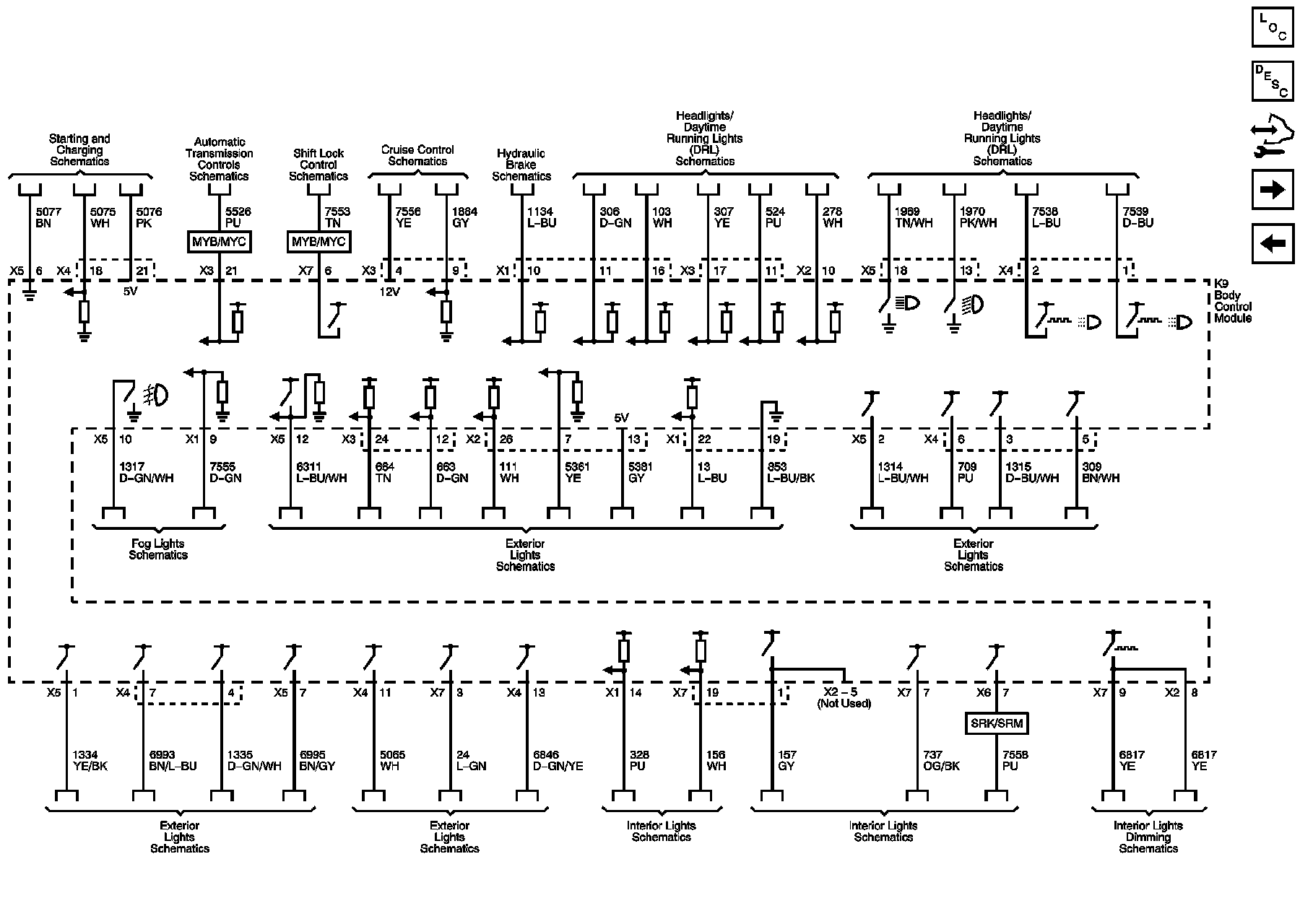

References 2 of 2
