Camshaft Position Sensor: Diagrams

B23A Camshaft Position Sensor - Bank 1 Exhaust (LLT)




B23B Camshaft Position Sensor - Bank 1 Intake (LLT)

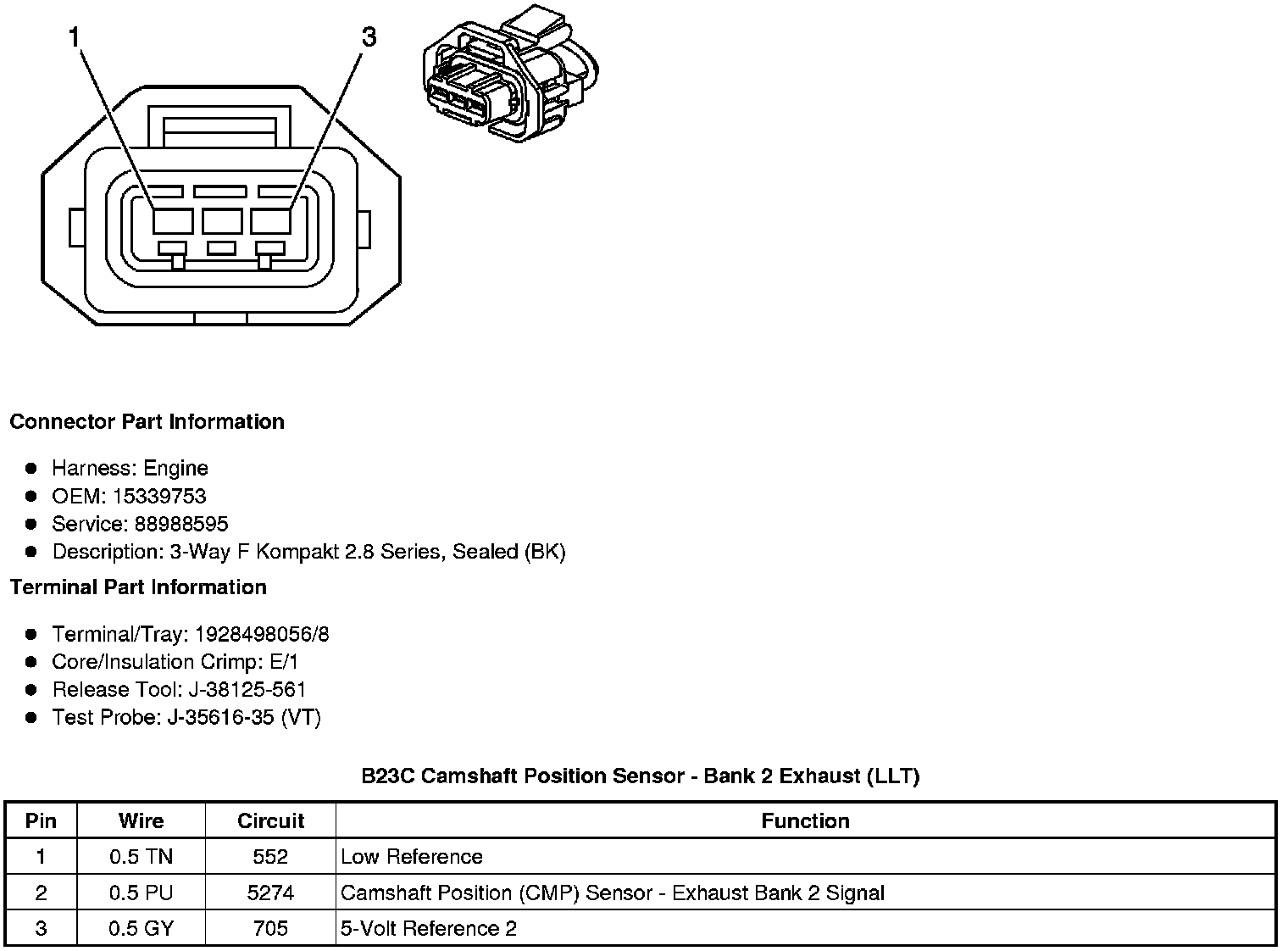

B23C Camshaft Position Sensor - Bank 2 Exhaust (LLT)




B23D Camshaft Position Sensor - Bank 2 Intake (LLT)

RPO LLT - Engine VIN V Gas, 6 Cylinder, 3.6L, SIDI, V6, Aluminum, 60 Degrees, GM
