Oxygen Sensor: Diagrams

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LLT)

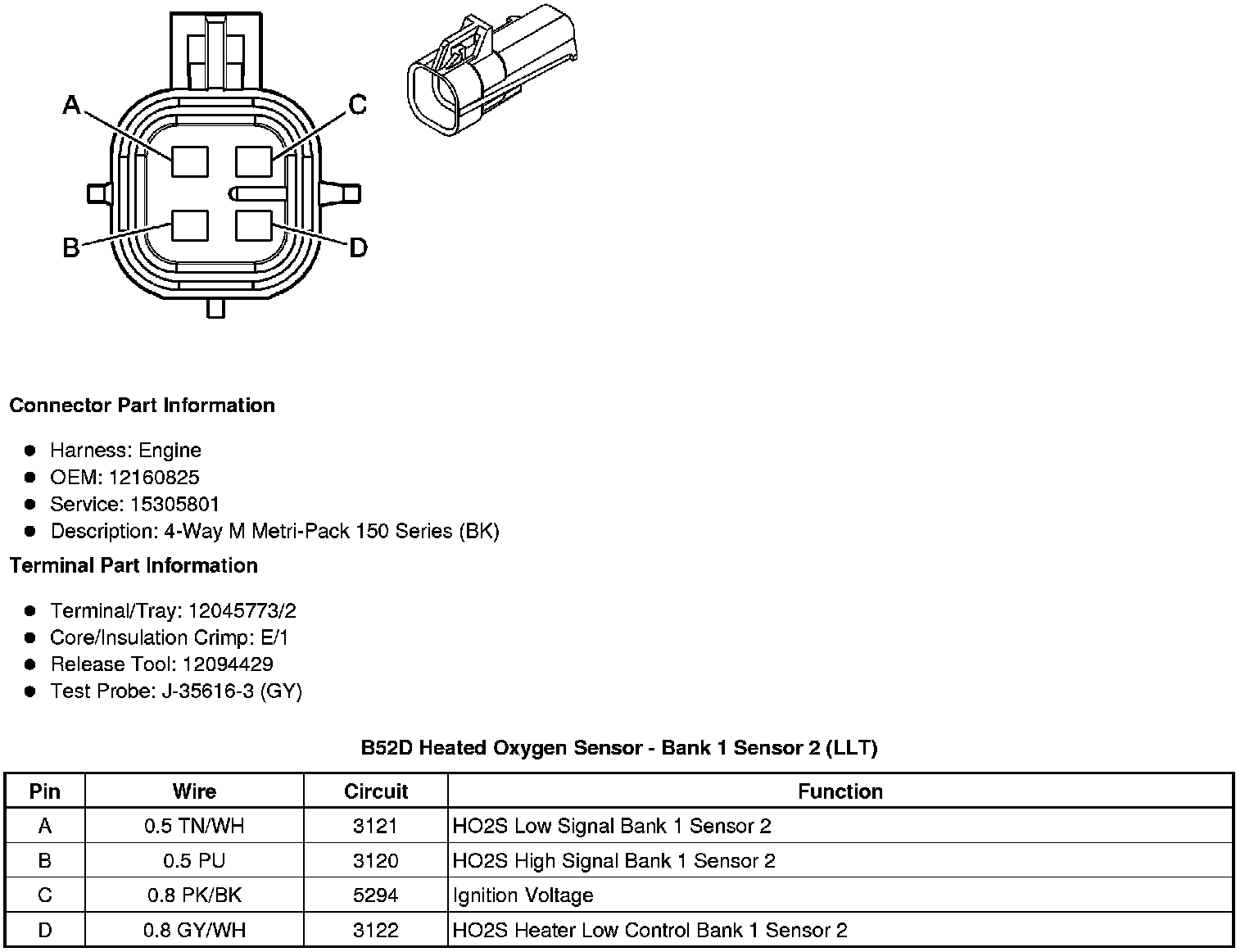

B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LLT)

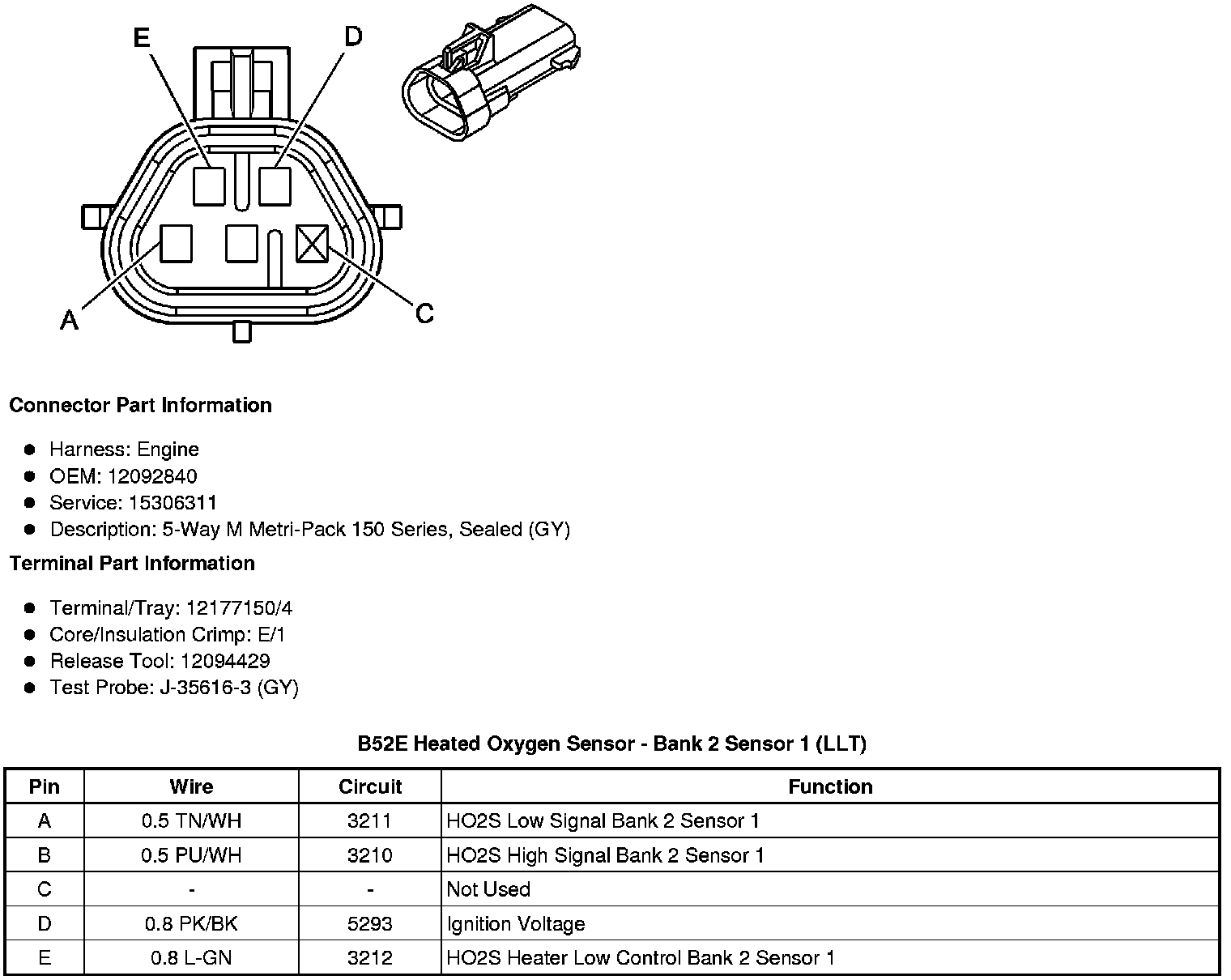

B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LLT)

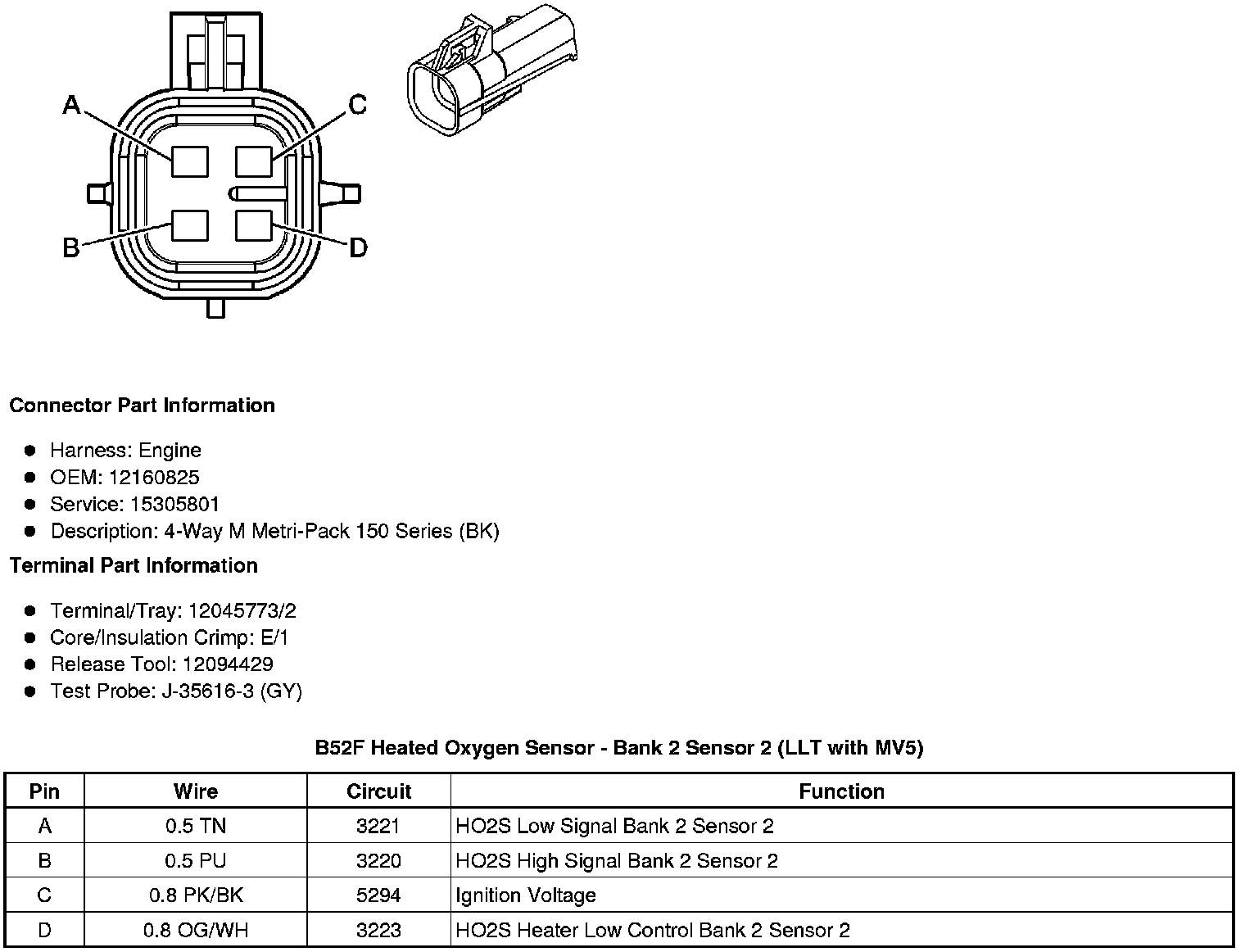

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LLT with MV5)

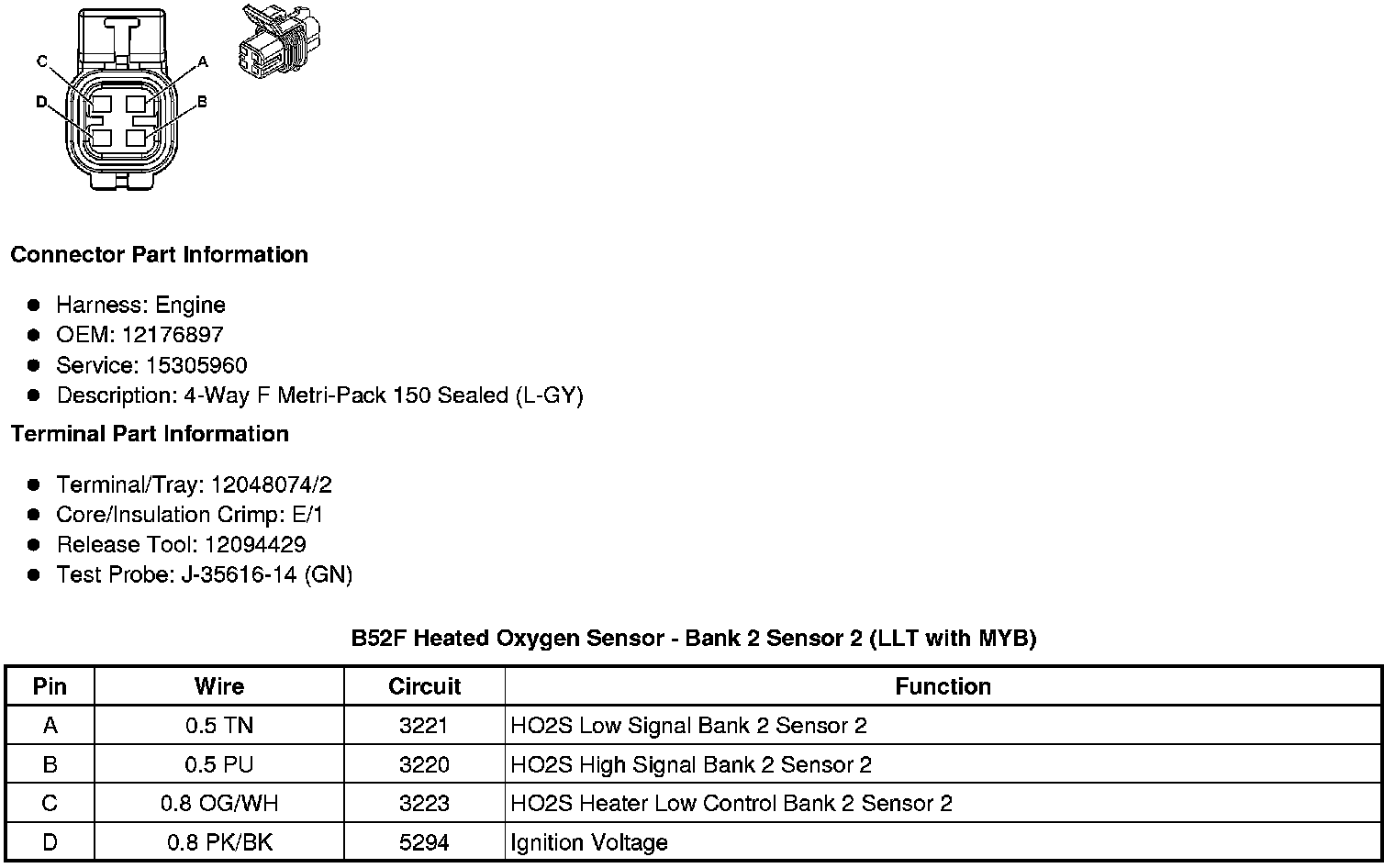

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LLT with MYB)

RPO LLT - Engine VIN V Gas, 6 Cylinder, 3.6L, SIDI, V6, Aluminum, 60 Degrees, GM
RPO MV5 - Transmission - Manual 6 Speed
RPO MYB - Transmission - Automatic 6 Speed, 6L50
