Mobile Telephone Microphone Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 GMC Savana Special, 2011 GMC Savana Camper Special, 2011 GMC Savana, 2011 Chevrolet RV Cutaway, and 2011 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

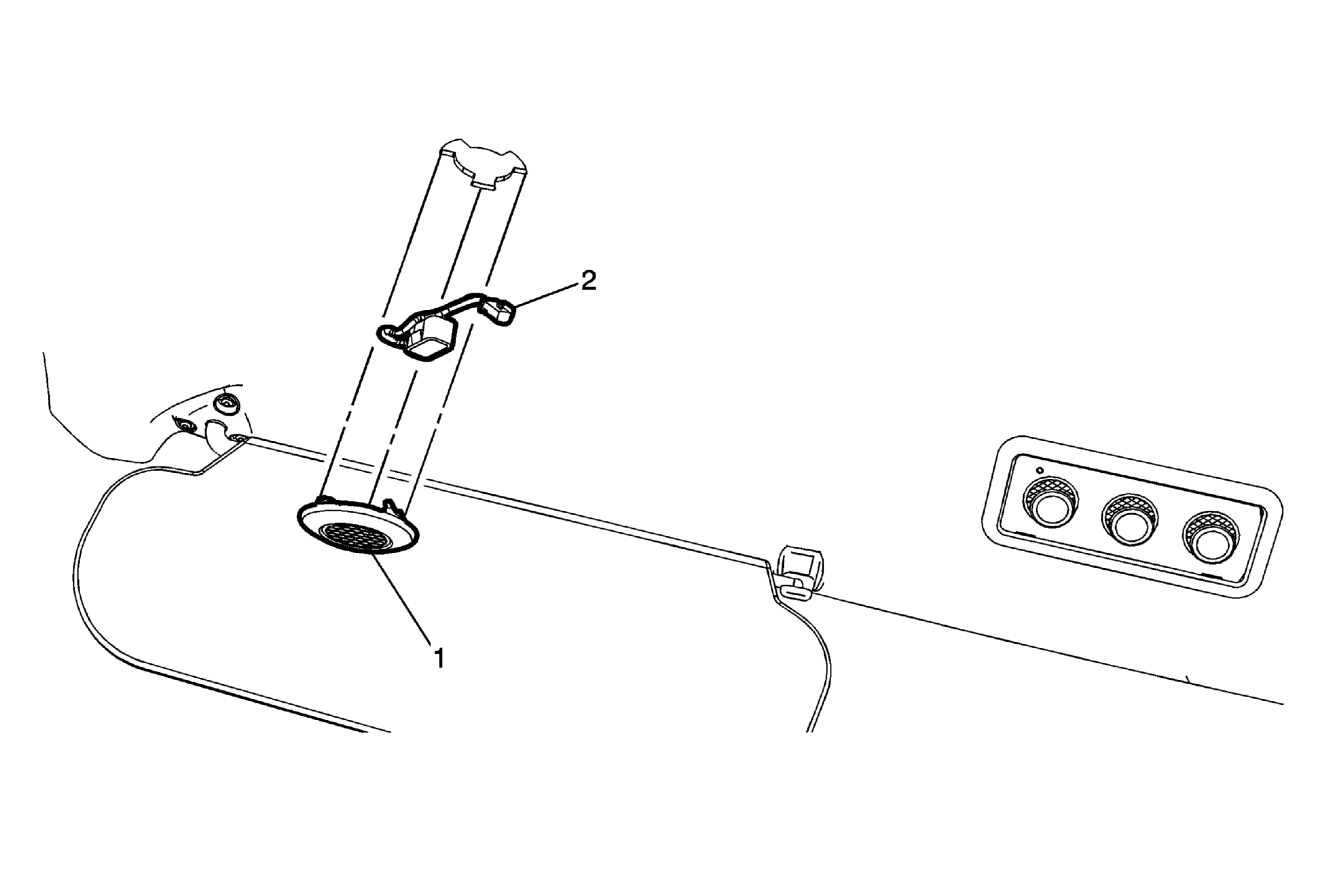

Courtesy of GENERAL MOTORS CORP. Mobile Telephone Microphone Replacement
| Callout |
Component Name |
| 1 |
Mobile Telephone Microphone Bezel
Procedure
Use the appropriate tool to gently remove the bezel from the headliner trim. |
| 2 |
Mobile Telephone Microphone
Procedure
Disconnect the electrical connector. |
