Door Switch




Component Connector End Views

Door Jamb Switch - Driver

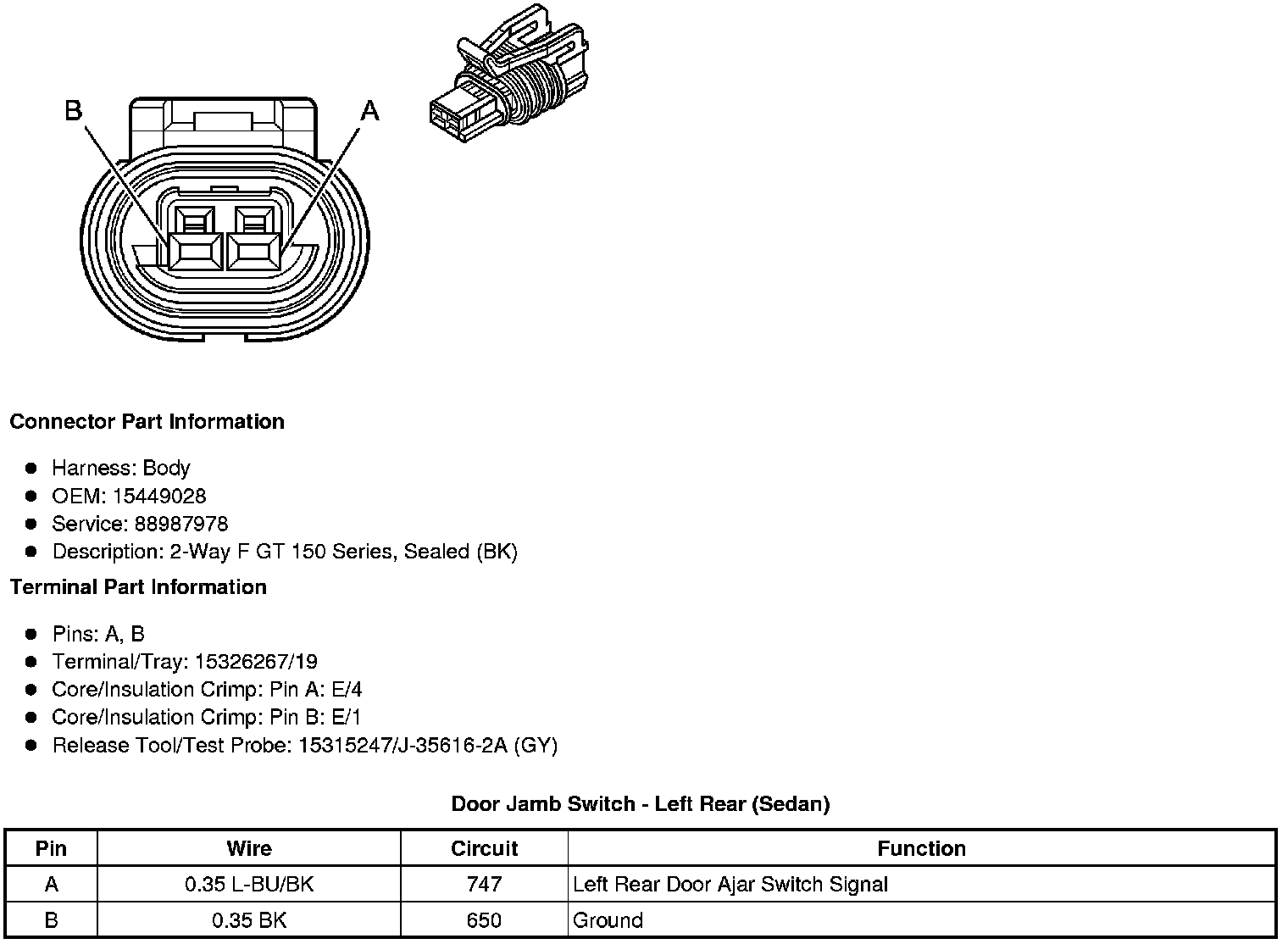

Door Jamb Switch - Left Rear (Sedan)

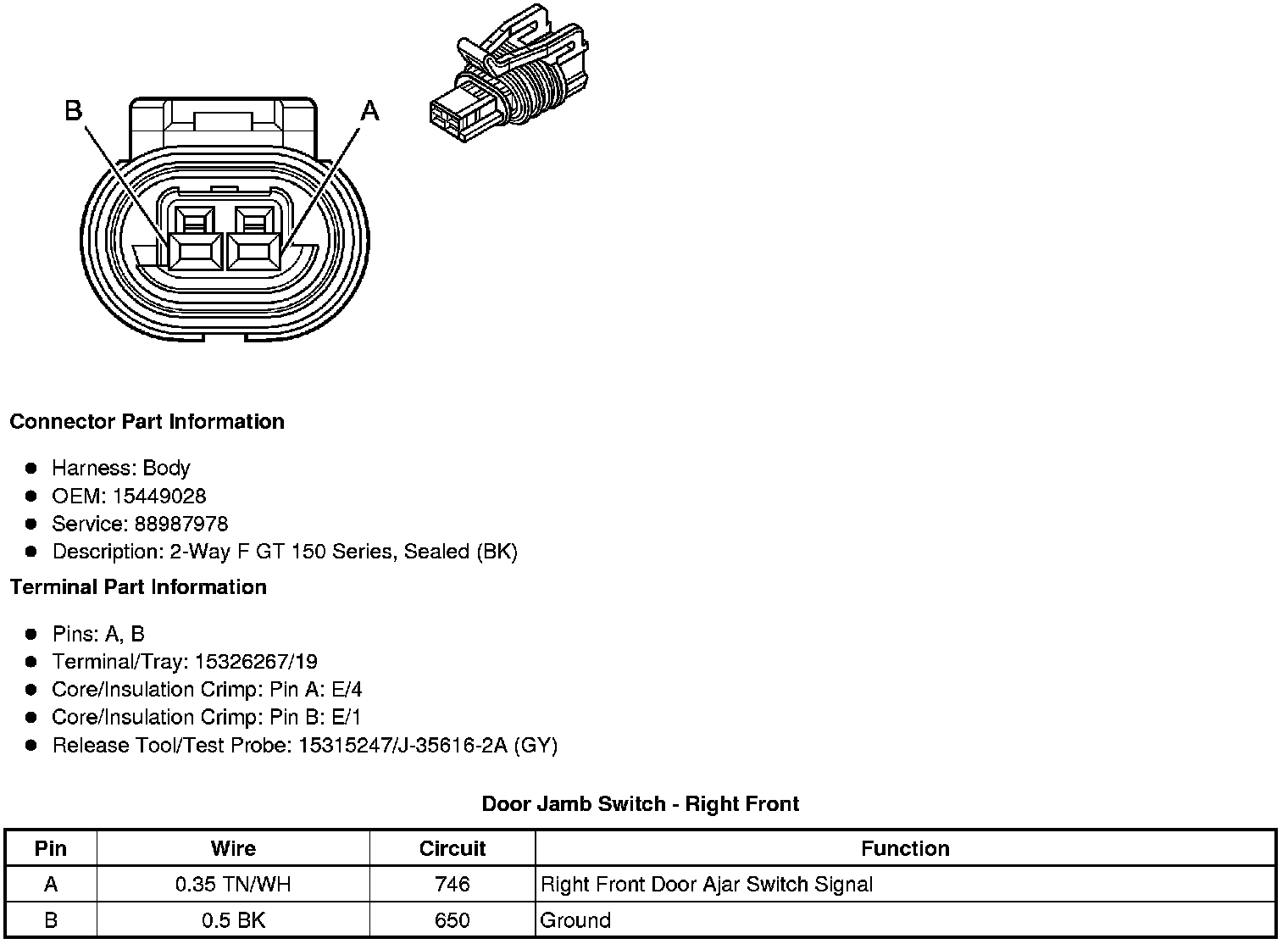

Door Jamb Switch - Right Front

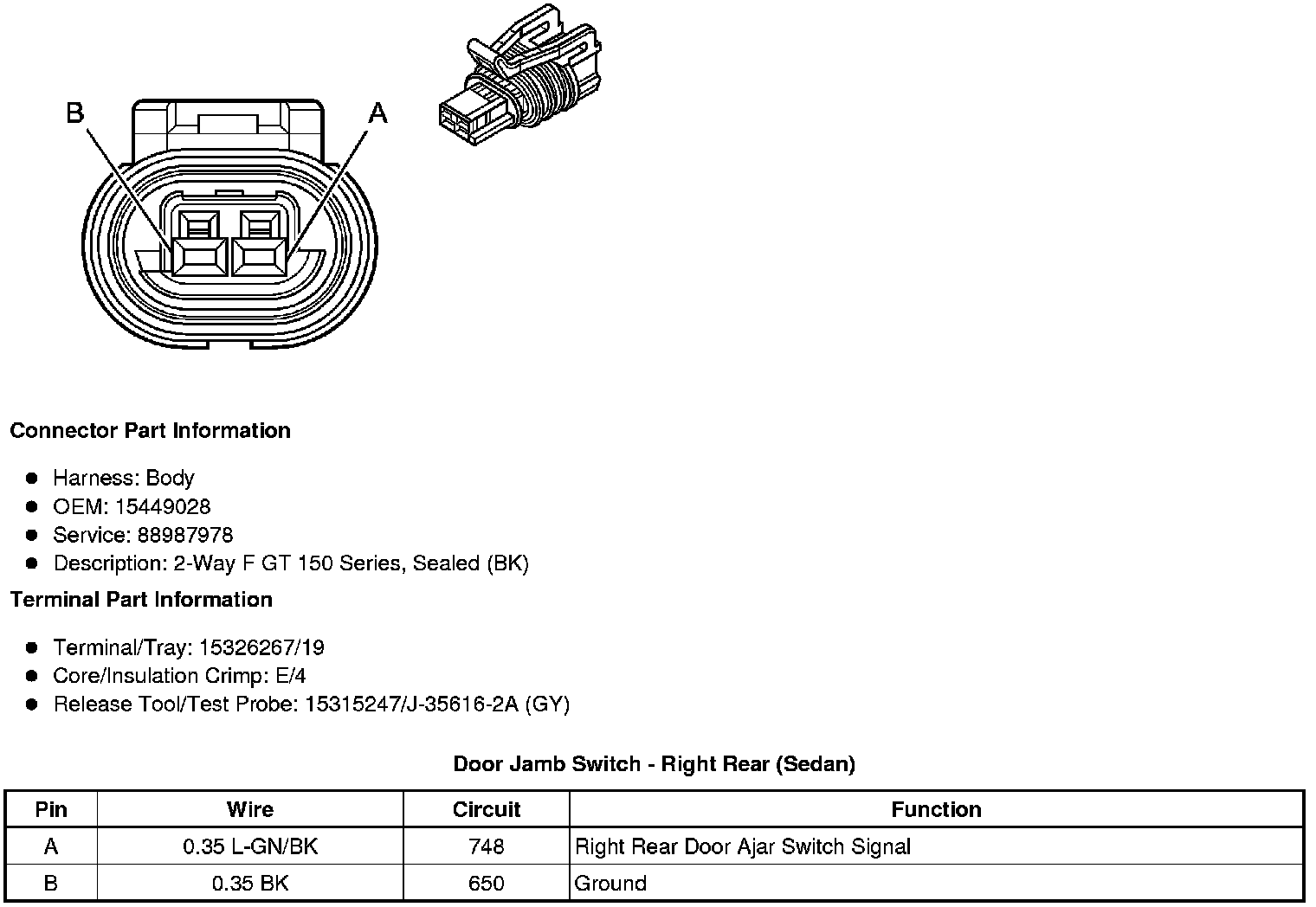

Door Jamb Switch - Right Rear (Sedan)
