Front Door Window Motor




Component Connector End Views

Window Motor - Driver (with Power Windows)

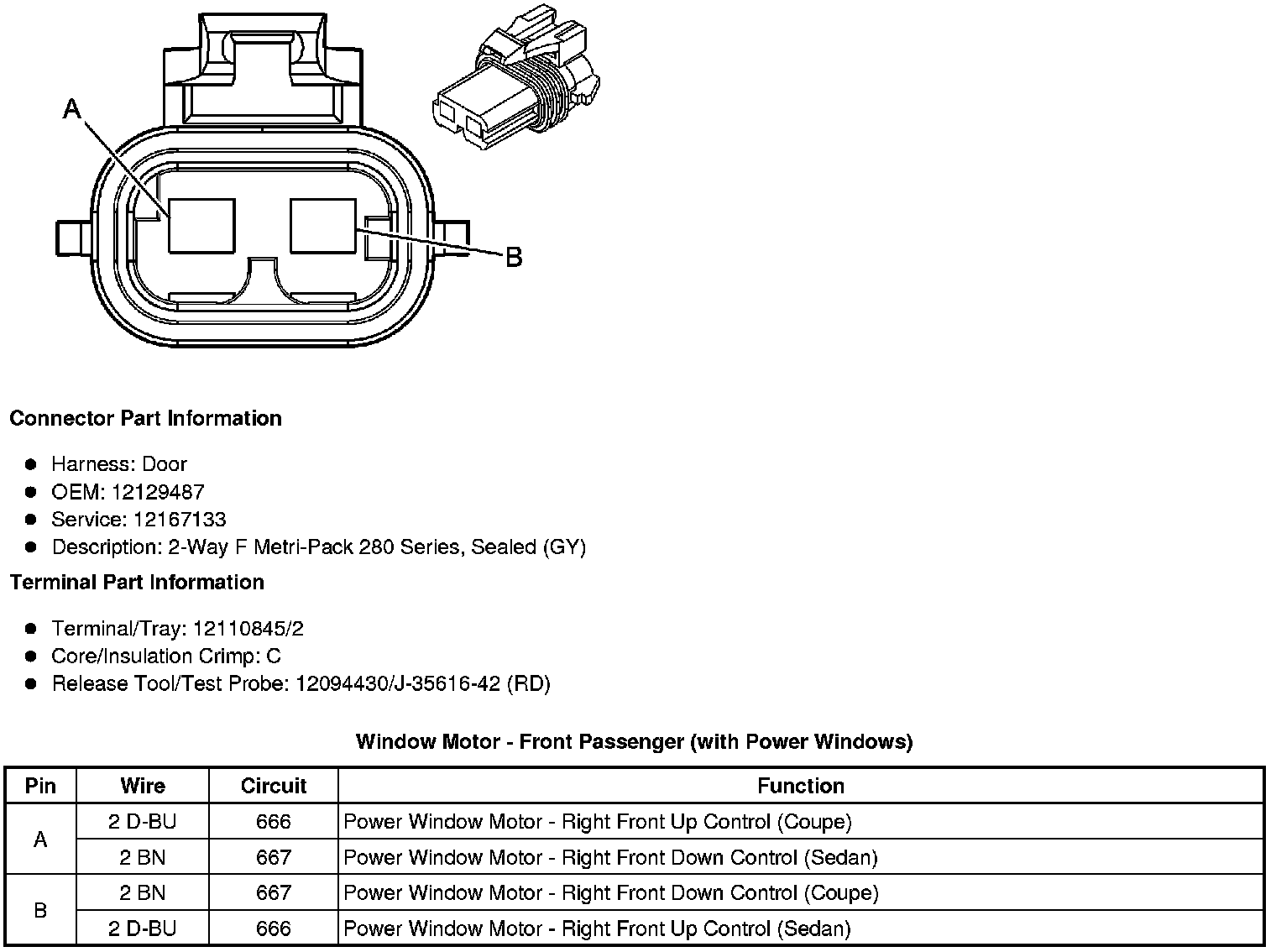

Window Motor - Front Passenger (with Power Windows)
