Fuel Injector




Component Connector End Views

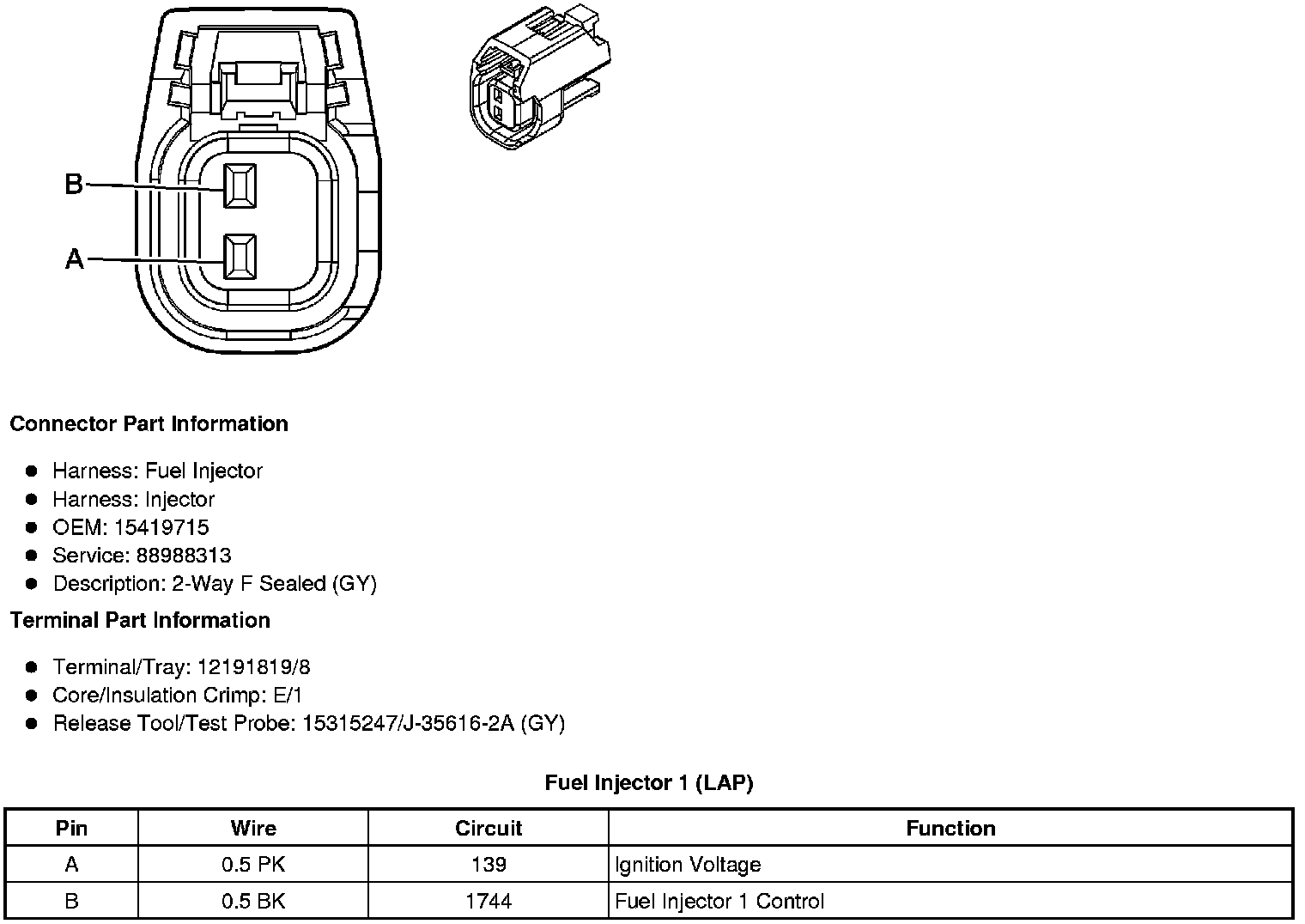

Fuel Injector 1 (LAP)





Fuel Injector 1 (LNF)













Fuel Injector 2 (LAP)





Fuel Injector 2 (LNF)

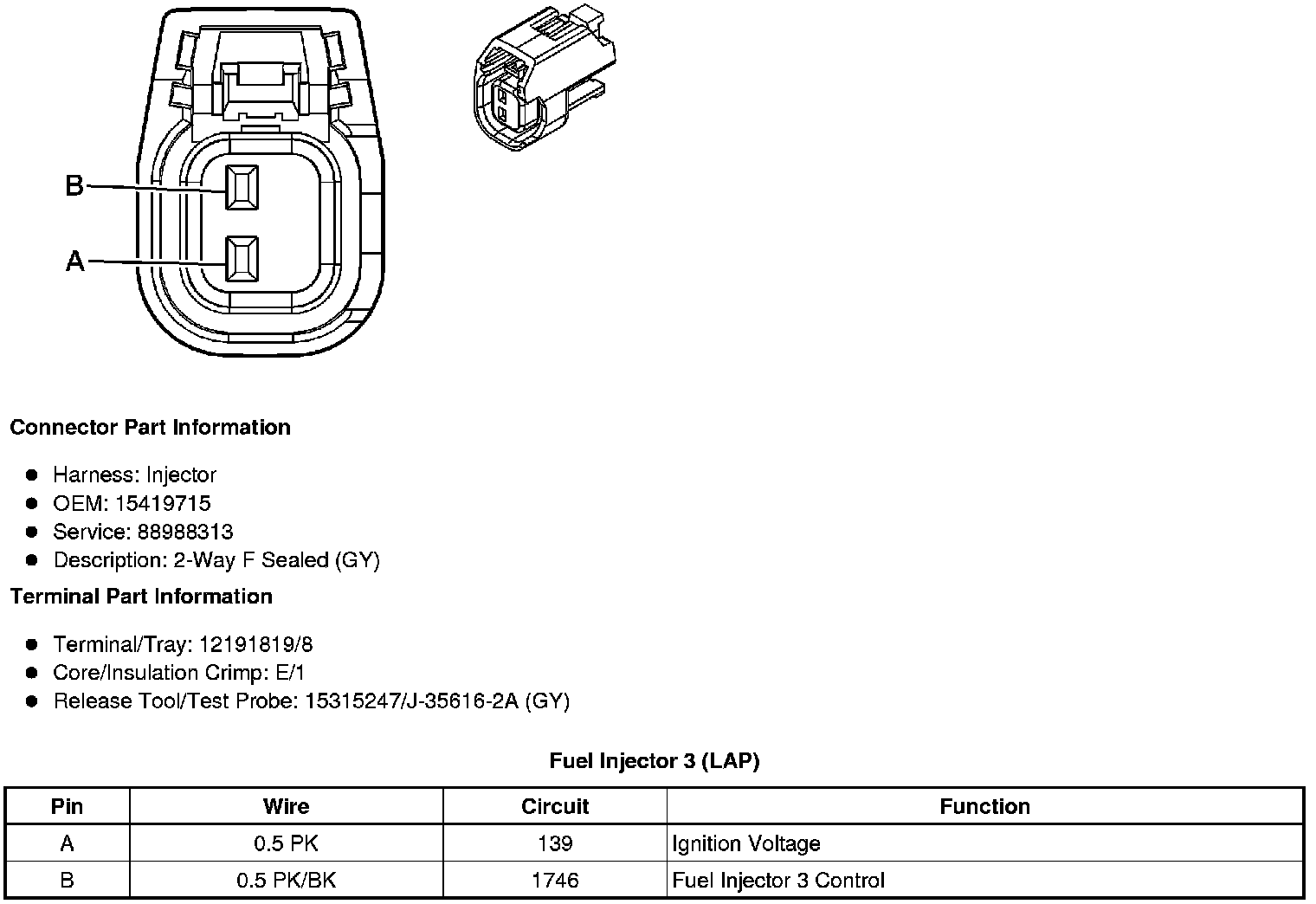

Fuel Injector 3 (LAP)





Fuel Injector 3 (LNF)

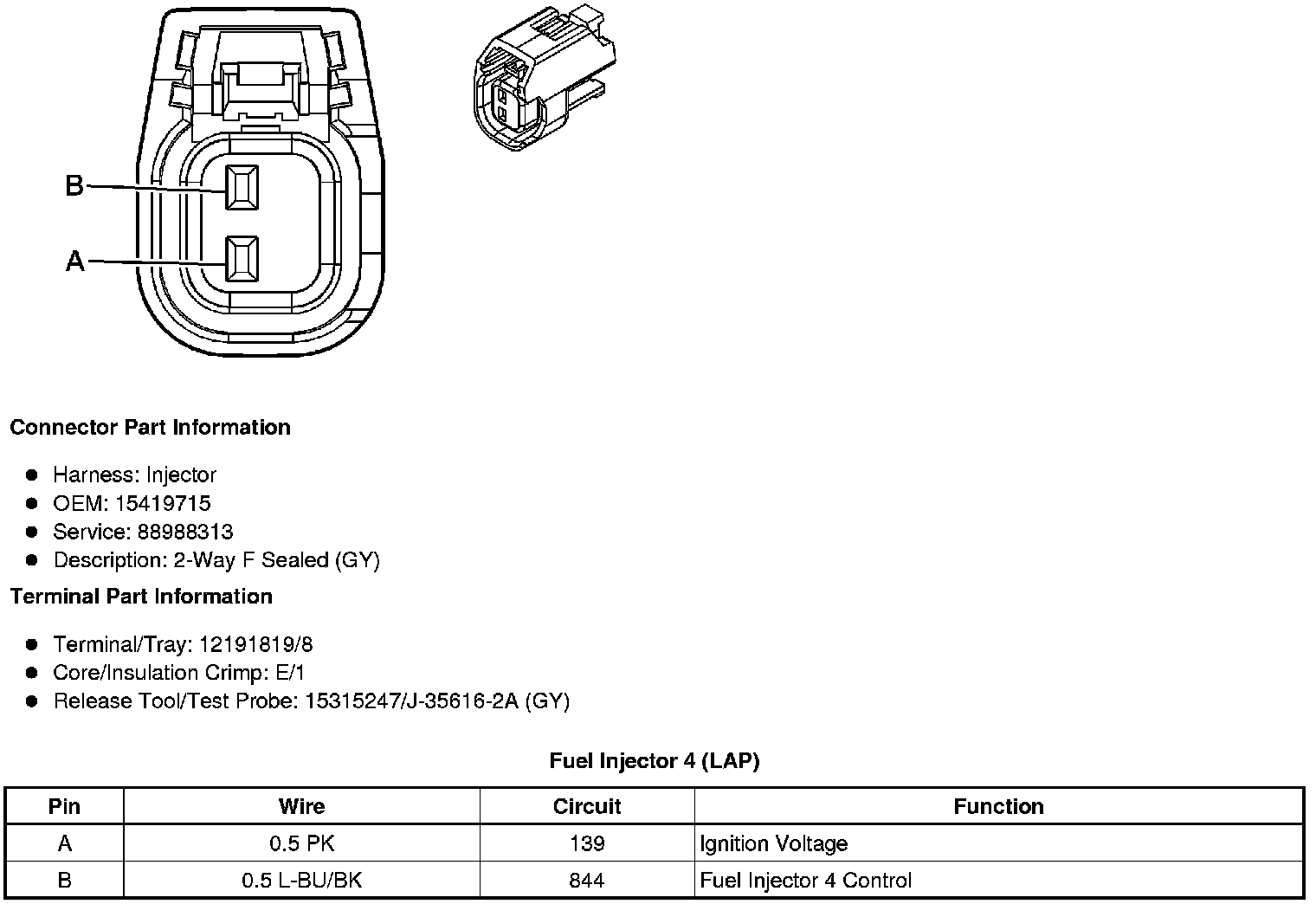

Fuel Injector 4 (LAP)





Fuel Injector 4 (LNF)
