Starter Motor




Component Connector End Views

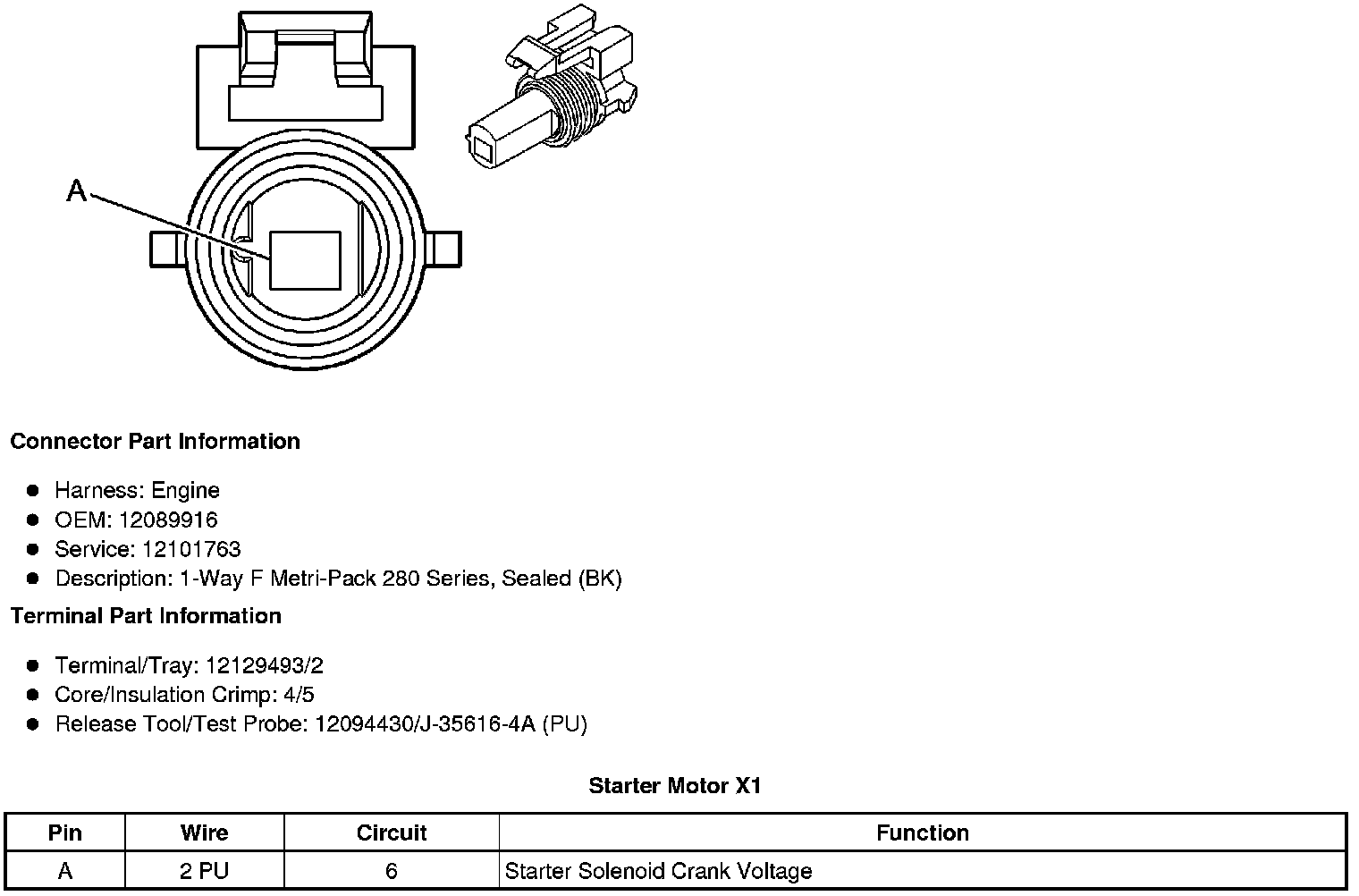

Starter Motor X1





Starter Motor X2 (To Battery)









Starter Motor X2 (to Generator X2)
