Body Control Systems




Body Control System Schematics

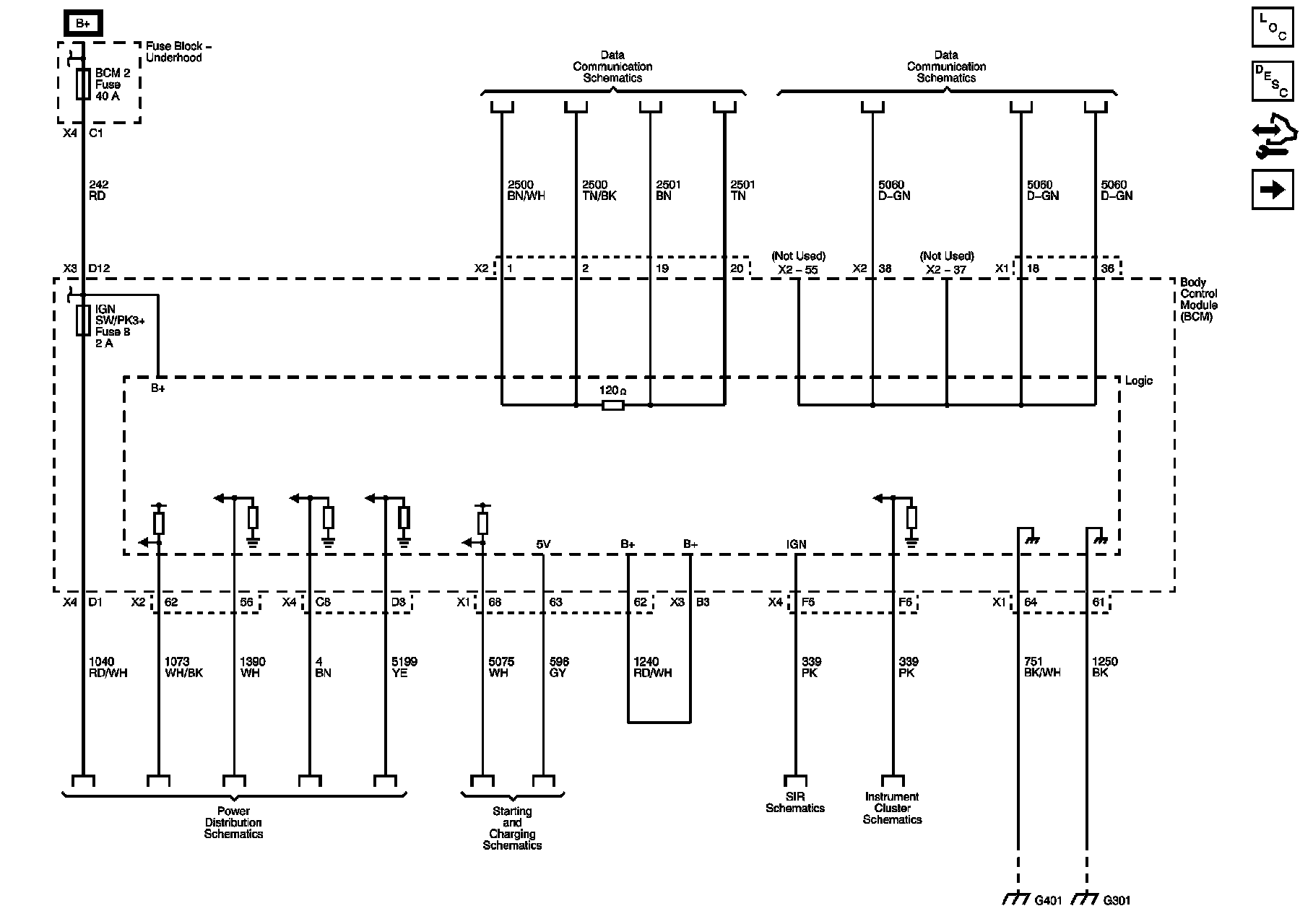

Power, Ground, Communication, References (1 of 5)

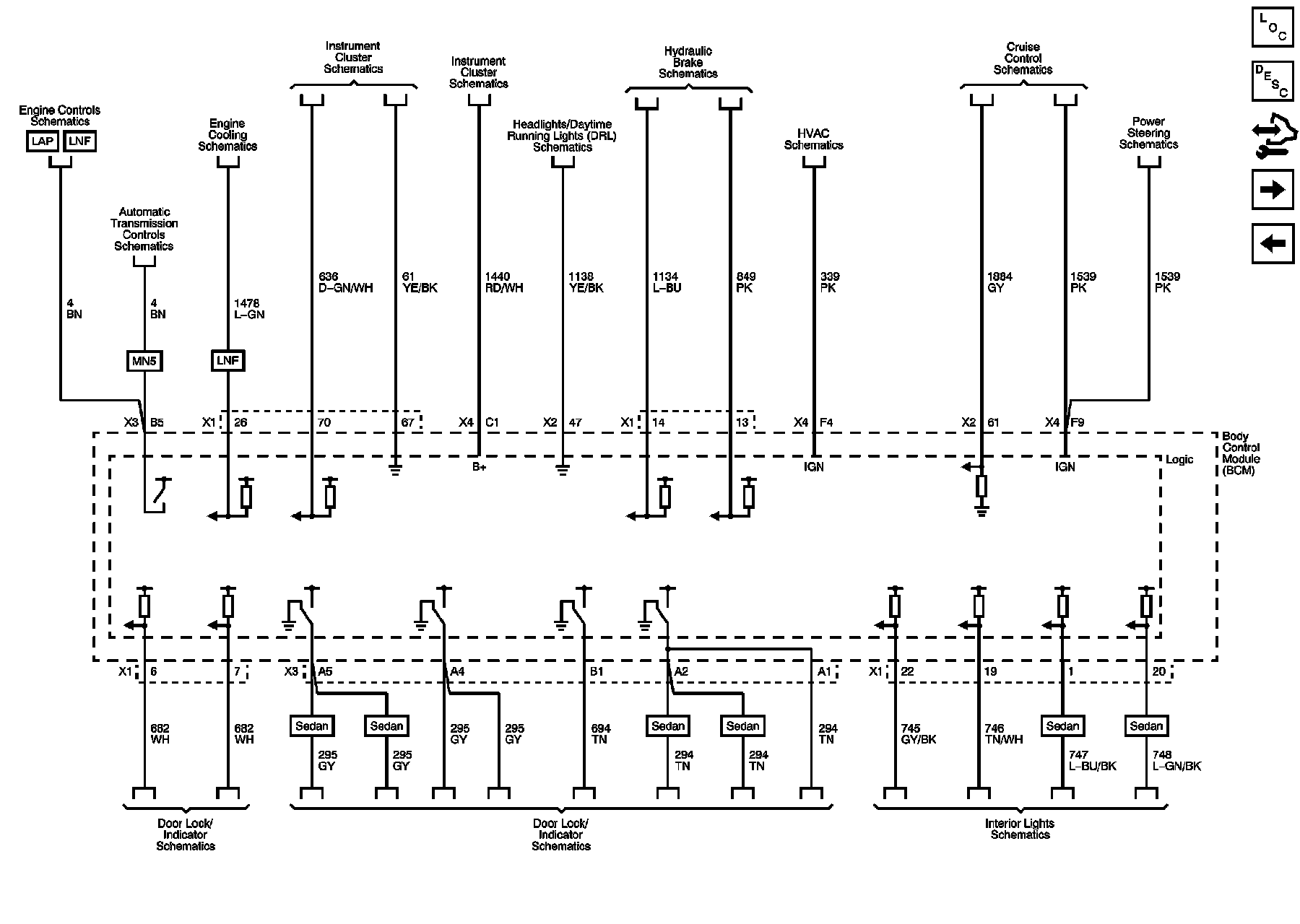

References (2 of 5)

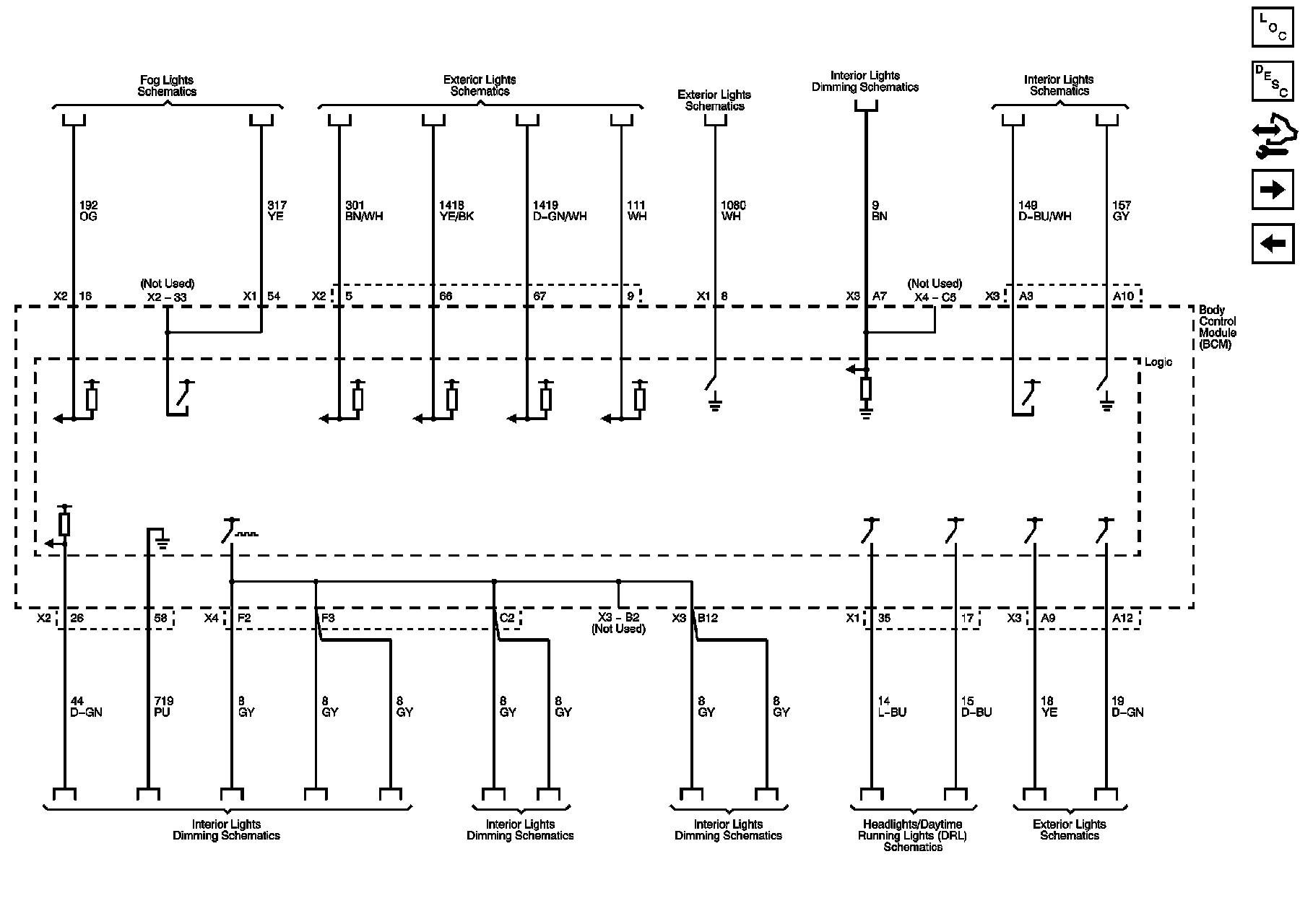

References (3 of 5)





References (4 of 5)





References (5 of 5)
