Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1 (LAP)

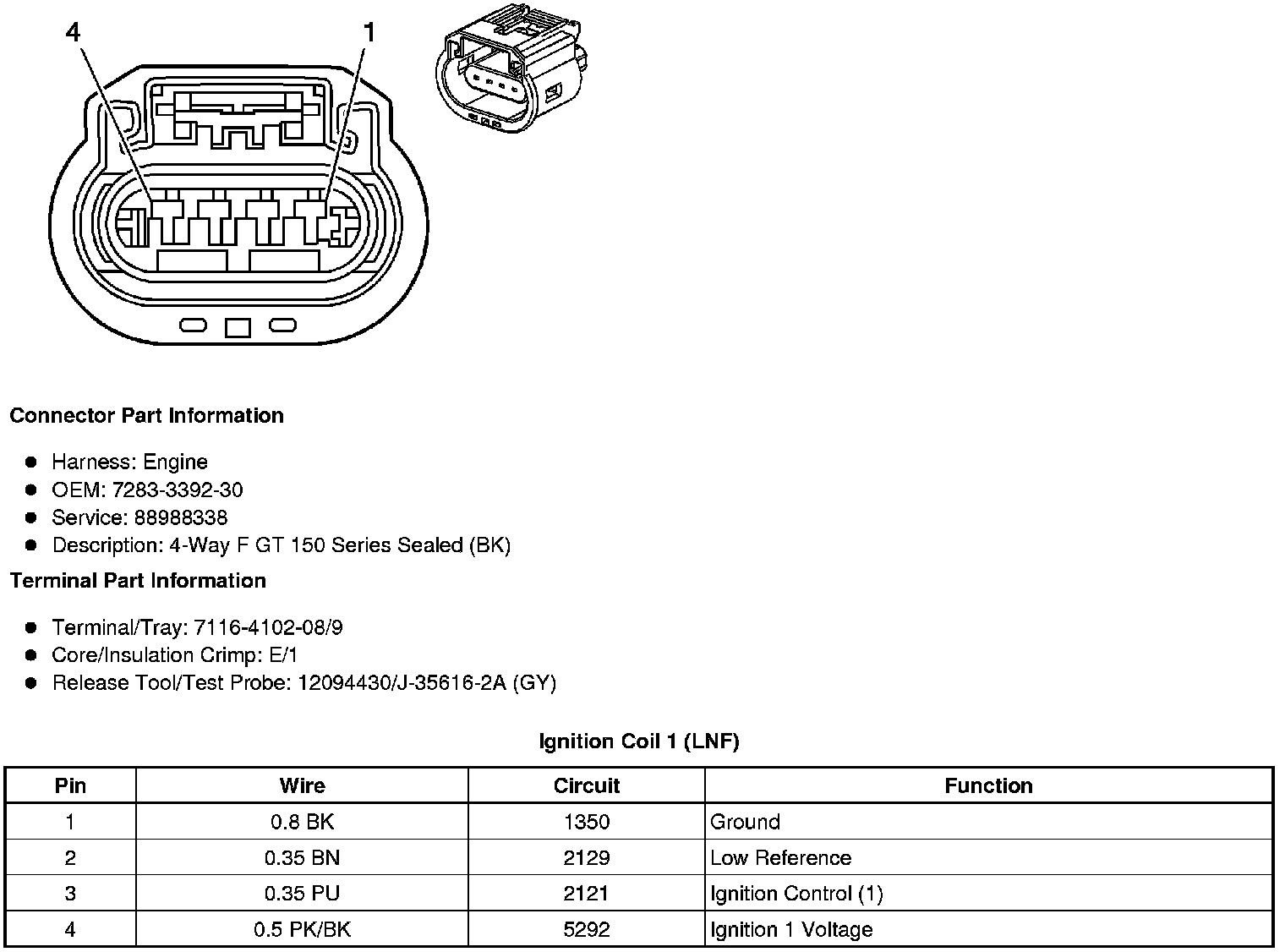

Ignition Coil 1 (LNF)

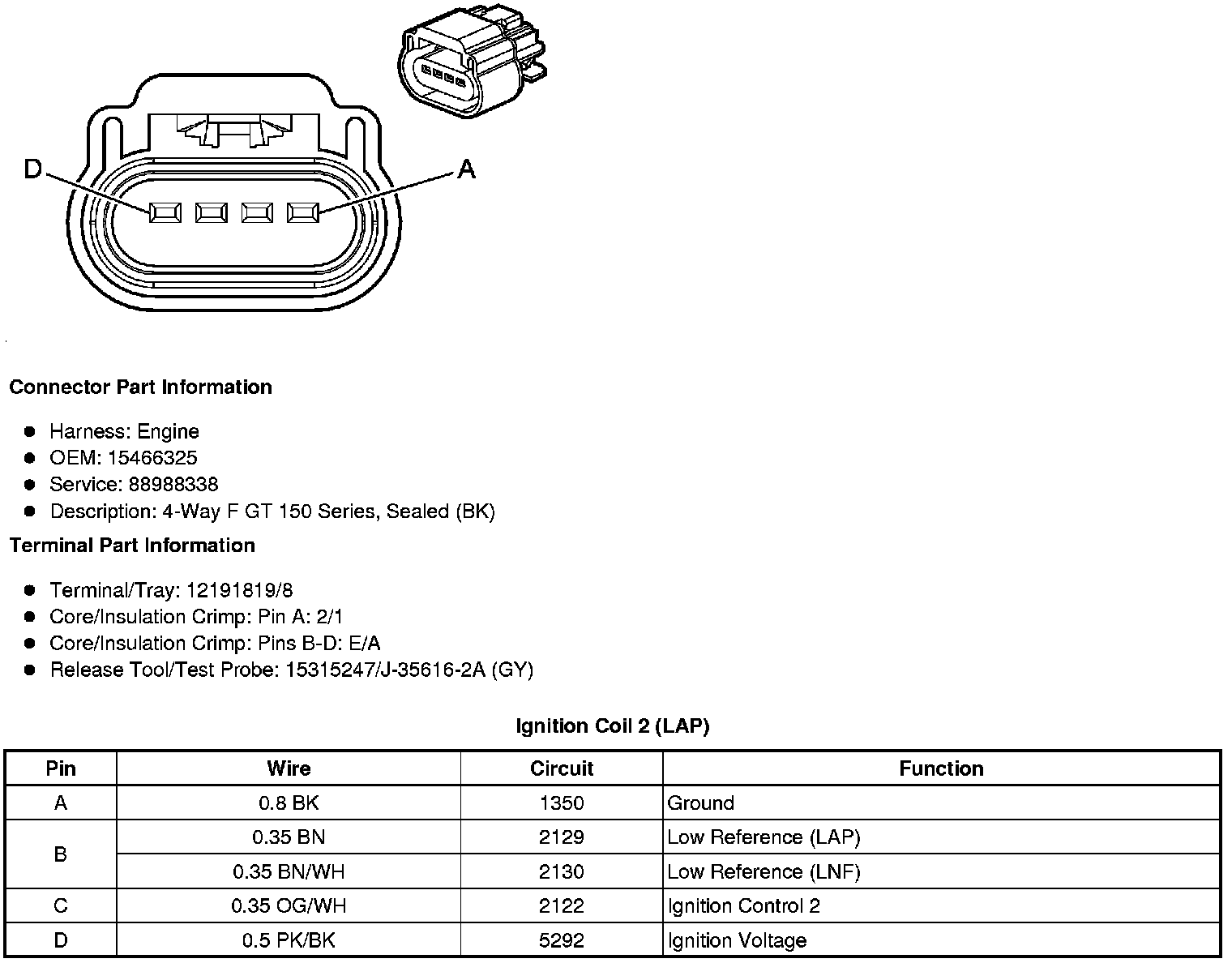

Ignition Coil 2 (LAP)





Ignition Coil 2 (LNF)

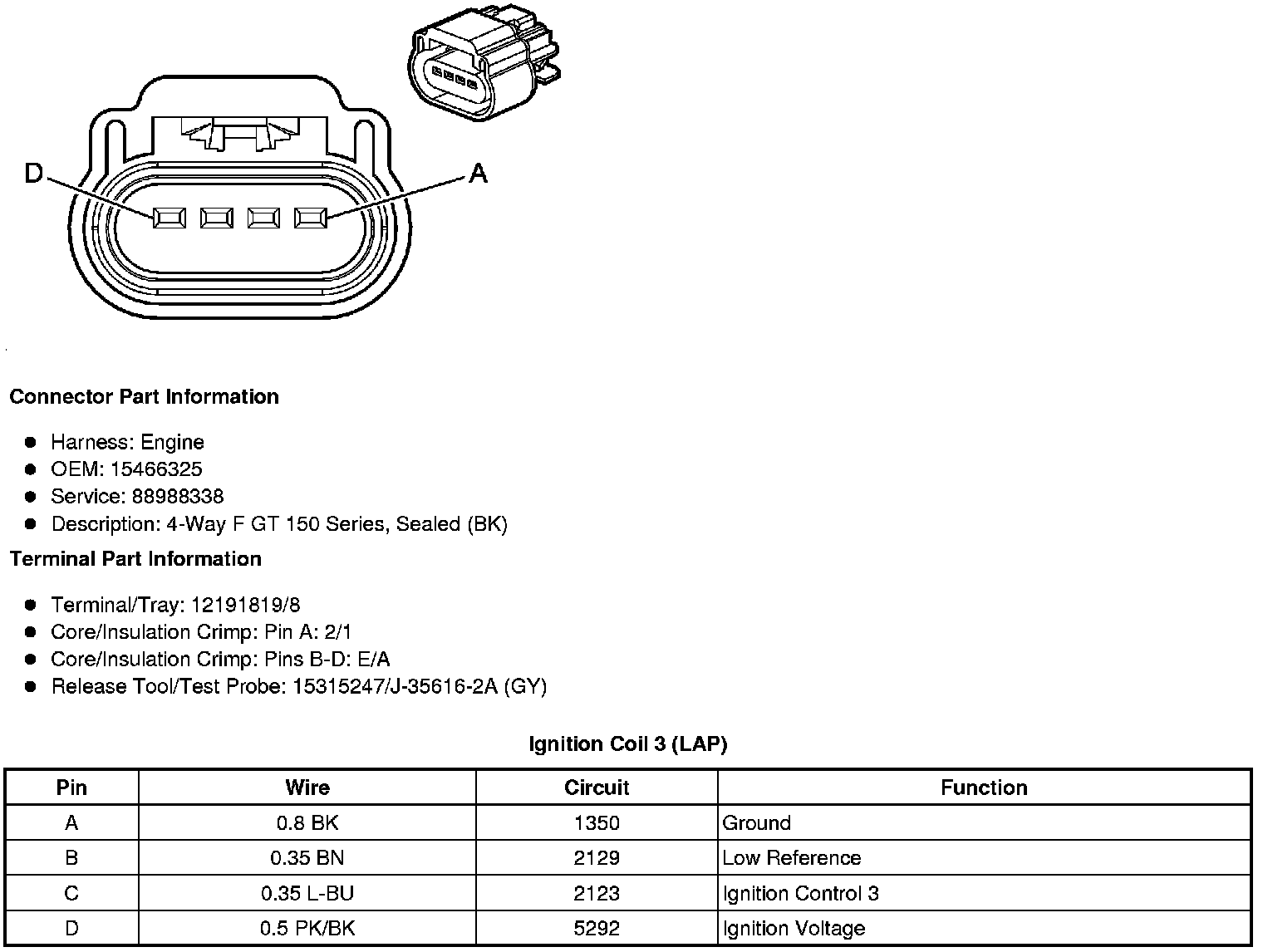

Ignition Coil 3 (LAP)





Ignition Coil 3 (LNF)

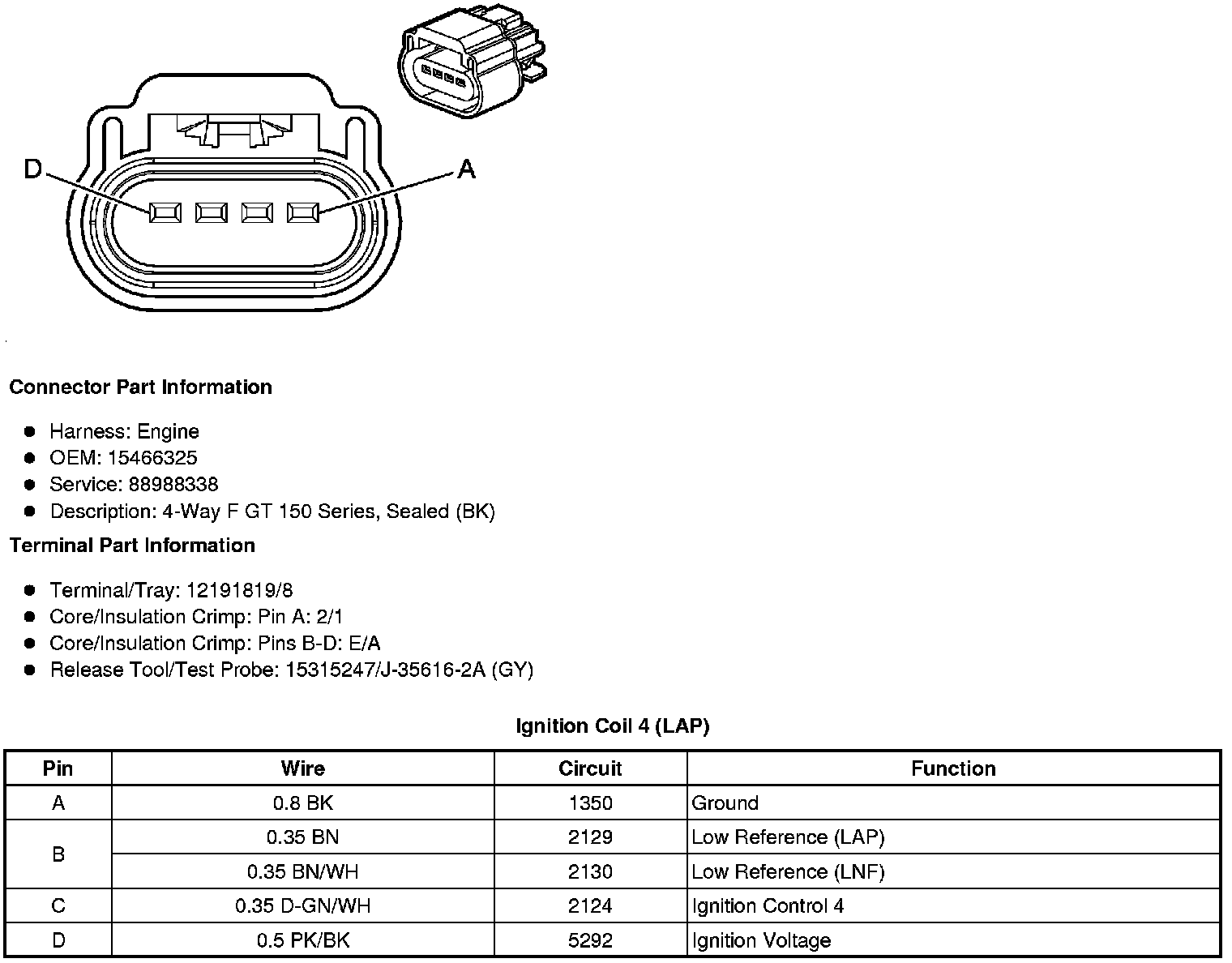

Ignition Coil 4 (LAP)

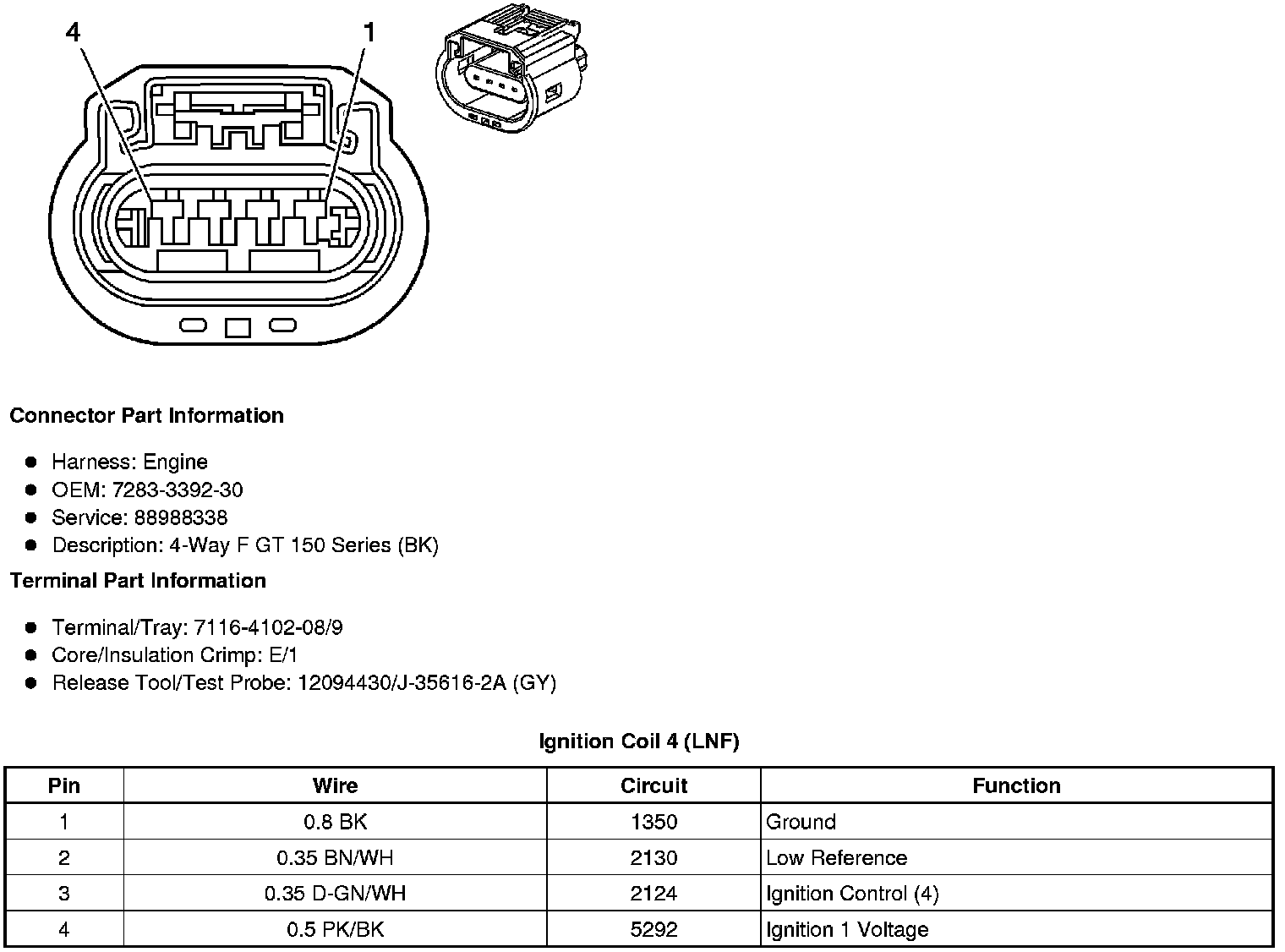

Ignition Coil 4 (LNF)
