Air Bag Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

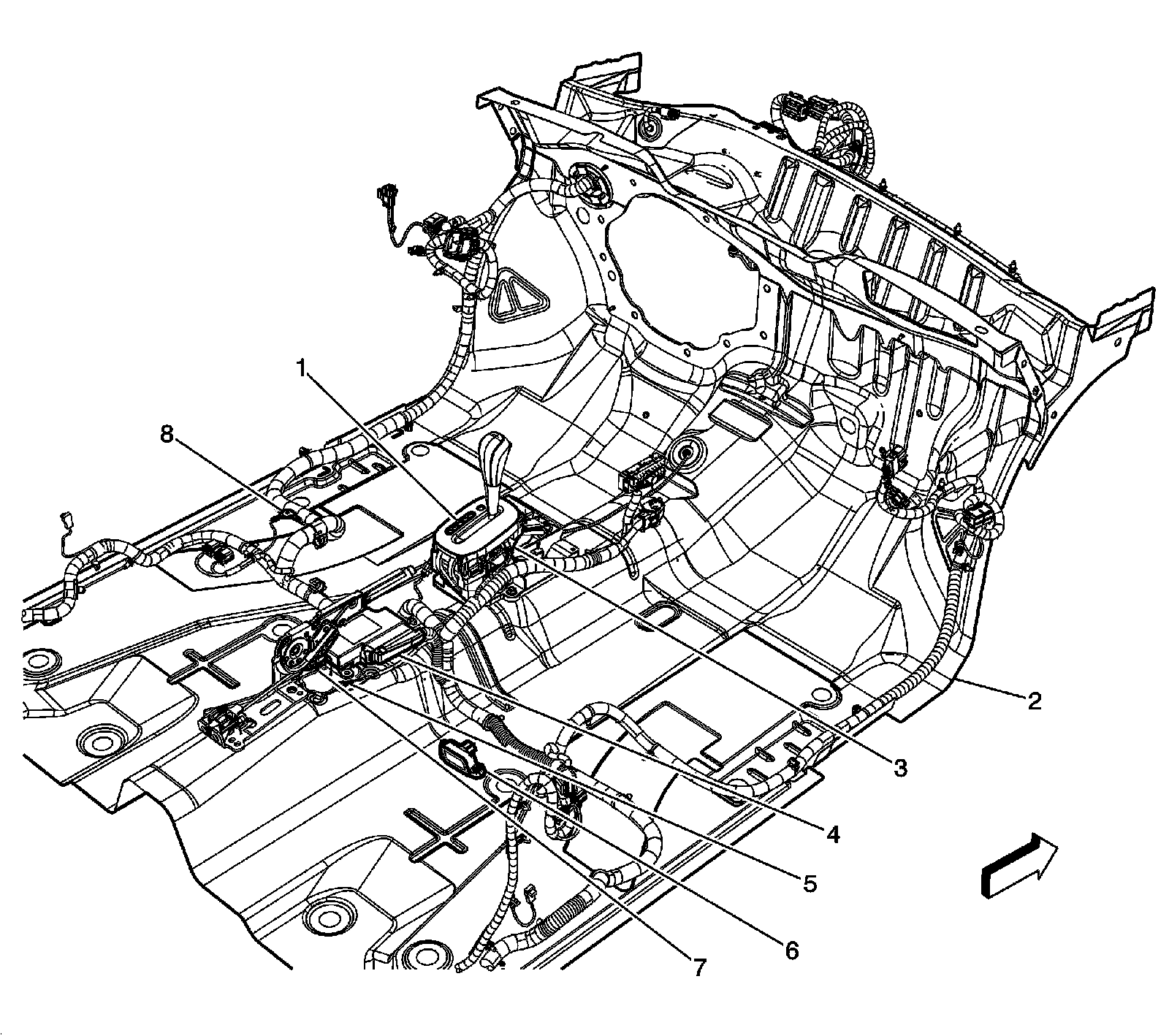

Floor Pan Components




1 - Automatic Transmission Shift Lever Position Indicator Lamp
2 - Floor Pan
3 - Automatic Transmission Shift Lock Control Solenoid (MN5)
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - G306
6 - Yaw and Lateral Accelerometer Sensor (JL4)
7 - Park Brake Switch
8 - G301
