Air Cleaner Outlet Duct Replacement

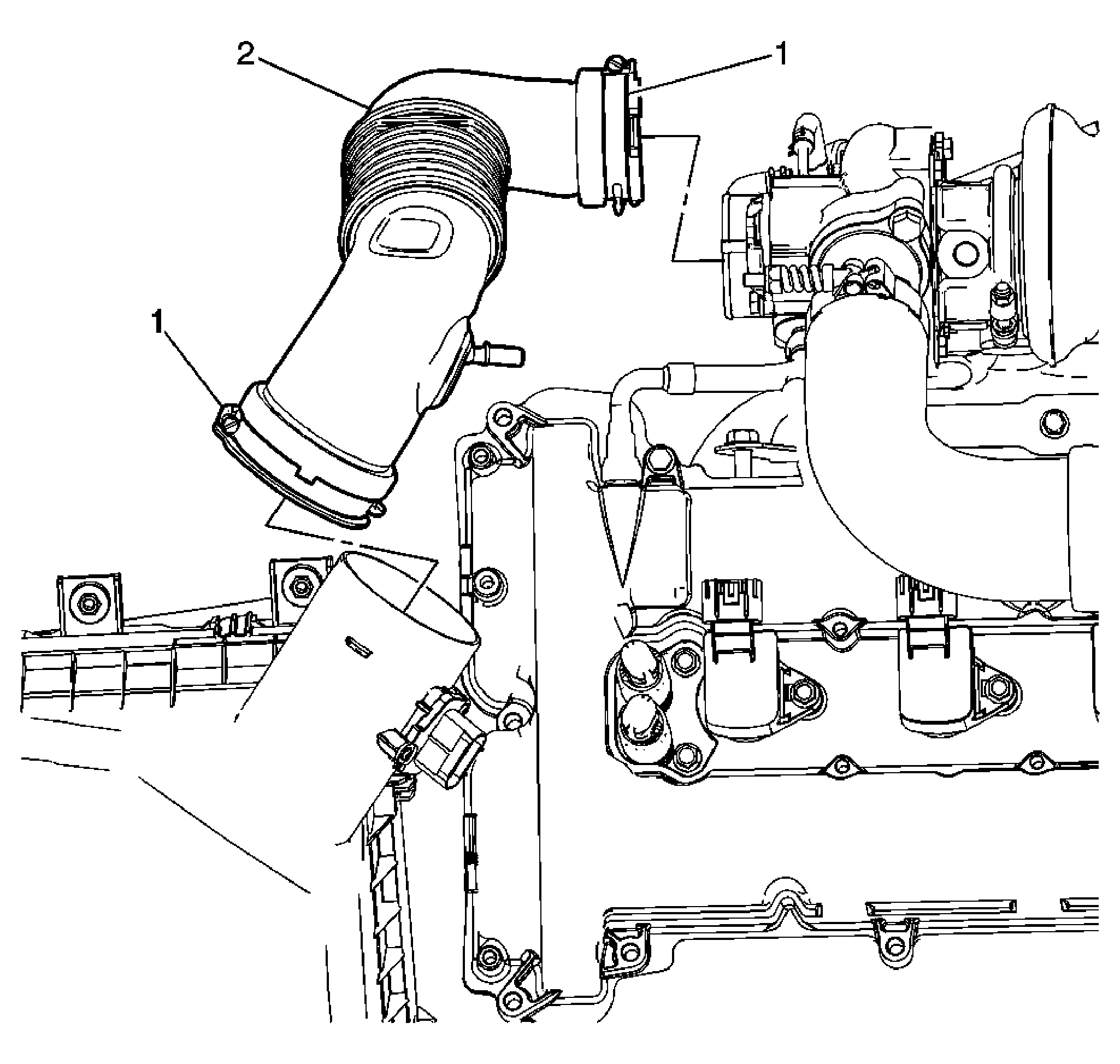

Fig 1: View Of Air Cleaner Outlet Duct
GM2016112Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Disconnect the positive crankcase ventilation (PCV) tube. Refer to Plastic Collar Quick Connect Fitting Service .
1 Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
2 Air Cleaner Outlet Duct
