Fuel Injector




Component Connector End Views

Fuel Injector 1






Fuel Injector 2






Fuel Injector 3






Fuel Injector 4






Fuel Injector 5 (LH9 or LLR)

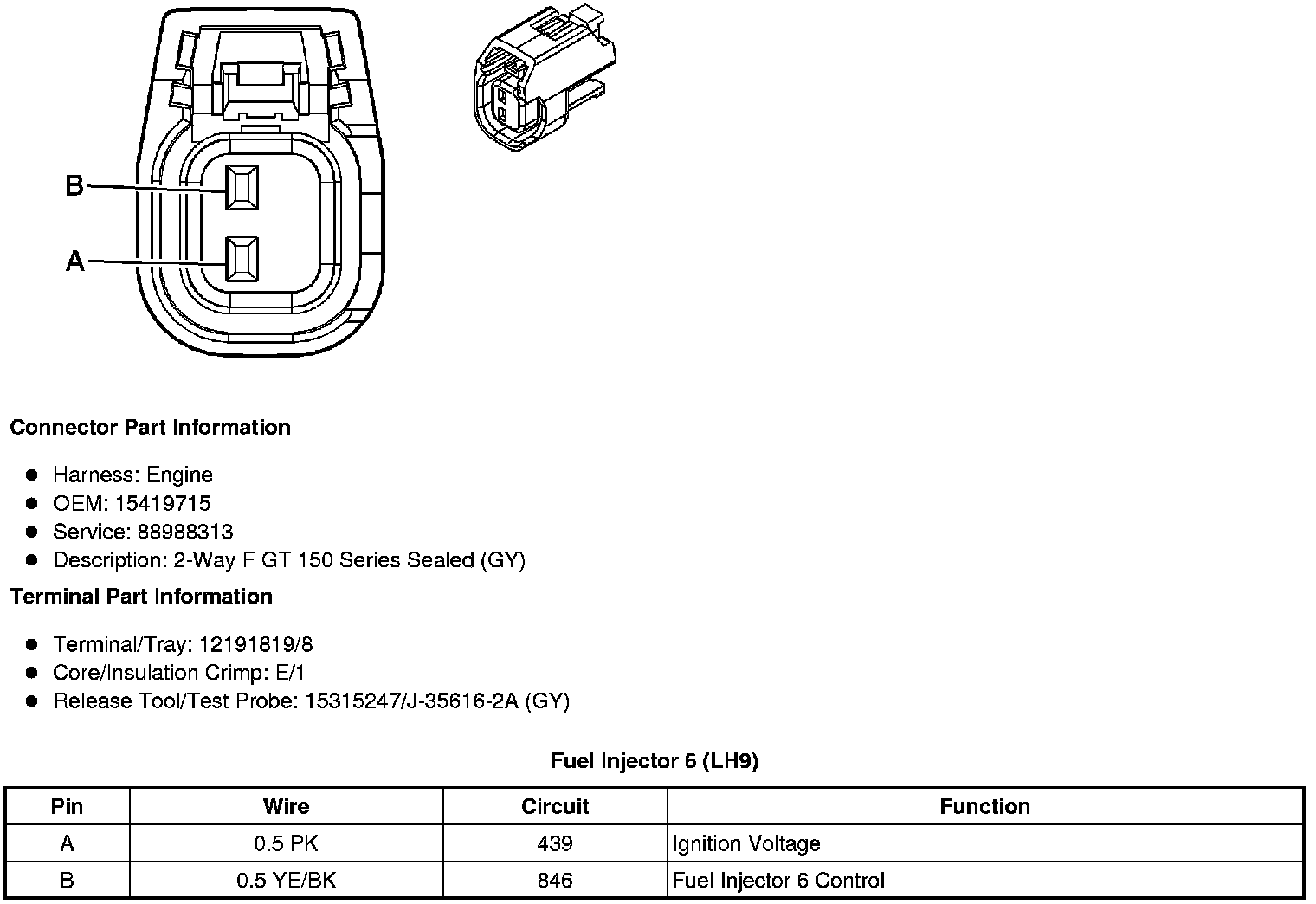

Fuel Injector 6 (LH9)

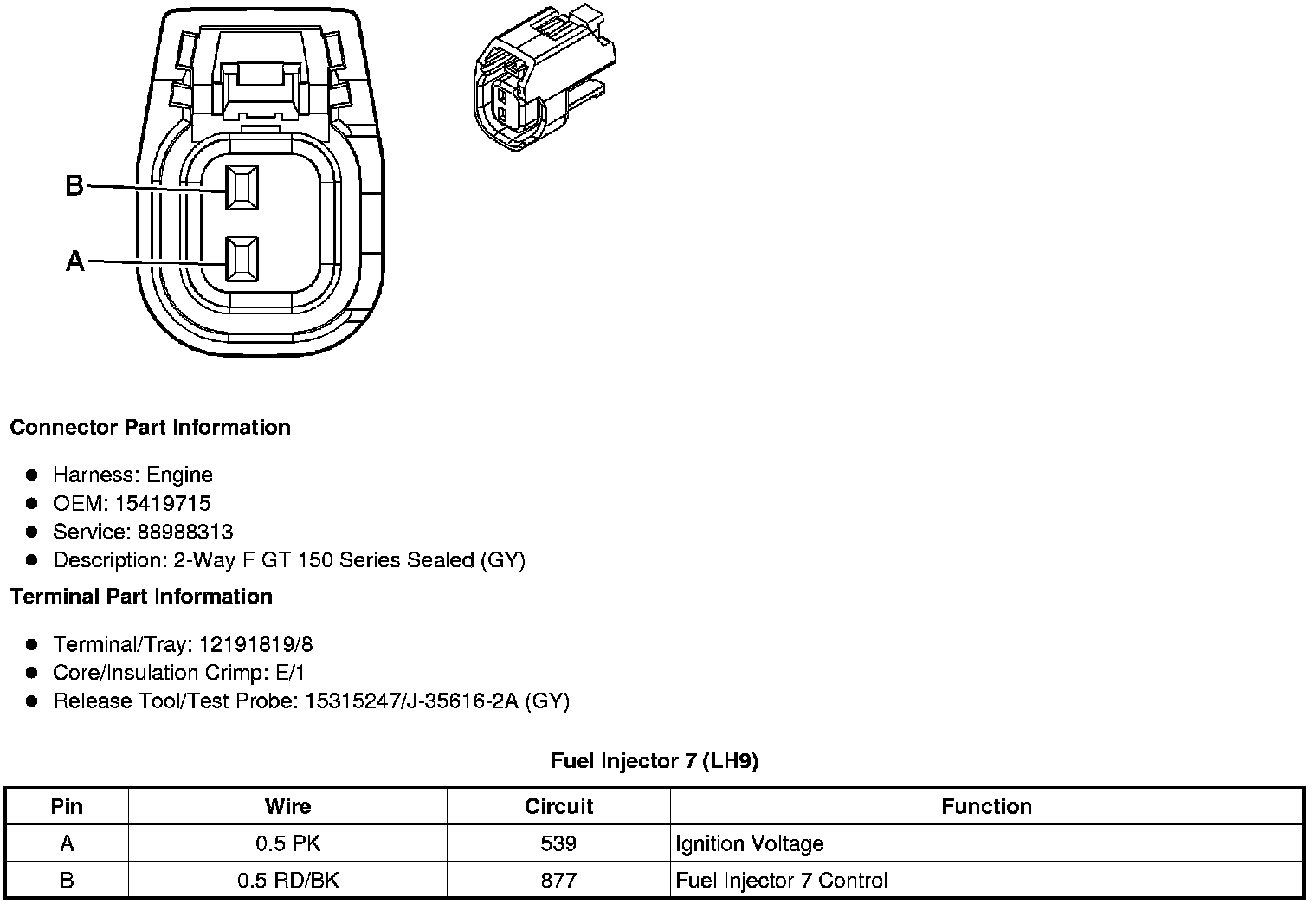

Fuel Injector 7 (LH9)

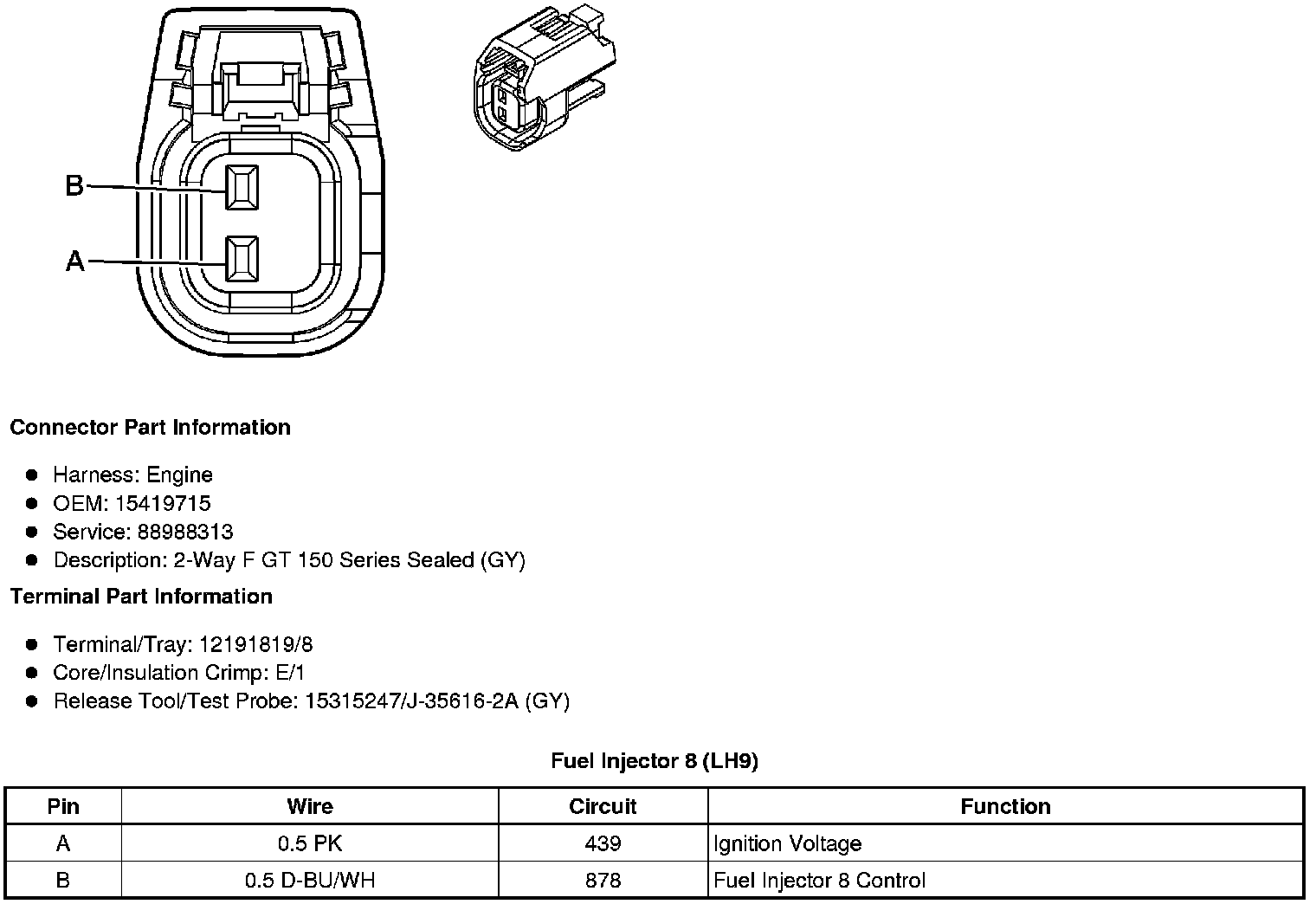

Fuel Injector 8 (LH9)
