Damping Control Actuator




Component Connector End Views

Shock Absorber Actuator - Left Front (F55)





Shock Absorber Actuator - Left Rear (F55)

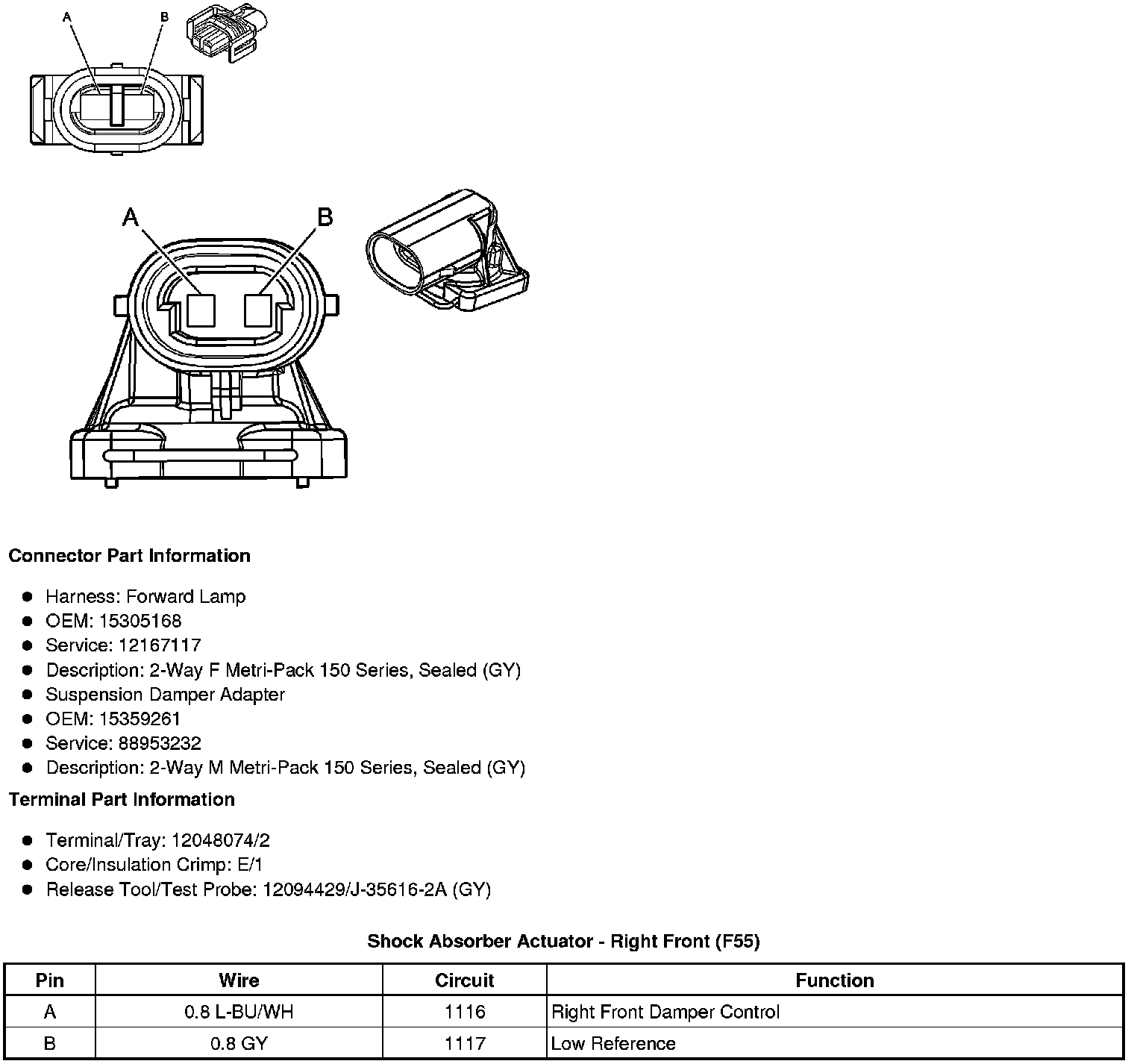

Shock Absorber Actuator - Right Front (F55)

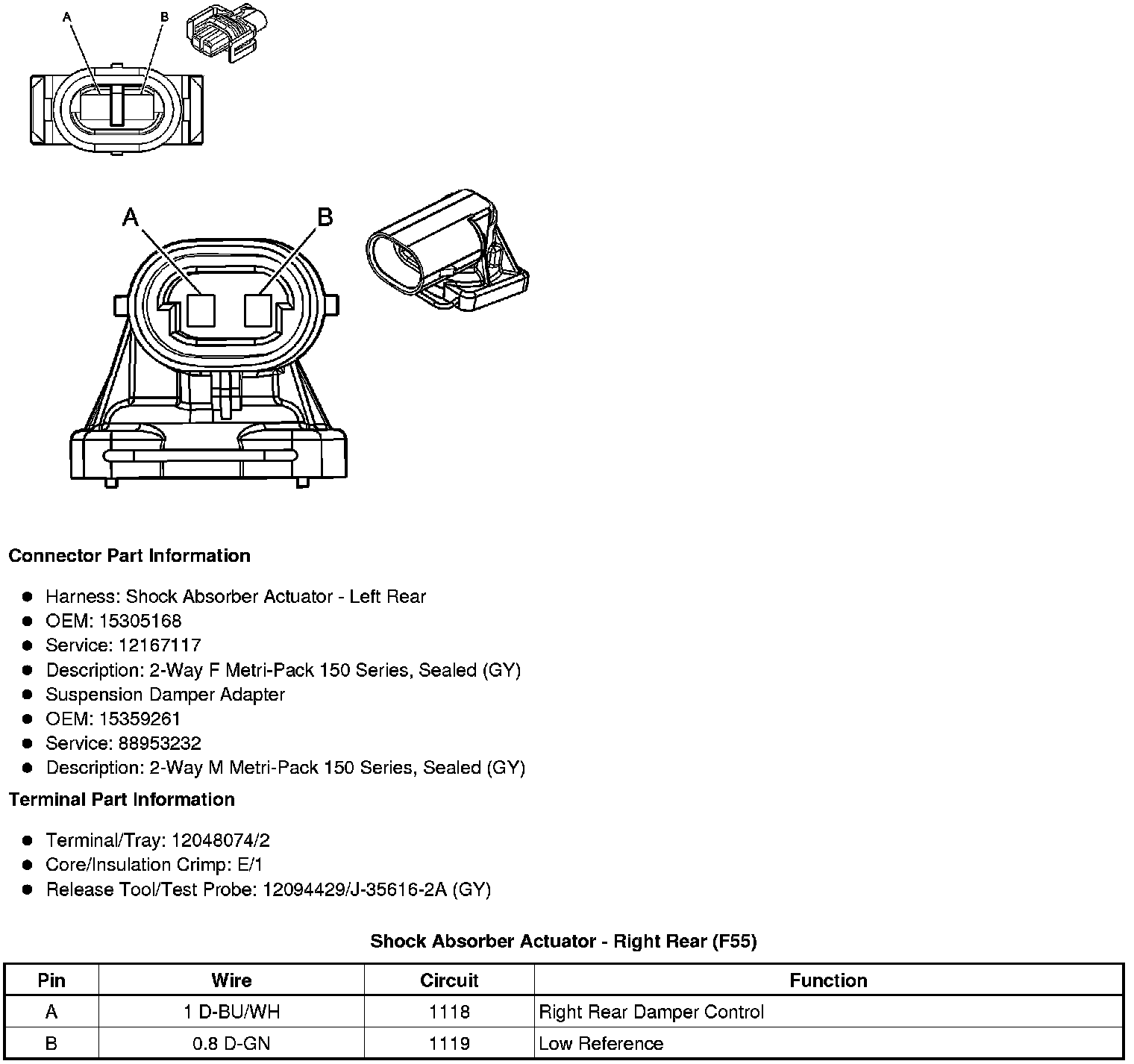

Shock Absorber Actuator - Right Rear (F55)
