Trunk / Liftgate Switch




Component Connector End Views

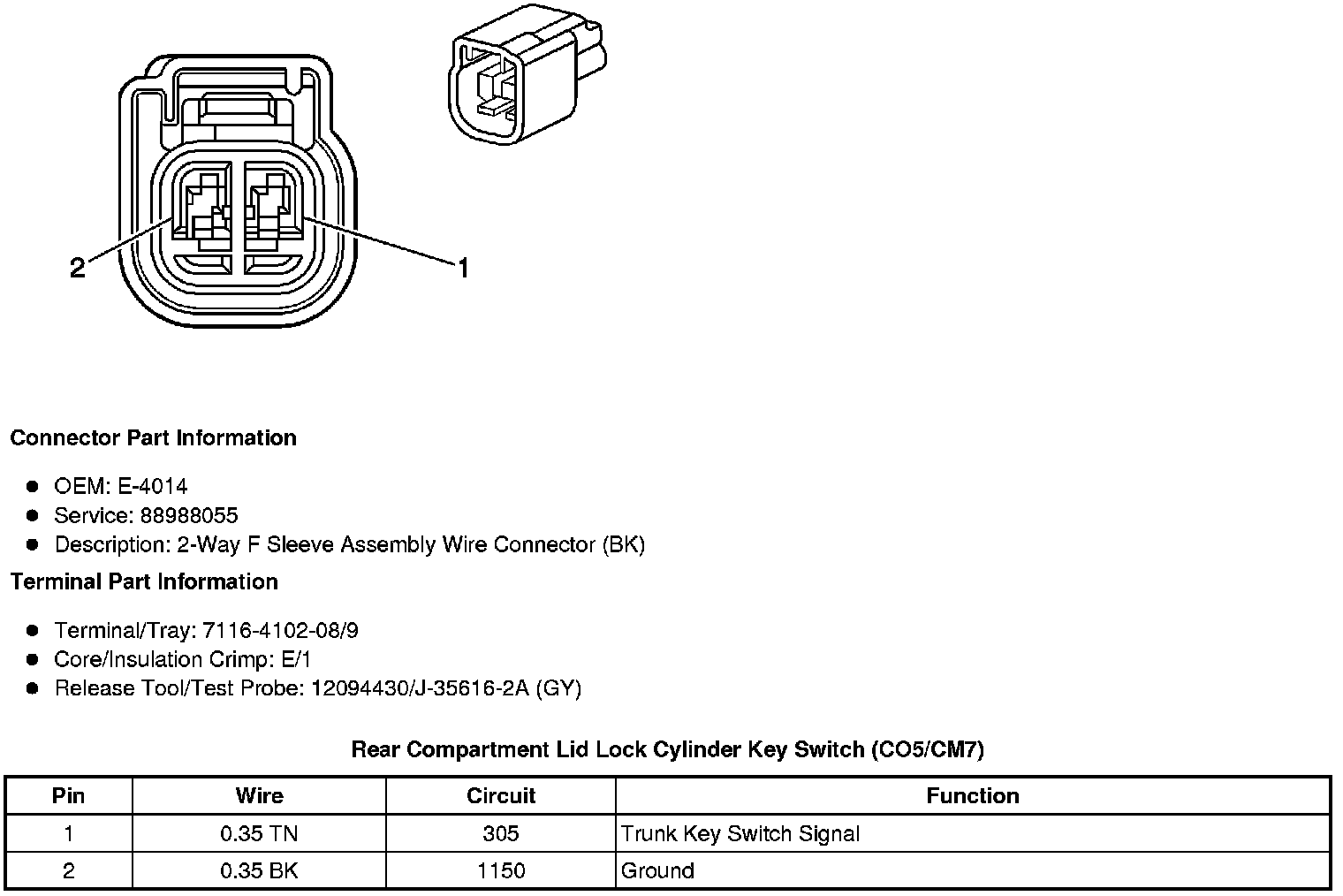

Rear Compartment Lid Lock Cylinder Key Switch (CO5/CM7)

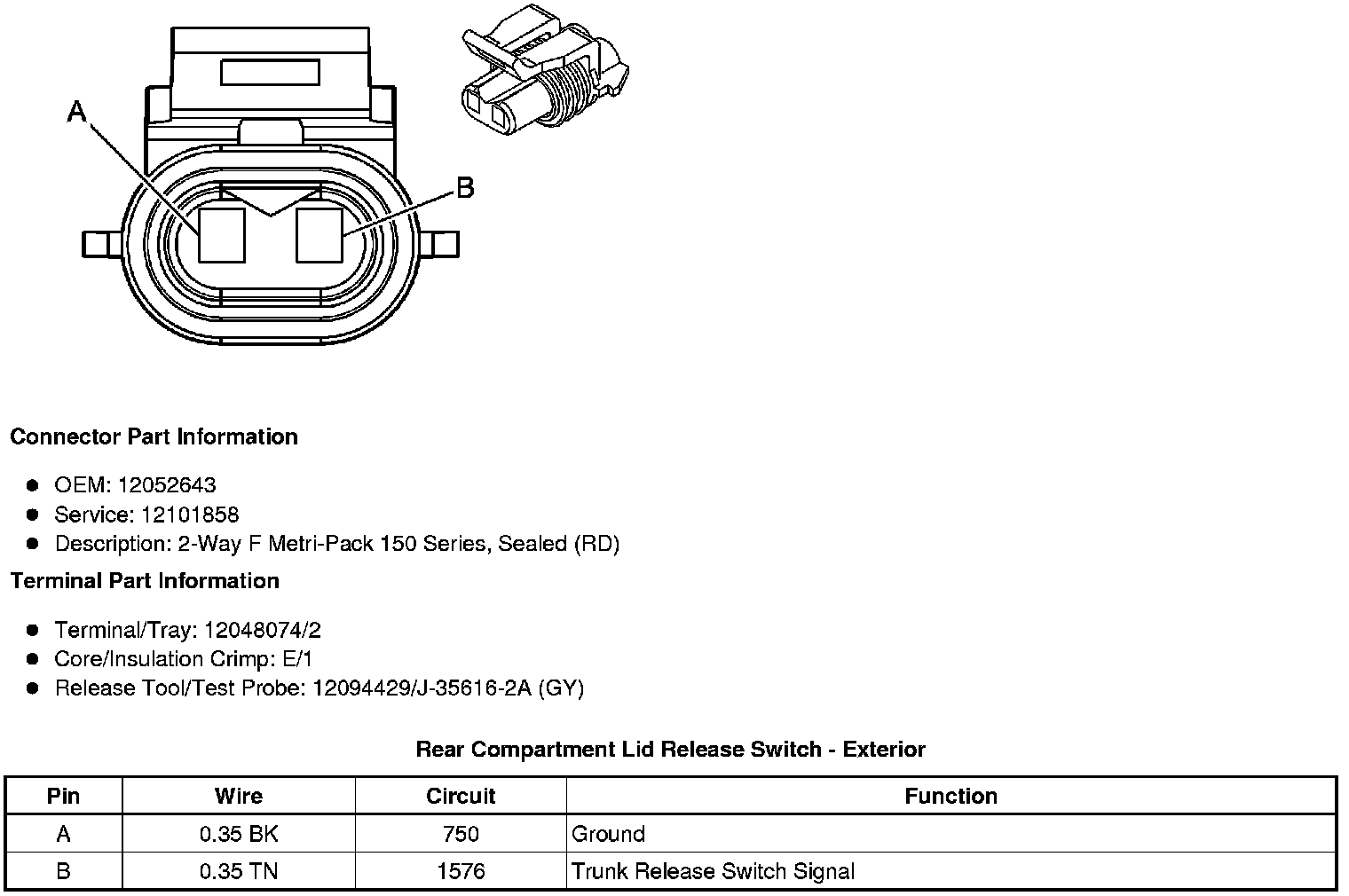

Rear Compartment Lid Release Switch - Exterior





Rear Compartment Lid Release Switch - Interior
