System Diagram




Component Connector End Views

Park/Turn Signal Lamp - Left Front (without T90)

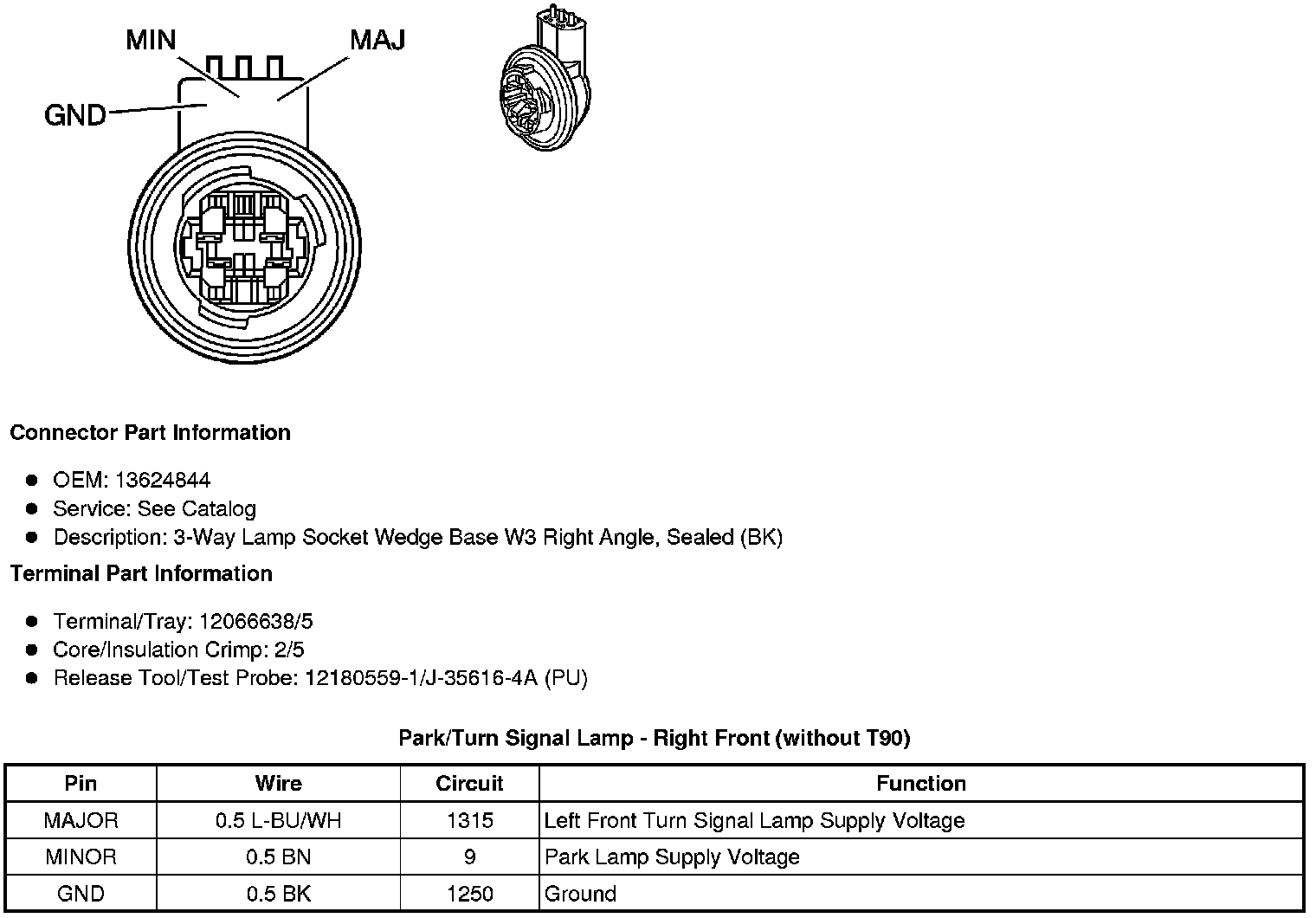

Park/Turn Signal Lamp - Right Front (without T90)
