Fuel Pressure Sensor: Locations

Harness Routing Views

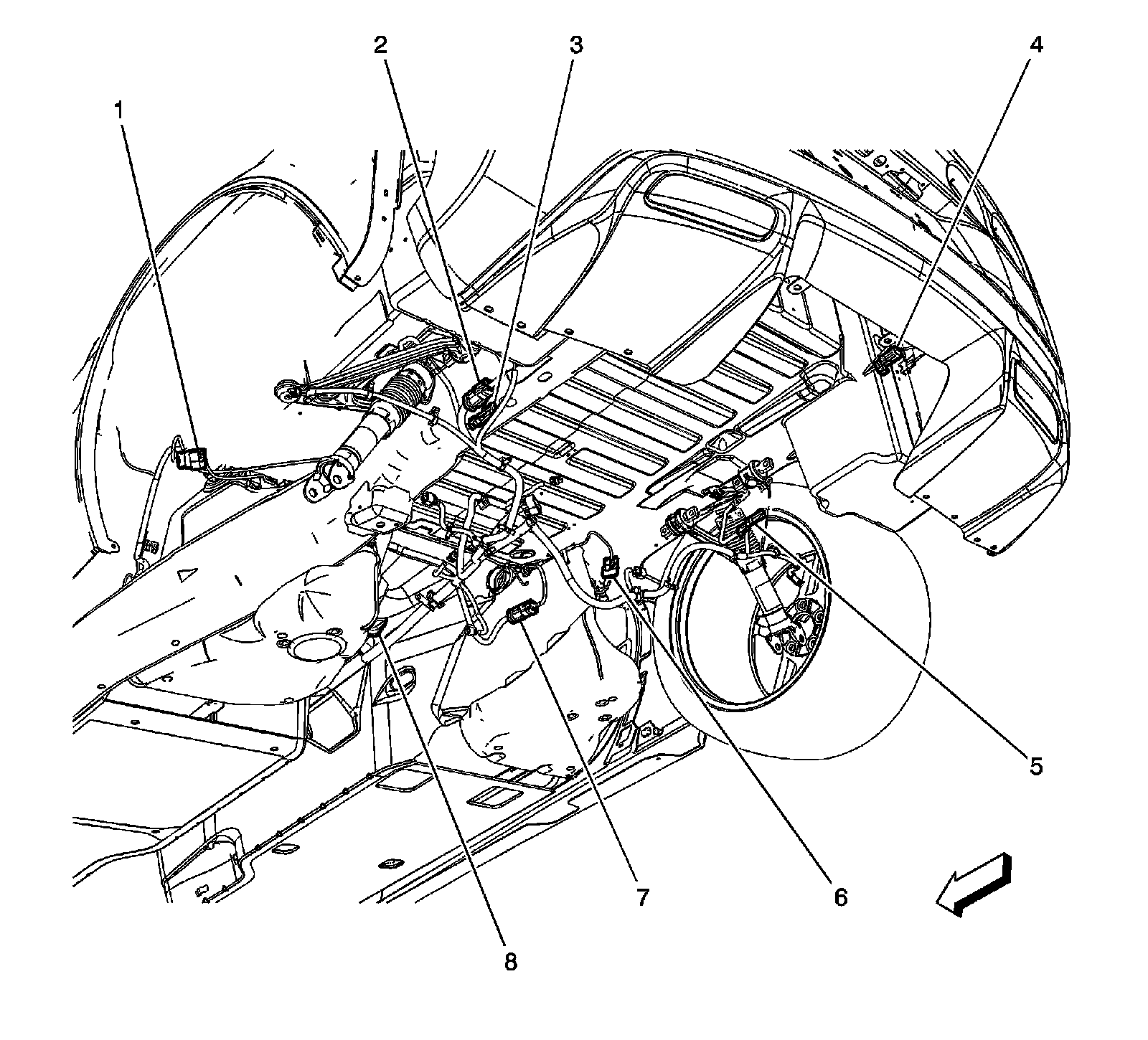

Rear Underbody Harness Routing (LS7 or LS9)




1 - X469 (LS9)
2 - X442
3 - X439 (F55)
4 - X455
5 - X440
6 - X460
7 - X421
8 - Fuel Pressure Sensor
