Level and Temperature Emission Reduction Fluid Tank Module Replacement

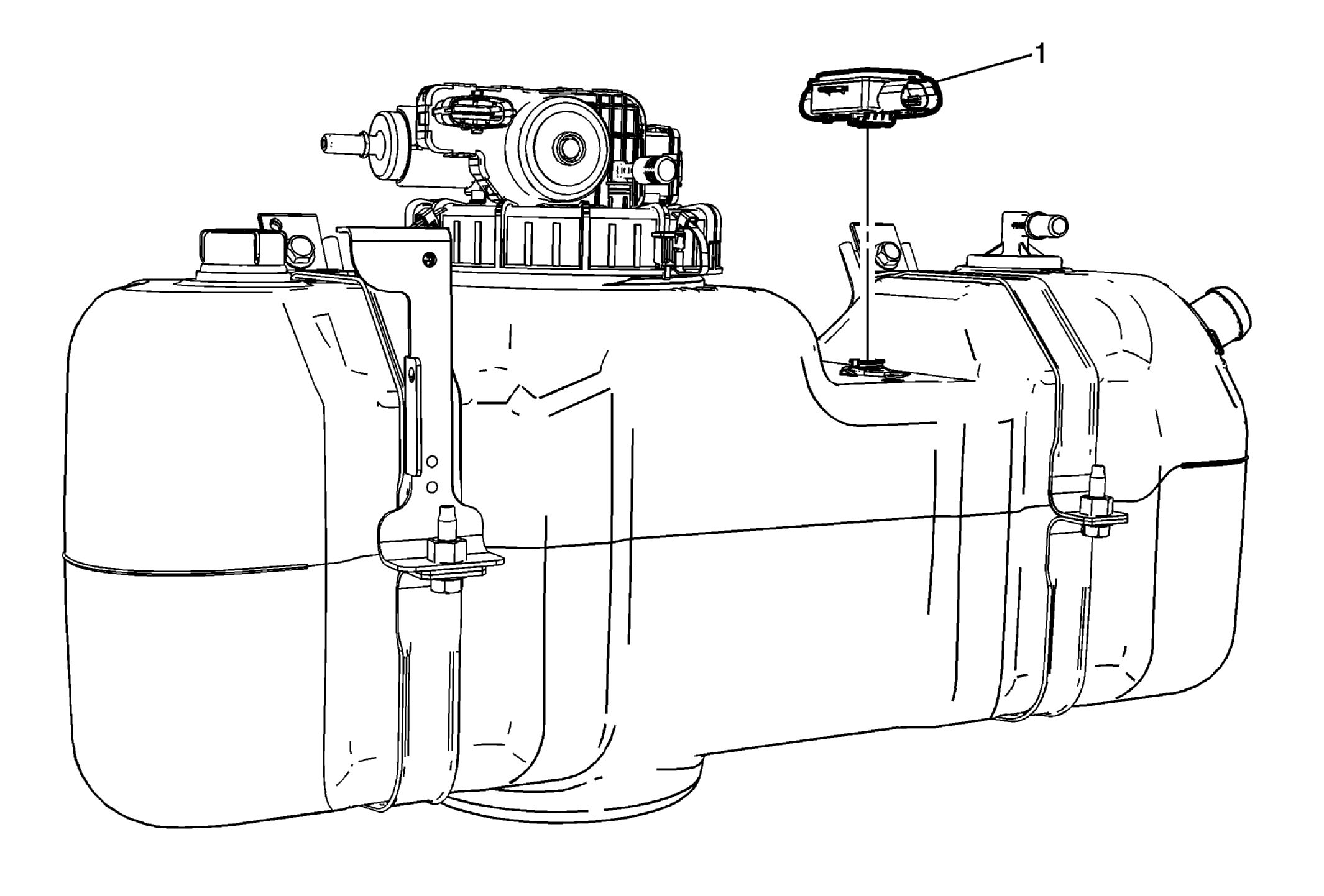

Fig 1: Level and Temperature Emission Reduction Fluid Tank Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the emission reduction fluid tank. Refer to Emission Reduction Fluid Tank Replacement . Disconnect the electrical connectors from module.
1	Level and Temperature Emission Reduction Fluid Tank Module Procedure Depress tab to remove module from tank.

Callout

Component Name

Preliminary Procedures

Remove the emission reduction fluid tank. Refer to Emission Reduction Fluid Tank Replacement .
Disconnect the electrical connectors from module.

Level and Temperature Emission Reduction Fluid Tank Module
Procedure
Depress tab to remove module from tank.
