Fu - Fu
Component Connector End Views
Fuel Injector 1 (LU3)

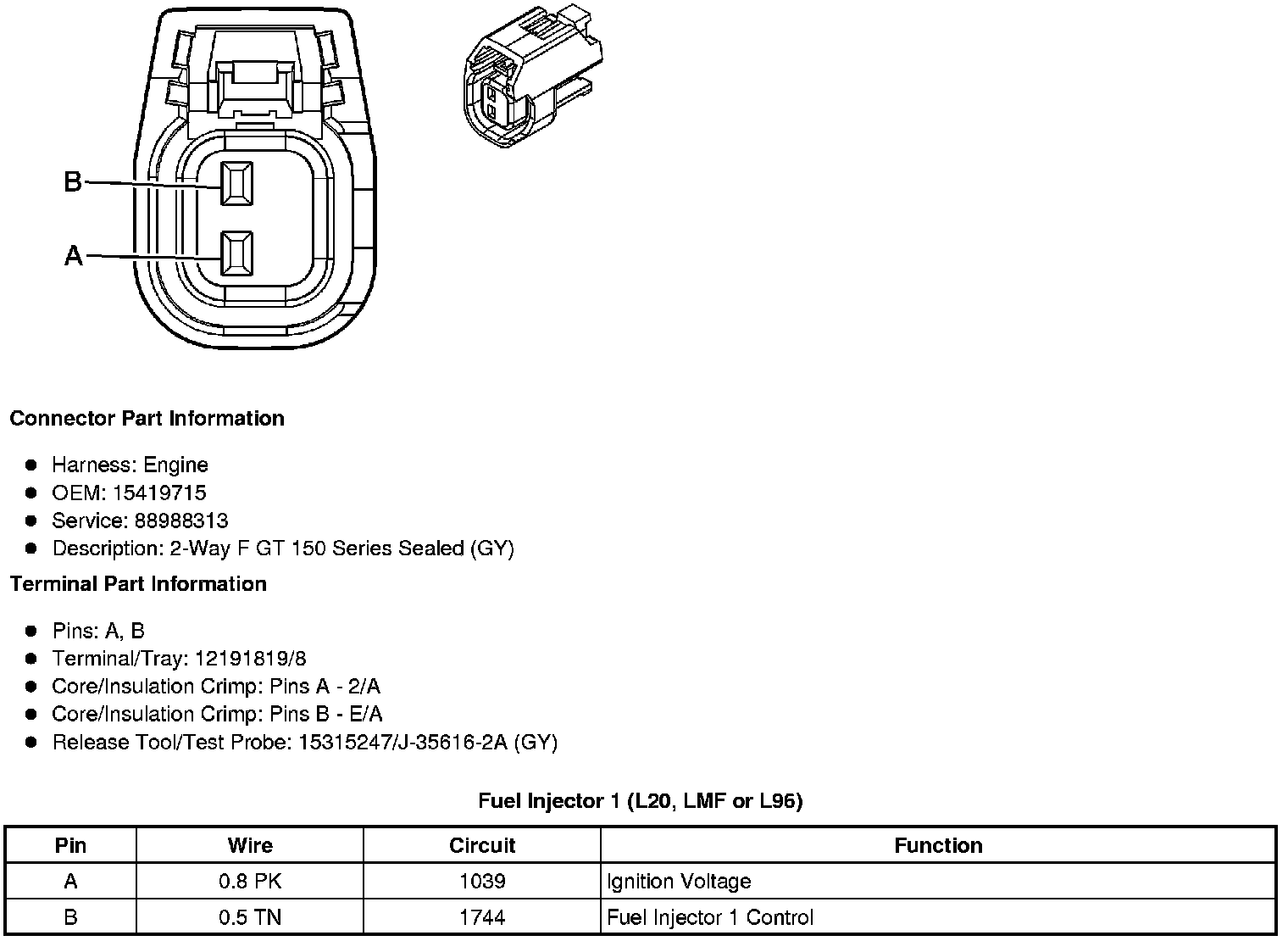

Fuel Injector 1 (L20, LMF or L96)
Fuel Injector 1 (LGH)
Fuel Injector 1 (LMM)
Fuel Injector 2 (LU3)

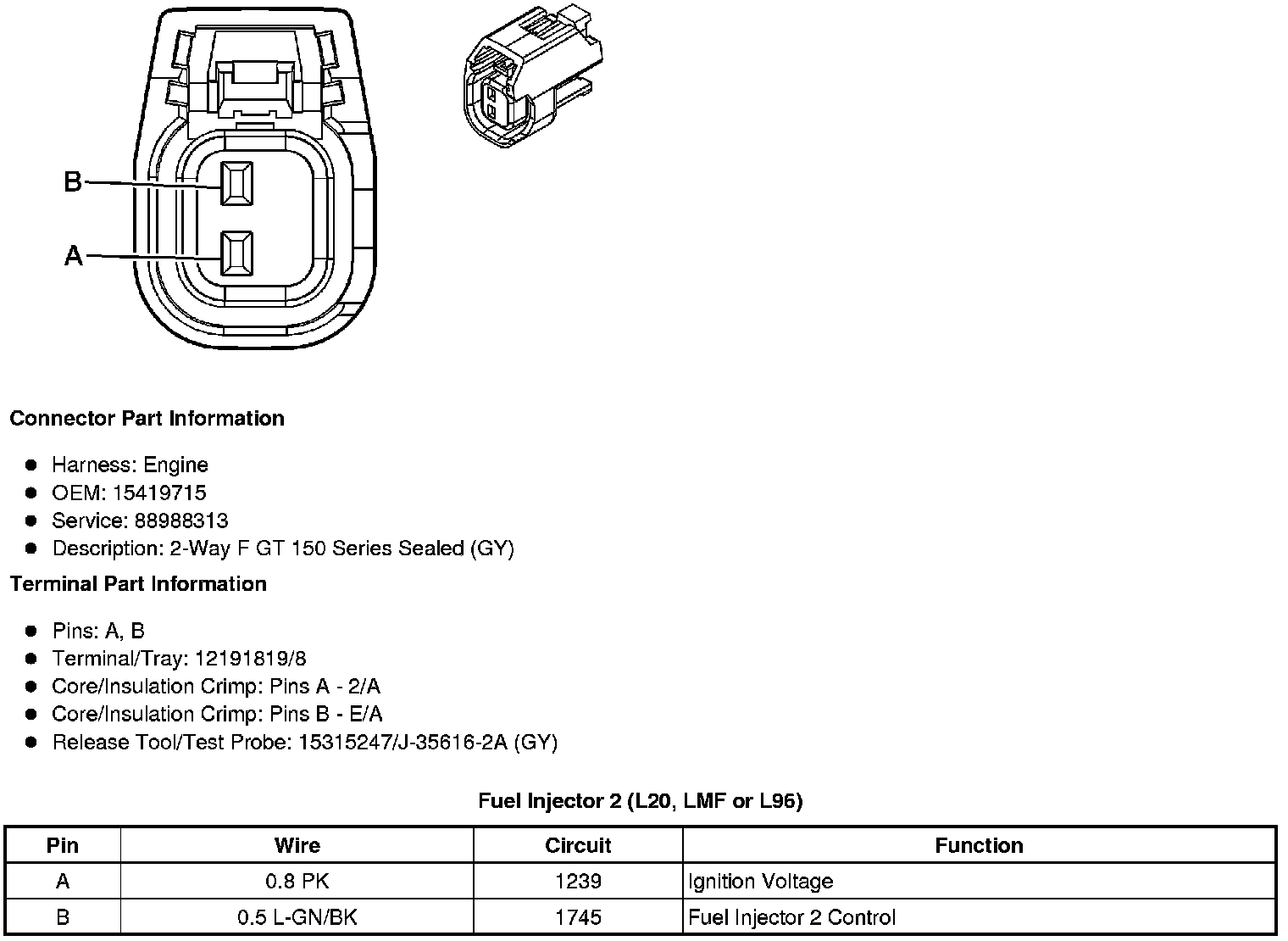

Fuel Injector 2 (L20, LMF or L96)

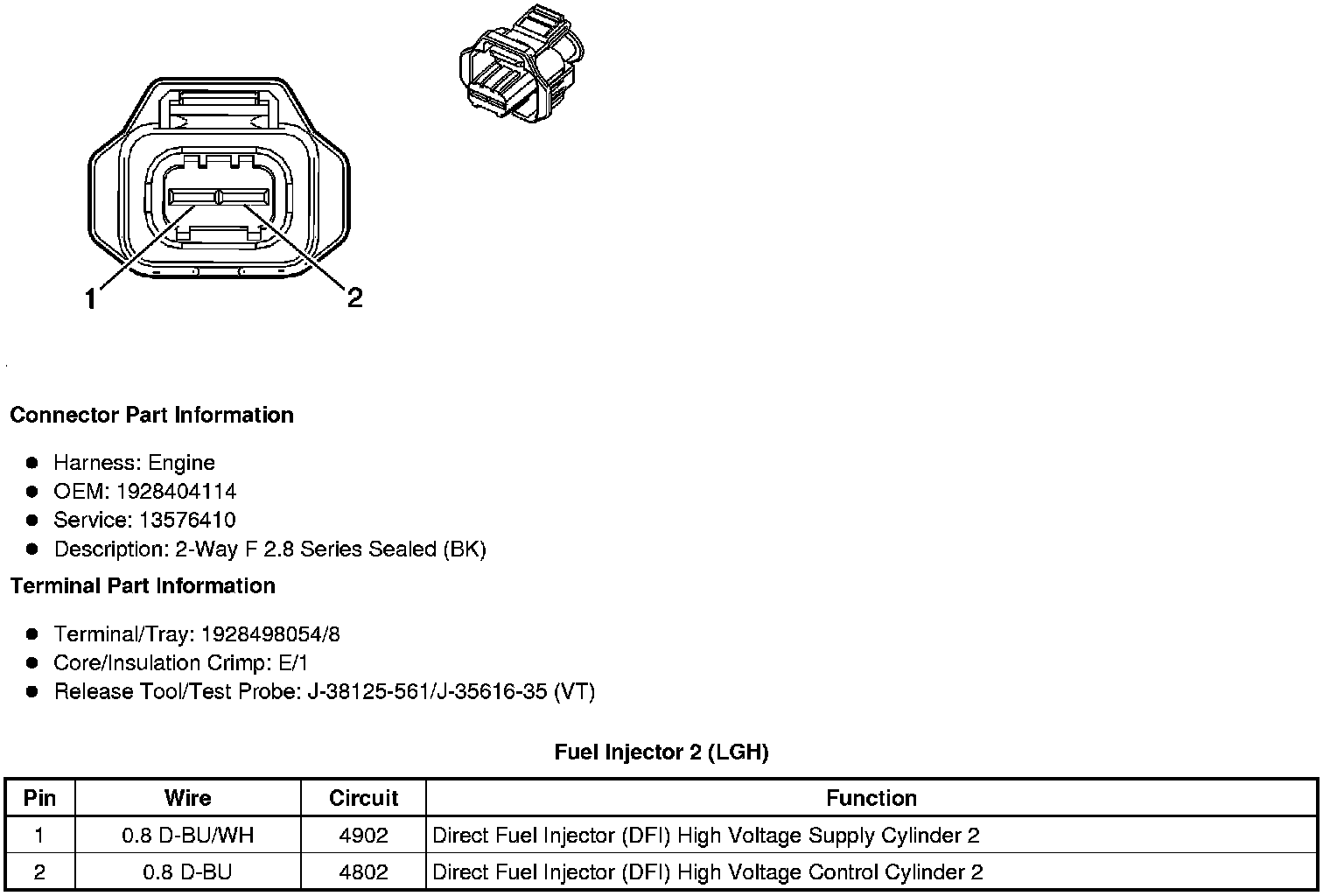

Fuel Injector 2 (LGH)
Fuel Injector 2 (LMM)
Fuel Injector 3 (LU3)
Fuel Injector 3 (L20, LMF or L96)

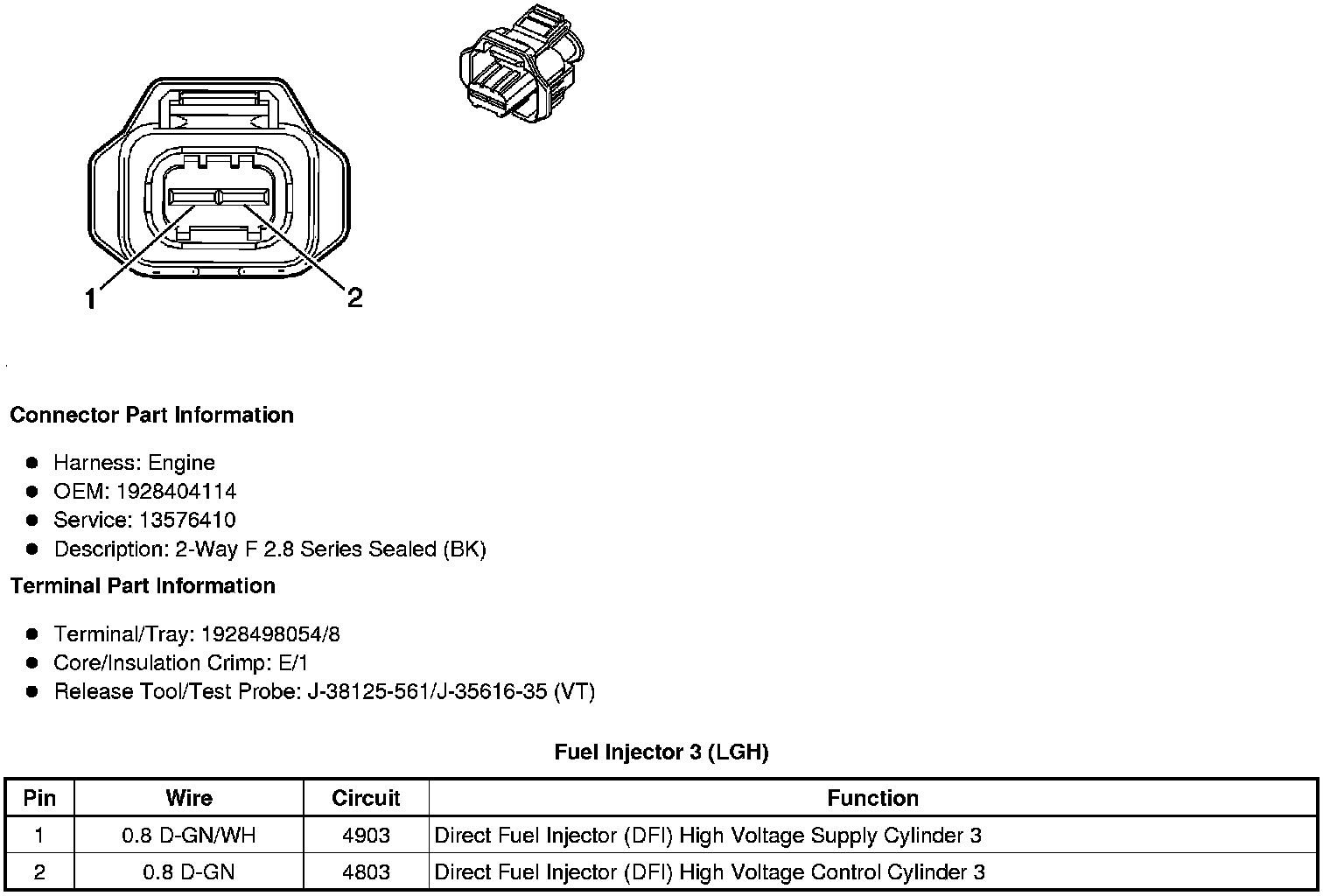

Fuel Injector 3 (LGH)
Fuel Injector 3 (LMM)
Fuel Injector 4 (LU3)
Fuel Injector 4 (L20, LMF or L96)

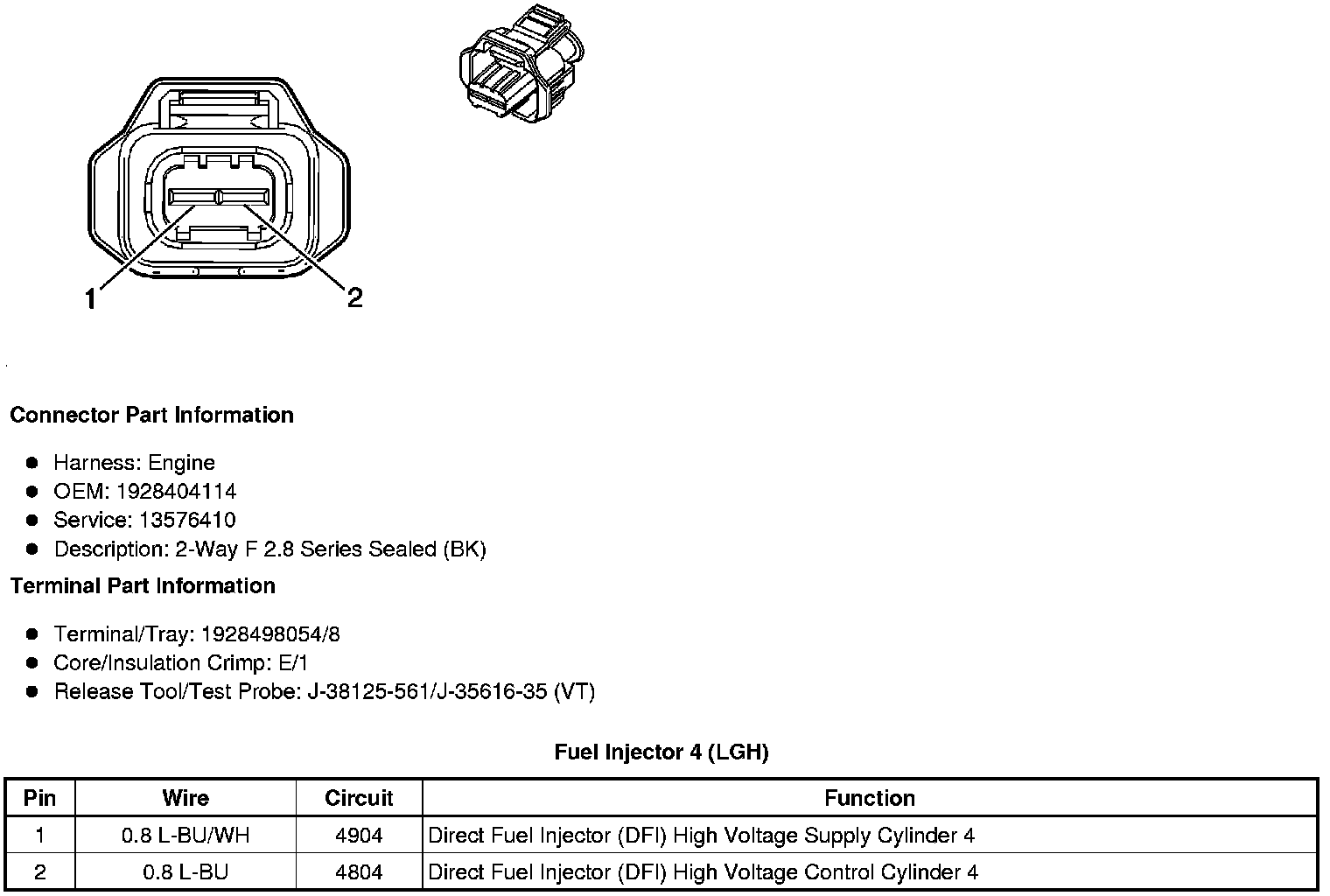

Fuel Injector 4 (LGH)
Fuel Injector 4 (LMM)
Fuel Injector 5 (LU3)
Fuel Injector 5 (L20, LMF or L96)

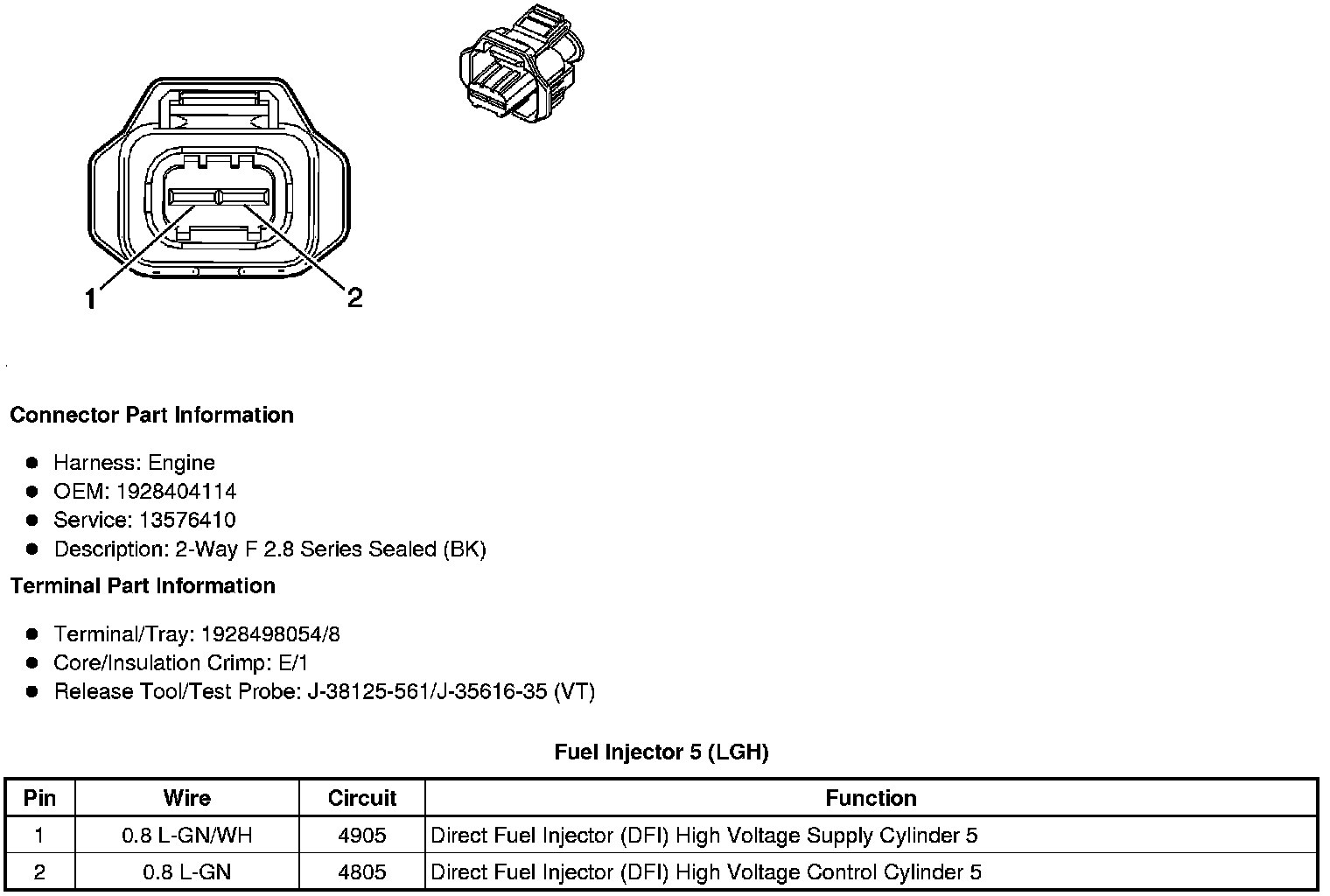

Fuel Injector 5 (LGH)
Fuel Injector 5 (LMM)
Fuel Injector 6 (LU3)

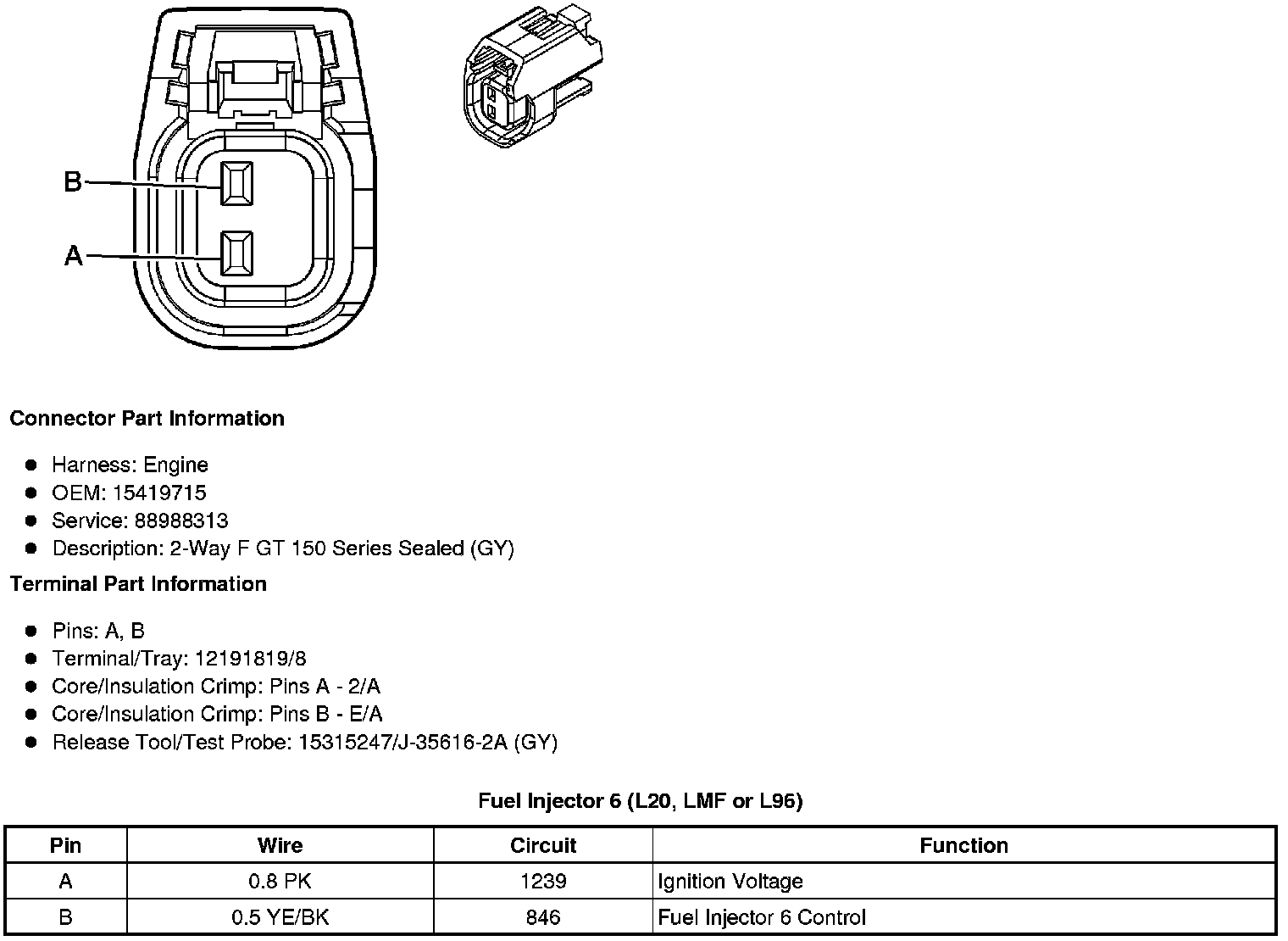

Fuel Injector 6 (L20, LMF or L96)

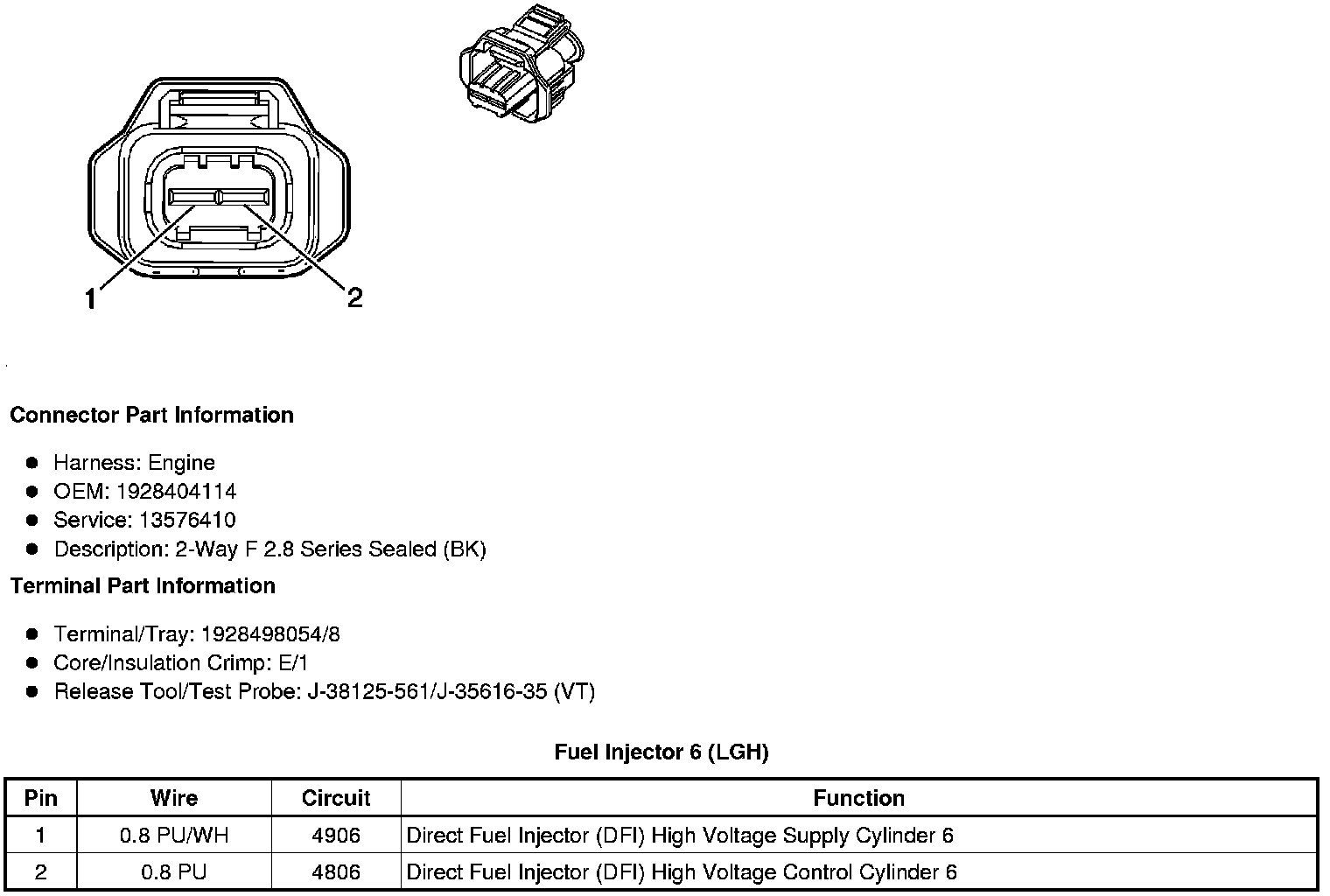

Fuel Injector 6 (LGH)
Fuel Injector 6 (LMM)
Fuel Injector 7 (L20, LMF or L96)
Fuel Injector 7 (LGH)
Fuel Injector 7 (LMM)
Fuel Injector 8 (L20, LMF or L96)
Fuel Injector 8 (LGH)
Fuel Injector 8 (LMM)
