Knock Sensor




Component Connector End Views

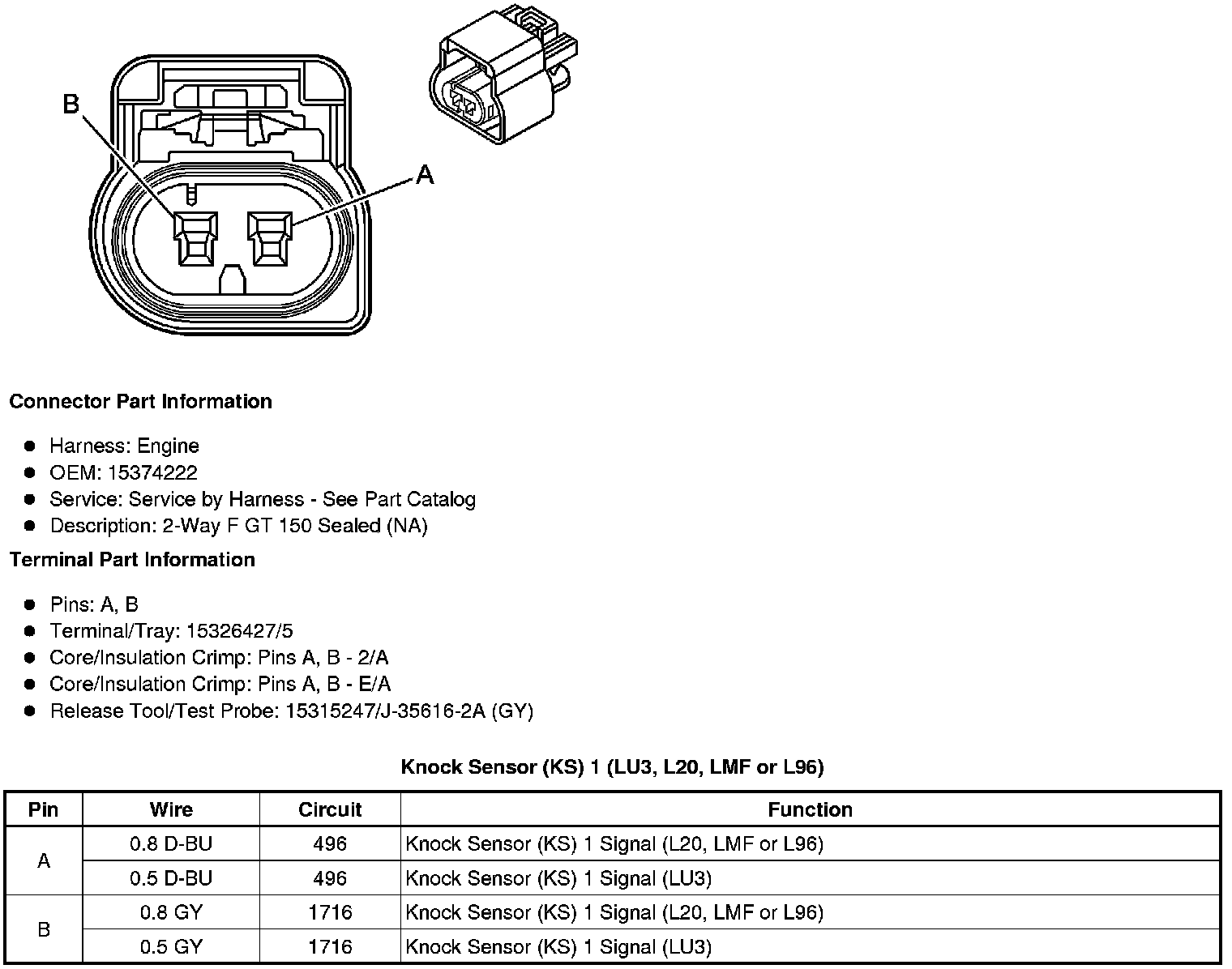

Knock Sensor (KS) 1 (LU3, L20, LMF or L96)





Knock Sensor (KS) 2 (LU3, L20, LMF or L96)
