Steering Mounted Controls Transmitter




Component Connector End Views

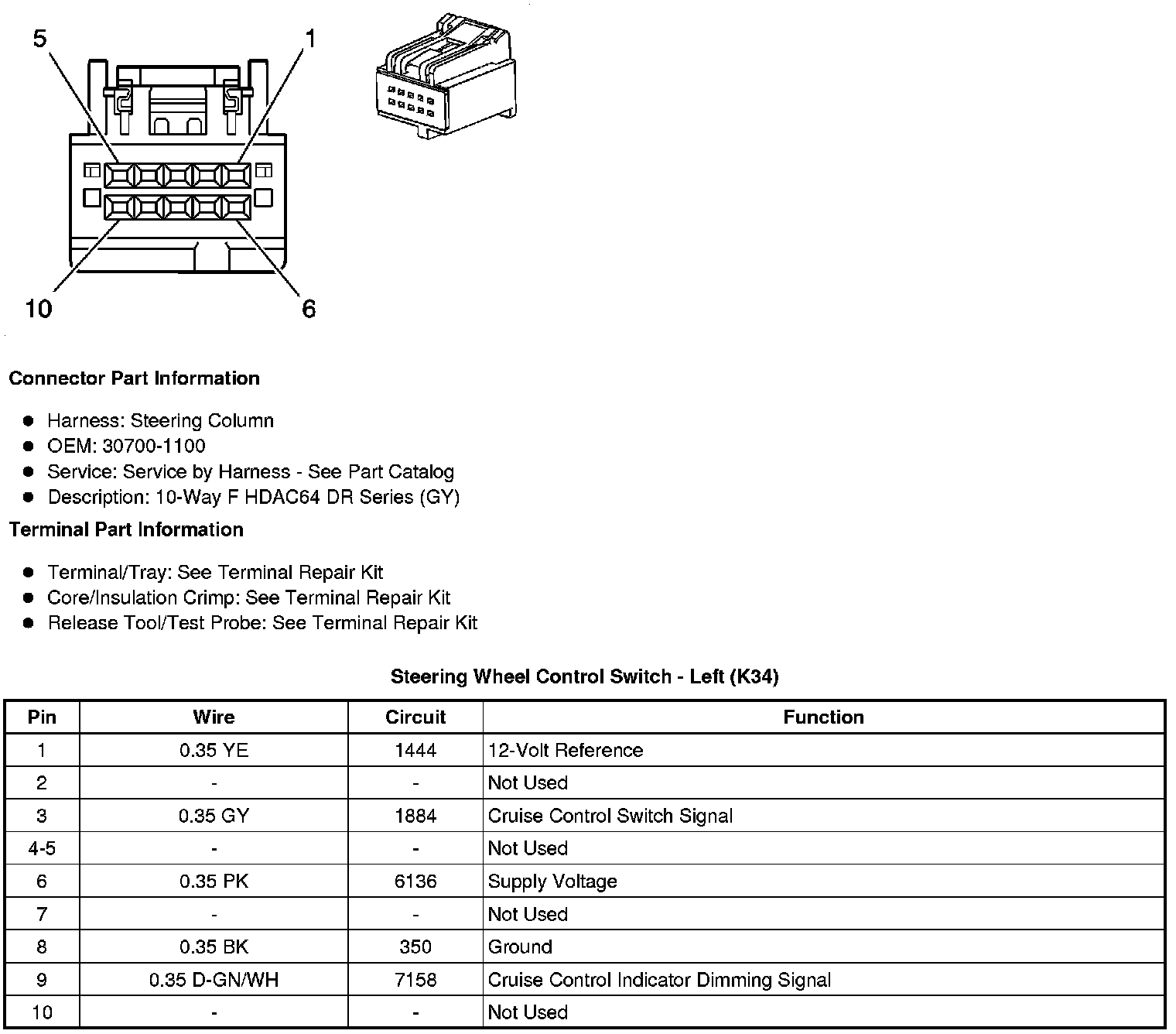

Steering Wheel Control Switch - Left (K34)

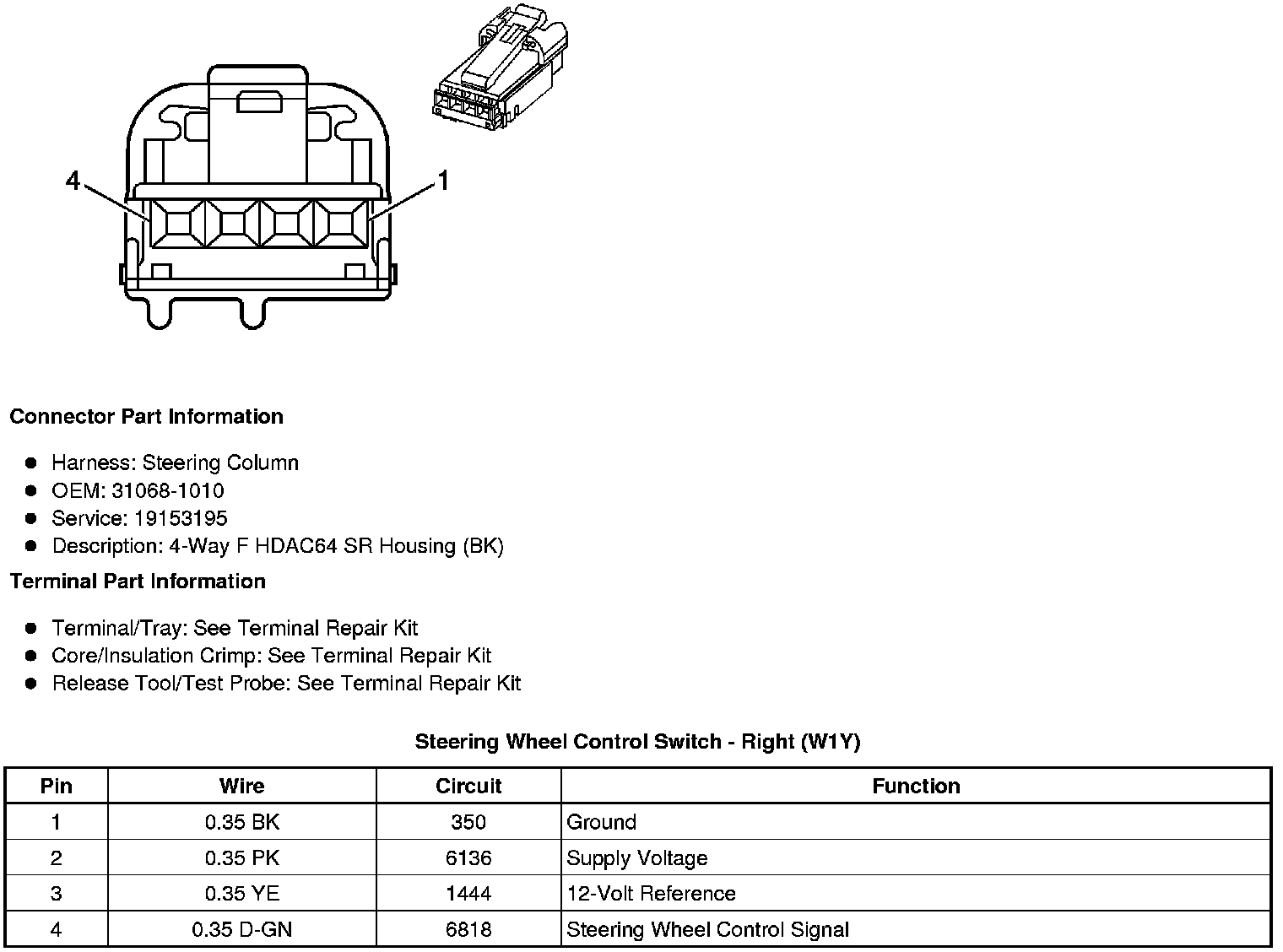

Steering Wheel Control Switch - Right (W1Y)
