Camshaft Position Sensor: Diagrams




Component Connector End Views

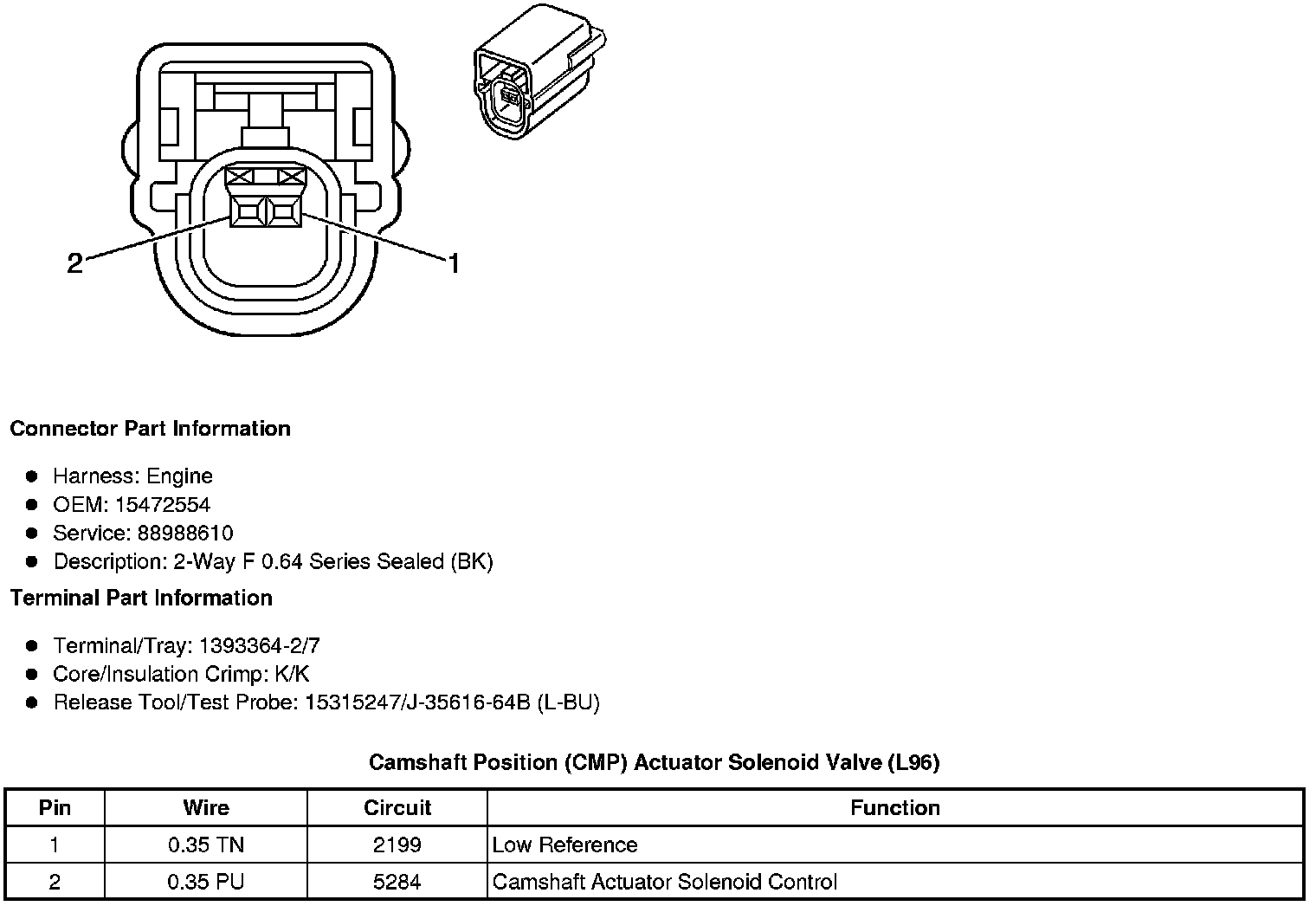

Camshaft Position (CMP) Actuator Solenoid Valve (L96)

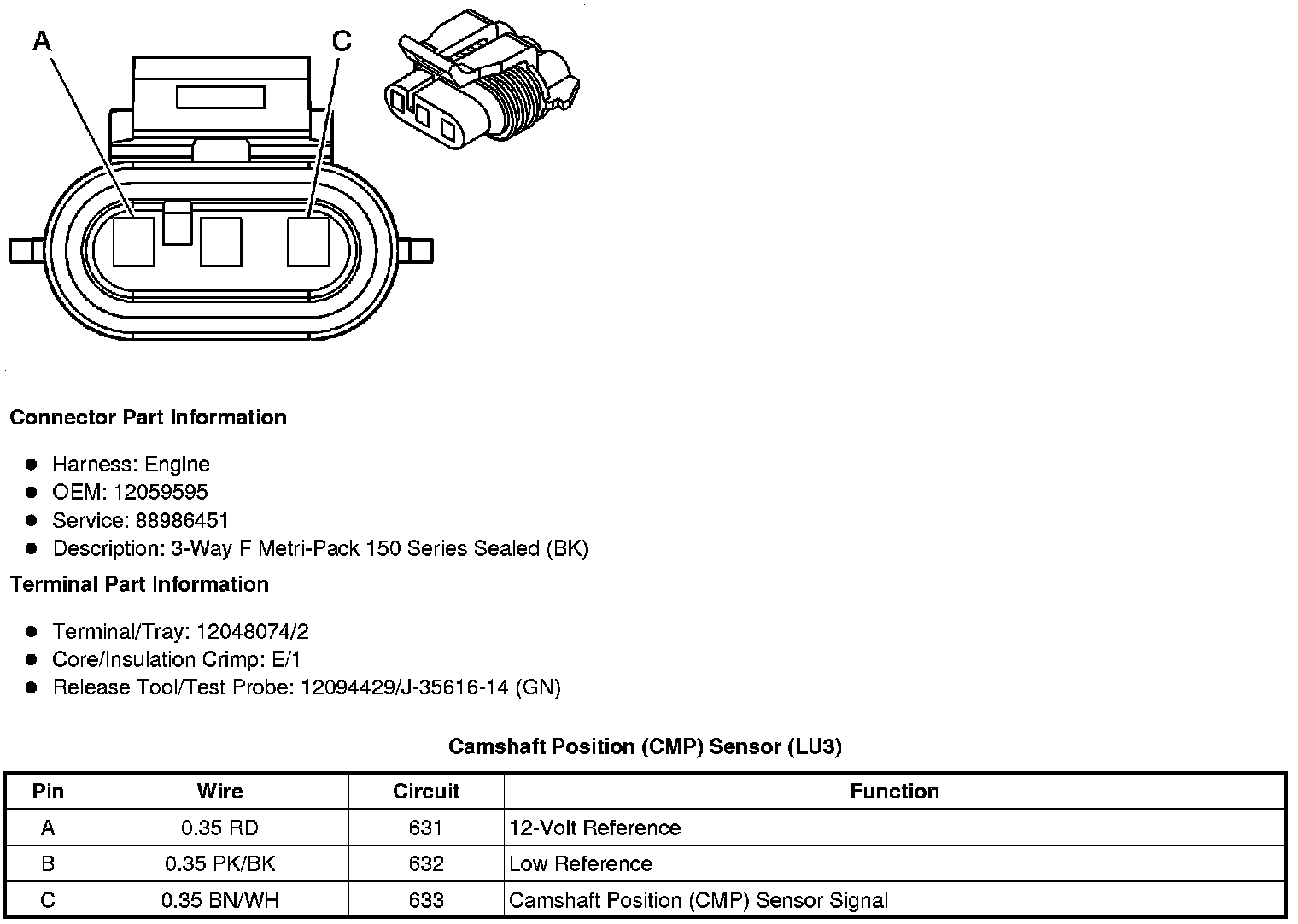

Camshaft Position (CMP) Sensor (LU3)





Camshaft Position (CMP) Sensor (L20, LMF or L96)

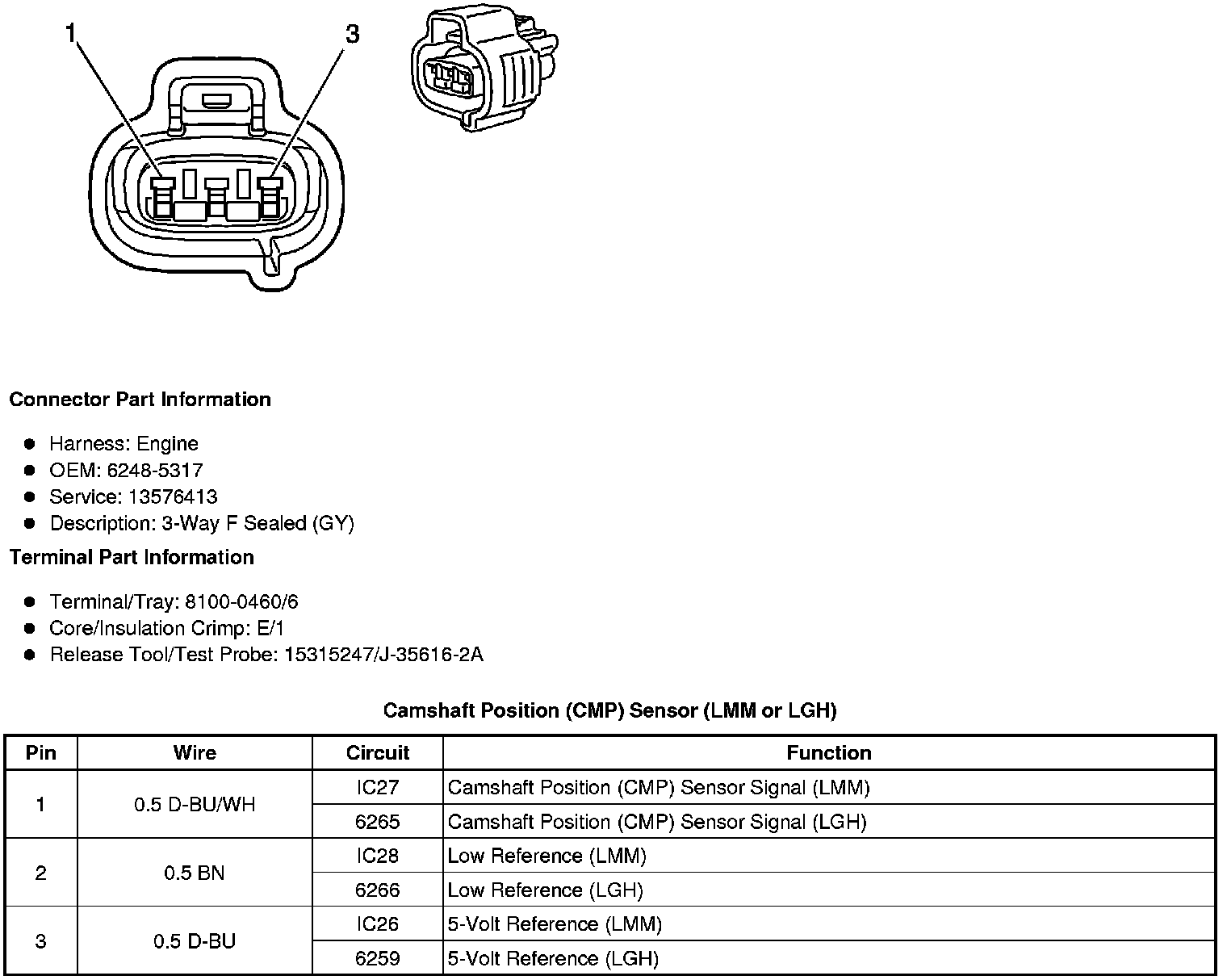

Camshaft Position (CMP) Sensor (LMM or LGH)
